CZ purlin machine

Zhongtuo CZ purlin machine is fully automatic degree, sizes changing automatically, C and Z change automatically, servo motor high speed driving, Machine only use pre-cutting system, no post cutting system. Pre-cutting frame making machine can keep purlin production shape prefect.

Advantage: Machine cutting No waste material, pre cutting machine is faster than post cutting machine. Pre-cutting machine no need to adjust the cutting blades.

CZ Purlin Machine flow drawing:

Uncoiling → Feeding material into machine →Leveling → Punching and Pre-shearing →Roll forming →Products receiving table

Machine Details introduce:

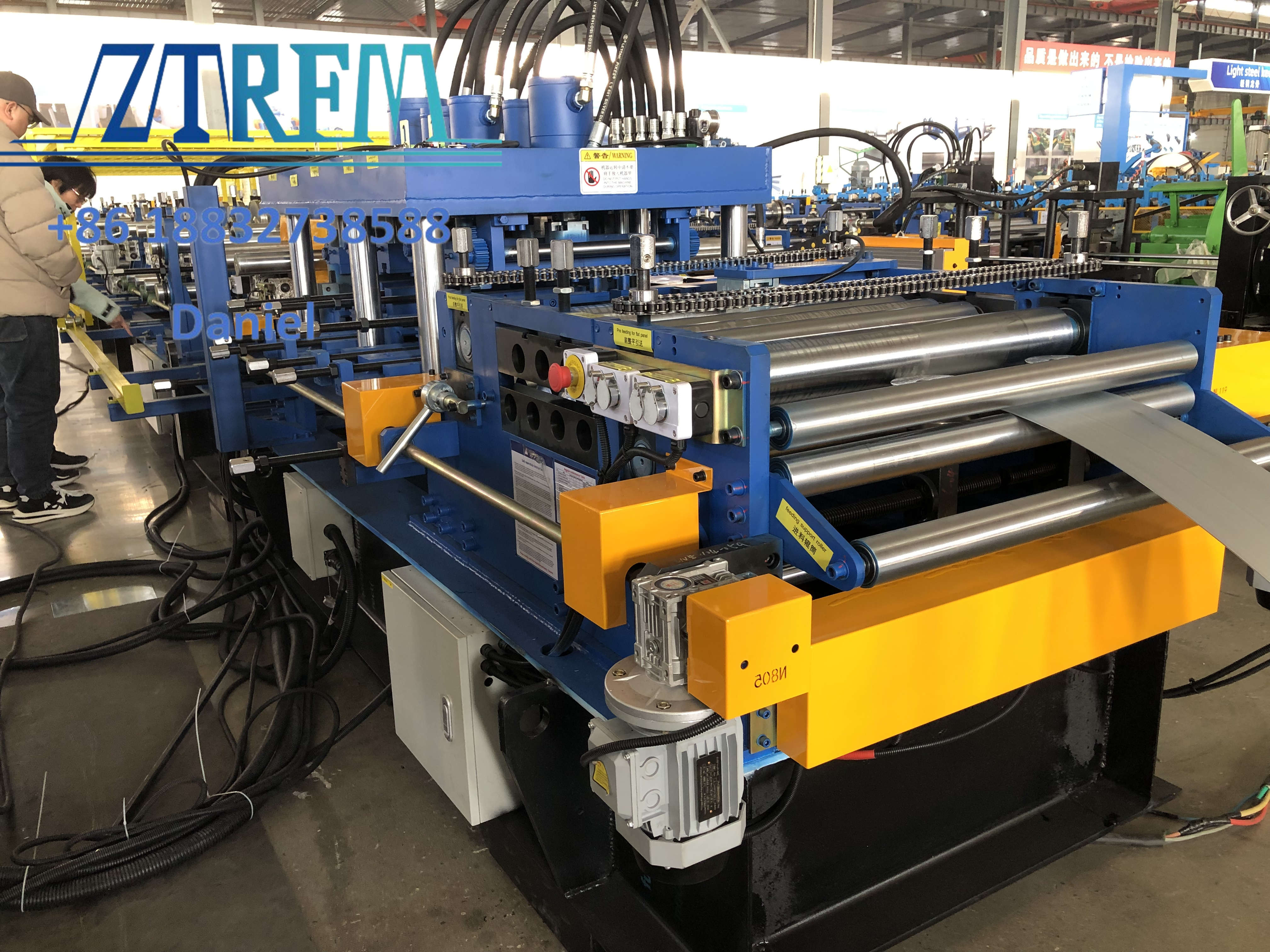

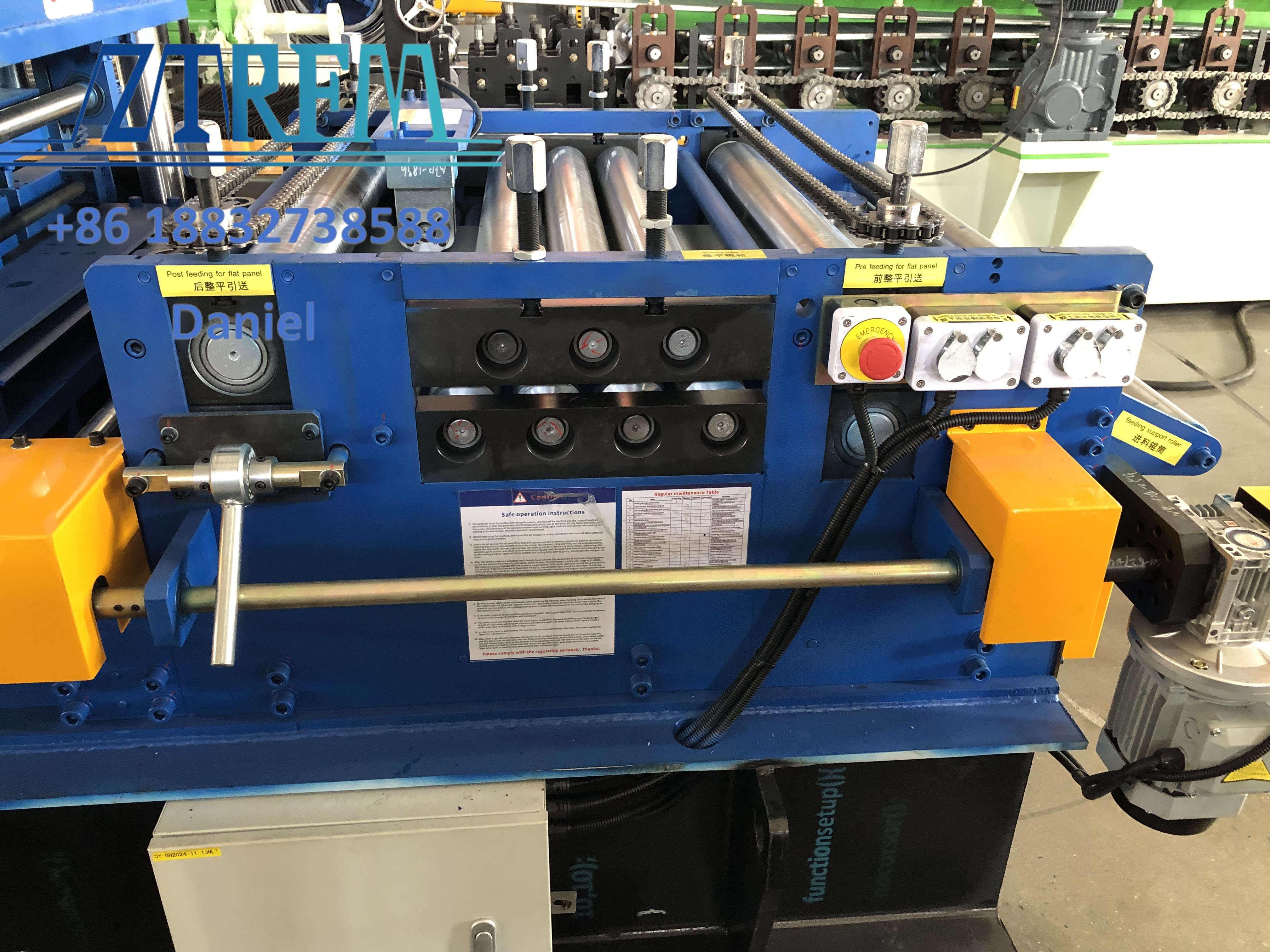

1. Feeding and leveling part

Leveling rollers: 3 up 4 down
Roller material: Cr15
Roller diameter: 75mm
Feeding width adjustment: automatic by button
Make sure inputted steel sheet straight and neat and then roll forming process could be made accurate

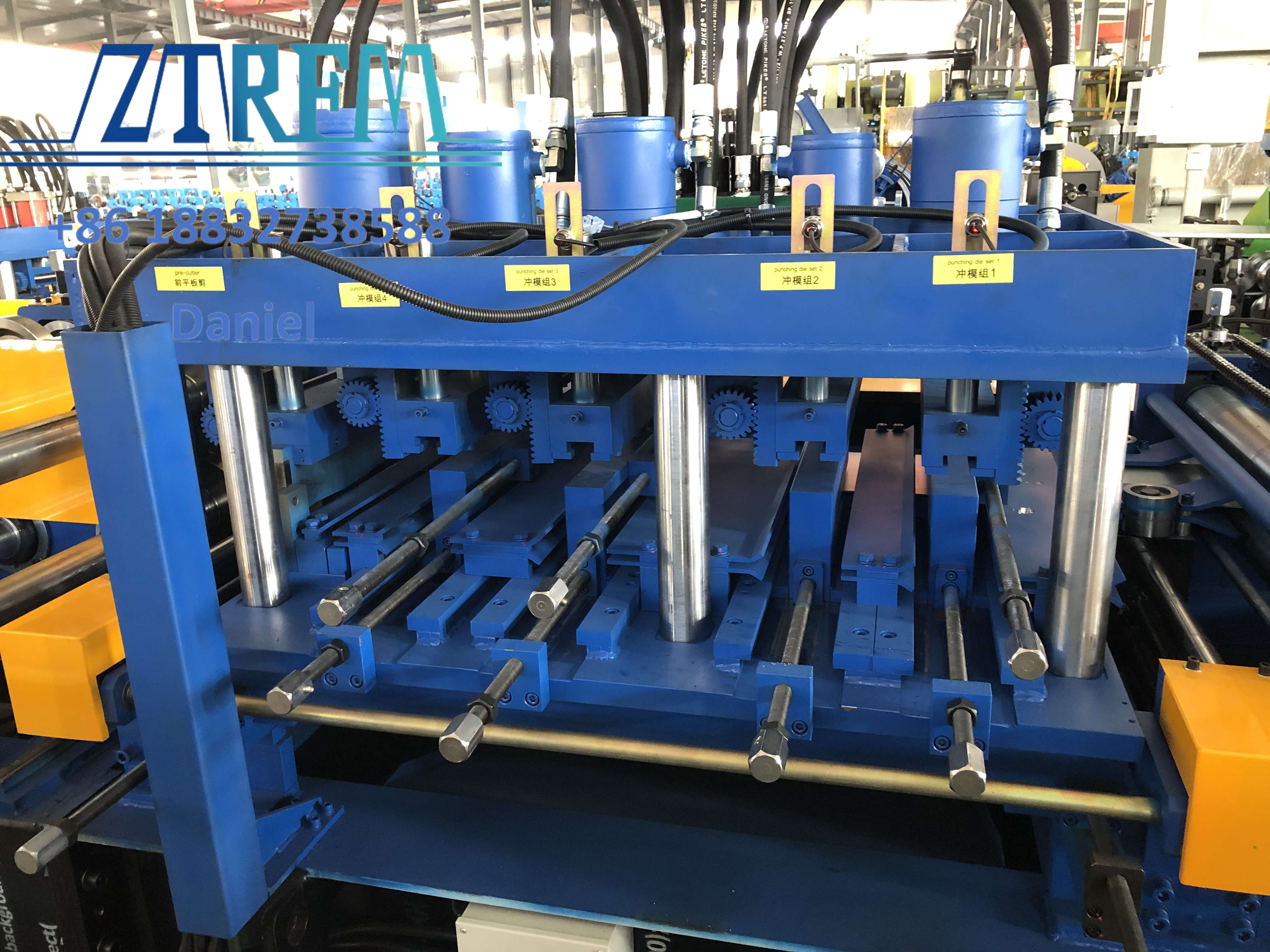

2. Punching and pre shearing part

Punching unit with hydraulic system;
Punching mold:Gcr12 quenched treatment
Station 1: Bottom center holes punching
Station 2: Bottom double side holes punching
Station 3: Bottom double side holes punching
Station 4: Bottom double side holes punching
Station 5: Pre-Hydraulic shearing

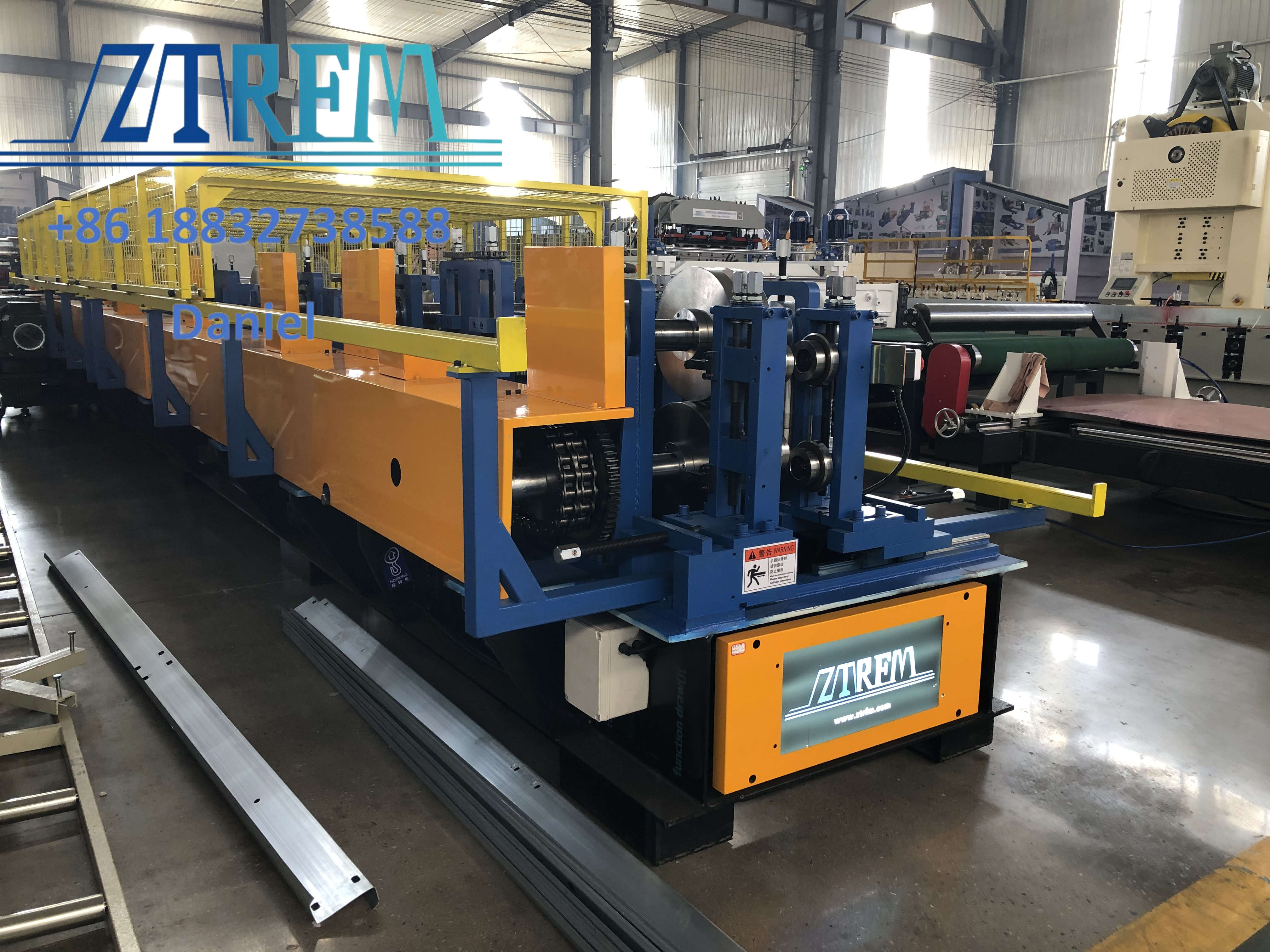

3. Main roll forming part

Roller material: Cr12 CNC processing heat treatment to
HRC: 58-60 ,finish turning
Roller stations :22 rows
Diameter of shafts:Φ75 mm solid
Material of shafts: 40 Cr CNC processing HRC28-32 ,finish turning and electroplate
Forming speed: Max 37m/min
Voltage: 380V/50HZ/3P (as requested)
Transmission way : Double chains + shaft end support
Servo motor power: 42 Kw
Sizes changing: by Laptop / Electric button
C and Z purling change : Automatically control by PLC

4. Hydraulic station

Punching and shearing use the same one hydraulic tank.
Tank volume: 300 liters
Hydraulic oil: 46#
Hydraulic station power: 15KW + air cooler
If you have other problem or something can’t understand clearly, please let me know.

5. Hydraulic Decoiler

Capacity: 6 tons
Type: Active
Coil inner diameter:450-550mm
Feeding width: max 500mm
Structure: The shrink and expand of coil is automatic , Drive by Hydralic power.
Our machine will help your factory improve producing efficiency.

More Details can contact me, Daniel waiting you forever!
