METAL ROOF BATTENS

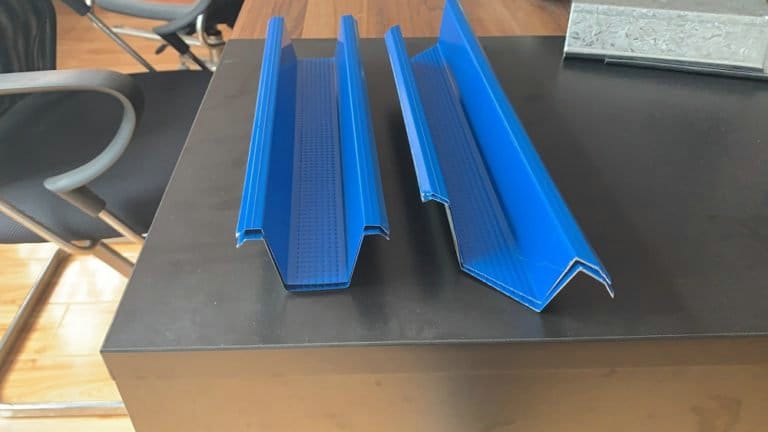

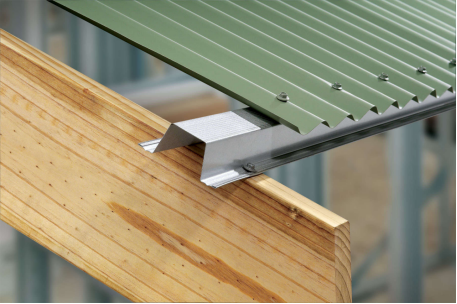

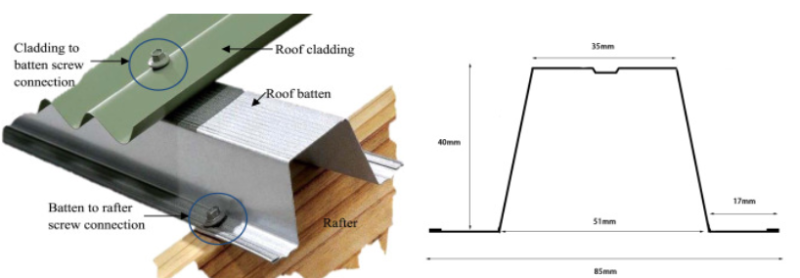

Metal roof battens have been in use in Australia for around 40 years. Metal roof battens may be used with steel or tile cladding.Metal roof battens may also be used with steel or timber support framing. Metal roof battens offer extraordinary strength to weight values and are lighter than timber battens. Metal roof battens will not warp or rot nor are they subject to insect attack.Metal roof battens are usually 40mm high and made from 0.55mm gauge hi-tensile steel. They can nest together to allow for easy storage and handling.

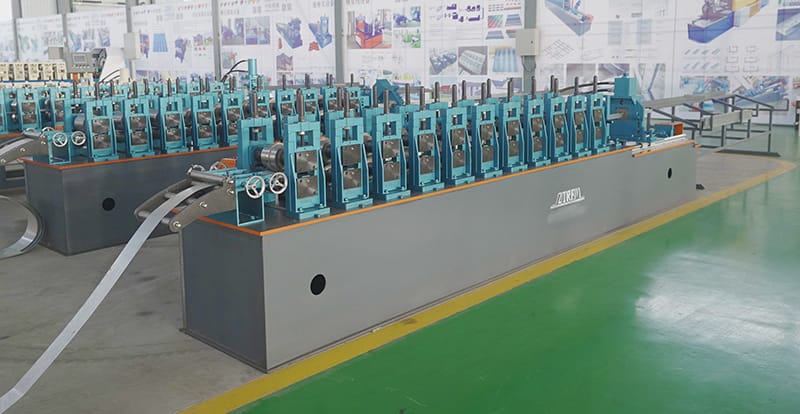

Zhontuo machiery have many years experience to produce roof batten machine

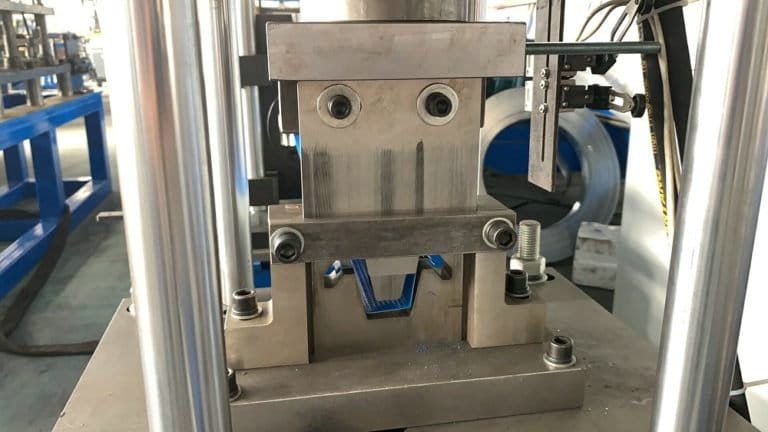

For the roofing batten,there are 90 degree cutting batten and 45 degree cutting batten. So the roofing batten machine need to be designed with the 45 degree cutting system.40mm roofing batten roll forming machine with 45 degree cutting machine need to have two different cutting blade system.

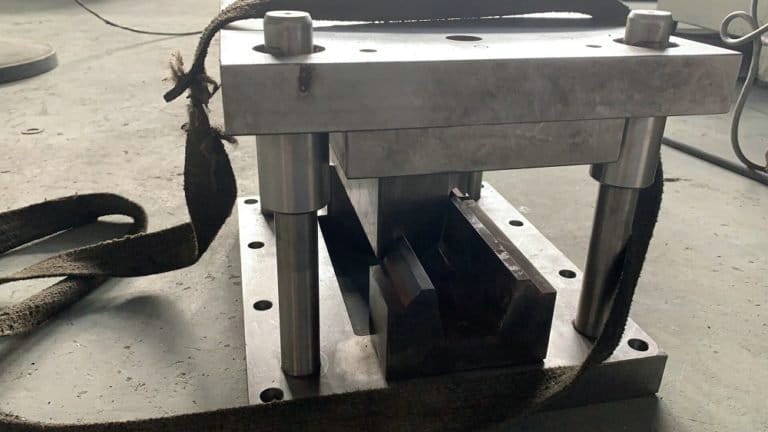

How to adjusting the straight 90 degree cutting and the 45 degree cutting, it is by changing the cutting mold and frame. So if you need to produce the 45 degree steel framing roofing batten, you can install the 45 degree cutting system. If you need the 90 degree steel framing roofing batten, you can install the 90 degree cutting system and blades.
