Portable standing seam metal roofing machine standing seam roll former.

Kr 24 mechanical self lock standing seam machine (Maquina Roladora de laminas KR 24 Perfiladora) , portable standing seam machine. KR24 roof panel standing seam metal machine has different types which used together with corrugated sheet and IBR sheet, or glazed tile sheet,self lock roof machine.

 KR mainly popular in America area. The sheet is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product It has advantage of pretty appearance, durable using and so on. We design the Wheels, let the machine can be movable, this portable machine can let you take the machine go construction site and do a perfect job!

An Inquiry of Standing Seam Machine from US customer send a inquiry :

Portable standing seam metal roofing machine standing seam roll former. Hi, I need a small machine that could be mobile that will form about 16 inch  wide panels. I would like a machine that forms mostly flat panels without much or slightly raised panels in the middle. Can your company adjust your machines to do this. I also need shipping to Minneapolis Minnesota USA and need your best prices for a unit and shipping.

Based on the customer’s point, I will show our portable standing seam metal roofing machine:

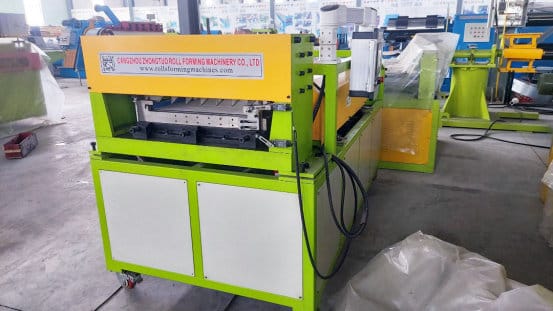

Machine pictures for reference:

For the size, the machine is so small, only 2.3*1.2*1.2m, and we design the wheels on the machine, so it’s portable. So it can be moved to the construction site. It’s convenient to take a job for building project.

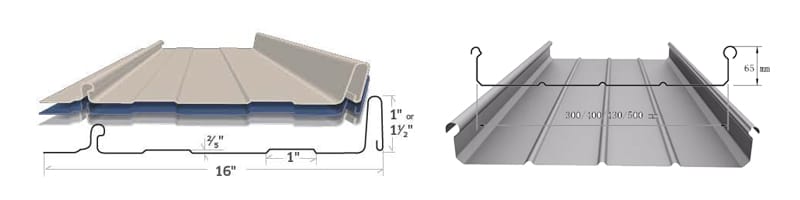

The profile drawing reference:

You can see the width of panel is adjustable:

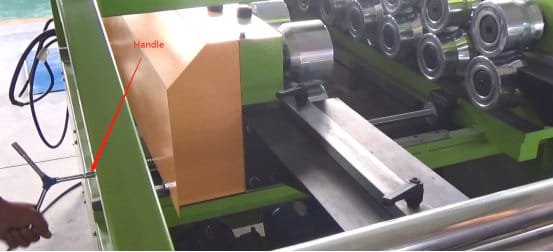

We can adjust the handle to change the feeding width.(The whole process is manual )The one side of machine frame can be moved.

“ I would like a machine that forms mostly flat panels without much or slightly raised panels in the middle”

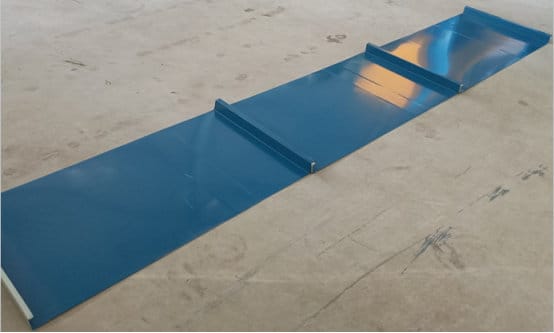

The customer means rib of the panel.This is a panel with rib for reference:

We use a rib rollers to make this , and we can control the rollers up and down,when the rib rollers up, the machine produce flat panel. When the rib rollers down,the machine produce the panels with ribs.

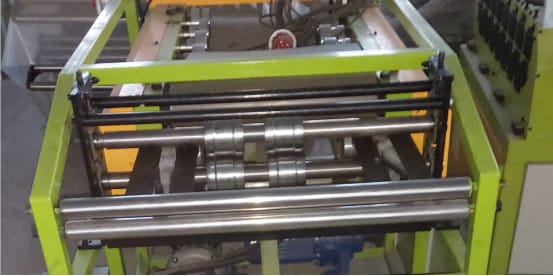

Rib roller for reference:

Because the machine is small, so it’s not necessary use a whole container to shipping it. Just use a wooden box shipping by LCL. This can save the Cost of shipping.

Packaing reference:

For the standing seam machine , we can also made these profile:
