Warehouse Pallet Racking Components Related Rolling Forming Machines

Warehouse pallet racking components related rolling forming machines can be broken down into fastening elements (uprights, beams and frames shelf  panel) and accessories.Here we show some related machinery of warehouse pallet system.

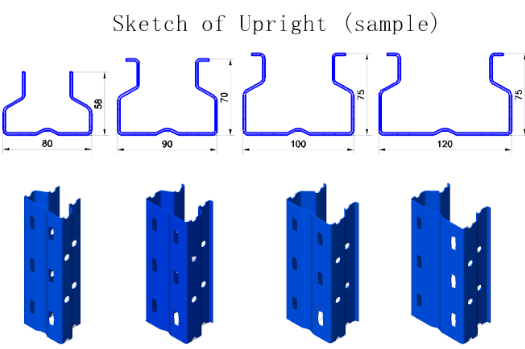

Uprights

Vertical structure of the racking frame. There are many models of uprights available that adapt to the various types of loads, weights and sizes. Automatic sizes changing or manual adjustments.

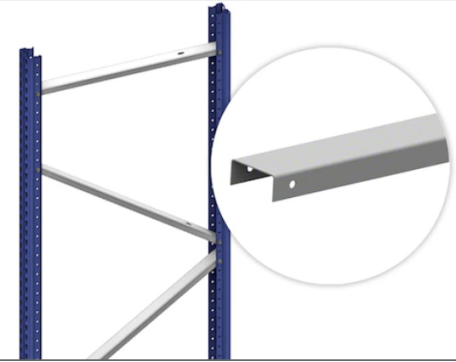

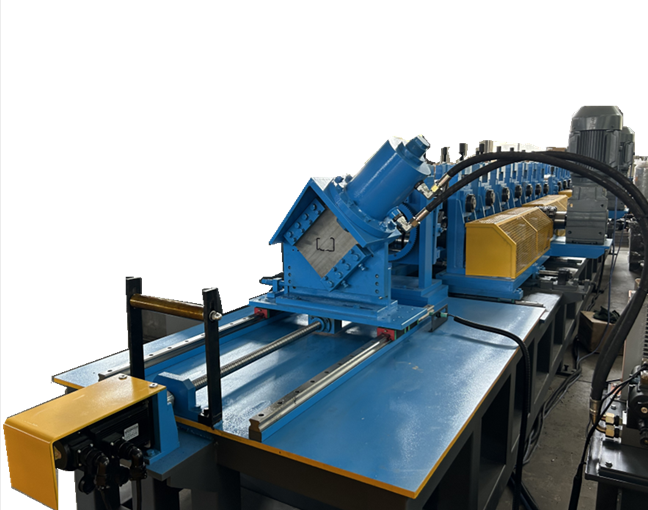

Diagonal struts C bracing Machine

Metal posts that join the uprights diagonally to constitute the structure of the frame. Diagonal struts reinforce the load capacity of the uprights and, thus, guarantee the stability of the pallet racking

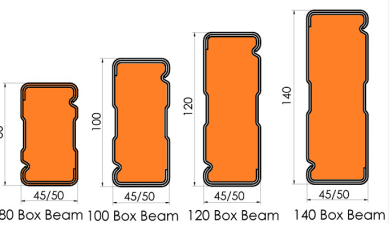

Box beam Rolling and Locking Machine

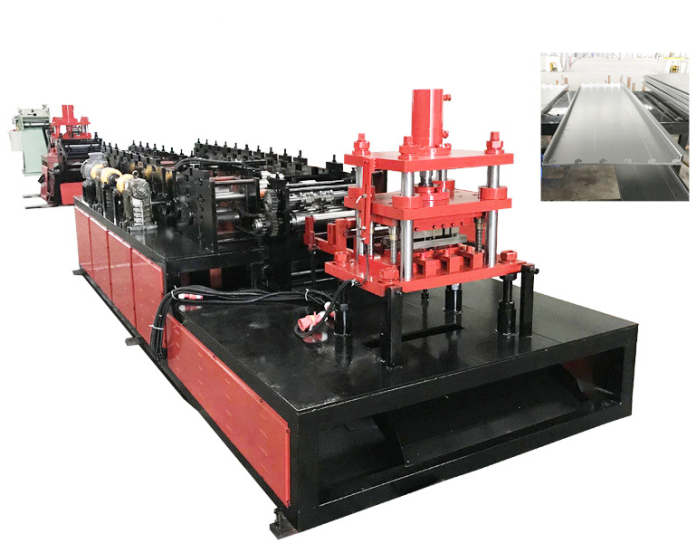

Metal shelving/Galvanised shelving

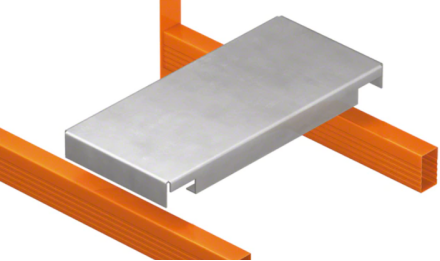

Fitted directly onto each level of the racking, these shelves usually serve for picking at various levels. These types of shelves are available in several versions (slotted, grooved or perforated) according to the air circulation needs of the product stored.

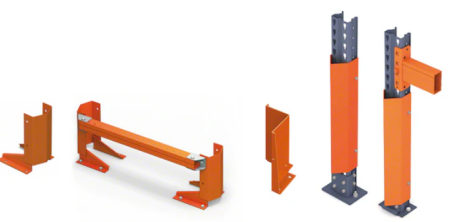

Protectors

Pallet racking incorporate protectors to avoid structural damage from accidental blows. These safety elements comprise:

1. End aisle protector: fitted to the ends of the frames, where impacts are more probable.

2. Upright and frame protectors: used to prevent structural damage for pallet racking managed with forklifts.

3. Corner protectors: made from folded metal sheets that guard the outer uprights when upright protectors can’t be directly attached.

4. Upright reinforcers: useful when it is necessary to protect the upright at the base and also at a certain height.
