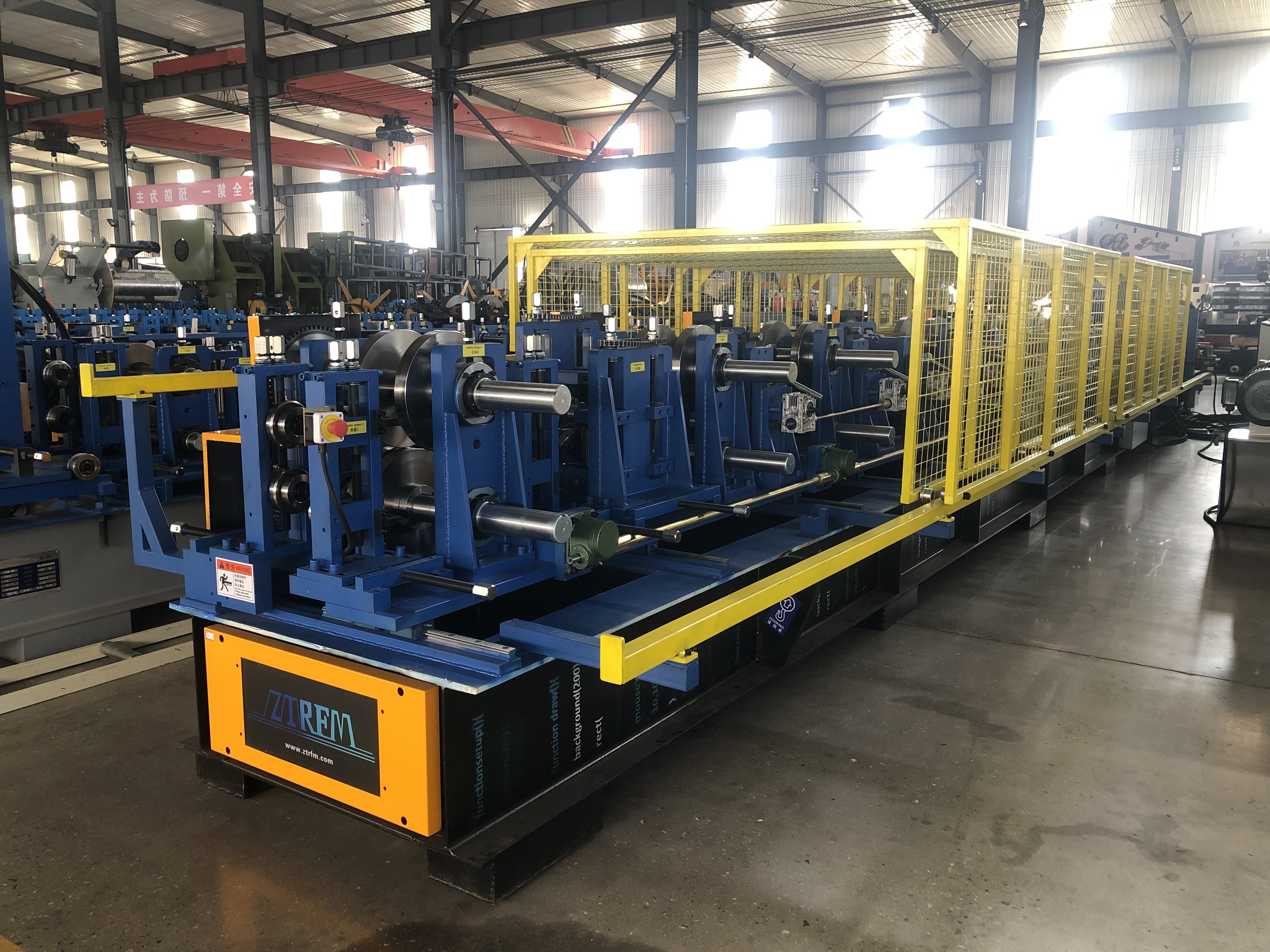

Pre-cutting CZ purlin machine
The CZ purlin machine is 90% automatic degree, sizes changing automatically, C and Z changing automatically, servo motor high speed driving, Machine only use pre-cutting system, no post cutting system.
Advantage: Machine cutting No waste material, pre cutting machine is faster than post cutting machine. Pre-cutting machine no need to adjust the cutting blades.

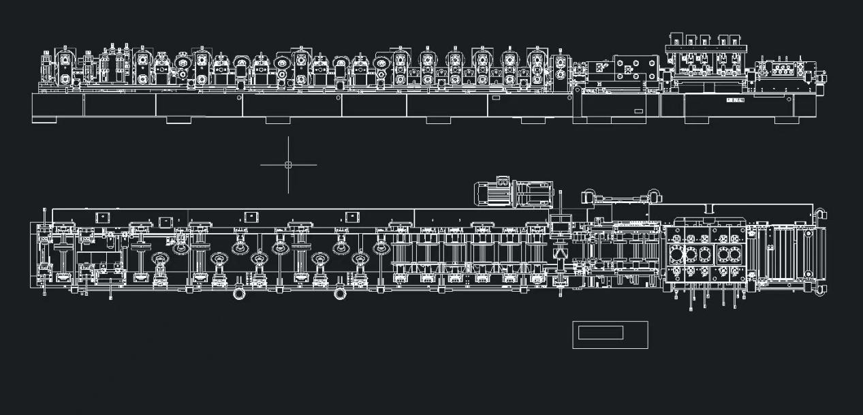

CZ Purlin Machine flow drawing:
Uncoiling → Feeding material into machine →Leveling → Punching and Pre-shearing →Roll forming →Products receiving table
Machine Details introduce:
| Main parameter per-cutting CZ purlin machine | ||
1.Formed Material | Material yield strength: Just standard steel G350 or similar | Thickness:1 to 3.5 mm (standard) |
2.profile | Size | 80-350mm (it can be adjusted automatically ) |
Changing Sizes | Automatically by PLC | |
3.Voltage | 480V 60HZ 3Phase | As your requirement |
4.Control system | Electric Cabinet | Customized(Famous brand) |
Language | English (As customized) | |
PLC | Can automatic control whole machine.Can set batch,length,quantity and so on | |
4.Control system | 35m/min | The speed depends on the shape of the tile and the thickness of the material. |

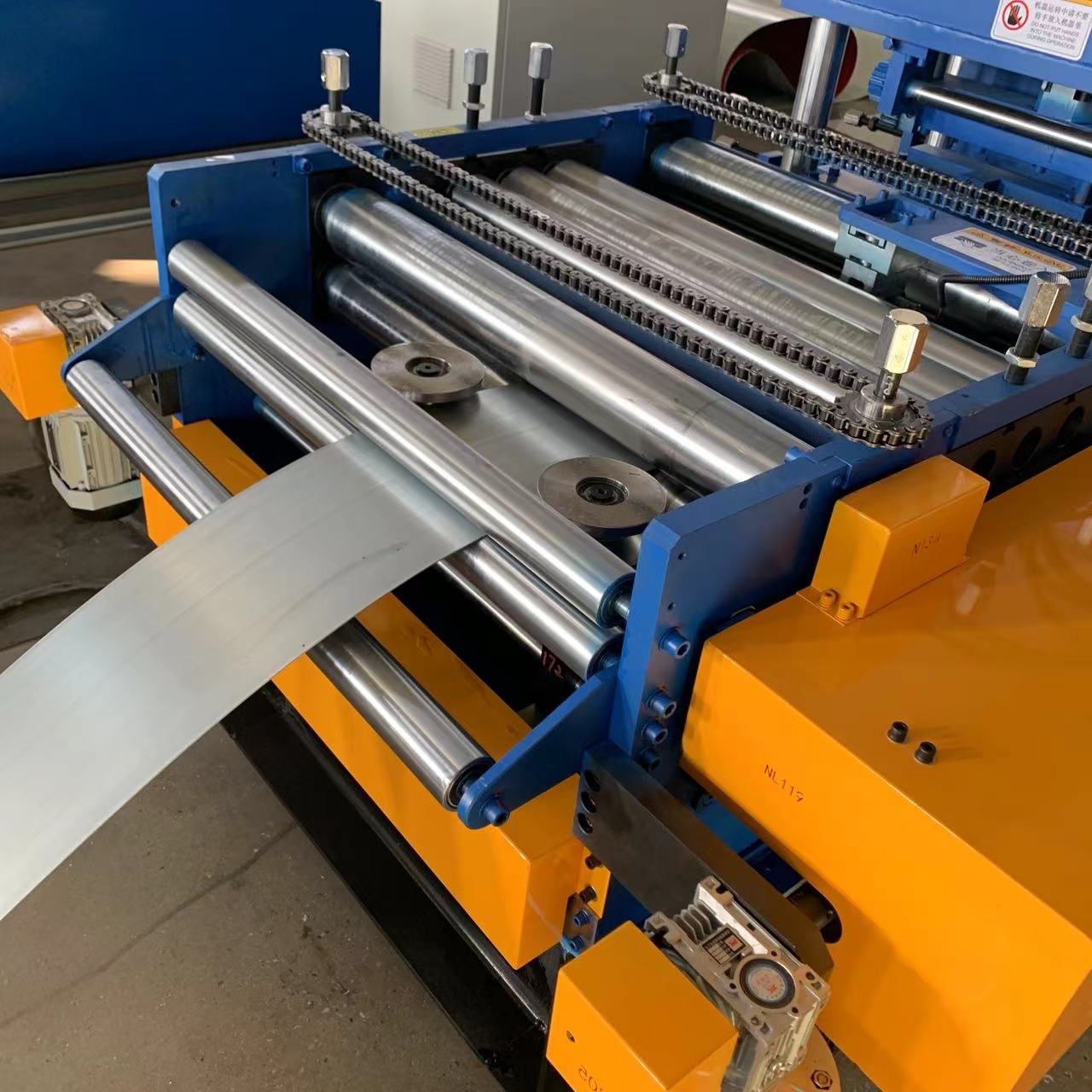

1. Feeding and leveling part
Leveling rollers: 3 up 4 down
Roller material: Cr15
Roller diameter: 75mm
Feeding width adjustment: automatic by button
Make sure inputted steel sheet straight and neat and then roll forming process could be made accurate

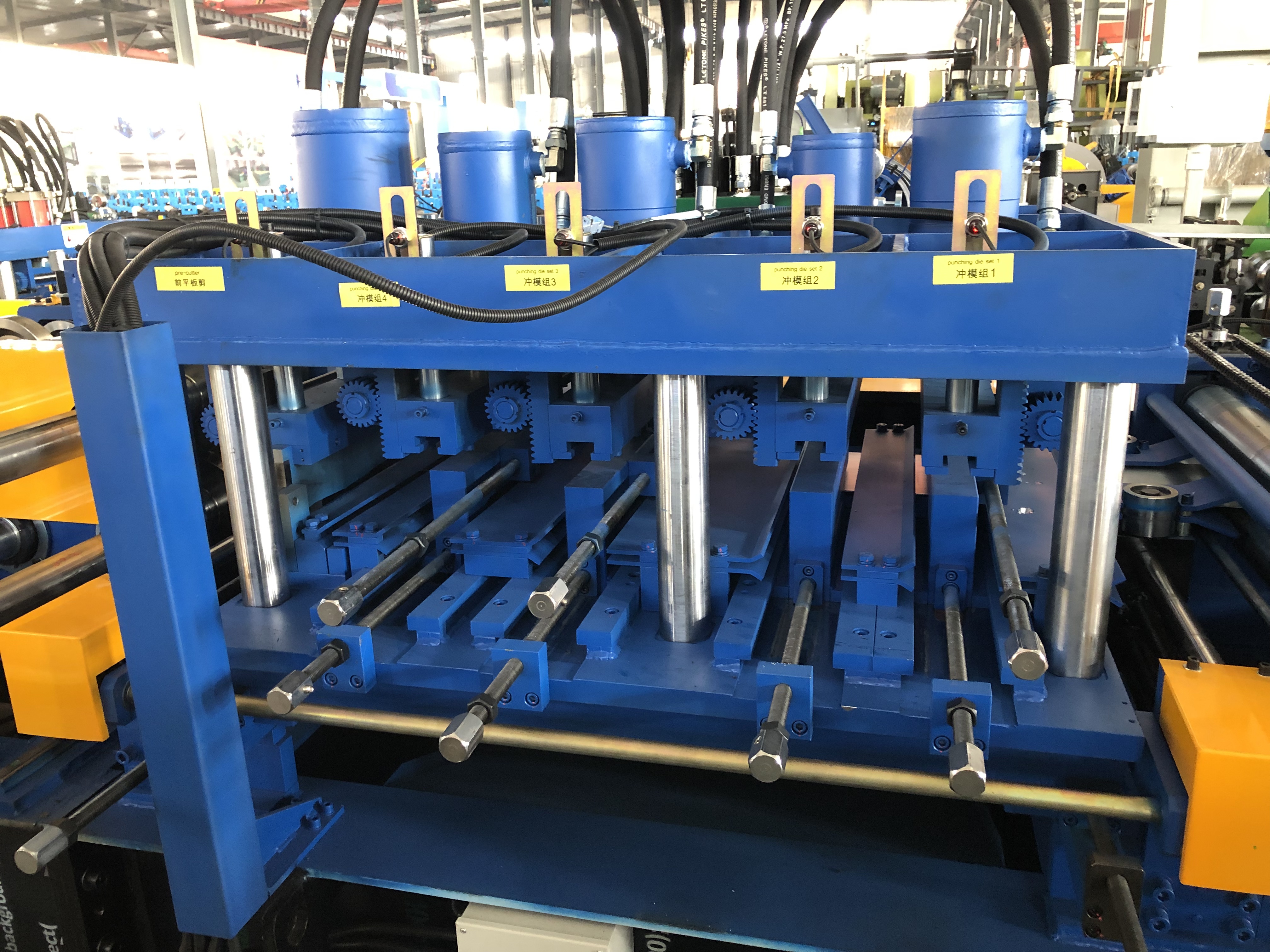

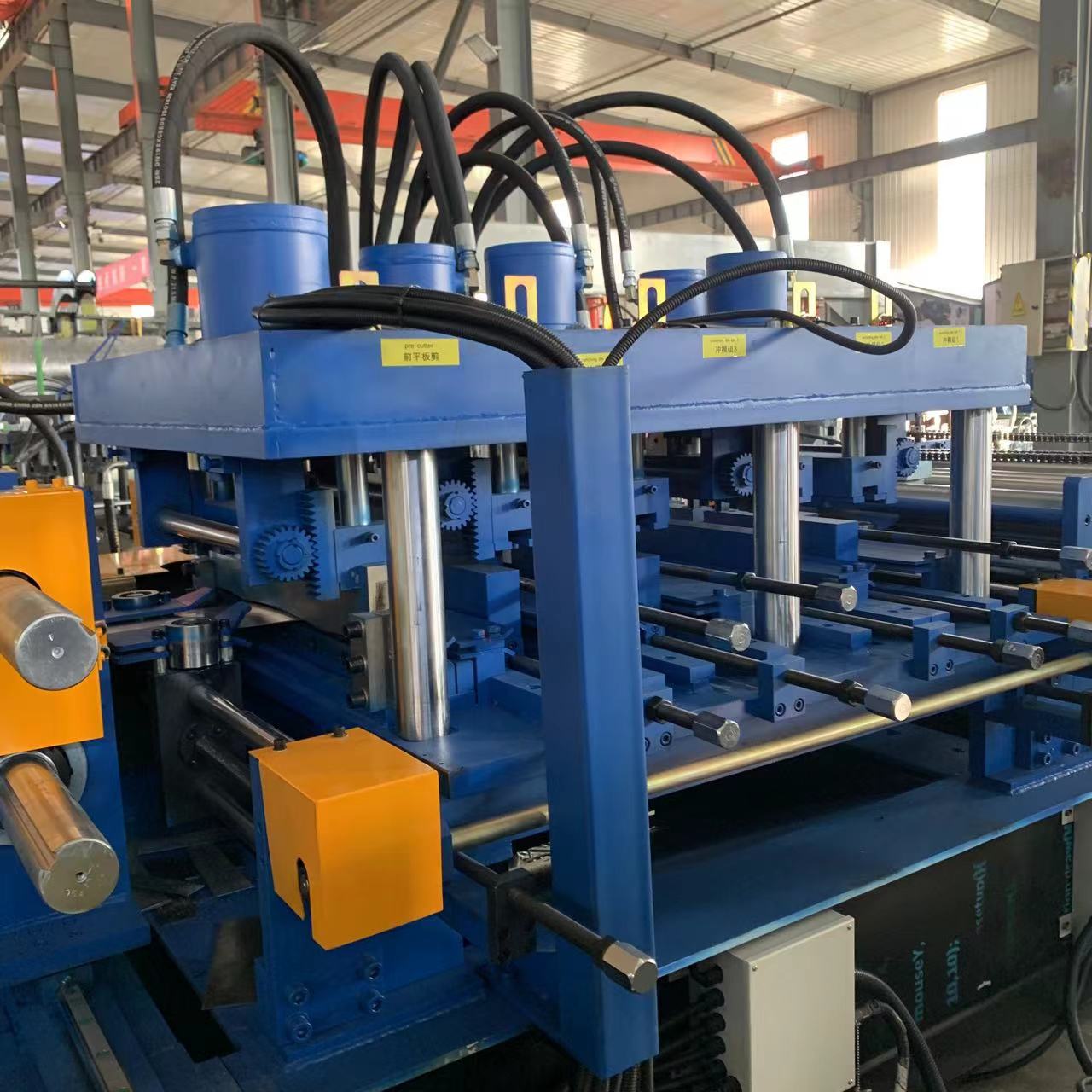

2. Punching and pre shearing part
Punching unit with hydraulic system;
Punching mold:Gcr12 quenched treatment
Station 1: Bottom center holes punching
Station 2: Bottom double side holes punching
Station 3: Bottom double side holes punching
Station 4: Bottom double side holes punching
Station 5: Pre-Hydraulic shearing

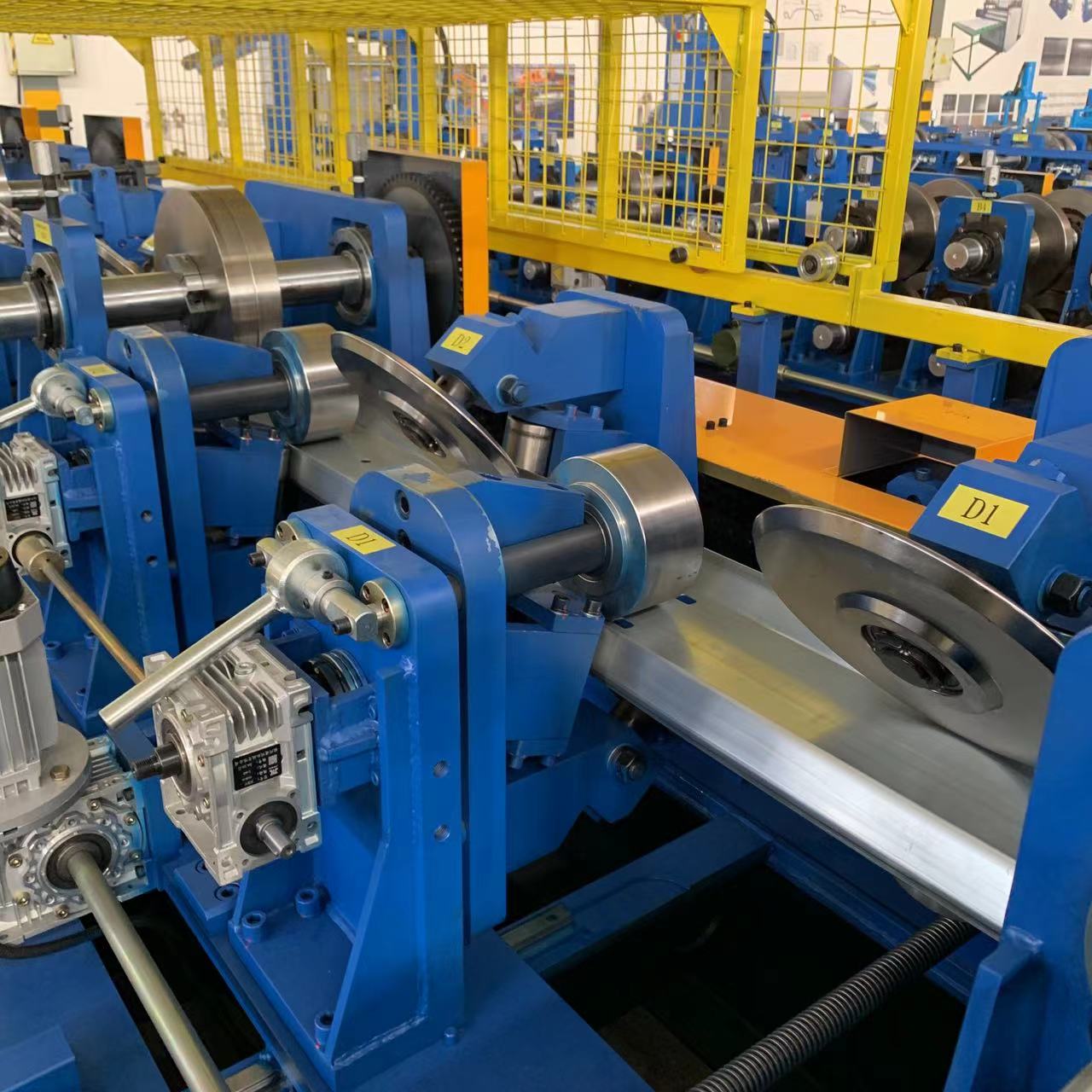

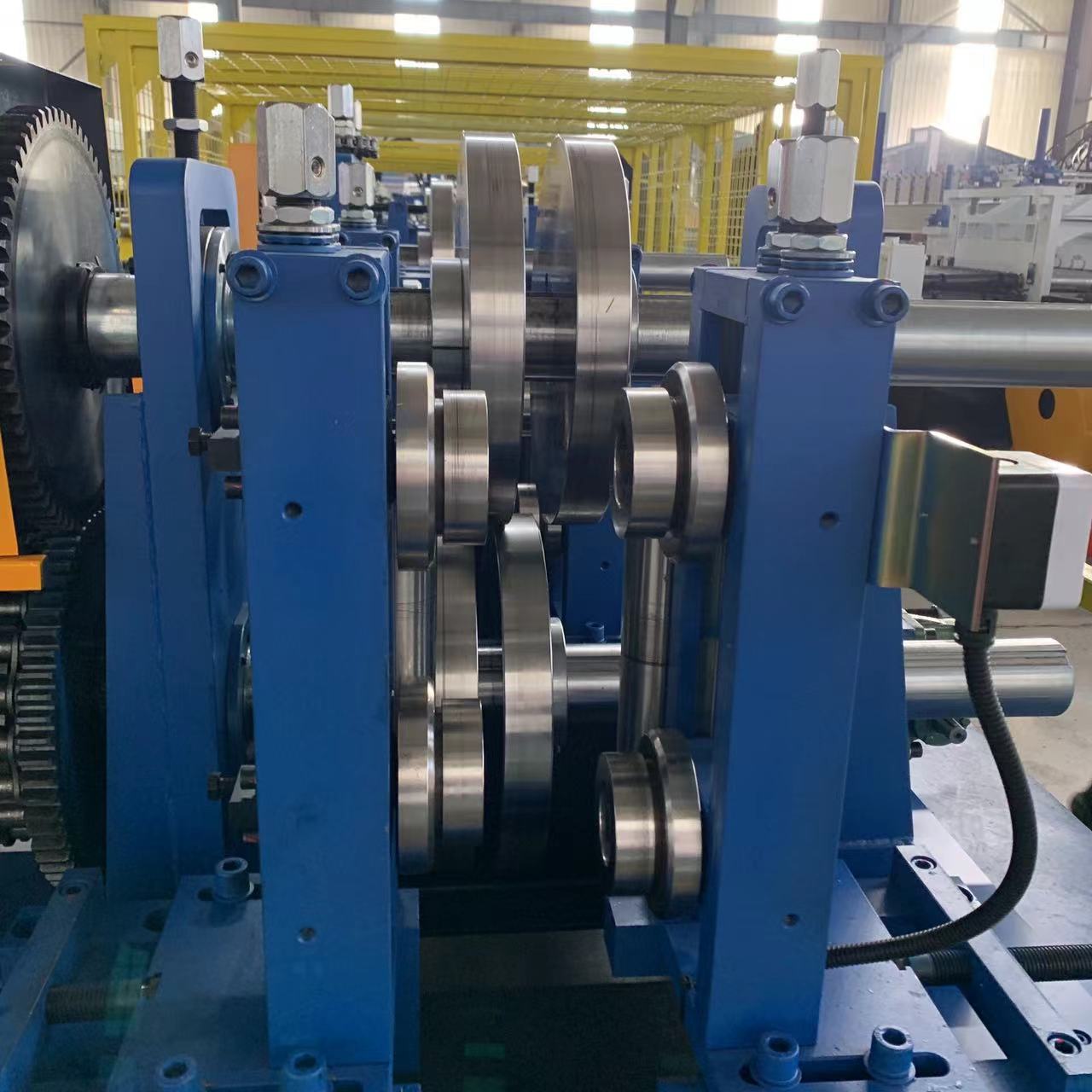

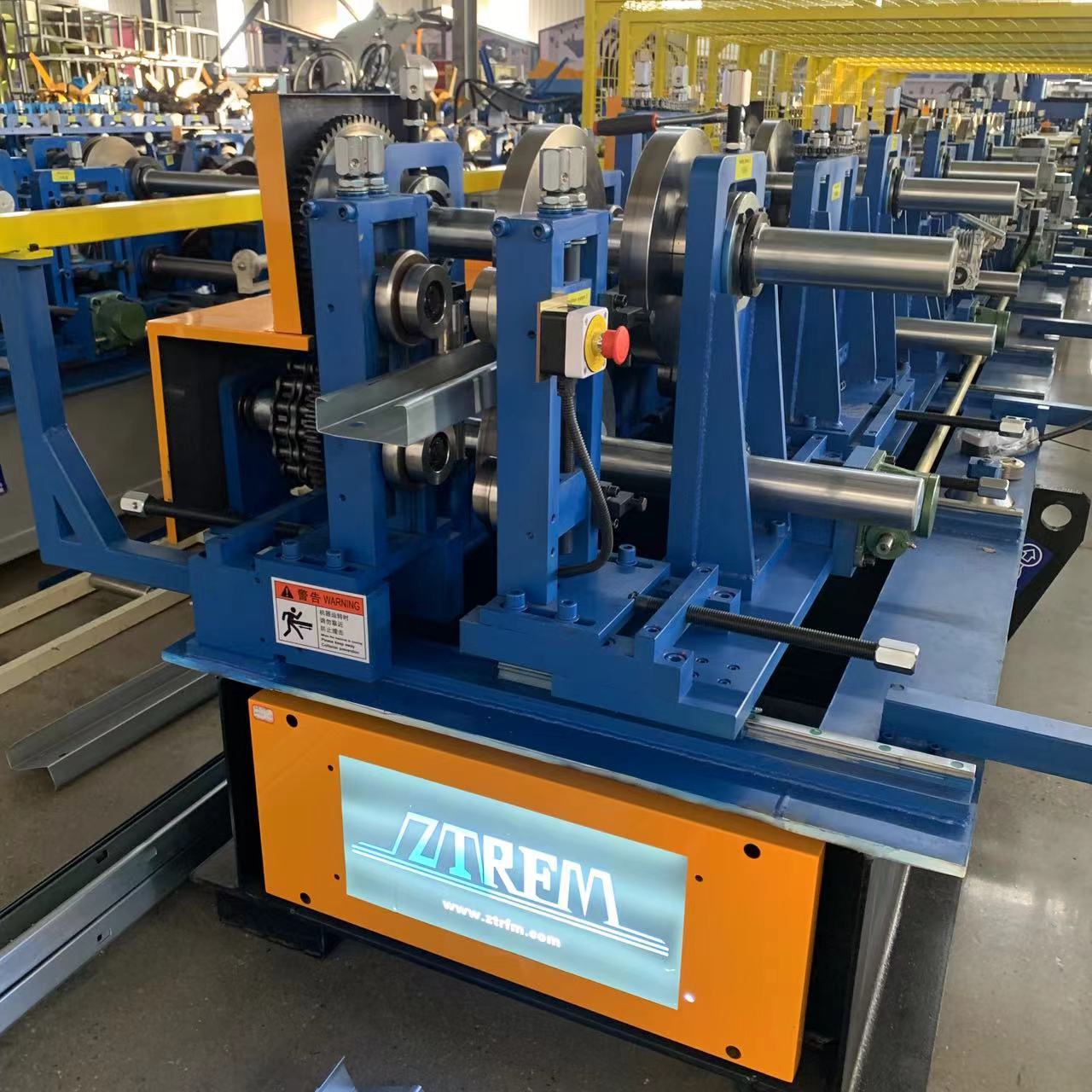

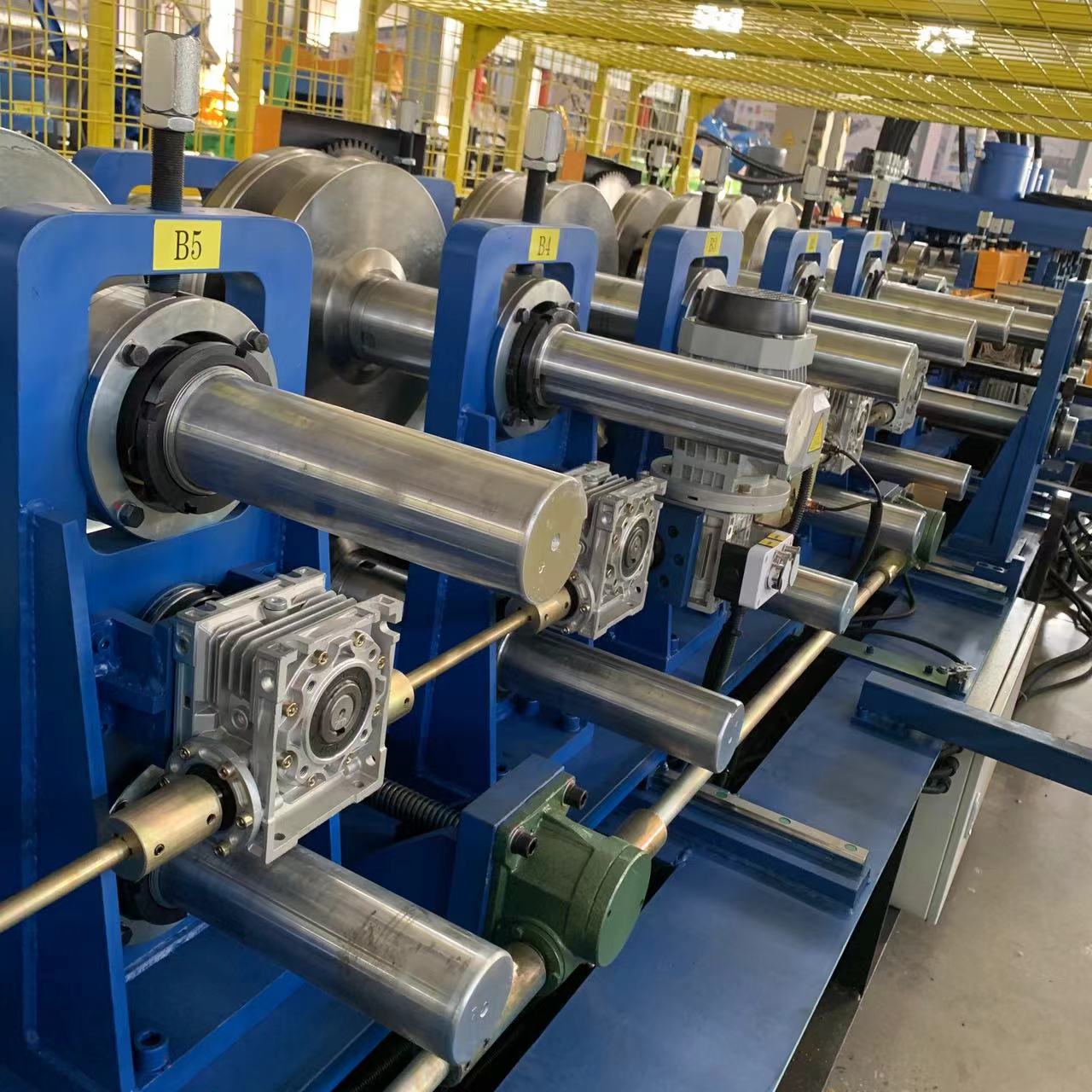

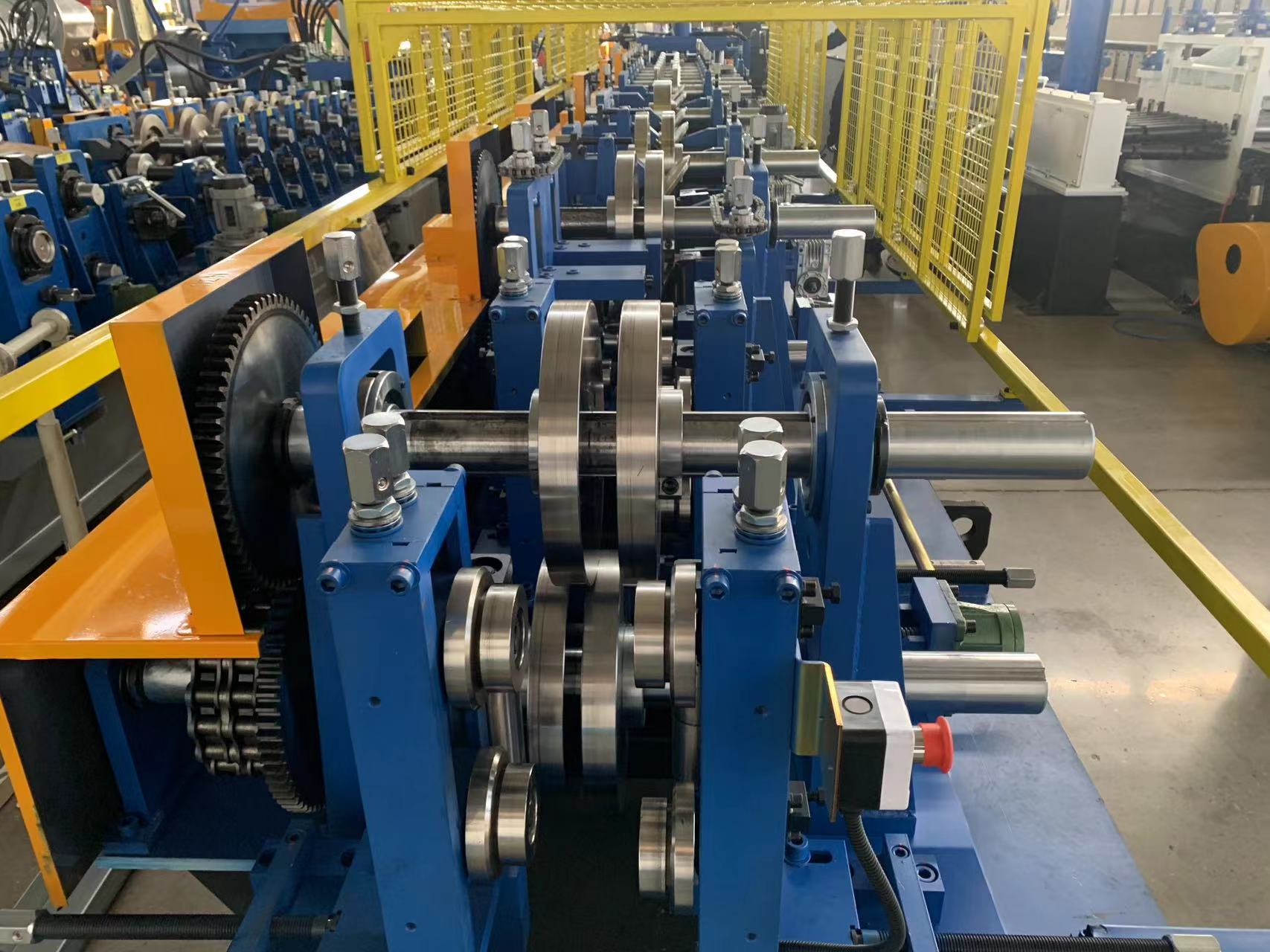

3. Main roll forming part
Roller material: Cr12 CNC processing heat treatment to
HRC: 58-60 ,finish turning
Roller stations :22 rows
Diameter of shafts:Φ75 mm solid
Material of shafts: 40 Cr CNC processing HRC28-32 ,finish turning and electroplate
Forming speed: max 37m/min
Voltage: 380V/50HZ/3P (as requested)
Transmission way : Double chains + shaft end support
Servo motor power: 42 Kw
Sizes changing: by Laptop / Electric button
C and Z purling change : Automatically control by PLC

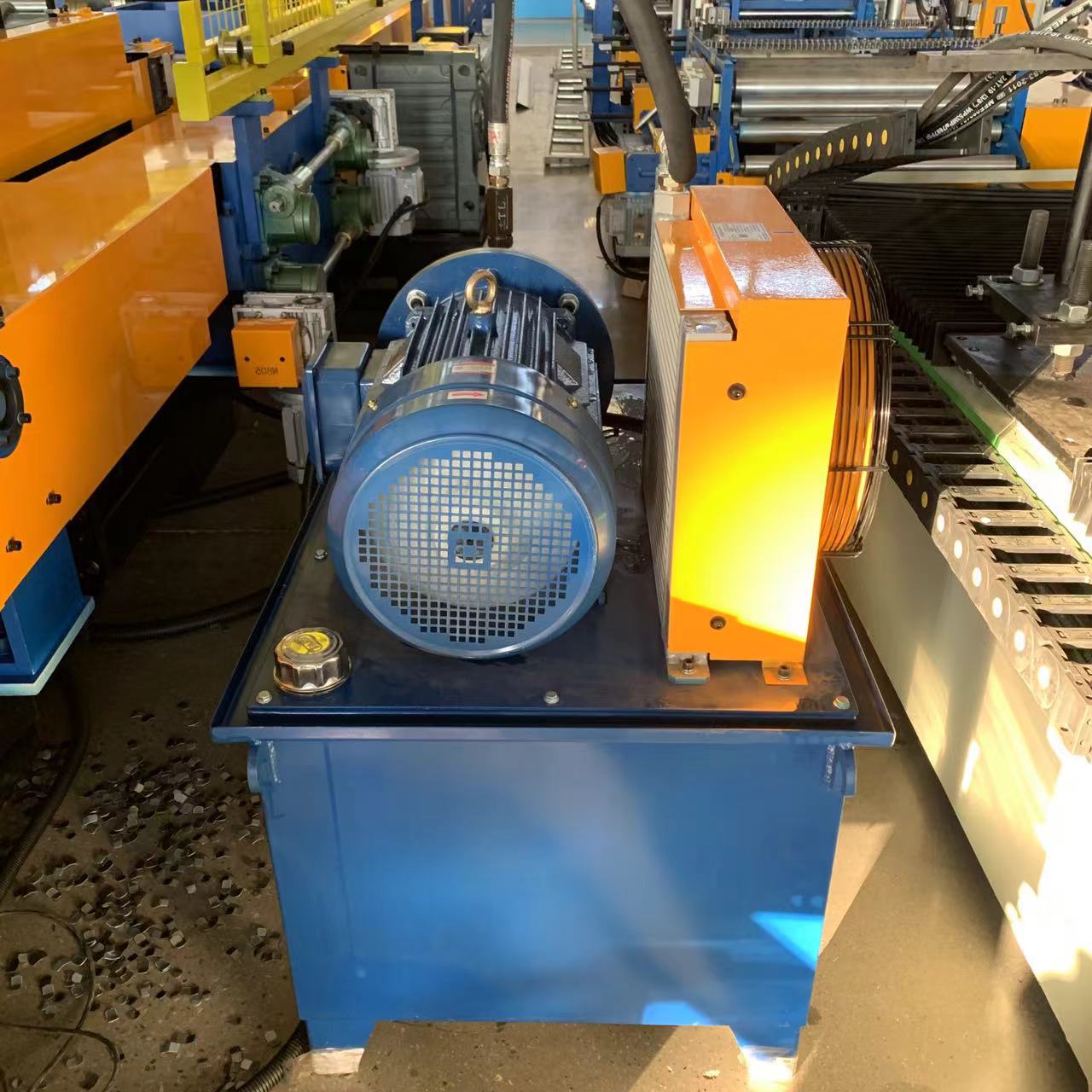

4. Hydraulic station
Punching and shearing use the same one hydraulic tank.
Tank volume: 300 liters
Hydraulic oil: 46#
Hydraulic station power: 15KW + air cooler
If you have other problem or something can’t understand clearly, please let me know.

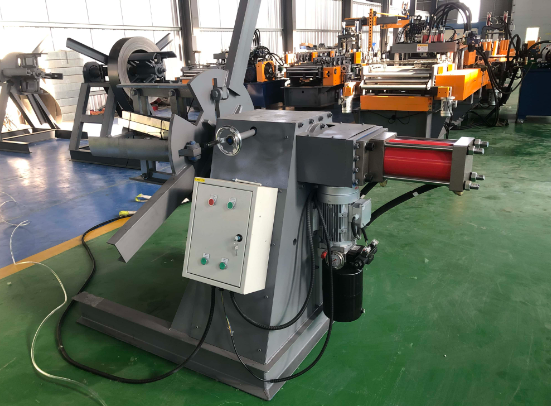

5. Hydraulic Decoiler
Capacity: 6 tons
Type: Active
Coil inner diameter:450-550mm
Feeding width: max 500mm
Structure: The shrink and expand of coil is automatic , Drive by Hydralic power.
