High speed 30m/min flat ceiling T bar rolling forming machine

We can supply Ceiling T bar making machines in various types;We also offer all kind of fully automatic metal drop ceiling tile production line for manufacturing different sizes of ceiling boards such as 600*600mm, 300*300mm, 600*1200mm. With the metal ceiling tiles from these machines, these can be fabricated into a whole Exposed metal ceiling suspending system.

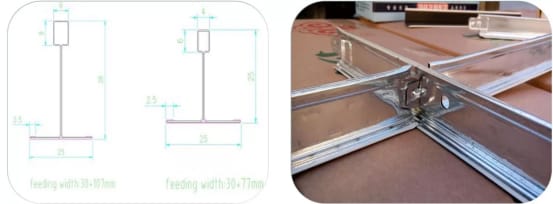

Take the following drawing profile for your reference:

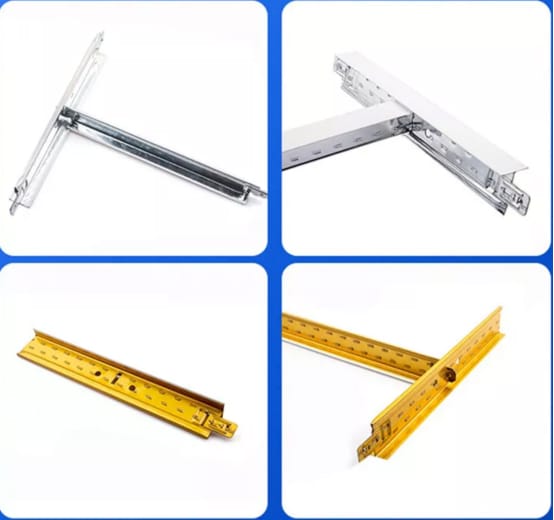

Here are more options for your reference:

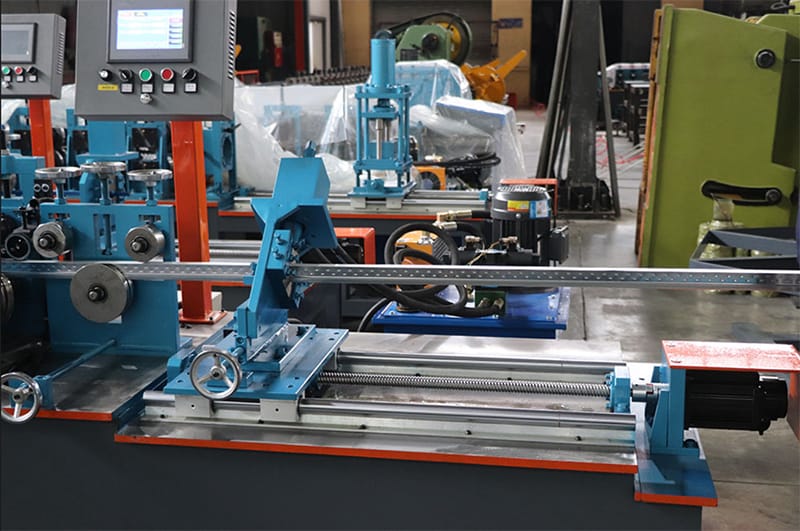

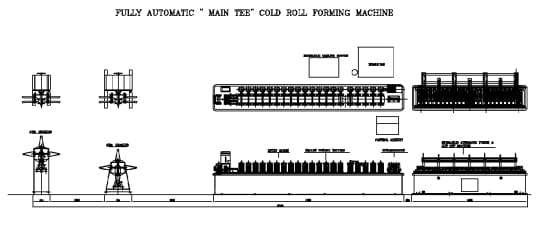

High speed 30m/min flat ceiling T bar rolling forming machine design:

High speed 30m/min flat ceiling T bar rolling forming machine technical features:

1. Fully automatic production including auto decoiler, continuously roll forming and automatic cutting off.

2. High speed, including the punching, the speed can reach 30 meter per minute.

3. Full Worm wheel gearbox reducers driving or high quality gear and chain transmission as options to made according to customer budget.

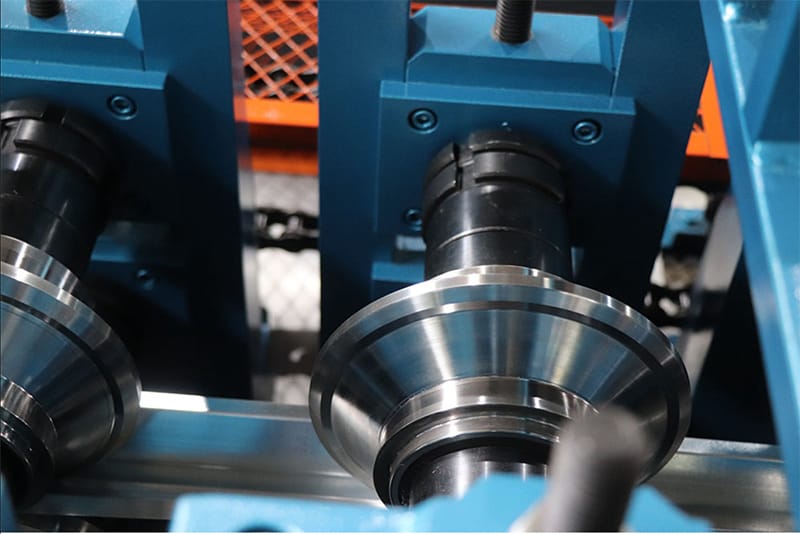

4. High precision main roll forming station with one whole set 13 punching dies for main T.

5. High precision PLC and Servo feeder control -Machine protection for your choice.

6. Good brand elements for long time to use.

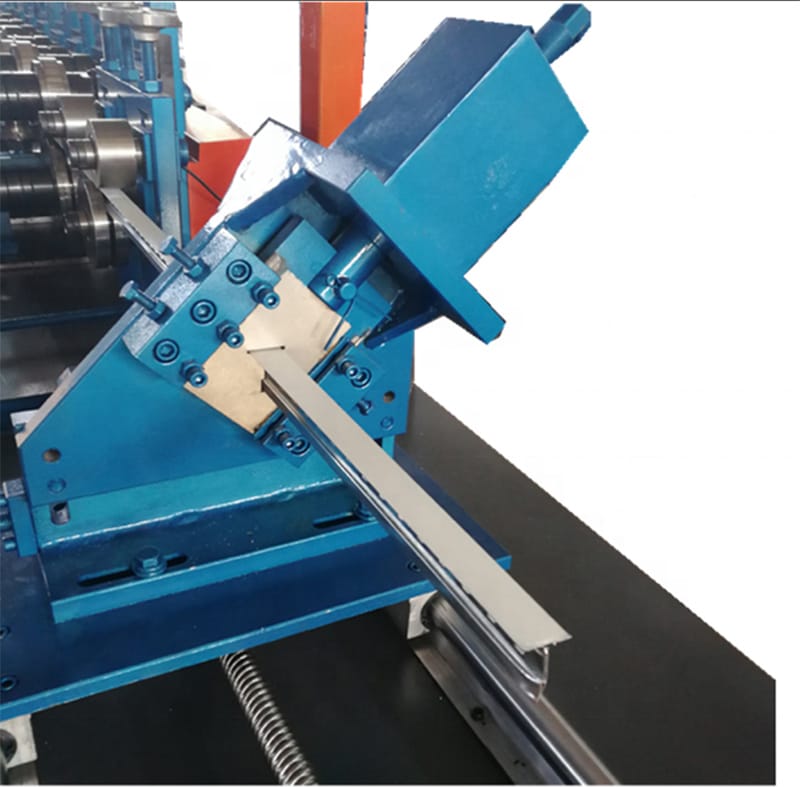

As to the punching part for main T is the most different part, it can enhance the machine working speed meanwhile keep the high speed of working:

1.Processing flow diagram of machine

Manual decoiler( TWO pcs )→ Feeding material into machine →Roll forming machine -necks- - >punching&(with logo ) →Measure length→Hydraulic cutting → Finished Products& (output table)

Here are some basic parameters of High speed 30m/min flat ceiling T bar rolling forming machine for your reference:

For this machine, if you want to know more information, please contact us at any time and then we will share more videos and information to you.

Here is the machine working videos for your reference:
