Building Material Metal U Furring Channel Double Line Rolling Forming Machine

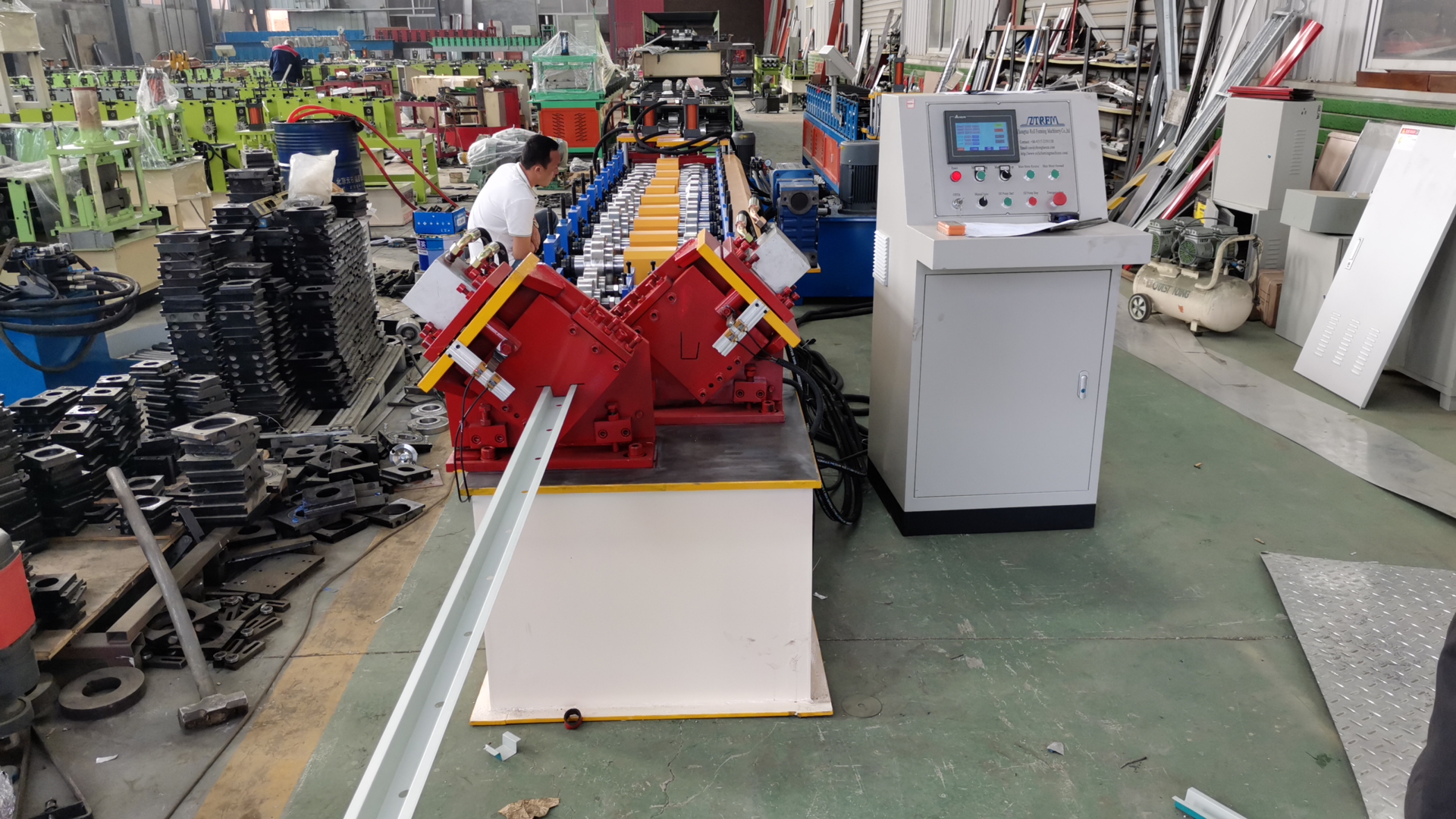

As you see, for this U and furring channel double line rolling forming machine, it can produce two kinds of channel.
Left side can produce furring channel, right side can produce U channel. Before roll forming, here has punching device.
For this kind of double line machine, it can save space for you. And the two sides can working at the same time.

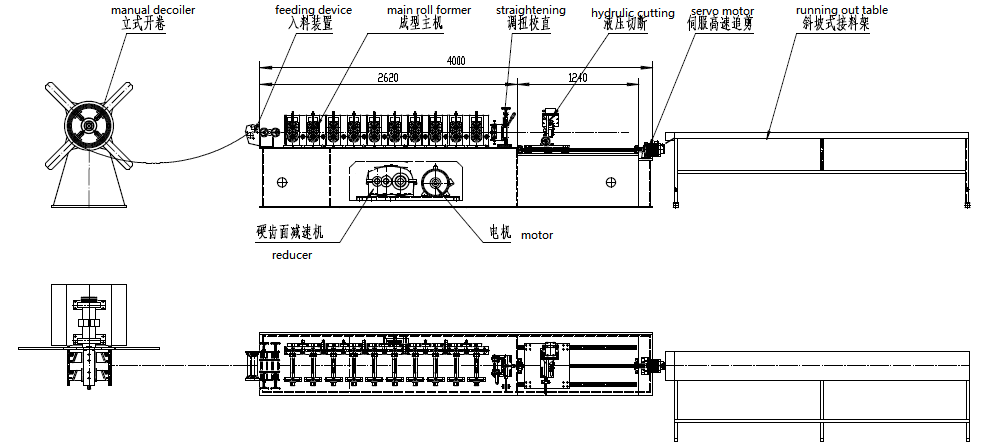

Working flow:
Uncoiling---Feeding material---Punching holes---Roll forming---Hydraulic cutting---Running out table
Finished product profile drawing:
The profile drawing can be customized by your request. You can make a draft or send simples to us.
Our engineer will make a professional drawing for you.
The main elements of U furring channel double line rolling forming machine as below:
1. Double head decoiler with 1.5 Tons capacity for each side.
2. Roll forming machine with two production line and punching device on each side.
3. Two sets hydraulic oil pump station.
4. Two sets running out table.
The advantages of U furring channel double line rolling forming machine as below:
1. The two production line can work independently, improve your working effeiency.
They have two sets PLC control system, two sets cutting system, two sets hydraulic oil pump station.
2. This machine equials to two sets machine, because two production line use one machine frame, so it can save some space and costs.
3. The machine working about 25 m/min, if punching holes, speed about 15 m/min. If you want higher speed, we also can provide you machine solution.
The main technical parameters of U furring channel double line rolling forming machine:
1. Roller material: C12 with quenched treatment.
2. Rolling station: 10-13 rolling stations(Depend on your profile drawing).
3. Roller shaft material: 45# steel with tempering treatment.
4. Roller shafter diameter: 40 mm
5. Driving motor power: 3 KW+3 KW
6. Hydraulic motor power: 3 KW+3 KW
7. Structure: Vertical arch frame.
8. Control system: PLC control, speed, length and quantity can be control automatically.
9. Encode brand: Omron
10. Counter brand: Schneider

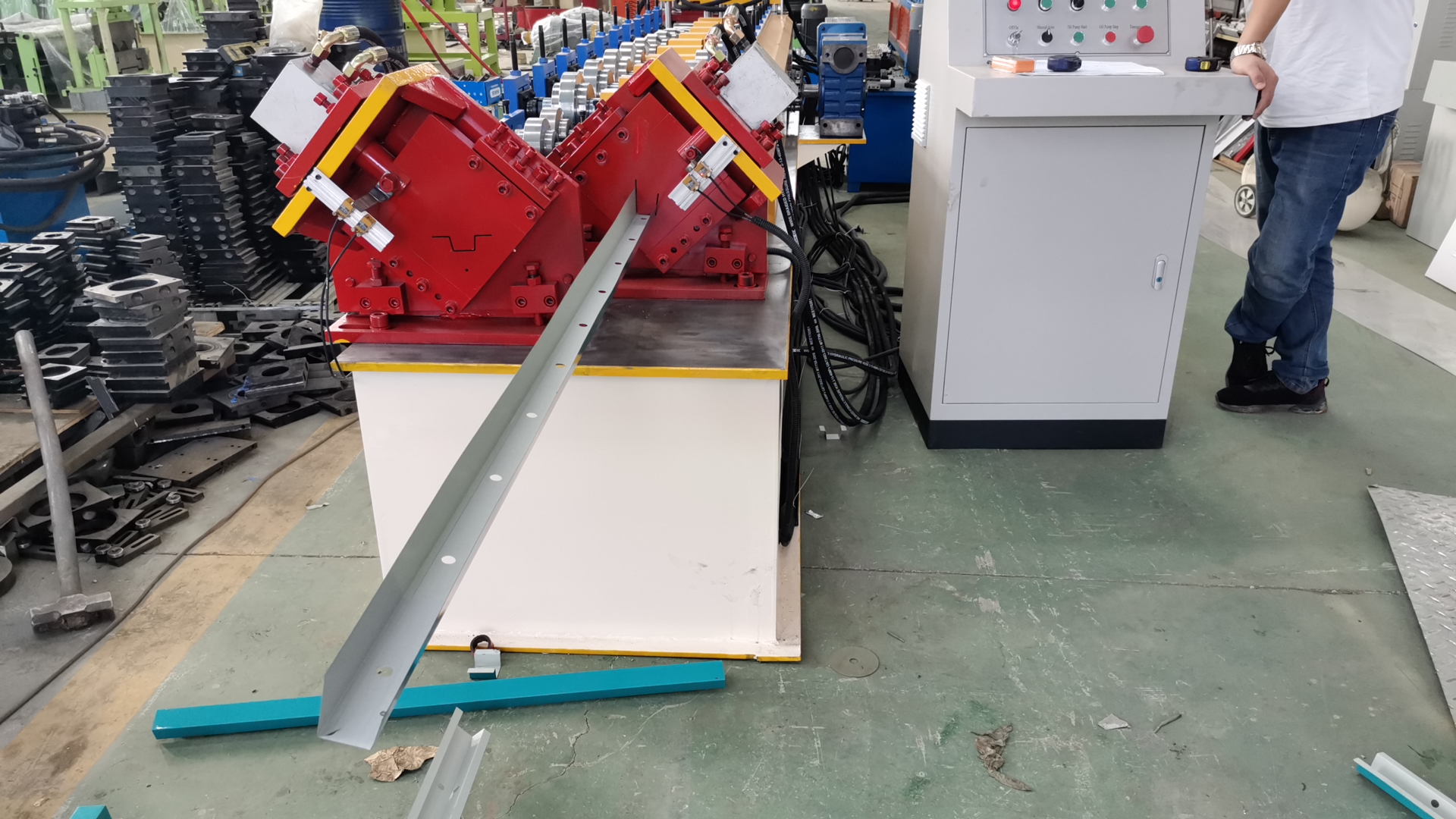

More photos about this machine:
