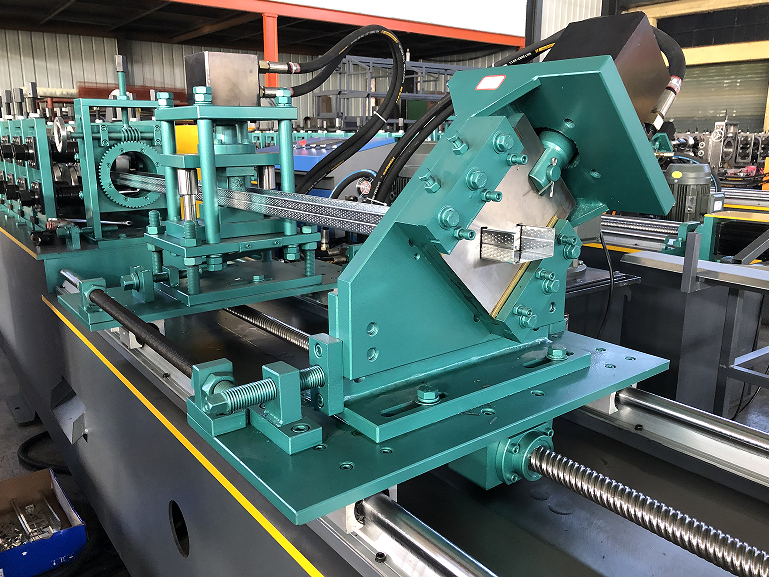

METAL STUD AND TRACK ROLL FORMING MACHINE
Combined Galvanized steel metal stud and track roll foming machine is designed for house building. Depending on your specification and budget, we can customize your machine to your need. There are two different machine design that is avalible to choose from. First design is to adjust spacer for different profiles, this solution will safe cost on the machine and the second type is to purchase separated machines for each profile, the cost is higher but the production rate will be higher. Both of our designs are reliable and efficient.
The usage of Zhongtuo's Stud and Track Roll Forming Machine:

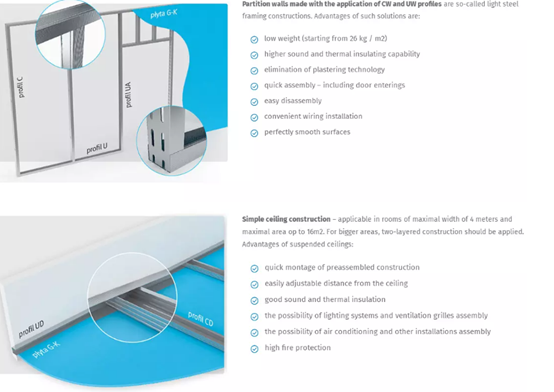

Other products to compliment the range of drywall steel sections are resilient bar, supplied as standard 3,000mm lengths, wall liner supplied in lengths of 2,400mm, 2,700mm, 3,000mm and 3,600mm and wall liner tracks supplied as 3,000mm lengths.

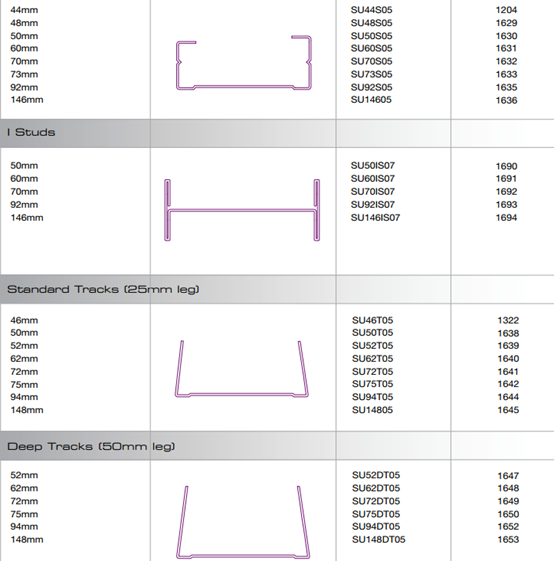

Drawing Profile Samples:
Recent investment Zhongtuo stud and track roll forming machinery has allowed us to produce the complete range of non load bearing 'C' stud and associated track sections without the need for conventional changeover time. This covers 44mm, 48mm, 50mm, 60mm, 70mm, 73mm, 92mm and 146mm 'C' studs and 46mm, 50mm, 52mm, 62mm, 72mm, 75mm, 94mm and 148mm track sections in regular, deep and extra deep leg lengths.
