Slotted angle corner bead roll forming machine V shape metal iron angle keel making machine
NO.4 ROAD, ECONOMIC DEVELOP ZONE, BOTOU CONUTY, CANGZHOU CITY, CHINA
Slotted angle corner bead roll forming machine V shape metal iron angle keel making machine

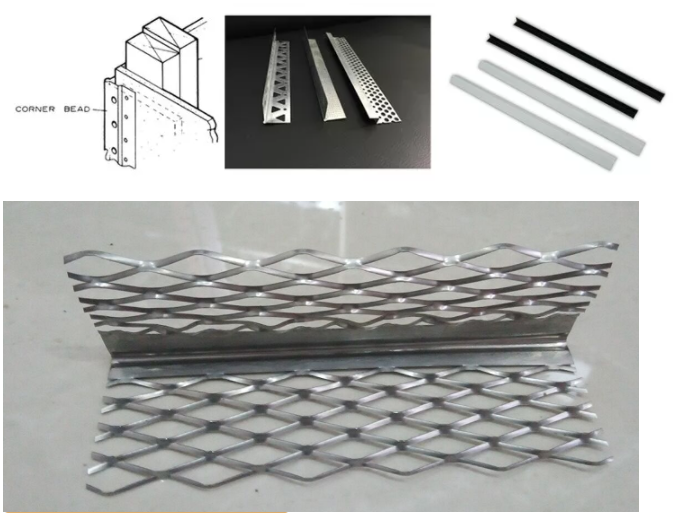

Slotted angle bead roll forming making machine is mainly producing L Channel. It also can be called Angle Light Keel and corner bead. Metal corner bead is the commonly used one for drywall corner bead protection. The multihole flanges of the metal bead for effective compound adhesion. The small nose bead for corner lines shape. And it is easy to install with nails and other fasteners.
What is the producing process of Slotted angle bead roll forming making machine?
What is the specifications of Slotted angle bead roll forming making machine?
| Name | Slotted Angle Making Machine |
| Raw material | Galvanized steel |
| Thickness | 0.3-0.8mm |
| Inner Diameter | 450-550mm |
| Max Coil width | 300mm |
| Capacity | 1.5T |
| Forming steps | 10 rollers |
| Shaft diameter | 40mm |
| Design type | Memorial arch |
| roller material | GCr12MoV steel |
| shaft material | 45# steel |
| Work speed | 0-25m/min |
| Transport | By gear |
| Power of main machine | 3kw |
| Type of cutting | Hydraulic |
| Cutting tolerance | ±1mm |
| Cutter | Gcr12 |
| Hydraulic oil | 46# |
| Hydraulic power | 3kw |
| PLC Brand | Delta(as your requirement) |

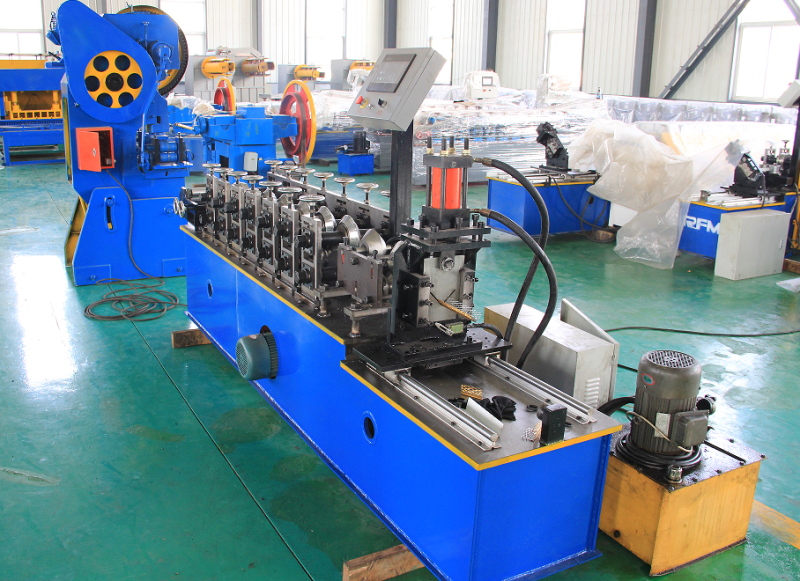

Some details of Iron angle keel making machine
Here is the conner bead machine working video for your reference:
