Drywall partition ceiling C section CD UD CW UW stud and track roll forming machine

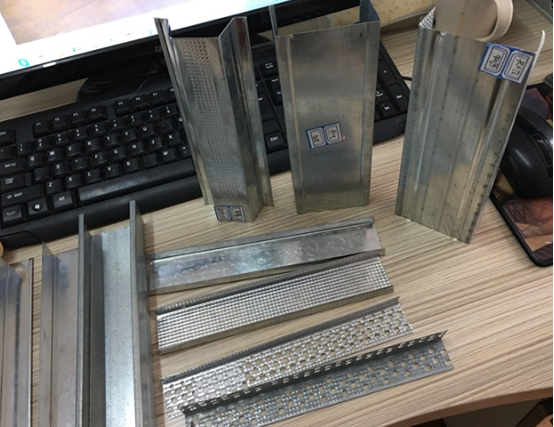

C section stud and track profile is weldly used in the celling and drywall construction. Compared with cement construction and wooden construction,

Steel frame is more light and durable.Thanks to these advantages, C/U/Omega stud is welcomed in construction field.

Advantages of Drywall partition ceiling C section CD UD CW UW stud and track roll forming machine

1. High speed. Our high speed C/U/Omega stud roll forming machine speed can up t0 80m/min.Normally, C/U/Omega stud roll forming machine's speed is around 45m/min,

2. High durable.  high speed C/U/Omega stud roll forming machine adopts cast steel roller fixer.

3. High automatic.  high speed C/U/Omega stud roll forming machine adopts PLC systerm.

User can set production quantity, production speed on control cabinet.

Components of the whole line

Working process of stud and track machine:

Decoiler--feeding---roll forming--punching--cutting--product table

Technical parameters for the whole production line:

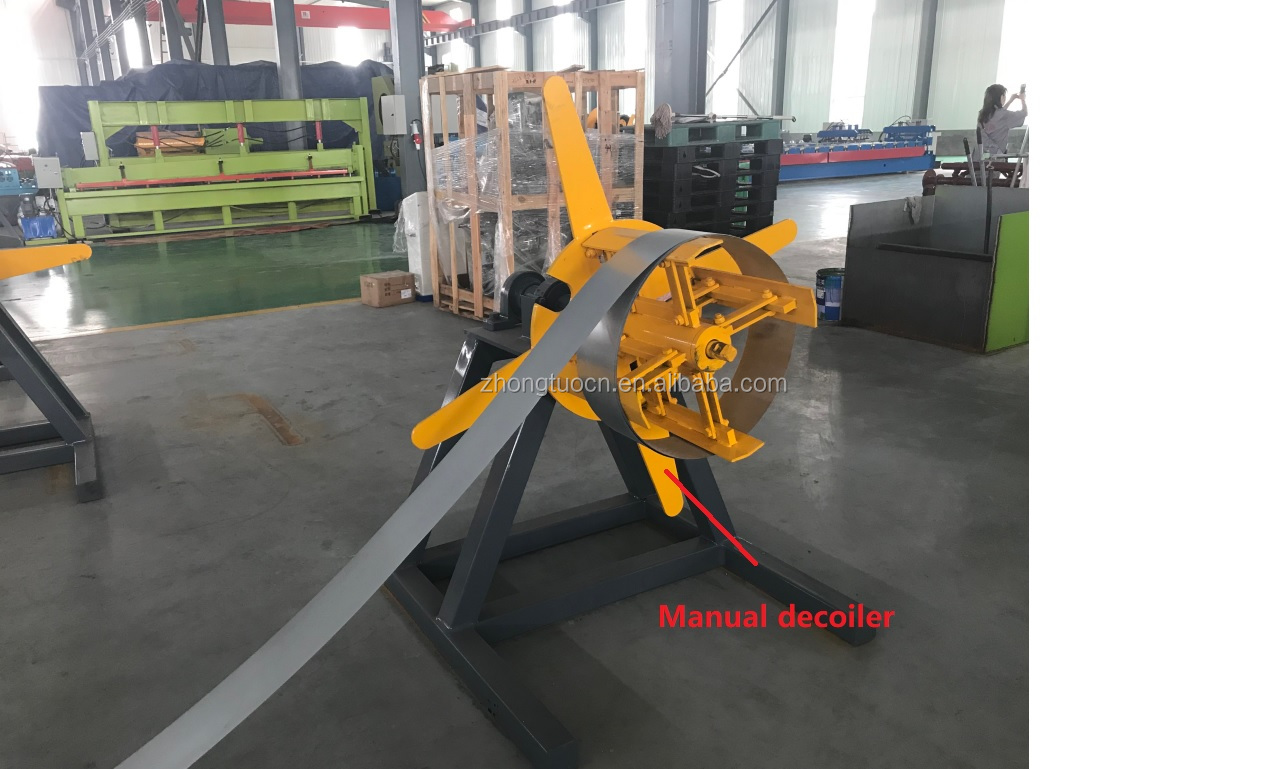

1.Manual decoiler

1) Capacity:1.5T

2) Coil inner diameter:350-450mm

3) Coil width:300mm

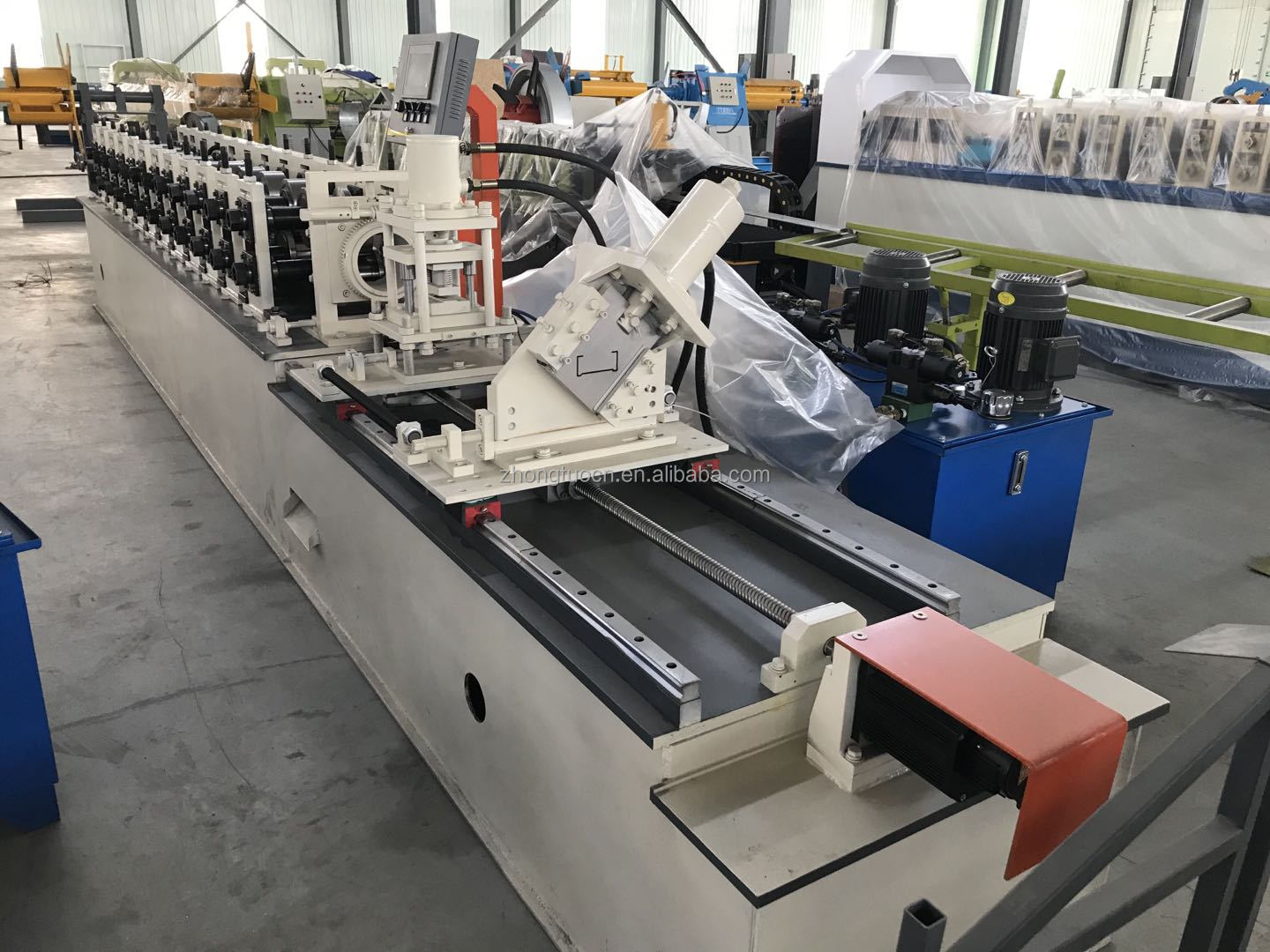

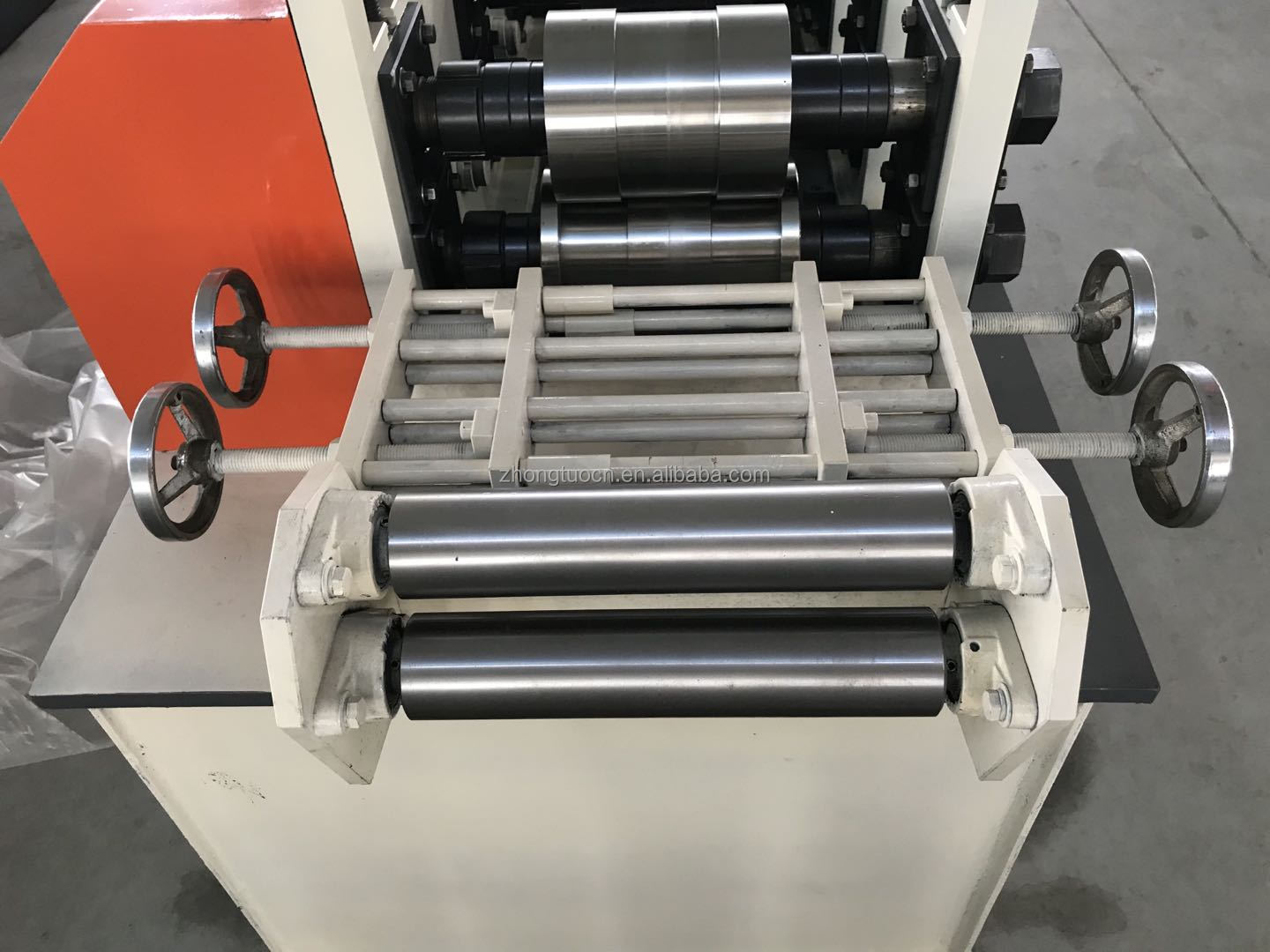

2.Roll forming machine

1) Machine structure:cast iron roller fixer

2) Main power:7.5KW

3) Forming stations:12 stations

4) Way of drive:by gear

5) Diameter of shaft:50mm

6) Max rolling speed: 0-45m/min

7) Thickness: 0.5-1.0mm or as customer's request

8) Material  width:100mm~300mm

9) Material of roller:CR12 with quenched treatment

10) Material of blade mould:Cr12, quenched 58-62

11) Way of cutting:hydraulic mould cutting(flying cut,cut without stop) with SERVO MOTOR DRIVED

12) Length cutting tolerance:+/-1.0mm

13) Electrical requirement:380V,50Hz,3P

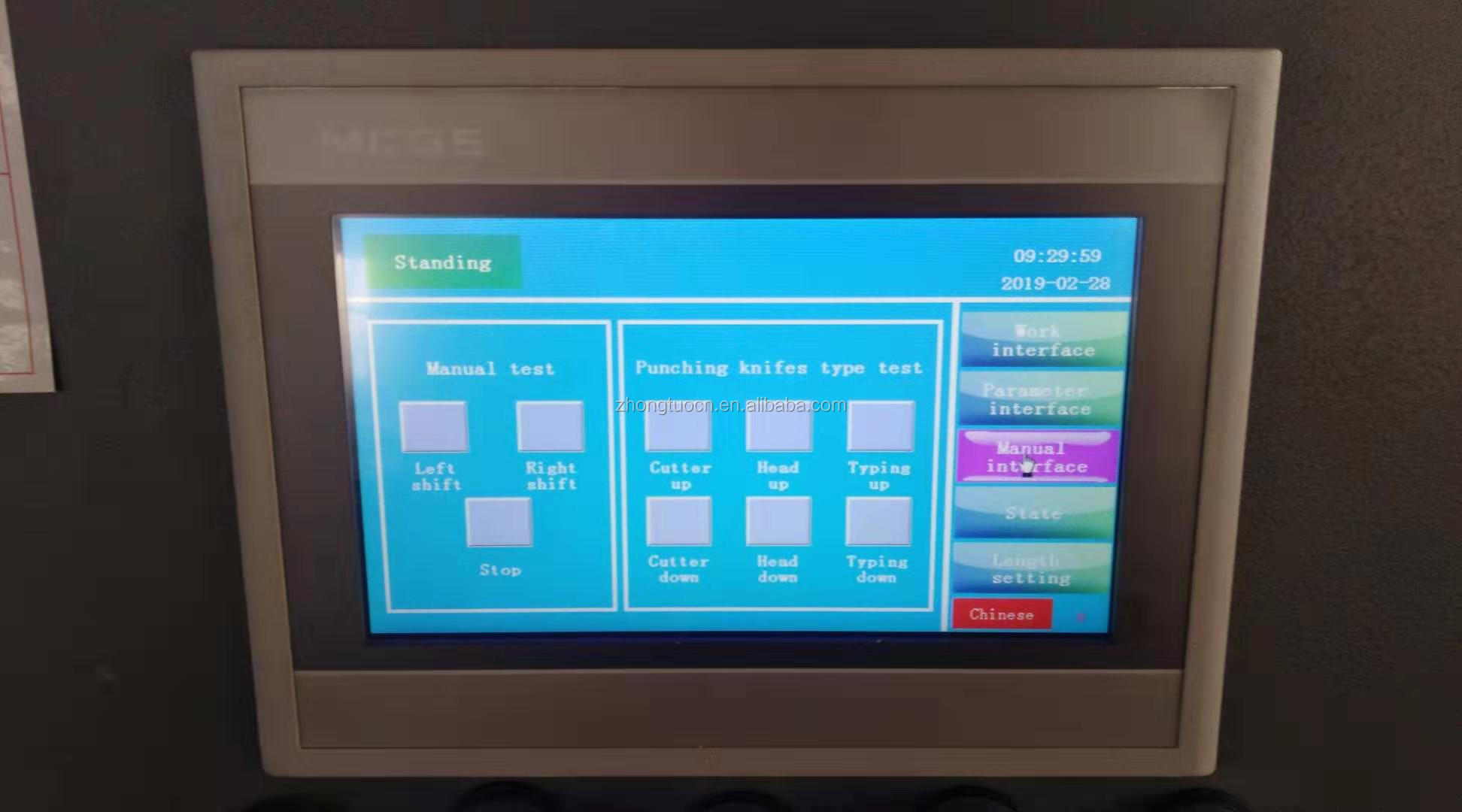

3.Control system

1) Control system:PLC

2) PLC brand:Delta

3) Screen:Touch screen

4) Screen brand:Touch screen

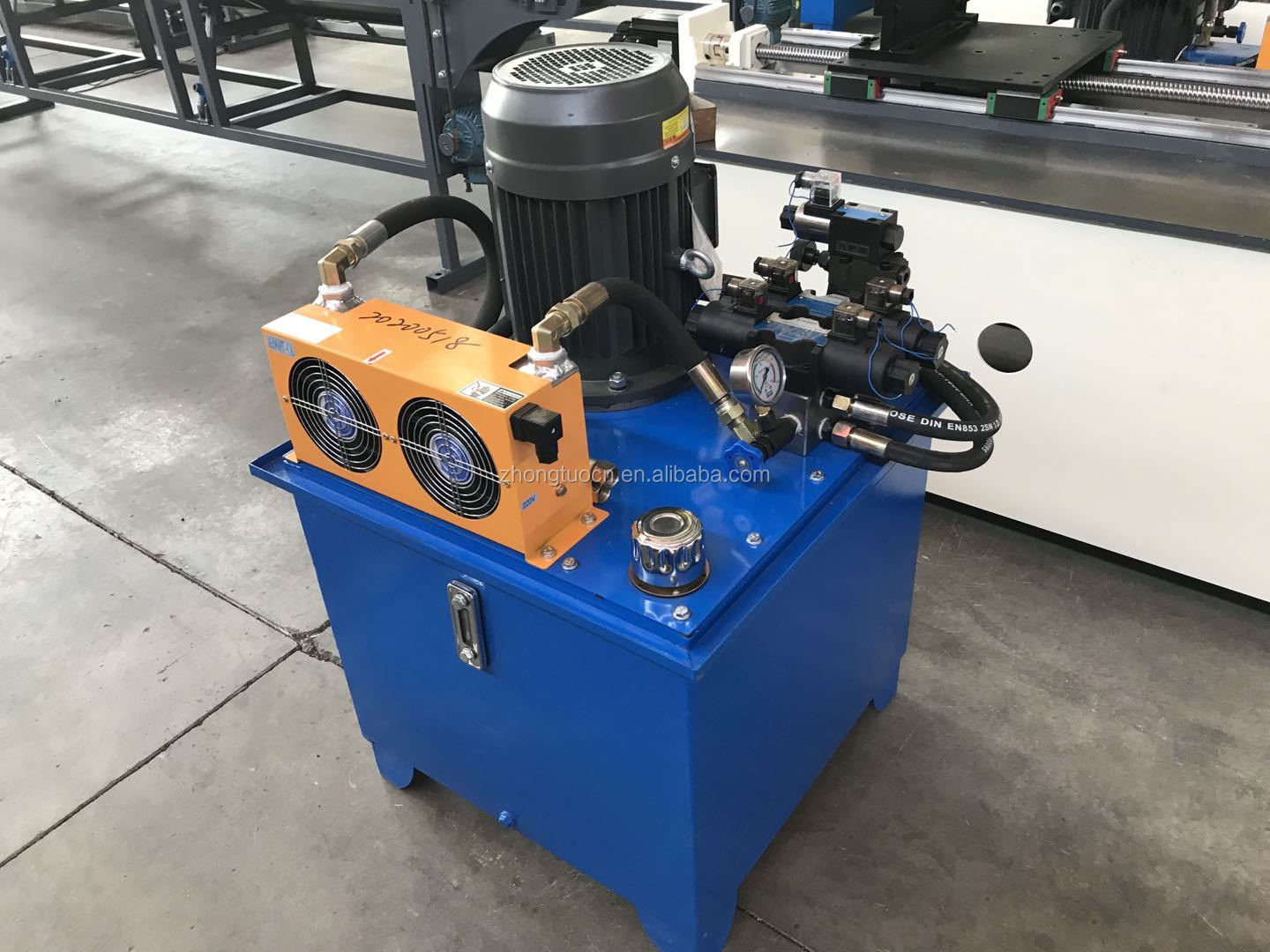

4.Hydraulic system:

1) Hydraulic pressure :16Mpa

2) Hydraulic power:4kw

3) Cooling system:fan cooling

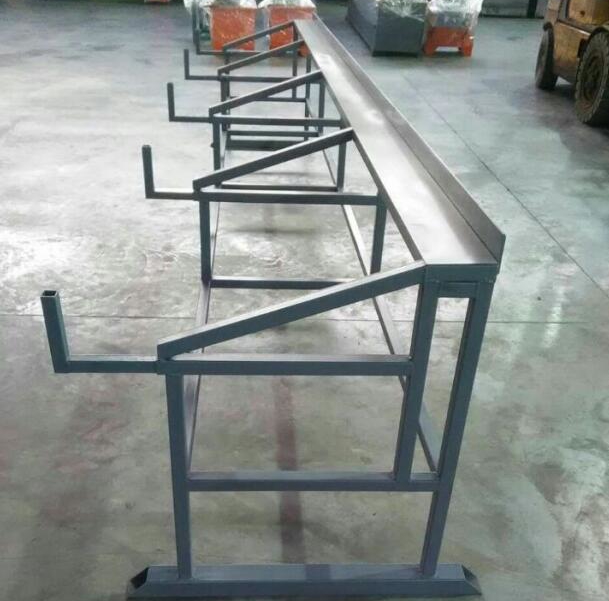

5.Product table

1) Length:3m

2) Manual or automatic
