CEILING T GRID ROLL FORMING MACHINE
NO.4 ROAD, ECONOMIC DEVELOP ZONE, BOTOU CONUTY, CANGZHOU CITY, CHINA
CEILING T GRID ROLL FORMING MACHINE
Ceiling T Grid Roll Forming Machine is fully automated and designed to make T grids in bataches. Our machines can be customized to your specification.
| Item | Specification |
| Main Forming Power | 7.5KW, 380V-50Hz-3Phase |
| Speed | 25-30m/min |
| Drive Type | 1" Single Chain |
| Machine Architecture | Middle-plate Construction; 25mm thick |
| Roller Station | 14 - 18 stations |
| Roller Shaft | φ90mm Solid Shafts, with quenched |
| Roller | 45# Steel HRC58-62°; Surface Hard Chromium Plating |
| Bearing | Chinese Famous Brand Harbin |
| Main Frame | 400# H-beam Steel Welded |
| Material | |
| Raw Material | Steel Coil |
| Feeding Width | 450-550mm, 1500mm |

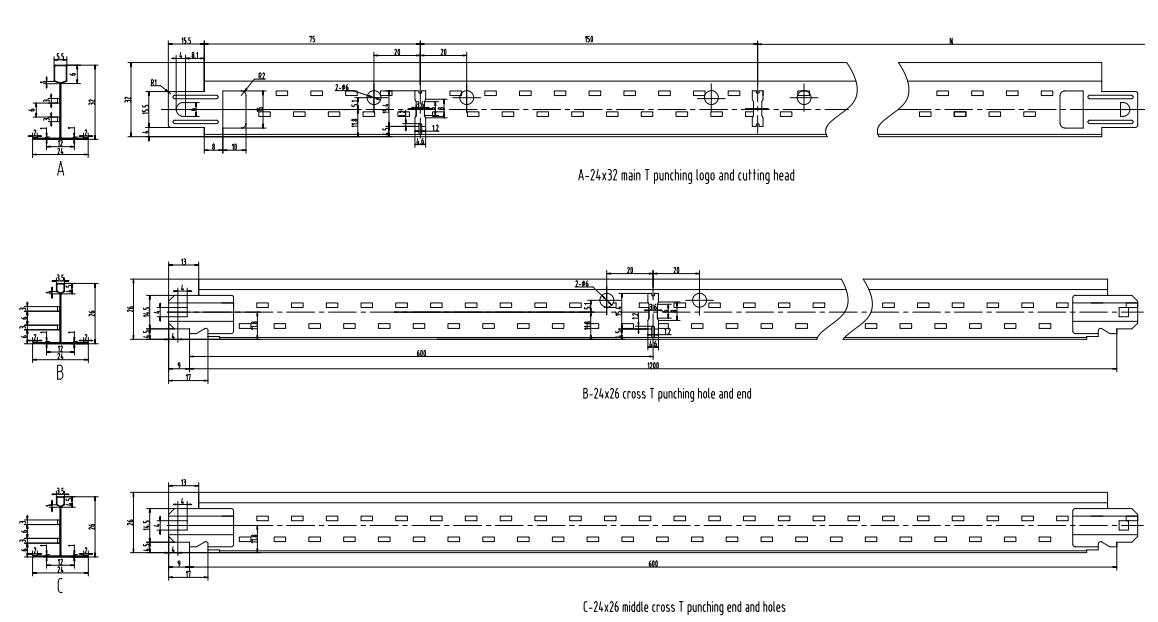

Ceiling T gird system includes main beams, wall molding, and cross tees. It is a stab connection on the cross tees. This feature provides a secure connection, fast and accurate installation with an audible click. This is the most commonly used and available grid system. Ceiling T Grids can be use in different kinds of buildings.
Installation:
| Item | Specification |
| Equipment Weight | 8.5 Tons |
| Equipment Dimension | 8500mm*1850mm*1500mm |
| Container | 1*40"GP |
| Equipment Color | Blue or Customeizable |
| Equipment Package | Nude Package |
| Protective Cover | Optional |
Here is the machine working video for your reference:
