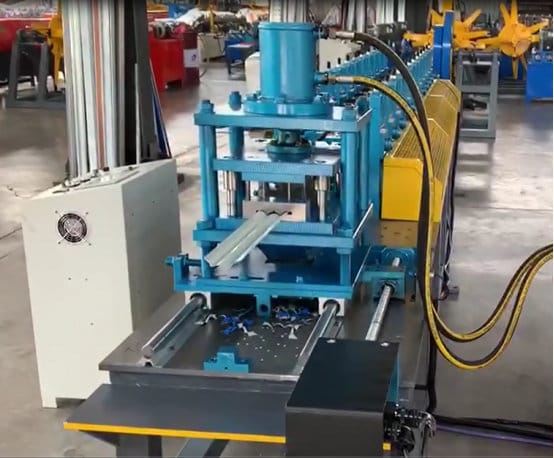

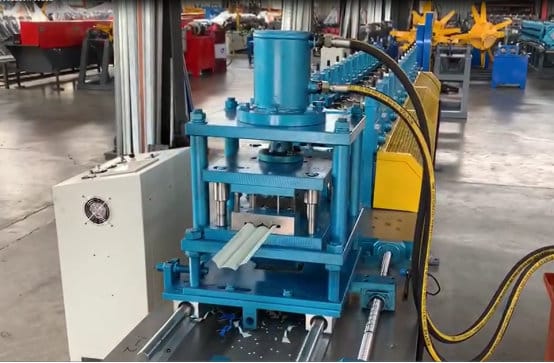

Picket fence rolling forming machine for Russian

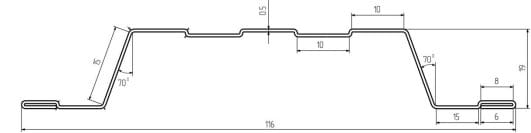

Picket fence rolling forming machine for Russian is designed to make the metal fence in batch fully automatically. Picket fences are a type of fence often used decoratively for domestic boundaries, distinguished by their evenly spaced vertical boards, the pickets, attached to horizontal rails. Picket fences are particularly popular in the United States, with the white picket fence coming to symbolize the ideal middle-class suburban life. Here are some popular drawing profile for your reference:

Picket fence rolling forming machine Design:

1).Number of forming steps: 12 steps

2).Shaft material:45# steel,

  Roller material:CR12 Mov

  Outer diameter:60mm

3).Transport: by Gear

4).Forming speed:25m/min

5).Motor:3 kw

6).Voltage:380v,50Hz,3phase

Advantages of Picket fence rolling forming machine：

1. Speed it can reach 25m/min per minute.

2. The frame we use the molding frame of thickness 25 to 35mm.

3. The material of rollers we use Gcr12 for long time to use.

4. The shearing we use hydraulic shearing, it can cut the lace and punching holes for the connection.

5. PLC control, it can cut length at specified length within 0.5mm error.

6. As the smooth rollers it will not scratch the surface of the coil to make sure the surface nice after rolling forming.

7. Strong base frame for long time to use.

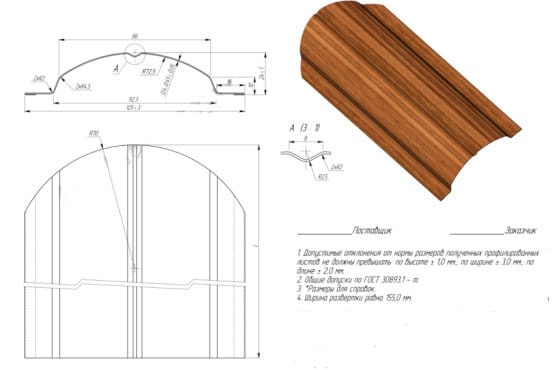

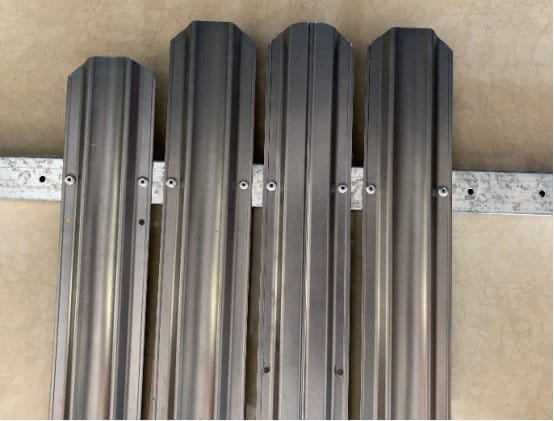

Here are more types of drawing for your reference:
