Automatic stud and track rolling forming machine is designed to make the stud and track in batch fully automatic of sizes changing. The speed is optional from 25 to 125 meter per minute.
Stud & Track Roll Forming Machine, if feed wider material, forming machine make stud, if feed less width material , machine make track, you can also program to punch on stud or track.
stud and track and omega channel are called as drywall channels,they are used to make economic wall and ceiling frame .
Metal studs and channels are strong, light weight, easy to install and come in a range of sizes to provide ideal wall and ceiling applications with multiple layers of gypsum board.

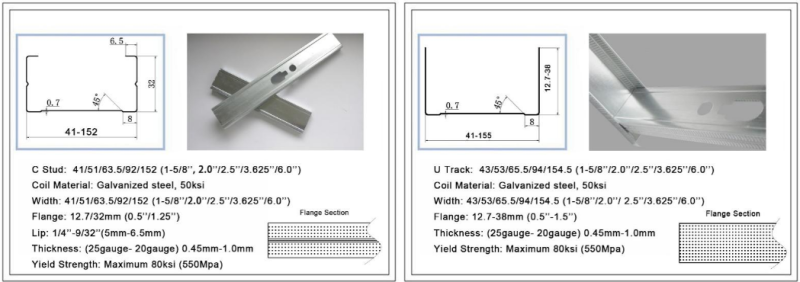

The availability of various sizes, complimentary components such as nogging tracks, curved tracks and special cleats ensure Rondo Stud and Track wall systems are available to suit almost all situations. Here we will take some drawing profile for your reference:
Track
Size:U43/65.5/92/102/154(1-5/8’’,2.0’’/2.5’’/3.625’’/6.0’’)
Material ：GI Coil
Bottom width：(1-5/8’’, 2.0’’/2.5’’/3.625’’/6.0’’)
Web flange：12.7/32mm/75mm
For example, it can support the following sizes:
Stud:
Sizes: C41/63.5/92/102/152 (1-5/8’’, 2.0’/2.5’’/3.625’’/6.0’’)
Material ：GI Coil
Bottom width ：(1-5/8’’, 2.0’’/2.5’’/3.625’’/6.0’’)
Web flange：32mm（0.5’’/1.25’’）
Lip sizes： 5-6.5mm (1/4’’ – 9/32’’)

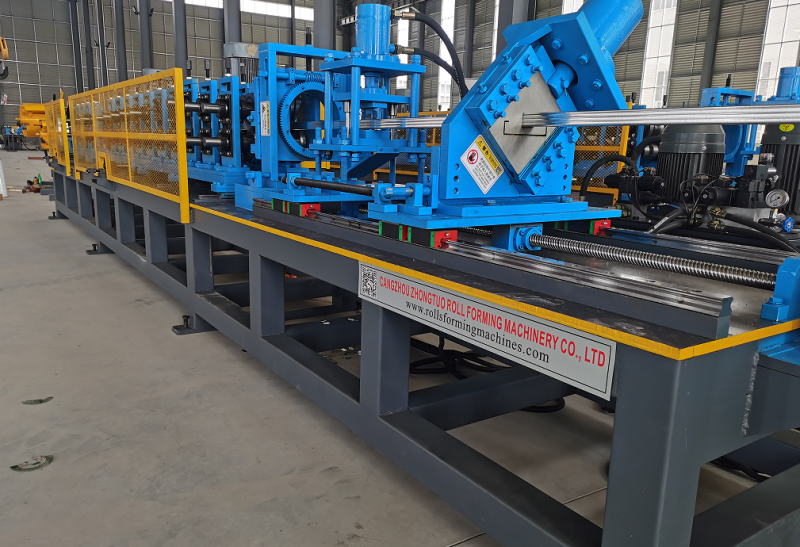

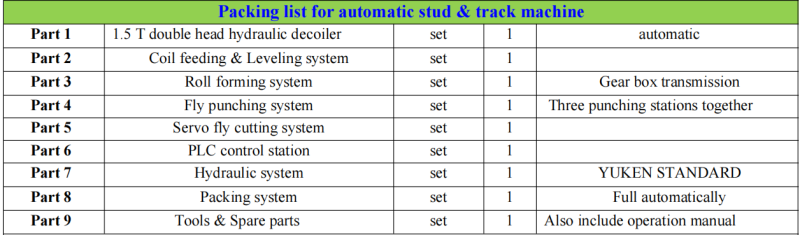

Automatic stud and track rolling forming machine design:

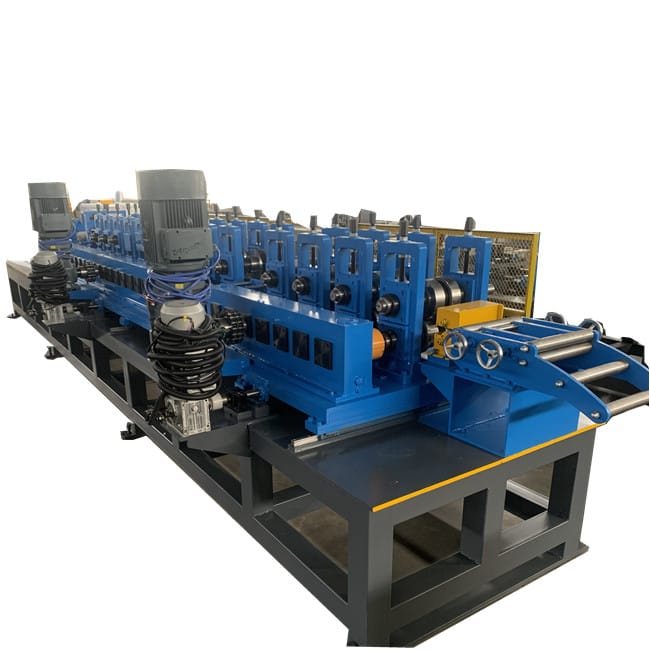

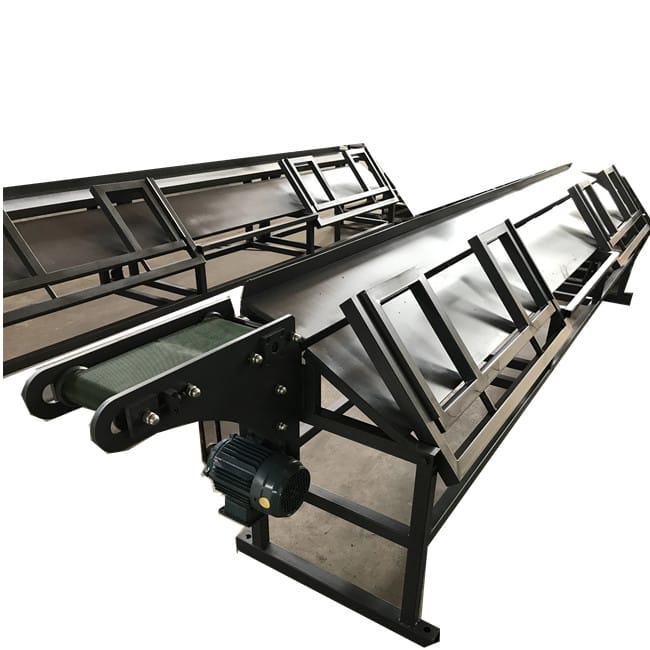

Automatic stud and track rolling forming machine features:

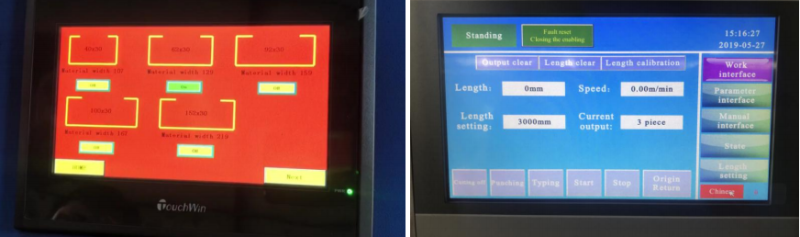

1. Sizes are adjusted by PLC fully automatically. The shaft with rollers are movable.

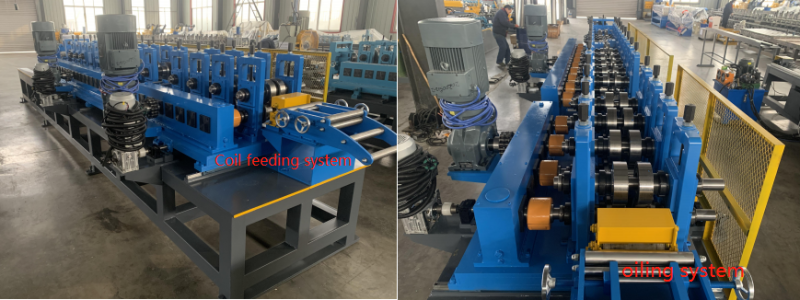

2. Handrail at the leveling part with guiding system, for feeding coil easily.
3. With oil drops to cool the roller and make it durable and use for a long time.
4. Gearbox transmission to make sure fast speed. For our machine the speed could be adjusted from 25 to 120 meter per minute.
5. Separated rollers for sizes adjustments.
6. Use two motors for main transmission system to give the power evenly.
7. Use servo motor for tracking shearing.
8. Use energy tank for non-stop punching and shearing. By this way, the shearing is more beautiful no bur.
9. With the adjustable embossing rollers and ribs, you can make them according to your own design.
