Stud and Track Roll Forming Machine
Stud & Track Roll Forming Machine, if feed wider material, forming machine make stud, if feed less width material , machine make track, you can also program to punch on stud or track.stud and track and omega channel are called as drywall channels,they are used to make economic wall and ceiling frame .Metal studs and channels are strong, light weight, easy to install and come in a range of sizes to provide ideal wall and ceiling applications with multiple layers of gypsum board.drywall forming machine automatically work with mitsubishi or siemens control syestem.This is furring channel forming machine working in customers’ factory
Stud And Track Roll Forming Machine is fully automatic and high speed machine,ZHONGTUO science & technology currently able to achieve a maximum speed is 80m/min,and has high degree of automation, can adjust the roller thickness by servo motor at the same time.Machine can produce different profiles according to customer request, to save cost, just change the spacers on the shaft, to save the time, can make the cassette type for change.
High speed 120m/min Stud and Track Roll Forming Machine:

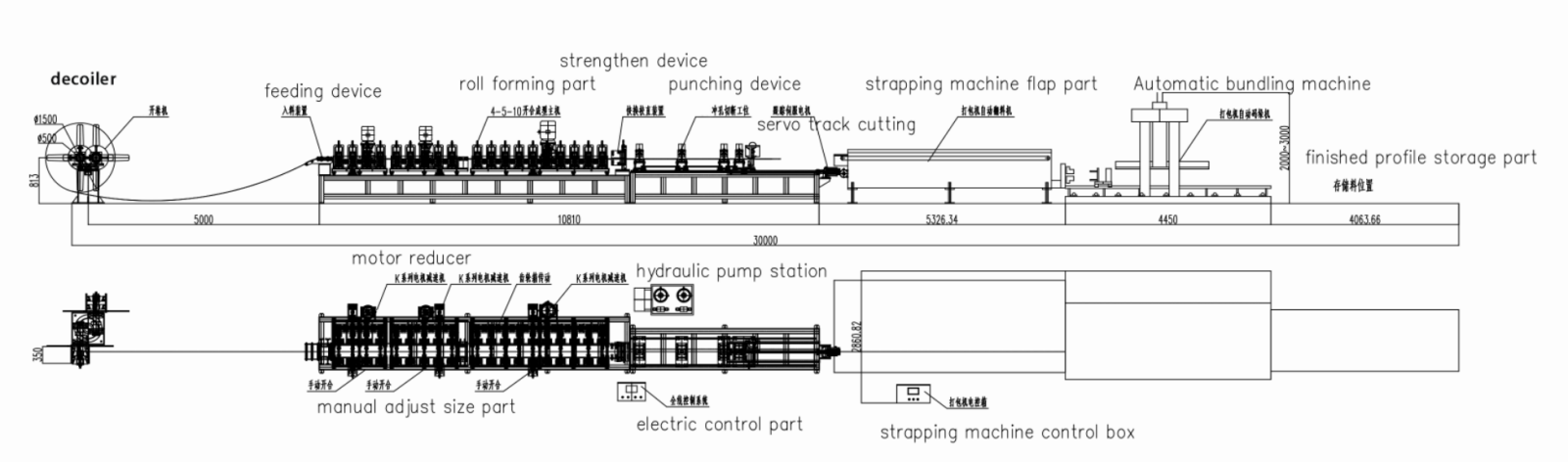

Work flow for automatic stud & track machine:
Stud And Track Roll Forming Machine Main Technology
· Double head uncoiler for quick change coil
· Full automatic change size
· Full automatic adjust the roller distance
· Non-stop high speed punching and cutting

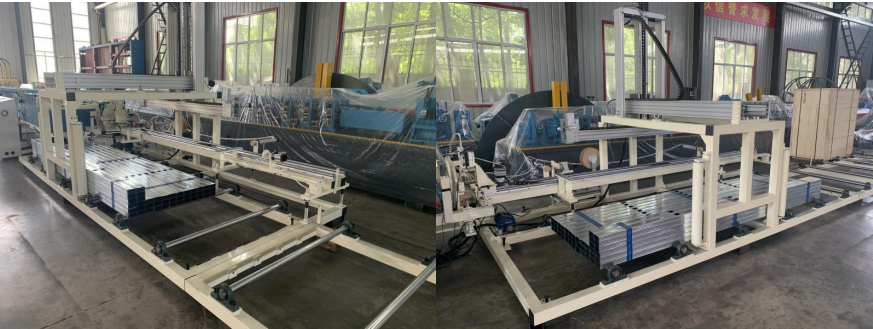

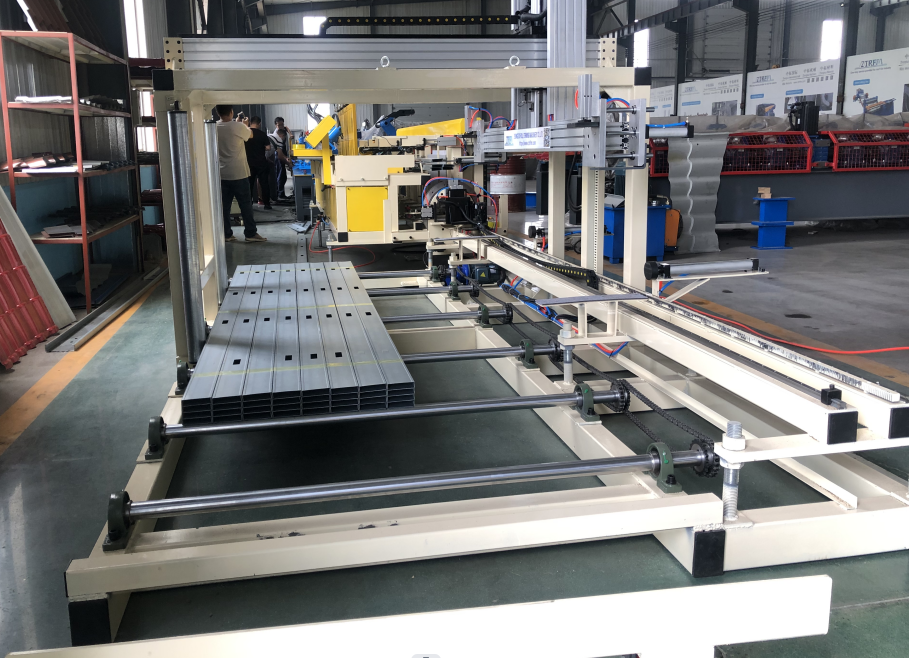

· Full automatic stacking and packing
Advantages of Stud And Track Roll Forming Machine

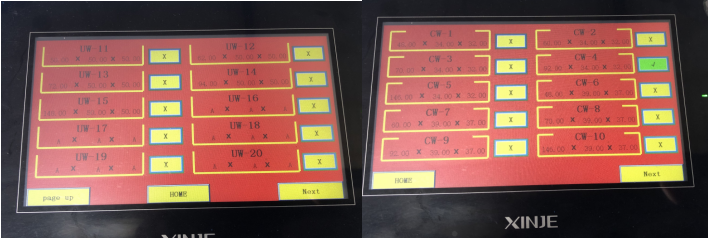

1. Sizes are adjusted by PLC fully automatically. The shaft with rollers are movable.
2.Handrail at the leveling part with guiding system, for feeding coil easily.

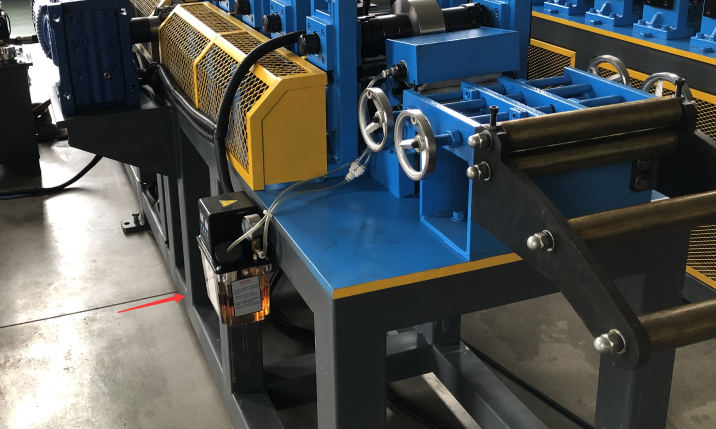

3.With oil drops to cool the roller and make it durable and use for a long time.
4. Gearbox transmission to make sure fast speed. For our machine the speed could be adjusted from 25 to 120 meter per minute.

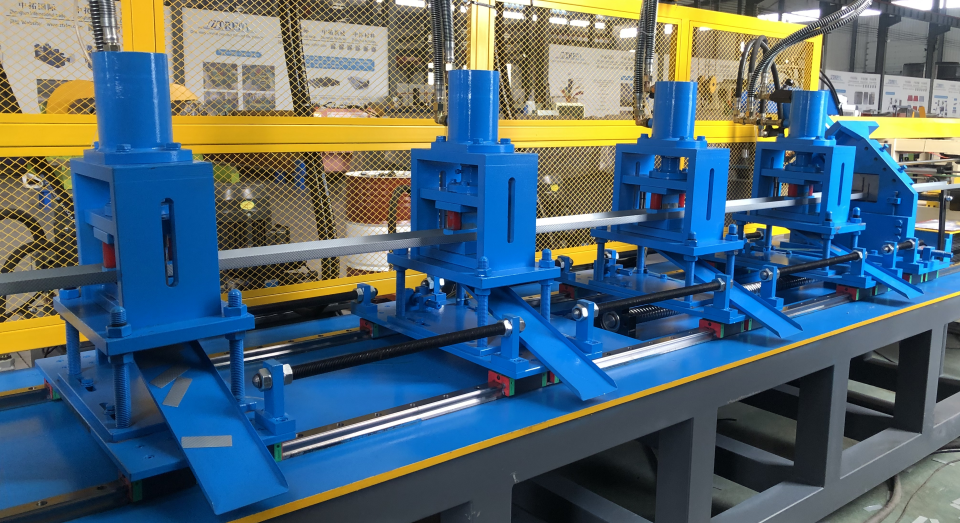

5.Separated rollers for sizes adjustments.
6.Use two motors for main transmission system to give the power evenly.
7.Use servo motor for tracking shearing.
8.Use energy tank for non-stop punching and shearing. By this way, the shearing is more beautiful no bur.
9.With the adjustable embossing rollers and ribs, you can make them according to your own design.
