High Speed Automatic Slotted Deflection Track Rolling Forming Machine
Dry Wall Partition System 1. Dry Wall Angle 2. Track 3. Stud 4. Gypsum Board The Steel Stud Drywall Framing System provides a durable, practical and lightweight structure for internal plasterboard walls and for specific external walls. Metal Profile Stud & track for partition system is made of hot galvanized steel, including Stud, Track, C-Channel, Corner bead &accessories. CW UW frame roll forming machine adopts CNC controlling system, full line Steel framing roll former C stud track roll formers is automatic running. Steel framing roll former C stud track roll formers cutting device adopts the servo motor high speed cutting system. Steel framing roll former C stud track roll formers can produce C stud U track steel framing for suspended ceiling system, and drywall steel framing system. For the C stud and U track, it can be designed with punching holes device, punching logo device, high speed fly saw cutting device, and automatic receiving table system.

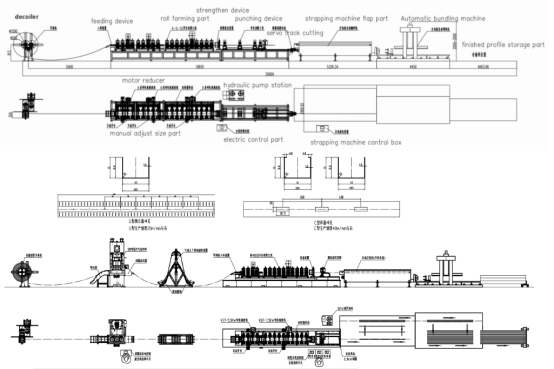

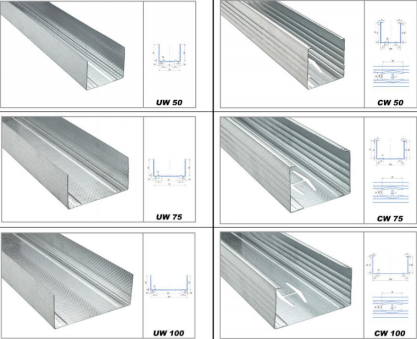

Here is one drawing profile and finished product:
Select your product below:
Product details:
For superior control of head-of-wall lateral deflection and axial rotation; ZTRFM’s Rapid Track slotted deflection track is a dynamic solution to interior and external walls that require heavy weight loading or are subjected to dynamic wind loads.
Rapid Track gives the top of the steel stud wall the ability to float within the track legs allowing vertical live load movement of the primary structure without transferring axial loads to the wall studs.
In addition, Rapid Track also has slots in the track to allow for horizontal drift when required by seismic designs.
Available in 3000mm Leg lengths and a variety of track widths from 64mm to 150mm. Rapid track is easy to install and reduces the cost of materials and labor.

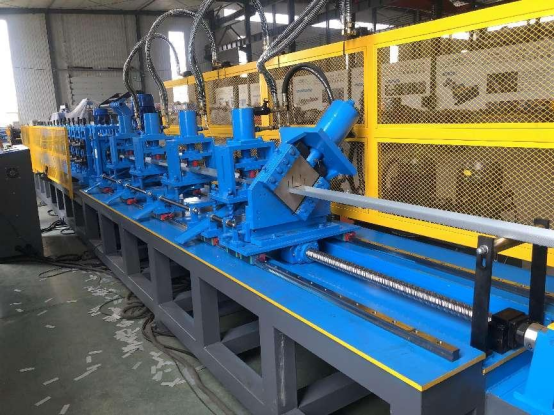

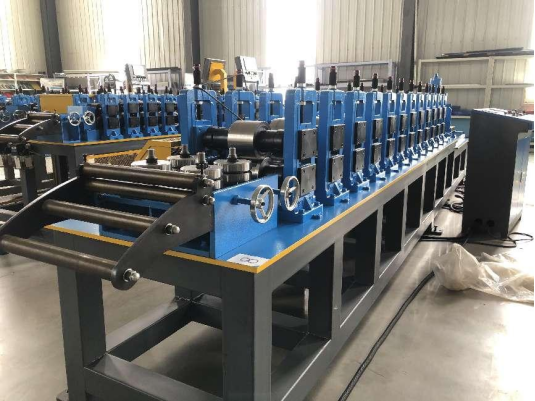

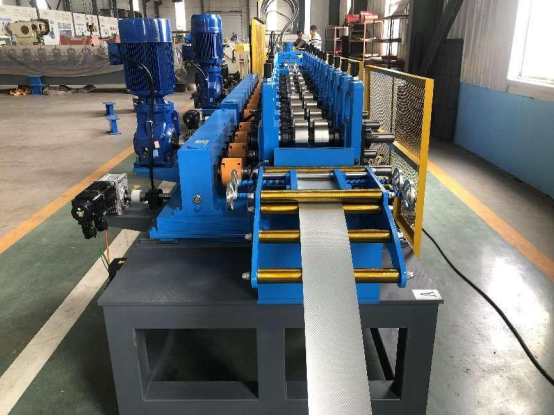

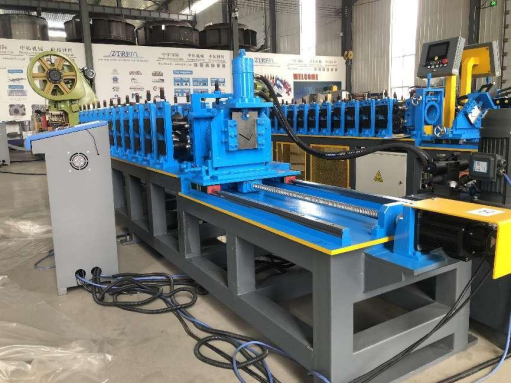

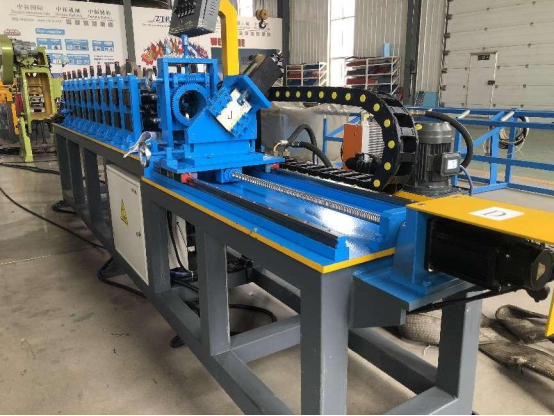

High Speed Automatic Slotted Deflection Track Rolling Forming Machine

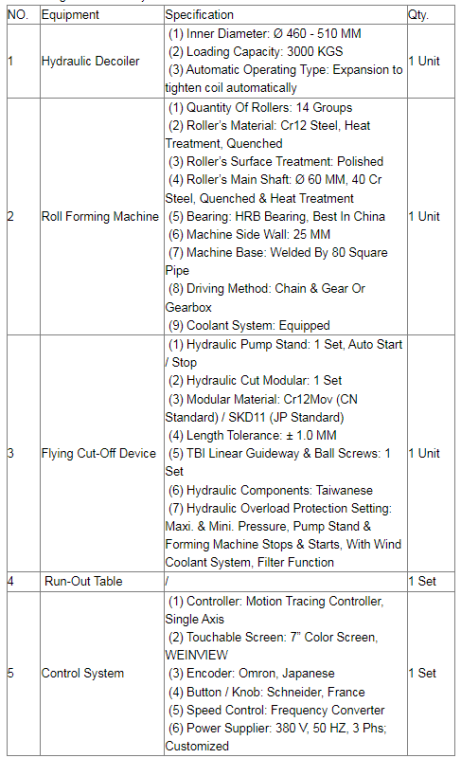

High Speed Automatic Slotted Deflection Track Rolling Forming Machine Specifications:
With auto packing and stacking system, full process working automatically
Can produce profiles between 2½”, 3 5/8″, 4″, 6″, 8″,10″
Flying shear and fly punching
Embossing - stamping
Safety cover
Siemens control system
Size change automatically
Key Features of the Slotted Deflection Track Roll Forming Machine:

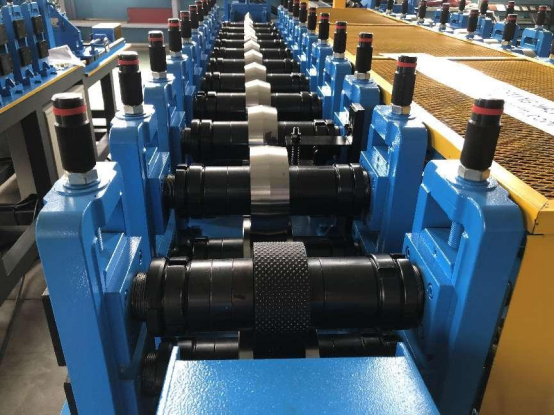

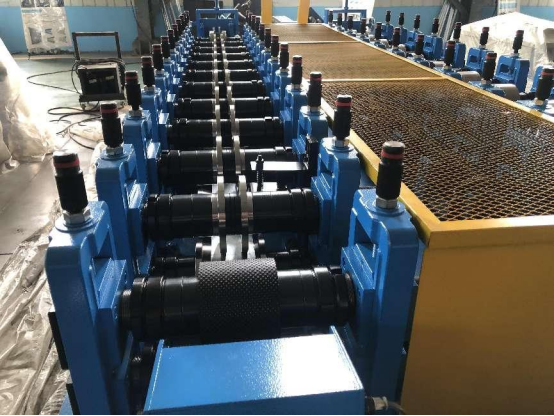

Advanced Roll Forming Technology:The machine utilizes cutting-edge roll forming technology to shape flat metal strips into precise slotted deflection tracks. This process involves passing the material through a series of rollers that gradually bend and form it into the desired profile.
Material Versatility:Designed to work with various metals, including galvanized steel, aluminum, and other alloys, the machine provides flexibility in manufacturing tracks suitable for different construction requirements.
Precision Slotting Mechanism:The machine is equipped with a precision slotting mechanism that accurately punches slots into the deflection tracks. These slots are essential for allowing the tracks to accommodate movements and stresses without compromising the structural integrity.
Customizable Profiles:The machine offers the ability to customize the profile dimensions and slot configurations based on specific project requirements. This customization ensures that the produced tracks meet the precise needs of different construction applications.
High Production Speed:The Slotted Deflection Track Roll Forming Machine is designed for high-speed production, enabling manufacturers to produce large quantities of tracks efficiently. This capability is crucial for meeting tight project deadlines and high demand.
Automated Operation:Automation features, including computerized controls and programmable settings, enhance the machine's operational efficiency. Automated operation reduces the need for manual intervention and minimizes the risk of errors.
Integrated Cutting System:An integrated cutting system ensures that the finished tracks are cut to the desired lengths with precision. This system synchronizes with the roll forming and slotting processes to maintain a continuous production flow.
Robust Construction:Built with durability in mind, the machine’s robust construction ensures long-term reliability and minimal maintenance requirements. High-quality components and materials enhance the machine's lifespan and performance.
