CrocStud Premium Drywall Stud And Track Rolling Forming Machine

ZTRFM Drywall Partition Stud And Track Production Line is mainly used for the production of drywall partition stud and track. The full production line includes manual decoiler, roll forming machine, flying cut-off device, run-out table and control system. The maximum production speed from decoiling to discharging could be about 100 meters per minute. Other revelant metal ceiling machines could be customized as well, welcome to send samples or drawings for customization.

Select your product below:

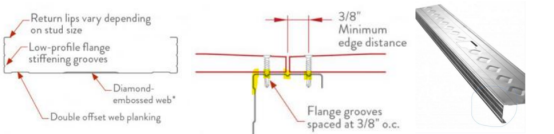

With the ribs making and dotting rollers:

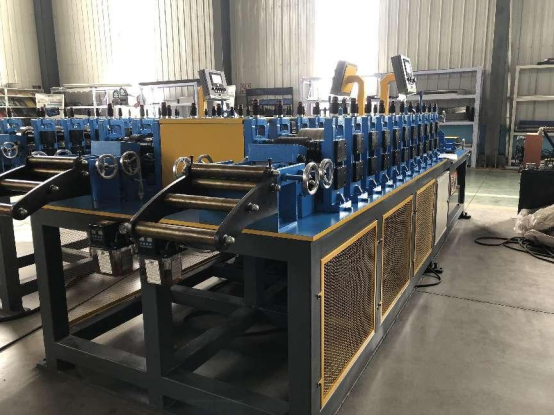

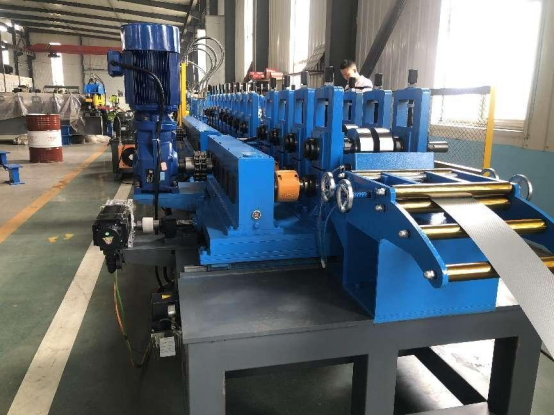

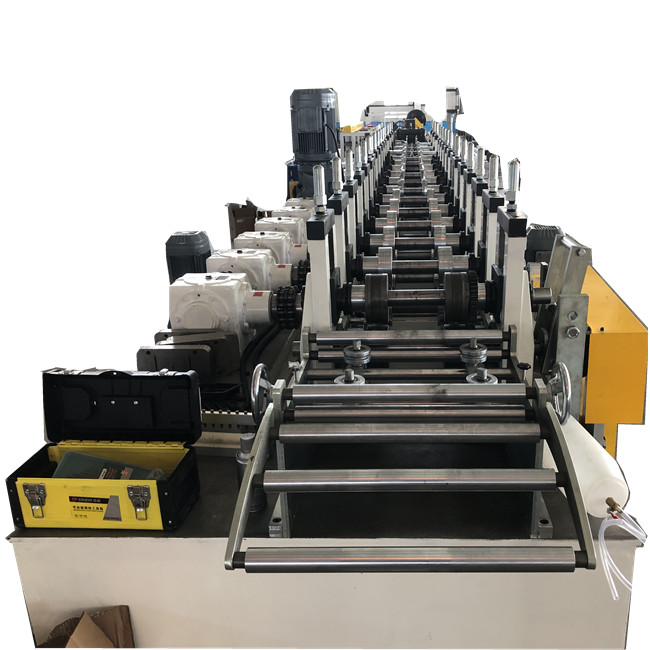

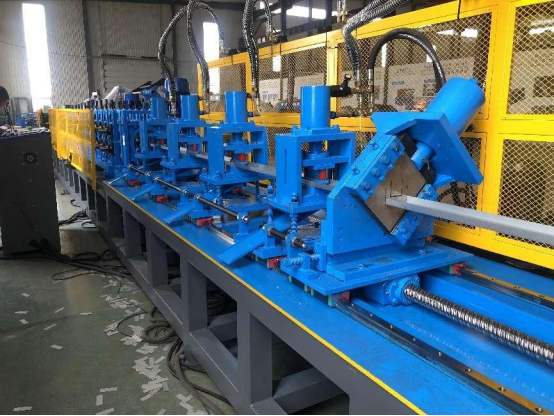

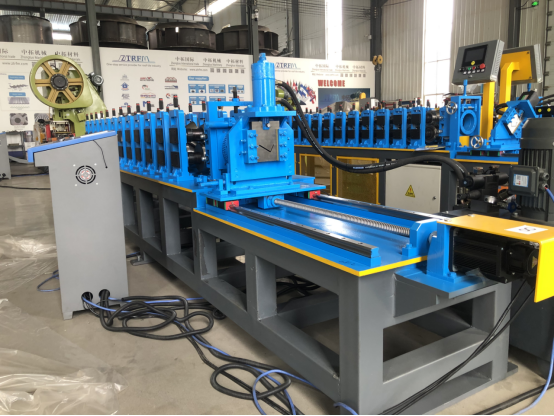

CrocStud Premium Drywall Stud And Track Rolling Forming Machine

CrocStud Premium Drywall Stud And Track Rolling Forming Machine Main Specification:

1. Material: G.I. Coil / CR Coil

2. Material Thickness: According To Customer’s Requirement

3. Profile Width: According To Customer’s Requirement

4. Profile Height: According To Customer’s Requirement

5. Whole Production Line Speed: 60 - 70 Meters / Minute, Could Be Up To 120 Meters Per Minute.

Design Idea:

This machine is designed to machine normal drywall stud and track and also slot track by one machine. For the punching of slot track by the Punching machine.

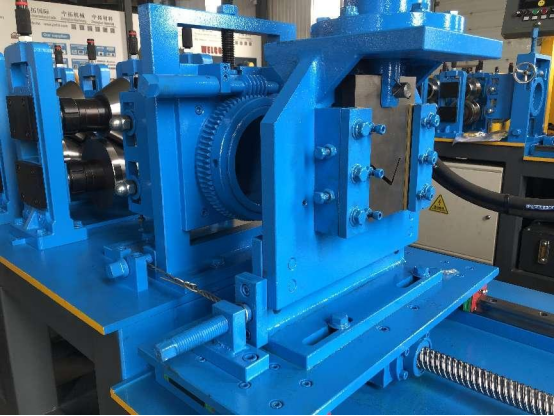

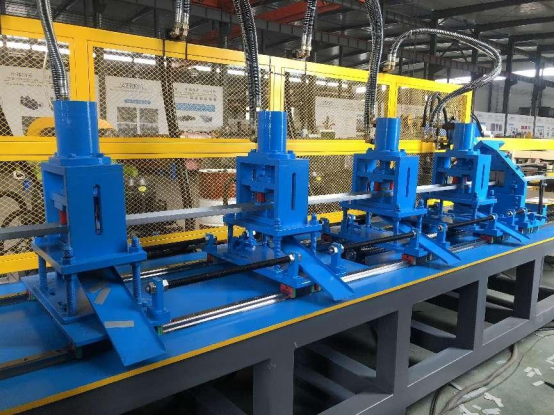

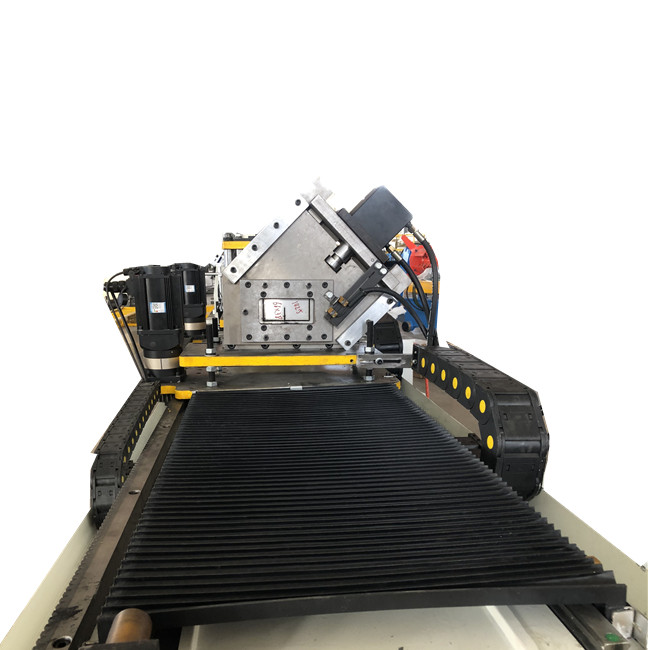

As to the stud and track by after punching with rolling forming, servo motor control, the speed can reach 45 meter per minute.

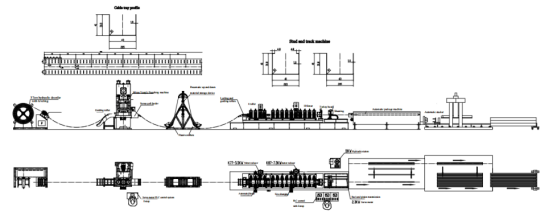

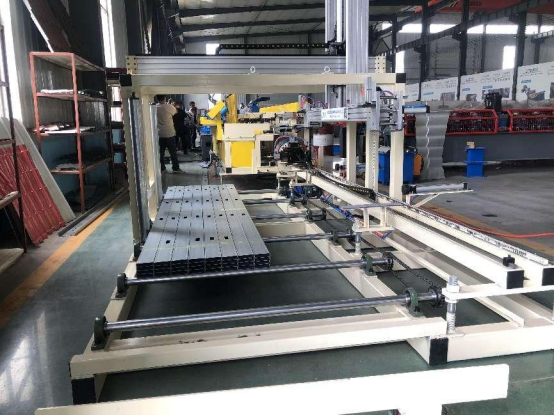

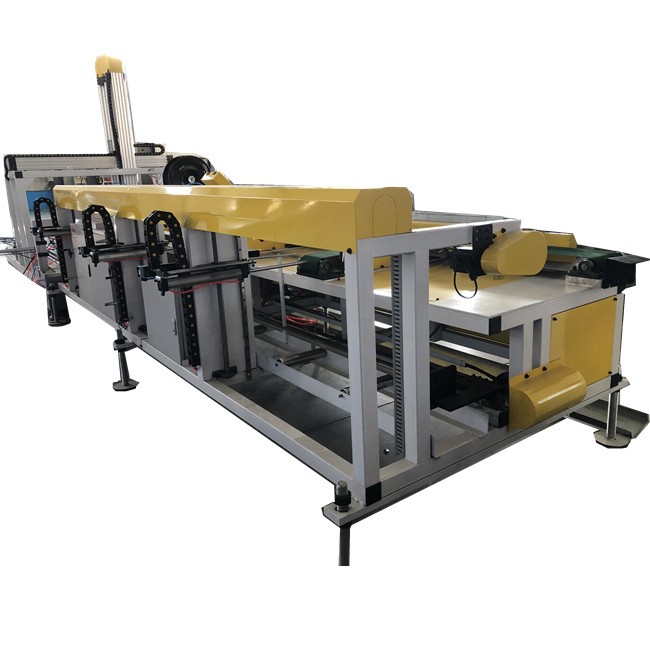

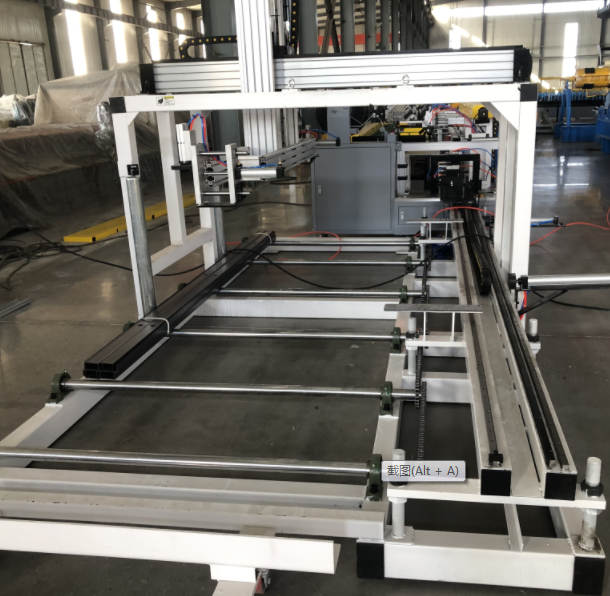

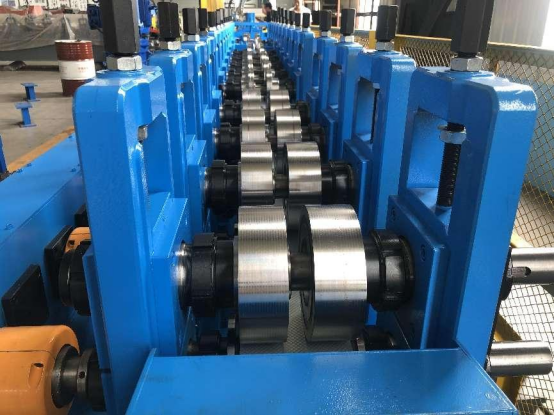

Working flow: 3 ton double head decoiler --cage loop-->80 ton YangLi punching machine- cage loop --main rolling forming machine-stud and track punching--> convey table and stacker.

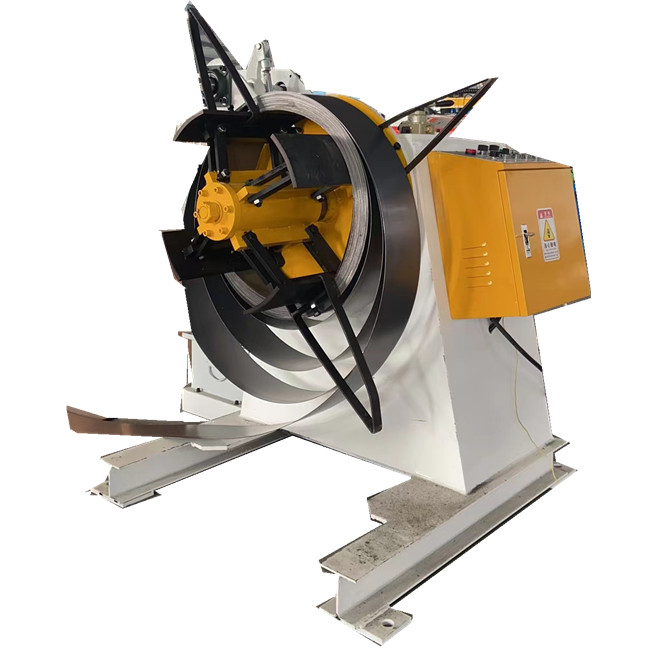

3 T Double head Hydraulic Decoiler

Structure:double-station form,equipped with a rotating bearing that can be rotated by180degrees, hydraulic slider type expansion and contraction (optional manual expansion),air disc brakes.

Advantages:one work and one ready for feeding speed, easy to operate

Structure type:single-side hydraulic expanding tight, which insure steel coil feeding alternatively.

1).Steel strip width: 39.88-300mm

2). thickness: 0.4 to 1.5 mm

3).Steel coil O.D. :Φ900-Φ1800mm

4).Steel coil I.D. :Φ500-Φ520mm

5).Steel coil weight: Max.3 Ton

Performance characteristics：

1.The steel plate welding fuselage is rigid and the precision is stable.

2.Dry or wet type pneumatic friction clutch brake, the action is sensitive and reliable.

3.Big gear, gear shaft precision grinding, machine tool running noise is low.

4.Sliding block six-sided guide rail, with pneumatic balance device, smooth operation, accurate accuracy.

5.Adopt hydraulic overload protection device to protect press and mould effectively.

6.The single or multi-machine automatic stamping production line can be formed by using PLC to control the automatic feeding device.

7.In addition to the constant speed, there are two kinds of stepless speed stroke selection, which is more suitable for stamping parts process requirements and improve production efficiency.
