C Purline machine with Multi-punching
Automatic C Purline machine with Multi-punching is designed to make the C purline machine in various sizes with many types of punching hole. In the market, there are many types C purline machine, like CZ purline machine, Z purline machine, either in the manual adjustment way or the fully automatic method. Here the machine I share we designed for France, Various type C purline with the Multi-punching, the size adjustment by button control and by PLC control both, no need the manual work.

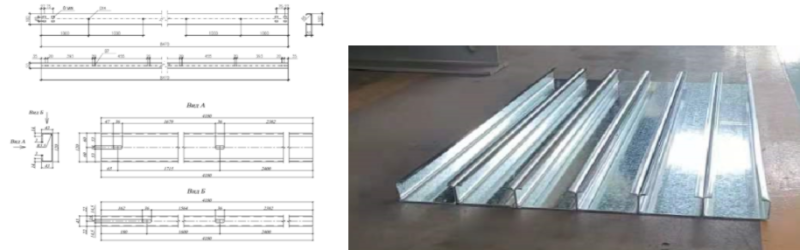

Take the following C purline drawing & C Purline Finished Product for your reference:

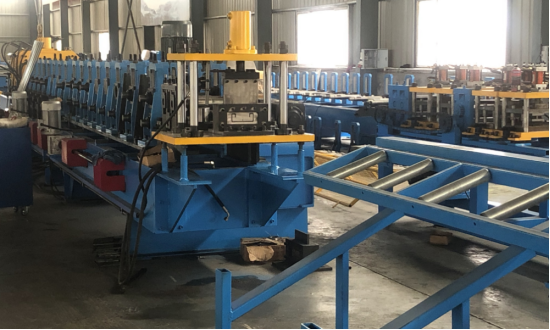

C Purline machine Design:
Features of C purling Machine:
1. Working speed is around 15 to 25 meter per minute.
2. Use the molding frame, the thickness of frame is around 35 to 45mm.
3. Use the gearbox as transmission.
4. Use the hydraulic shearing system.
5. Use the automatic stacker.
6. The punching are before punching.
7. The sizes are controlled by PLC or button control.
C Purline machine Basic Parameters | |
Forming station | 14 stations |
Forming Rollers | GCr15, heat treatment and hard chrome-plated ,HRC55-58 |
Main shaft material | S45C, heat treatment HRC42 Φ80mm |
Leveling roller | 5 rollers |
Pinching device | 2 Steps of pinching |
Punching hole | Punching before forming |
Cutting sheet | Cutting after forming, stop to cutting |
Forming speed | 0-18m/min |
Producing speed | 0-12m/min |
Main motor power | 15KW, Chinese famous brand |
Transmission system | 1.0 double line chains |
Control system | PLC Siemens brand |
Dimension(L×W×H) | Approx.10000×1400×1600 mm |
Weight | Approx.9500kg |
Here are more details about the C purline machine for your reference:

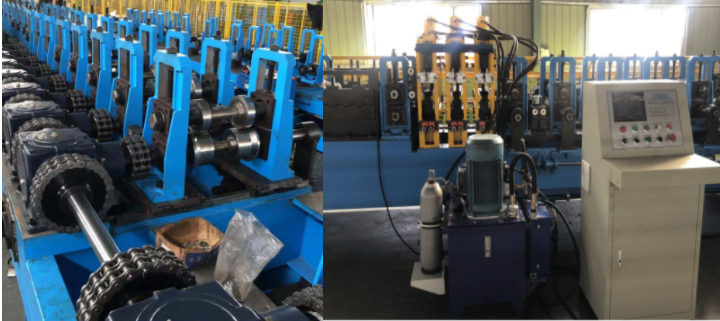

1. Use the gearbox as transmission:

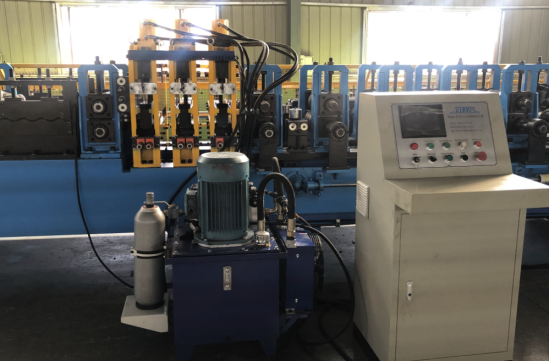

2. Punching station with the energy accumulator: With this energy accumulator, the punching will not stop and then the punching speed could be doubled.

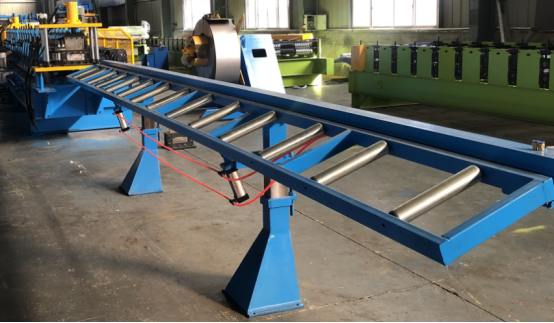

3. Automatic stacker will help receiving the C purline orderly.
For the C purline machine, CZ purline machine, if you need more types, please contact us at any time.
