Description:Strut Channel Roll Forming Machine production line is to produce the strut channel as solar mounting frame. Forming machine is combined and adjustable, the change size through adjust distance of rollers to complete.

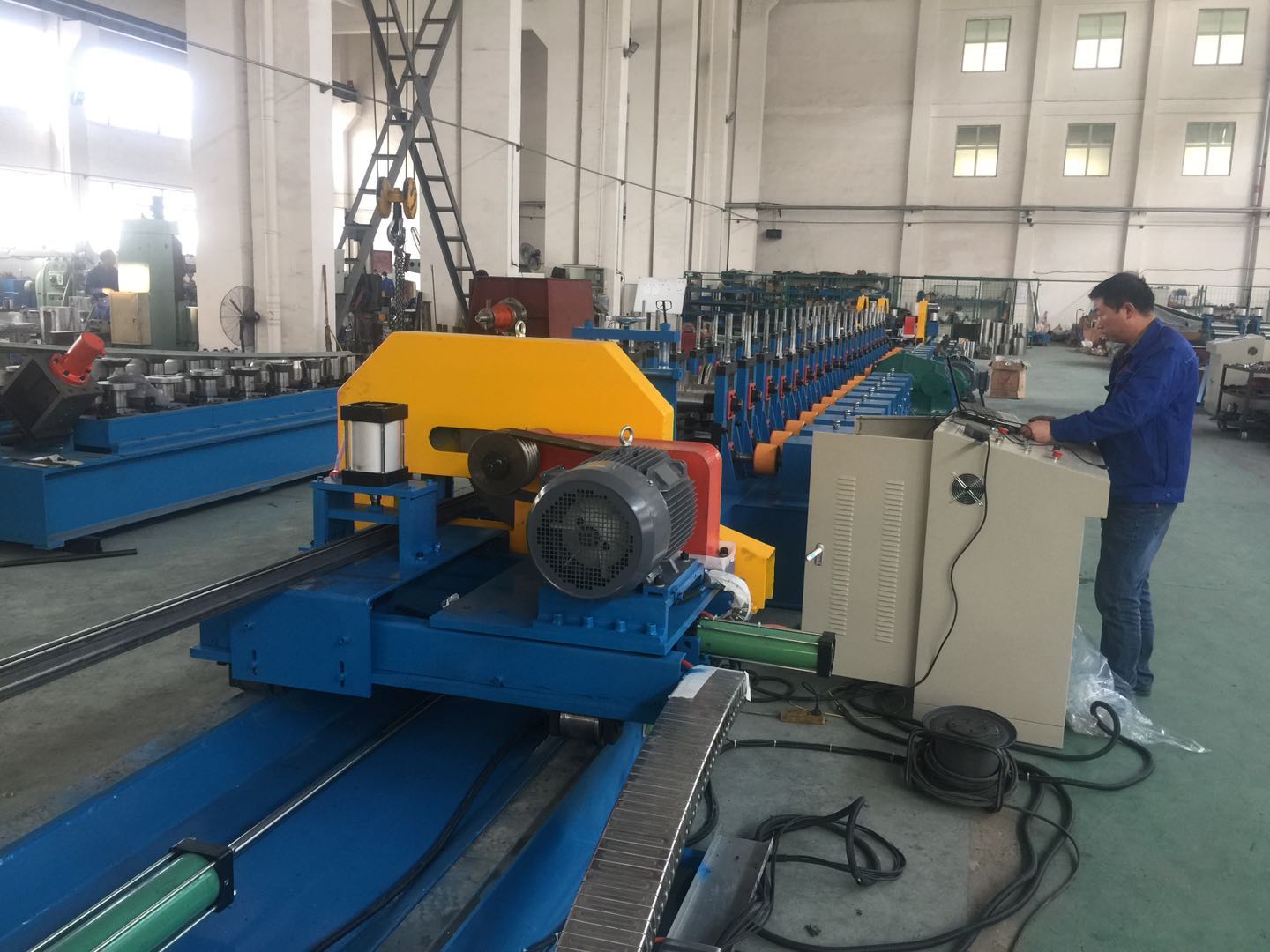

Strut Channel Roll Forming Machine

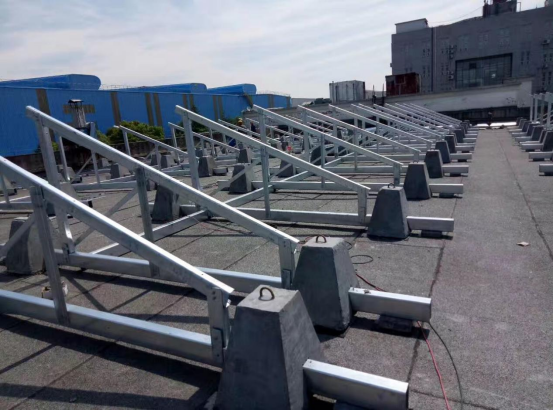

Strut channel roll forming machine has two main application: One is also called like seismic support roll forming machine or seismic channel roll forming machine, its product is used to mount, brace, support, and connect lightweight structural loads in building construction. Other is called solar rack roll forming machine or photovoltaic (PV) rack roll forming mahcine, its product is used in PV support bracket. Our strut channel roll forming machine is suitable to produce strut channels with 12 gauge ( 2.6mm ) or 14 gauge ( 1.9mm ) thick sheet metal ( normally range 2-2.5mm ), raw material could be Hot-rolled and cold rolled steel, Hot-dip galvanized sheet, Pre-Galvanized Steel, Mill ( Plain/Black ) Steel, Aluminum, Stainless Steel etc. And according to slot type, our machine could produce solid channel, slotted channel, half slotted channel, long slotted channel, punched channel, punched and slotted channel etc.
Strut channel is used to mount, brace, support, and connect lightweight structural loads in building construction. These include pipes, electrical and data wire, mechanical systems such as ventilation, air conditioning, and other mechanical systems. The material used to form the channel is typically 12 gauge or 14 gauge thick sheet metal. According to slot type, we have many different types of strut channels: Solid channel has no holes predrilled, and must either be drilled on site or mounted in another fashion. Punched channel has round holes, large enough for 5/8 inch threaded steel rod or bolts, punched in the top of the channel at regular 1 7/8 inch centers. Half-slot channel has short, rounded end rectangular

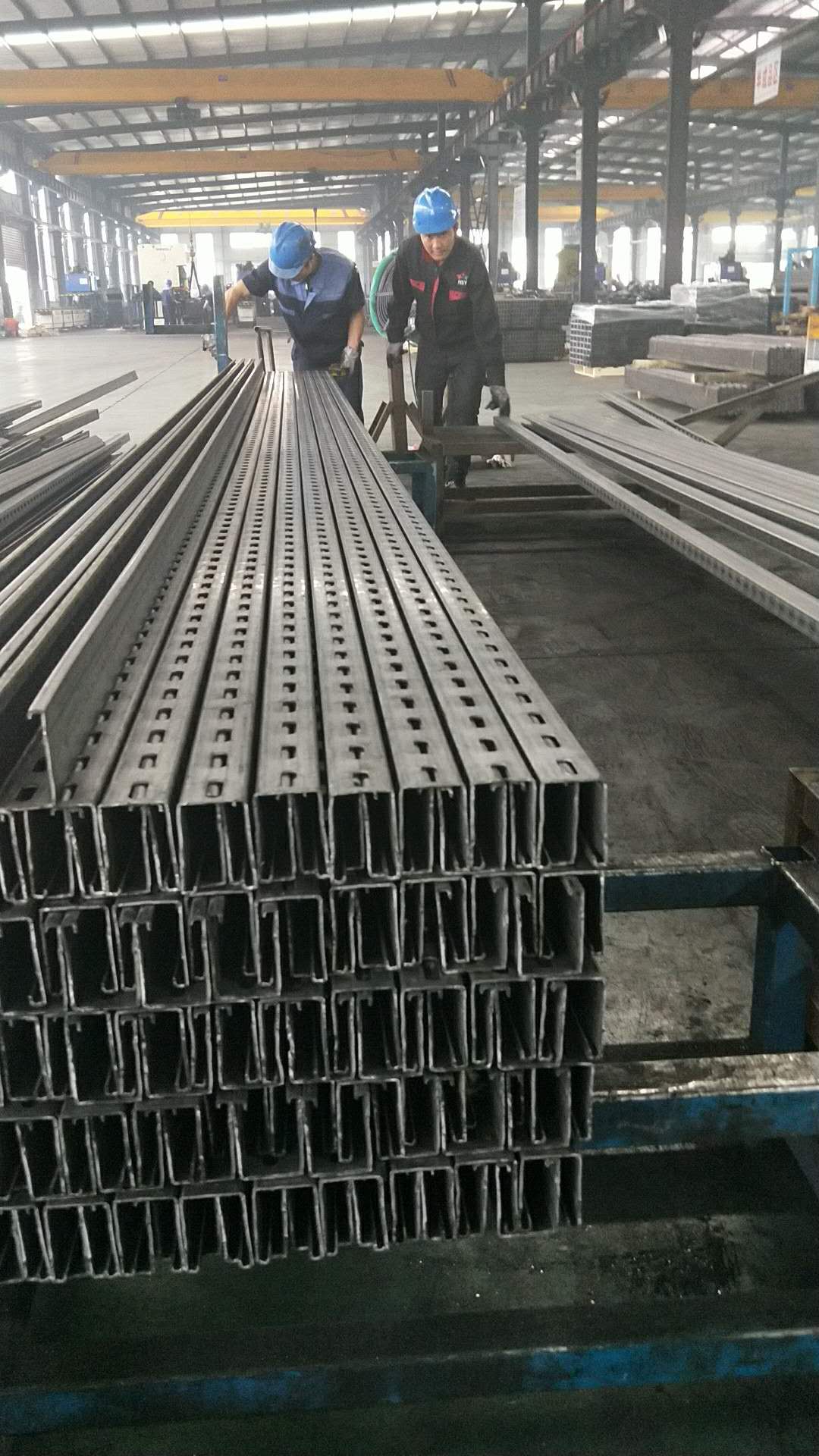

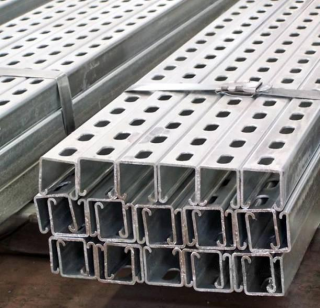

Here is one drawing profile and finished product:
Technological process:
Uncoiler—Material Storage—Leveling—Material storage—Servo feeding—Punching—Material storage—Roll forming—Cutting—Output table

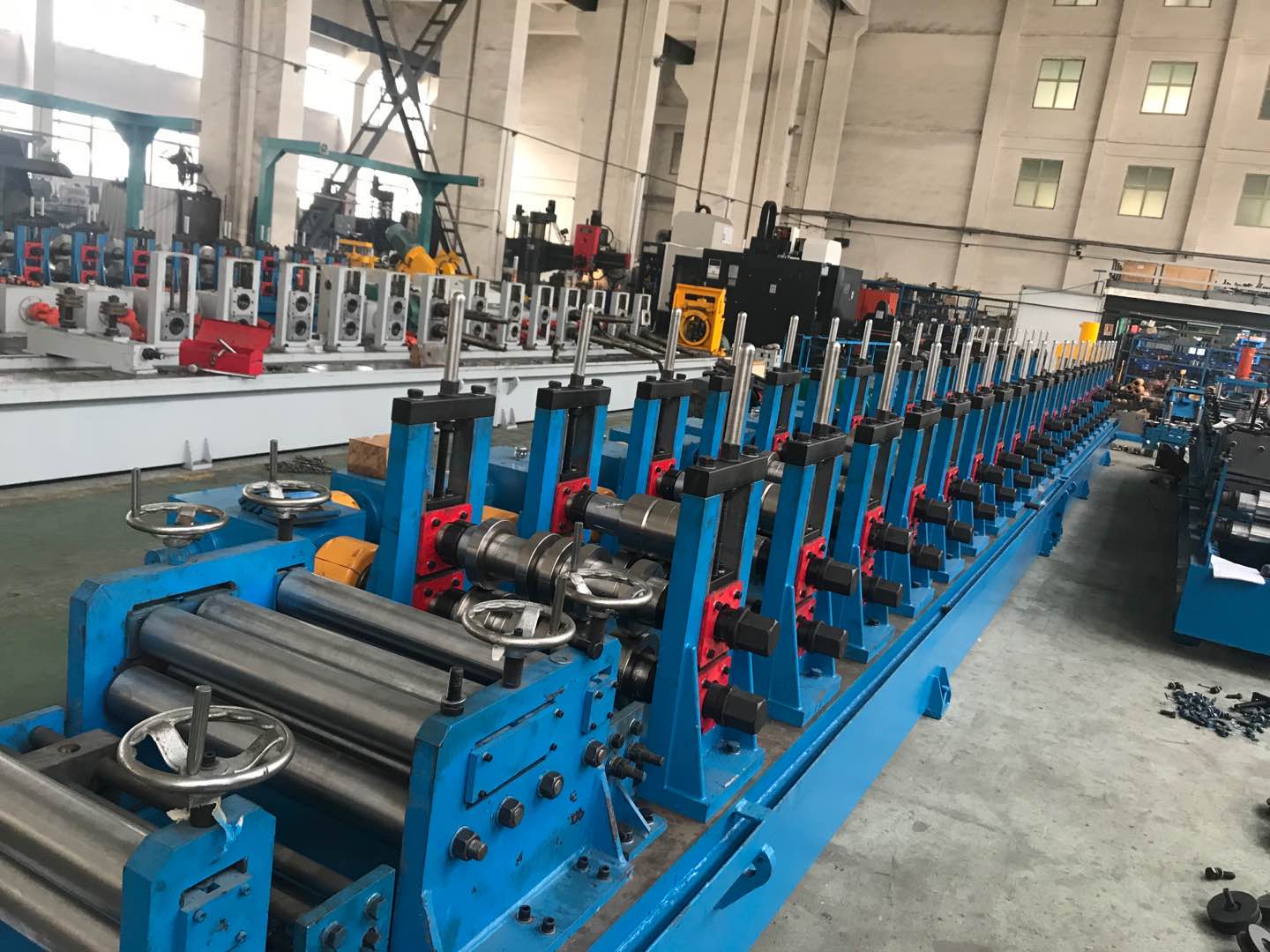

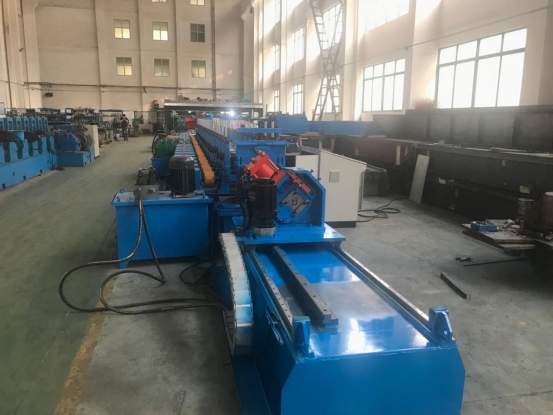

Strut Channel Roll Forming Machine

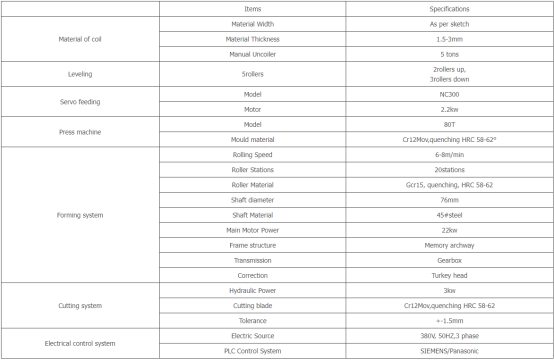

Technical Parameters

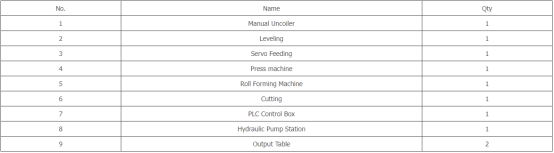

Main Items
Applications
