Description:Steel Slotted Strut Channel Rolling Forming Machine Is Designed For Making Strut Channels In Batch Fully Automatically. Standard Structural Component Generally Used For The Support Of Electrical Or Plumbing Products (Such As Cable Tray/Ladder, Lighting Rigs, Or Pipe Clamps), But It Also Has A Wide Range Of Other Uses For Installing Just About Anything.41mm Slotted Channel With Punched Holes. Galvanized Steel For Typical Outdoor Environments.

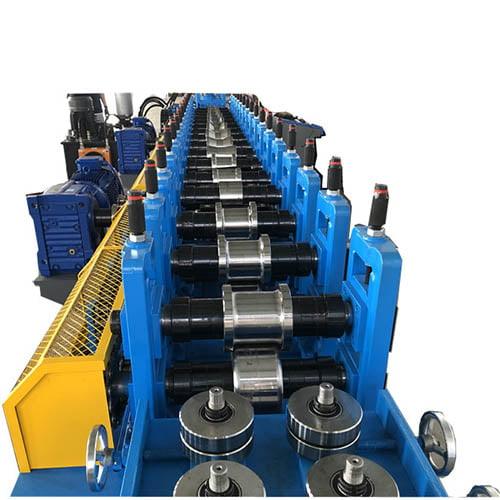

Steel Slotted Strut Channel Rolling Forming Machine

Steel Slotted Strut Channel Rolling Forming Machine Is Designed For Making Strut Channels In Batch Fully Automatically. Standard Structural Component Generally Used For The Support Of Electrical Or Plumbing Products (Such As Cable Tray/Ladder, Lighting Rigs, Or Pipe Clamps), But It Also Has A Wide Range Of Other Uses For Installing Just About Anything.41mm Slotted Channel With Punched Holes. Galvanized Steel For Typical Outdoor Environments.

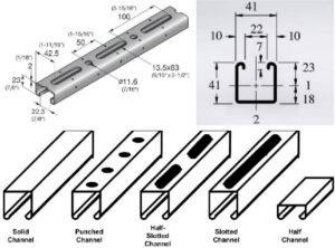

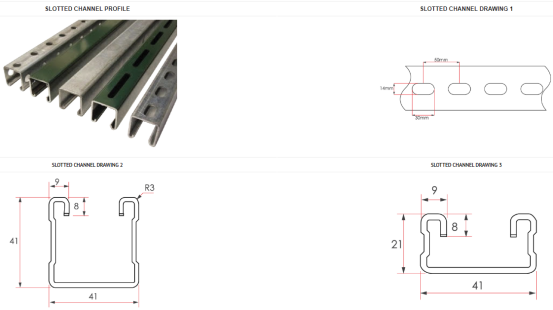

Here Is The One Drawing Profile For Your Reference:

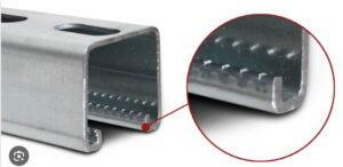

If You Need To Add The Zigzag, We Can Also Add Also:

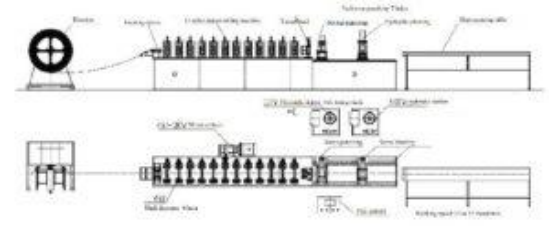

Working Flow Of Strut Channel Rolling Forming Machine:

Different The Traditional Design, This One We Use The After Punching By Servo Motor Like The Following Flow.

It Is Composed By The Following Elements: 3 Ton Deoiler, Main Rolling Forming Machine With Servo Punching Online And Shearing System And The Receiving Table.

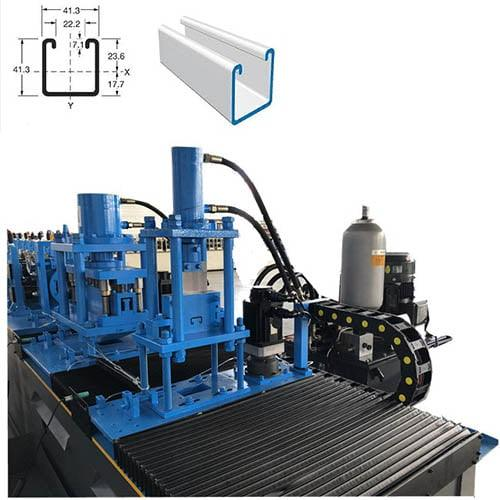

Steel Slotted Strut Channel Rolling Forming Machine

Advantages Of Light Duty Strut Channel Rolling Forming Machine:

1.The Decoiler You Can Choose Hydraulic Automatic Type Or Manual One. Even If You Choose The Manual One, Our Decoiler With Protection Arm For Coil Peel Off And Brake For Safety.

2.The Main Rolling Forming Machine, We Use Molding Frame For Longtime To Use And Strong Connection.

3.Rolling Part With Two Turkey Heads, One Is With The Tape Rollers To Make The Side Straight. And The Second One Is For The Straightness In The Length.

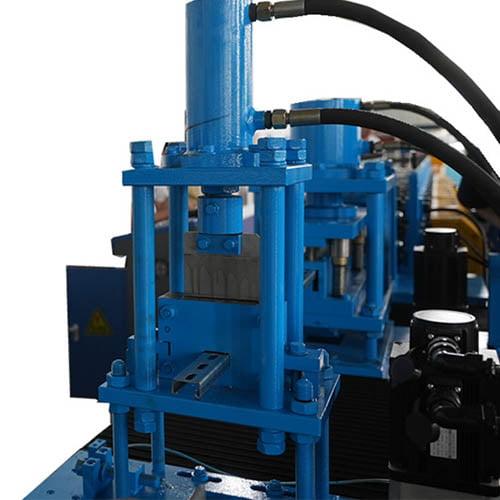

4.For Punching Part, We Use The Online Punching By Servo Motor. Each Time It Can Punch 10 Holes And Each Minute Can Punch 40 Times So The Speed Can Reach 20 Meter Per Minute.

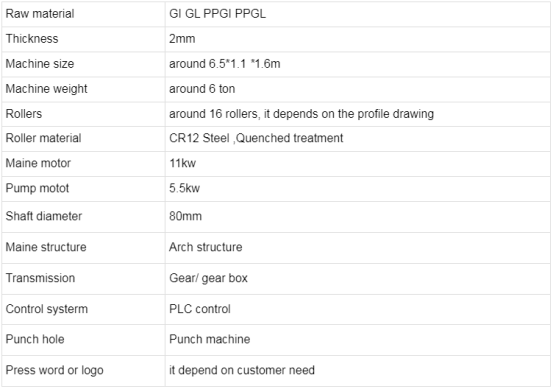

Strut channel roll forming machine parameters

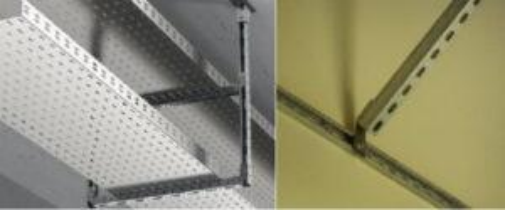

Here Are Some Usage Of Strut Channel:
