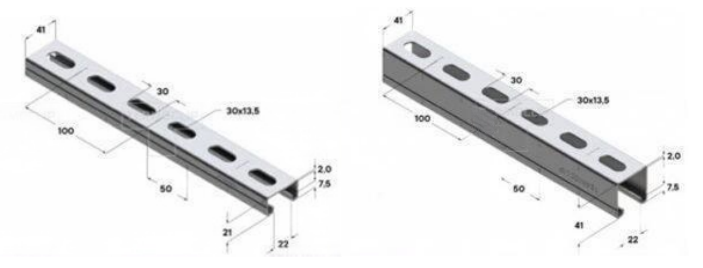

Description:Above Is Strut Channel Profile Drawing For Your Reference, One Machine Can Produce Two Kinds Of Sizes With Holes Punching. The Standard Dimension Is 21*21 And 41*21 mm

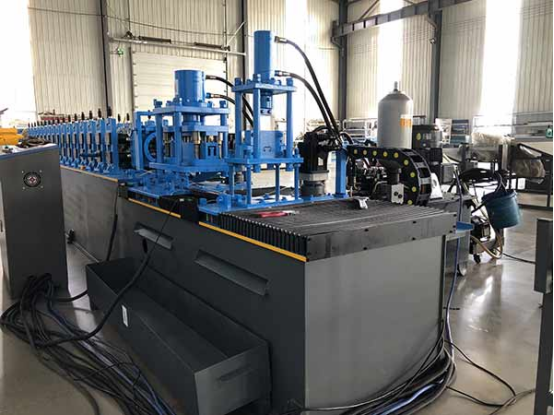

Slotted strut Channel Roll Forming Machine

Slotted strut Channel Roll Forming Machine is a specialized equipment for producing solar photovoltaic stents. It processes metal materials into the desired bracket profiles through cold bending and molding techniques.

These molding machines usually have a highly automated production process, which can improve production efficiency and product quality.

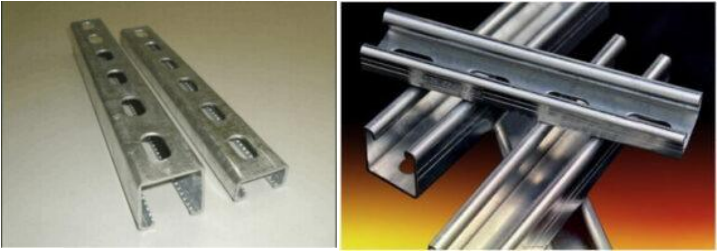

Here is one drawing profile and finished product:

Slotted strut Channel Roll Forming Machine

Remark: The Two Dimensions Can Be Produce On One Machine By Adjust The Roller Spacers Manually, We Will Provide Drawing And Video To Teach Customer How To Adjust Roller Spacers.

The Machine Working Flow Is Uncoiling—Feeding Material—Roll Forming—Tracking Punching—Tracking Cutting—Product Collect.

Here Introduce Some Of Our Strut Channel Roll Forming Machine Features To You:

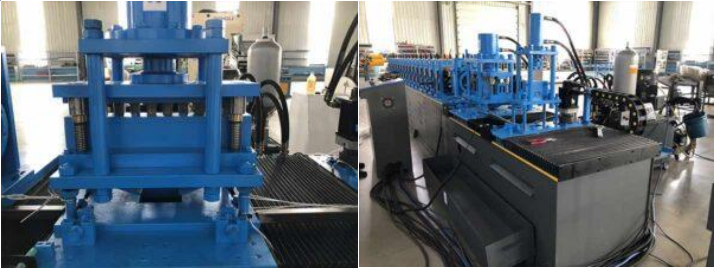

1. The Machine Speed Reach 25 M/Min, We Design The Punching Device After Roll Forming, Prevent The Holes Stretcher Strain . The Punching Device Design Is Tracking Cutting With Servo Motor Control, Very Stable. The Punching Mold Can Punching 10 Holes One Time. The Punching And Cutting Is Working At The Same Time.

2. The Main Power Of The Machine Adopt 5.5 Kw*2 Motors, Save Power.

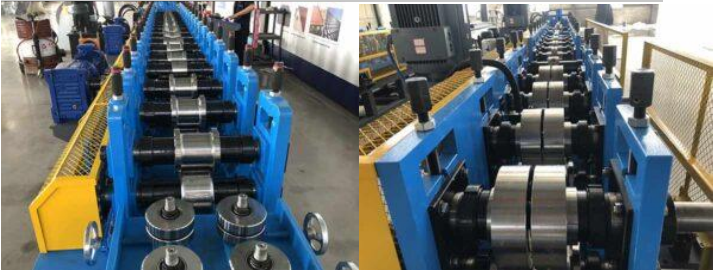

3. The Roller Material Is Cr 12 MOV With Quenched Treatment. Ensure When The Machine Running In A High Speed, Will Not Influence To Its Hardness,Strength And Service Life.

4.The Cutting Part Use Cr 12 Material. This Is High Quality Material, High Hardness And Strength. The Servo Motor Control The Tracking Cutting.
