Description: Villa House Structure Making Machine (roll forming machine) is a fully automatic production line for house structure channel profile.

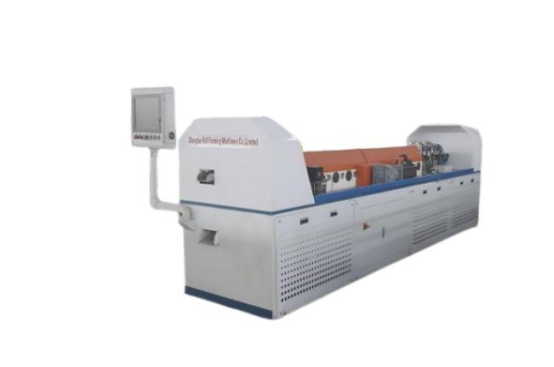

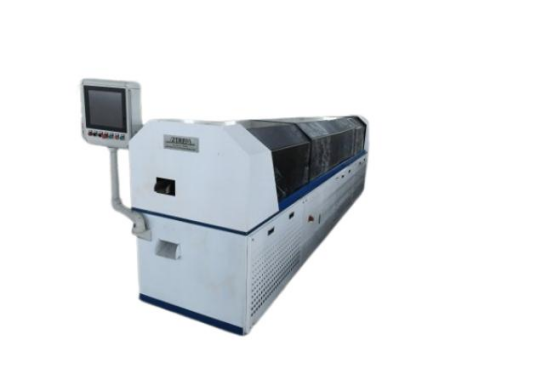

Villa House Structure Making Machine

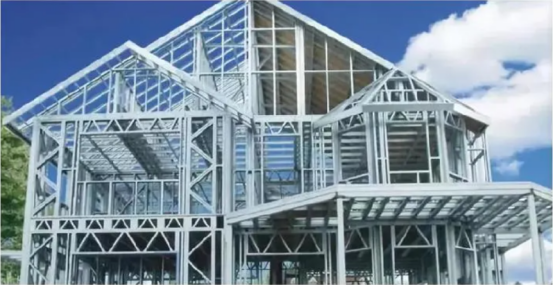

This light gauge steel framing C channel profile roll forming machine is specially designed for the production of light steel villa house structure.

Only need to input the technical drawing of the steel villa housing structure. The machine will automatically calculate the raw materials consumption, holes punch positions, each section lengths by the industrial computer installed on the equipment.

Then it will start the production one by one according these data and jet the code on each section for easy fabrication. It can save many labors cost and achieve fully automatic production.The machine includes uncoiler, straightener, multi pre-punch stations, main roll forming machine, code inkjet machine, shearing machine, automatic control system.According with the prefabricate request for the light gauge steel framing structure.

Here is a profile pictures:

Villa House Structure Making Machine

ZTRFM Offer Full Solution For The Light Gauge Steel Framing Housing Machines As Following

- C75 LGS framing Making machine

- C89 LGS framing making machine

- C140 LGS framing roll forming machine

- Flexible Light Gauge steel framing making machine

- Mobile Light gauge steel framing making machine

By simply input the requested width on touch screen, the servo motors can drive the forming rollers to the position produce different widths of cable trays on the same machine.

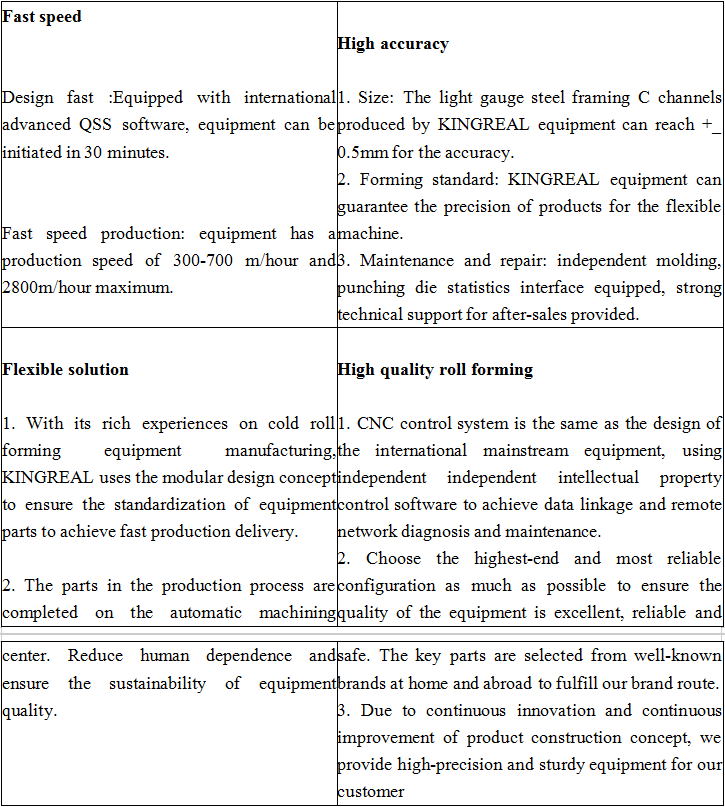

Machine Features

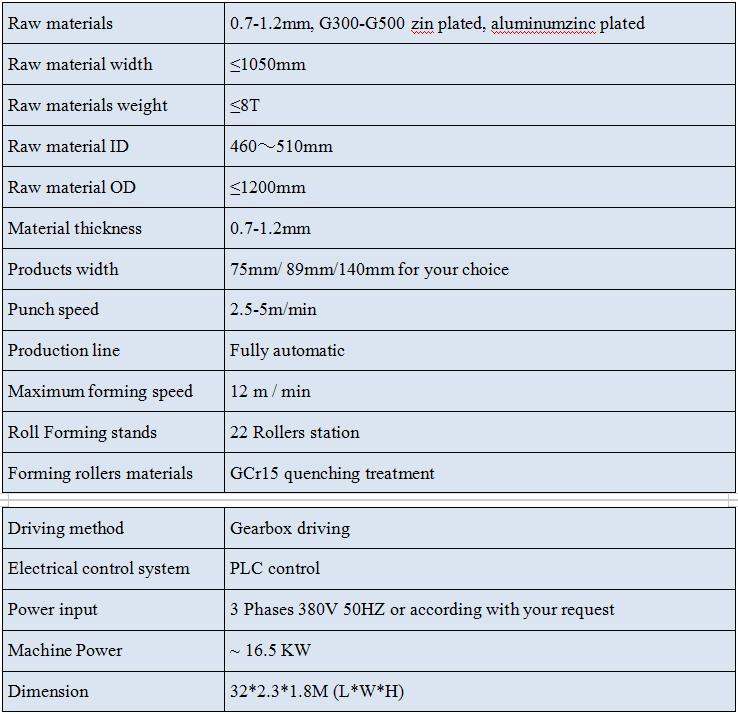

Technical Specification Of Villa House Structure Making Machine:

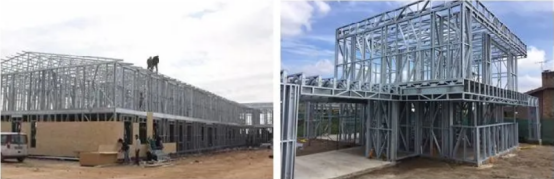

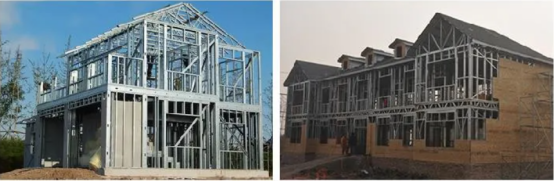

Machine Application
