Magic Version Light Frame Villa Rolling Machine-using C Channel and U Channel

Magic version light frame villa rolling machine-using C channel and U channel as the combination is designed to make the 6 layers building by one machine.The material thickness could be from 0.8 to 2.0mm.The width adjustment could be from 89 to 300mm and all the operation could be finished with in the computer.The PLC control system is open source, it can accept all design software programme. In the following part,I will take the drawing for example to show more details of the machine and explain how it works.

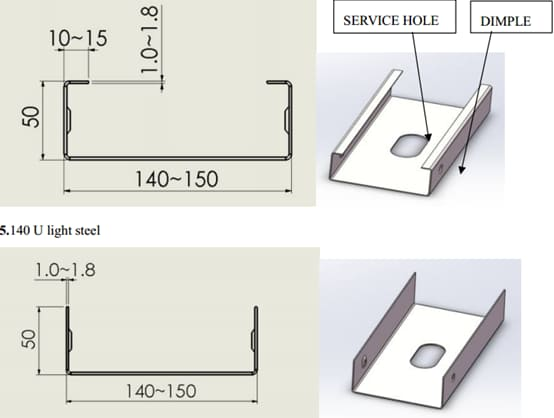

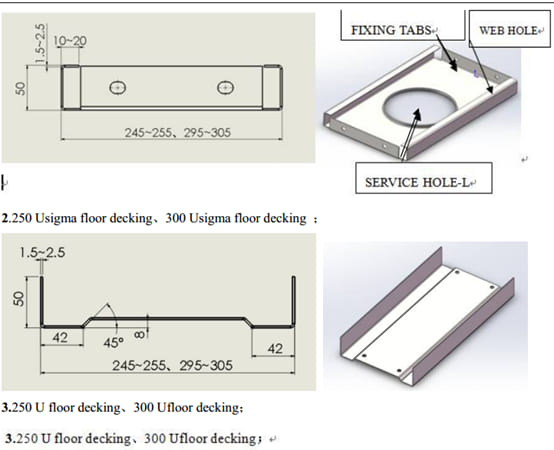

Here are some profile pictures:

Magic Version Light Frame Villa Rolling Machine-using C Channel and U Channel

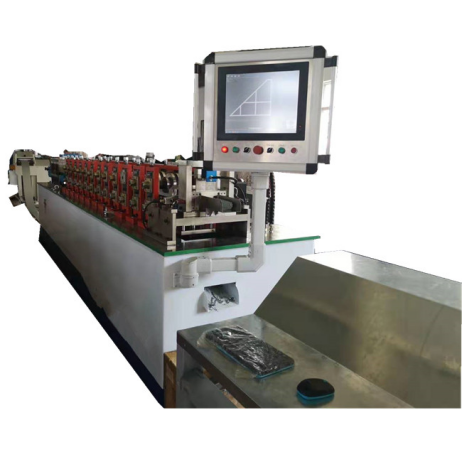

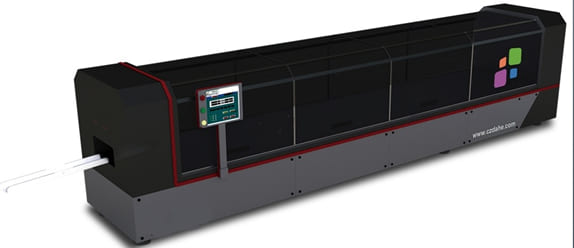

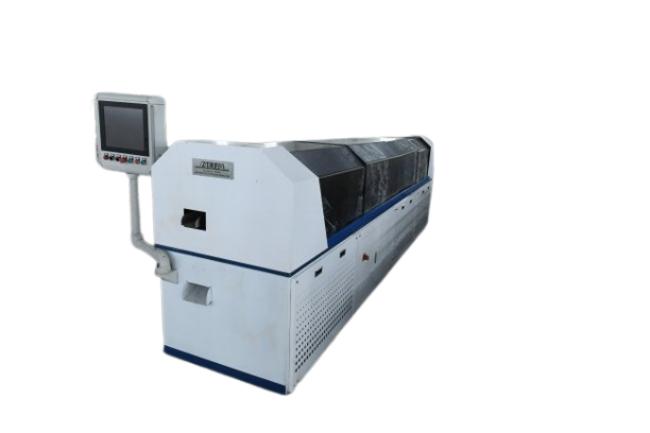

Here is the Magic version light frame villa rolling machine picture for your reference:

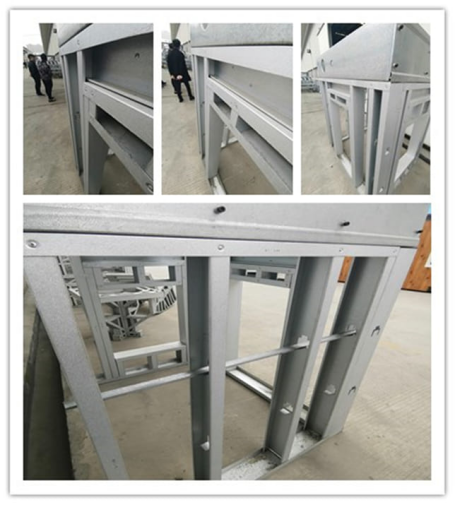

Here are some pictures shows the finished products of Magic version light frame villa rolling machine:

This type design of Magic version light frame villa rolling machine in some degree, it can save lost of cost in investment. It is easy for installation and more universal. Please check our other designs in our websites. If you have any problem, please contact us at any time.
