Description:Our Light Gauge Steel House Frames Forming Machine, its processing thickness and formed sizes are international standards. The thickness is from 0.7mm to 1.2mm, the suitable material is galvanized steel strip Q235 or G550. The formed sizes are C89*41, C100*41 and C140*41. C89*41 and C140*41 are more popular.

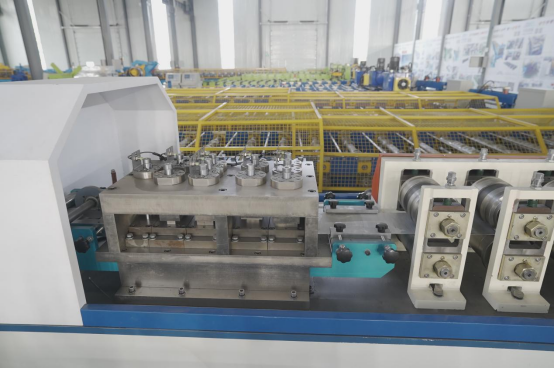

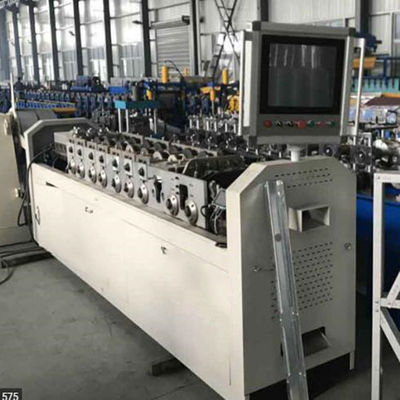

C89 Villa Steel Framing Machine For 0.7mm Thickness
The light steel frame machine is to make house steel frame, lighter mass, more efficient construction, safe and reliable structure, good seismic performance, improved thermal and acoustic insulation and indoor utilisation, and designed to offer increased production speed, greater flexibility and increased reliability, which is best suited for residential and light commercial projects. Producing profiles from 3.5" (89mm) to 6" (150mm) up to 18gauge (1.20mm) thickness. C89 steel frame machine is suited to construct walls, floors and roofs for 1 – 3 level residential, modular and transportable units, and light commercial construction.
Here Is The One Drawing Profile For Your Reference:

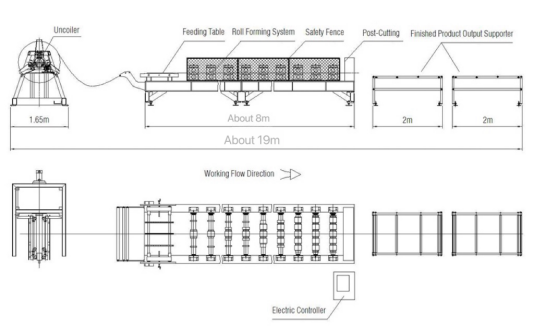

Working flow
Decoile r------ feeding------roll forming ---------punching-------cut to length-----output table

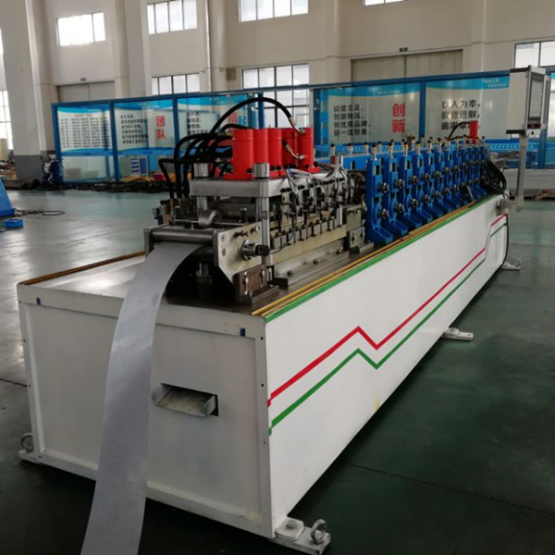

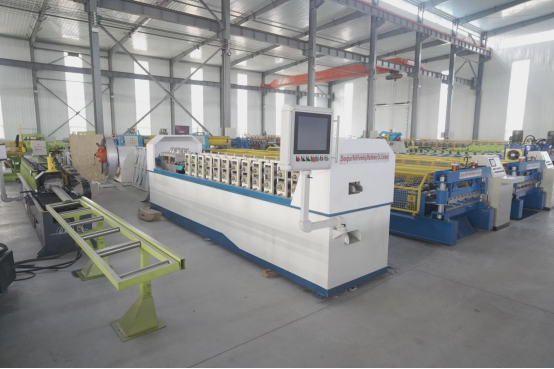

C89 Villa Steel Framing Machine For 0.7mm Thickness

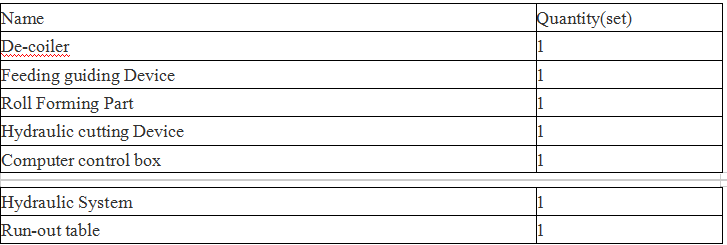

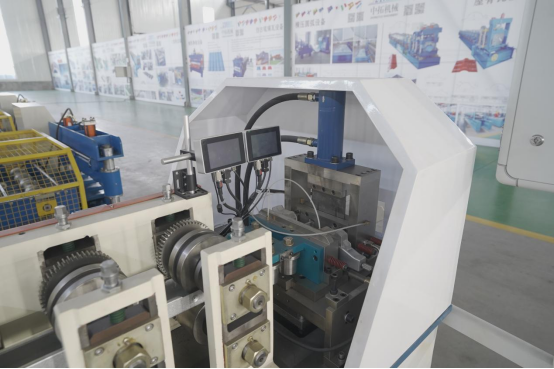

Machine Components

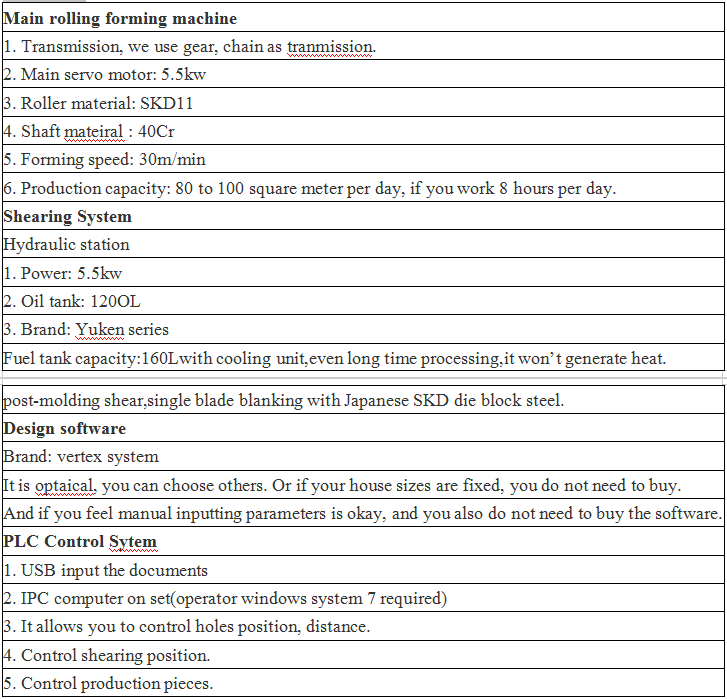

Parameter

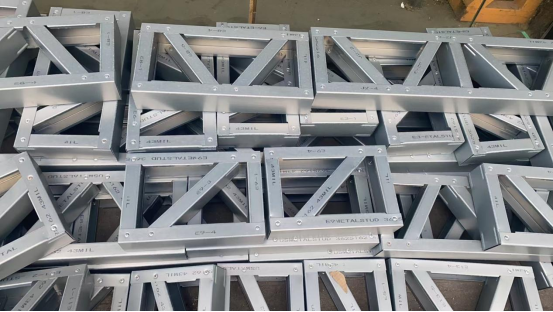

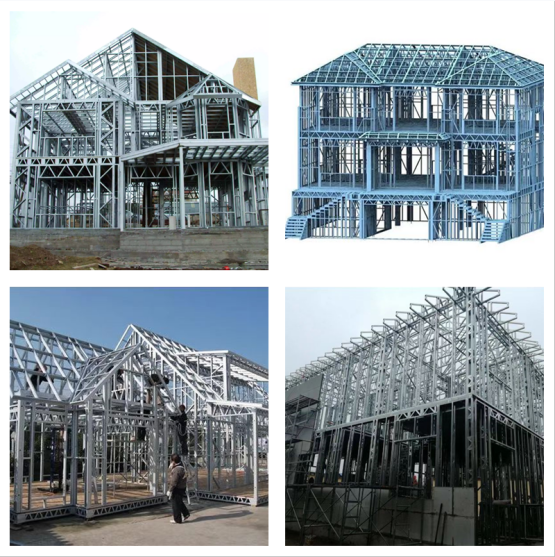

Application
