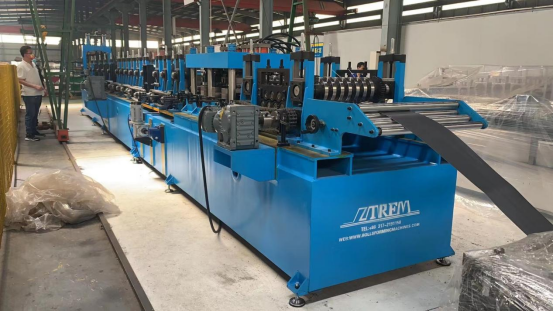

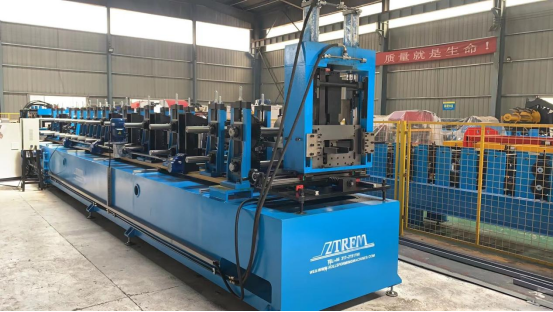

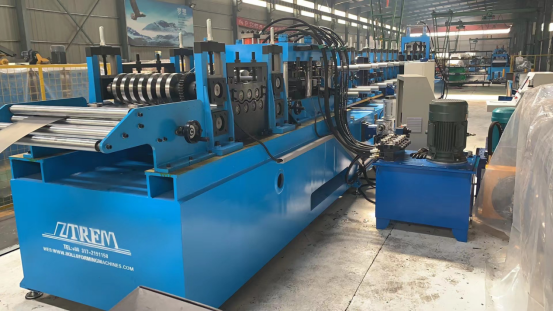

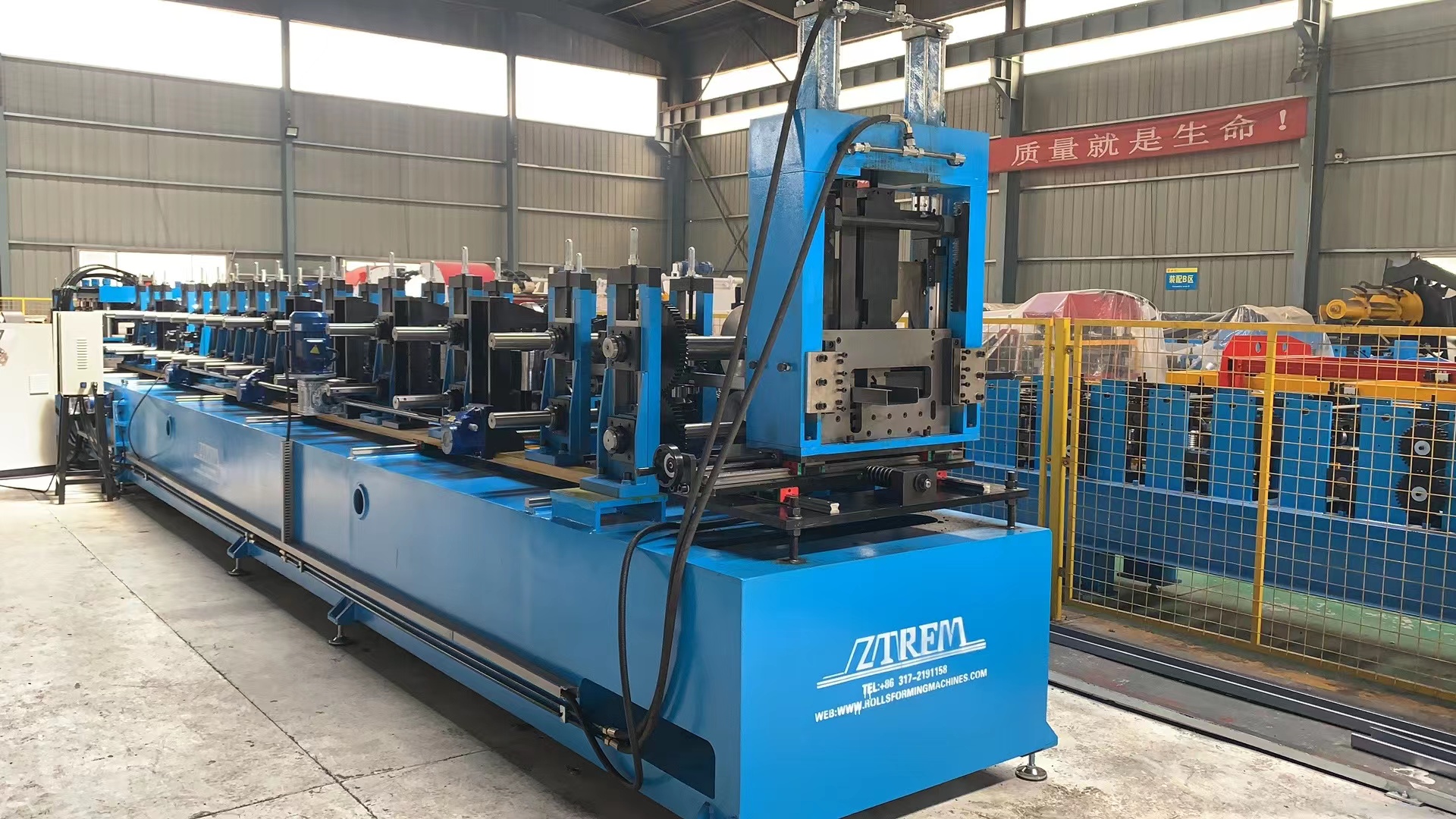

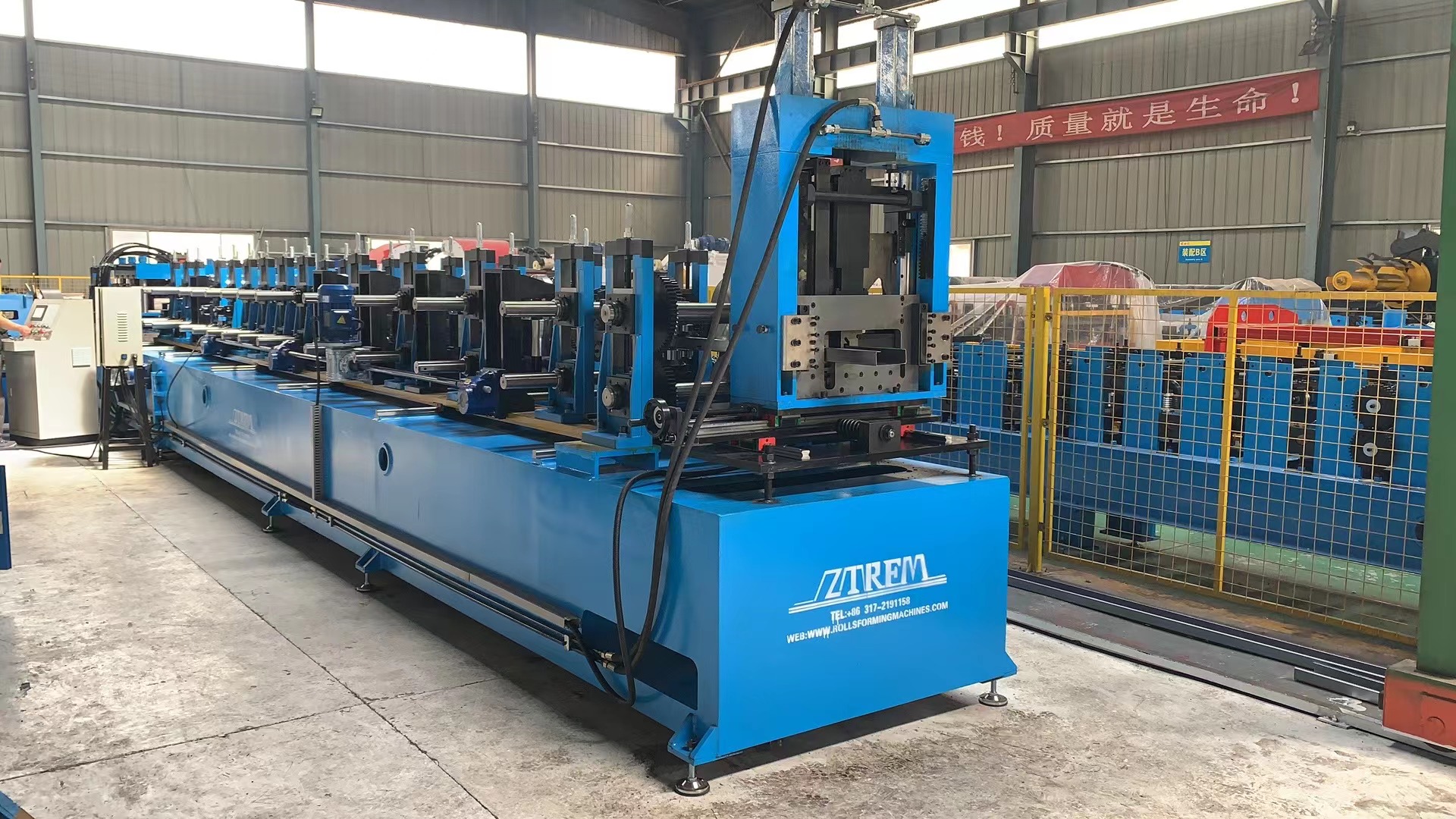

Automatic C/Z Purlin Roll Forming Machine
Our C/Z purlin machine driven by gearboxes, consists of decoiler, feeding and levelling device, punching system, pre-shear, roll forming system, hydraulic post cutting, run out table, hydraulic station and PLC(controlling system). Its special feature: Assemble with liner guide way to make machine change web size easily and smoothly, Produce standard products with yield strength up to 550Mpa，Long production line，no open mouth on final products, C/Z interchange only with 3 steps and within 5-15mins;Changing size fully automatically. Time saving and labor saving, which is highly improved production efficiency and suitable for current production. This machine is easy to operate and run stable with good precision. Large range web size is 120-450mm and thickness up to 4.5mm, which used widely and would be the most popular model in the near future.

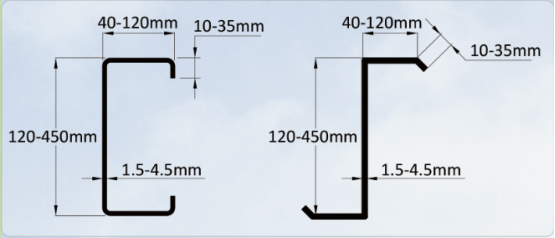

Here is a profile for your reference:

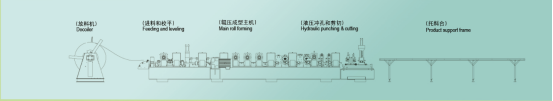

Layout of CZ
Flow chart: De-coiler – Leveling device — roll forming parts—Post punching device—Hydraulic cutting – stack
Automatic C/Z Purlin Roll Forming Machine
Quick details | ||
Model number: FX450 | Condition: New | Work Pressure: |
Type: C/Z Purlin machine | Place of Origin:Cangzhou, China | Brand Name: ZTRFM |
Forming speed: 35M/min | Voltage: 380V/3Phase/50HZ | Power(W): 30KW |
Dimension | Weight: | Certification: ISO CE |
Warranty | After-sales service | Machine Function: CZ purlin forming |
Machine running | Appearance: | Control System: PLC |
Decoiler | Cutting blade: Cr12 | Color: Blue |
Main Components:
1. Hydraulic De-coiler
De-coiler Type: automatic fasten and loosen
Weight capacity: 10T
2.Feeding and Leveling Device: It used for making the material flat before feeding into the roll forming machine.

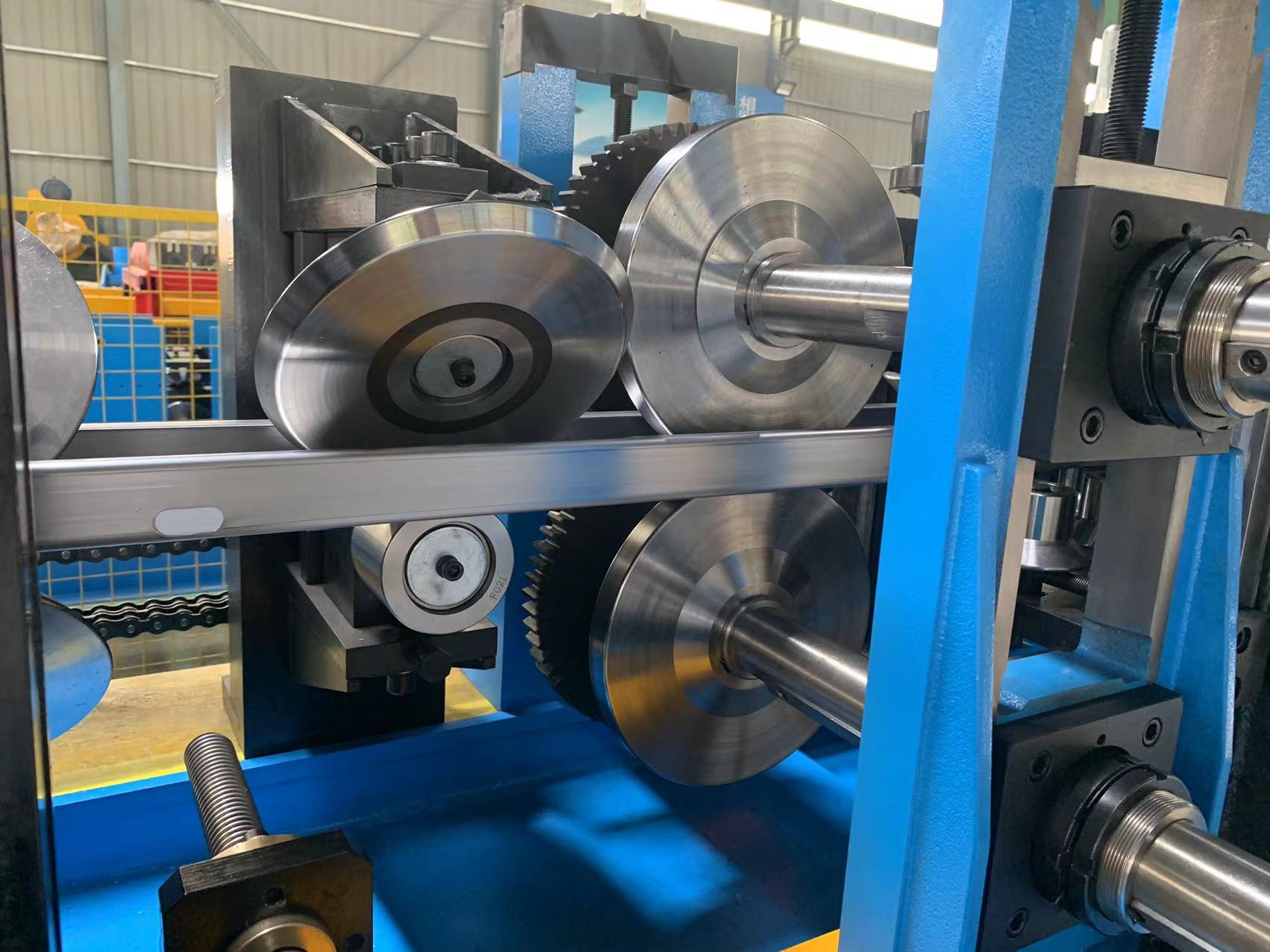

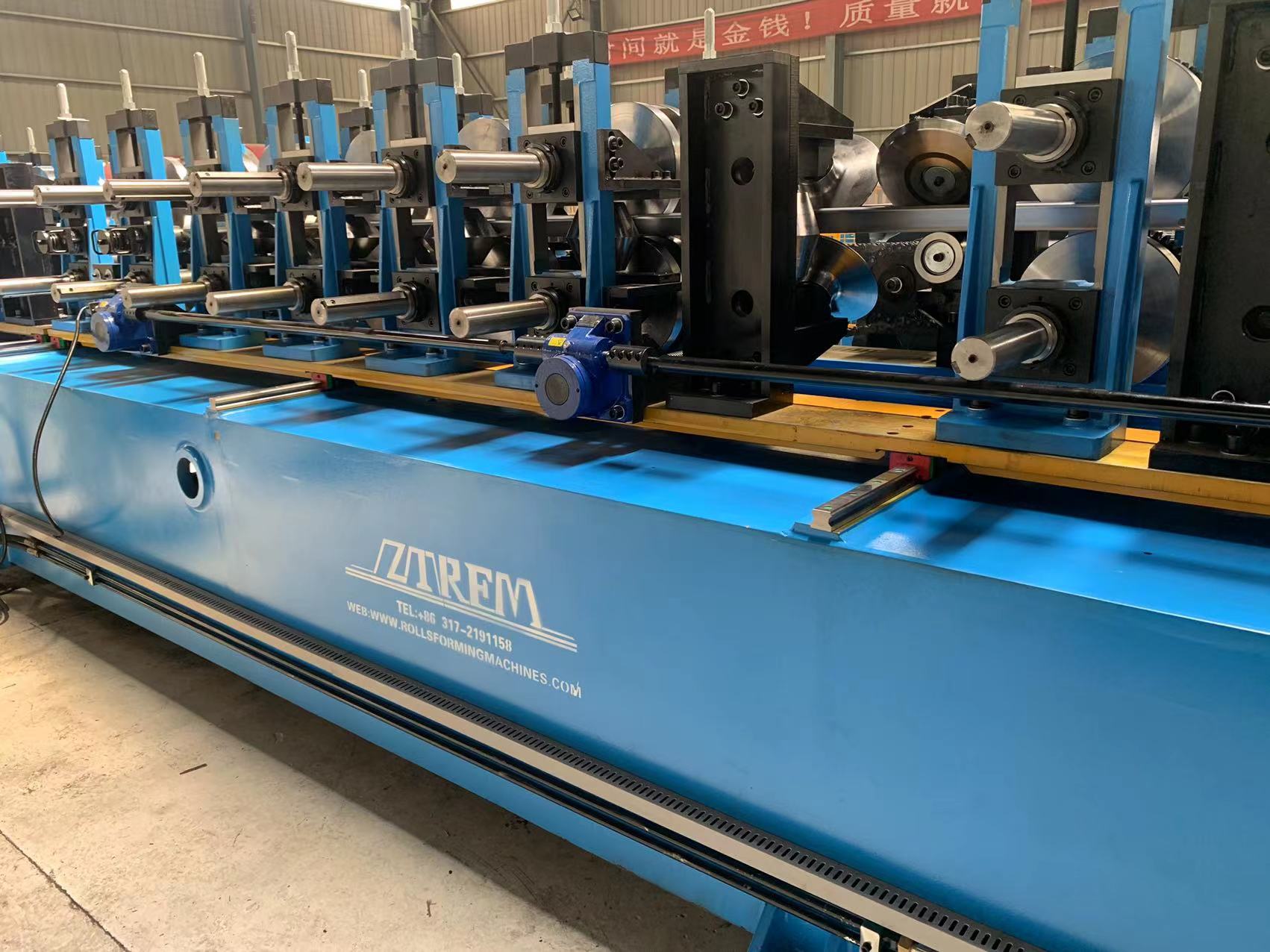

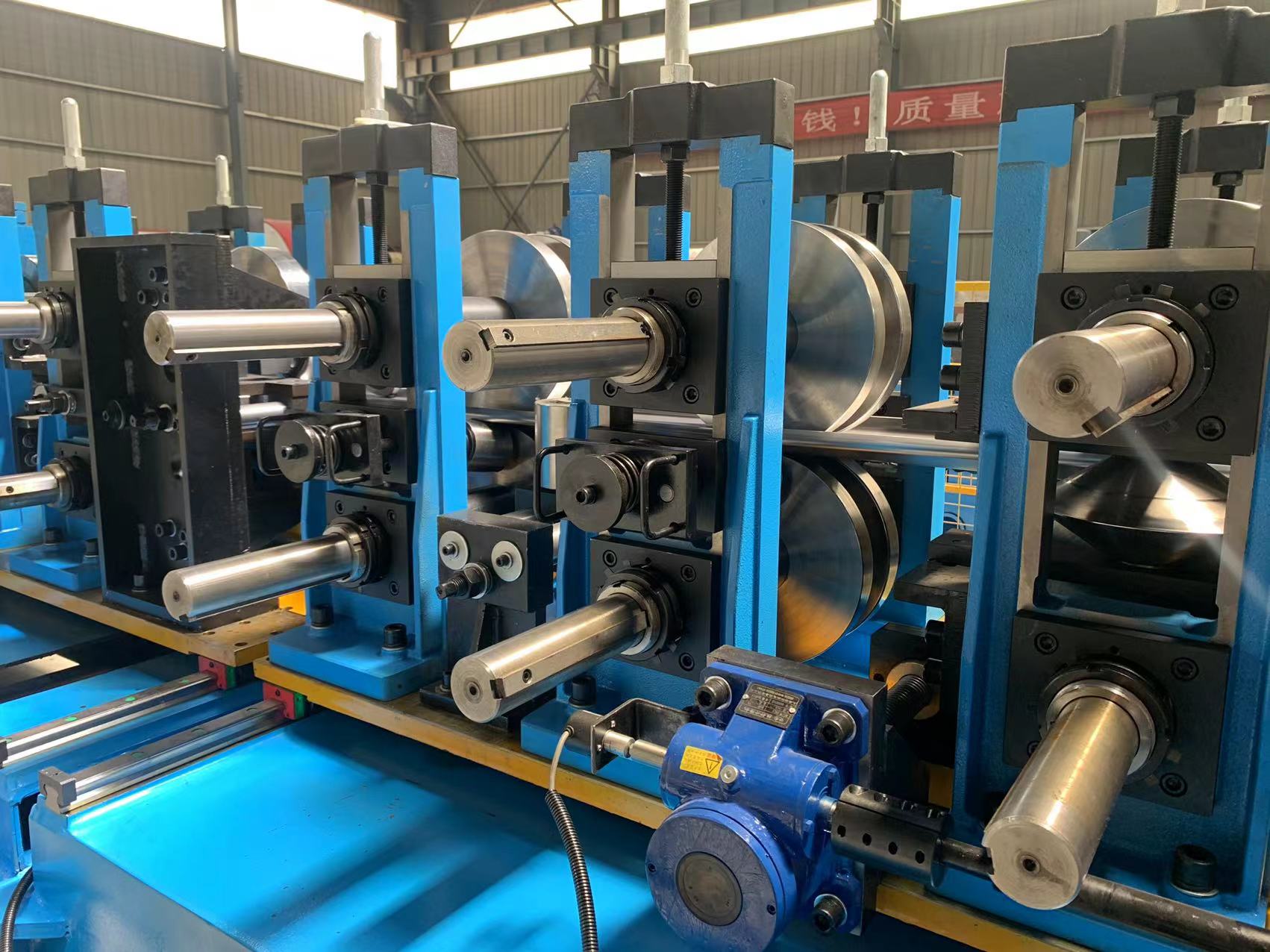

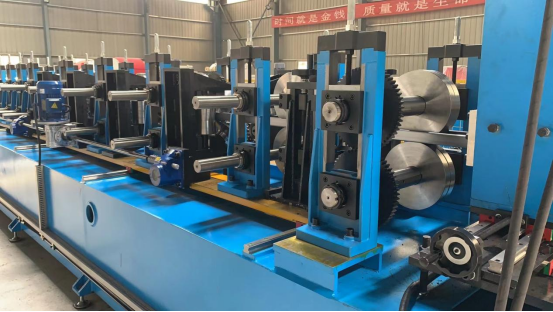

3.Main roll former
Driven type: By gear boxes
Speed of forming: 0-30m/min
Working Speed: 12-18m/min
Roller: About 24 groups rollers
Roller Material is Cr12 mould steel;
Shaft: Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product. Material of main shaft is 40Cr.
Changing sizes: Full-automatic controlled by PLC
Adopt fast C/Z interchanging system
Quick C/Z interchanging only with 3 steps,within 5 -15 mins.

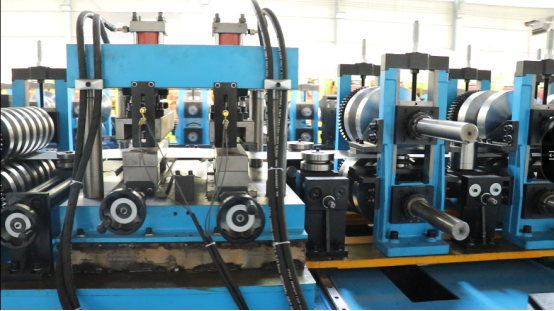

4.Post-punching device
Punch on C or Z purlin. PLC control punch quantity and horizontal position; vertical position adjust by manual.
Punching Type: Hydraulic Punching
Punching bar and punching die can be changed easily.
5.Hydraulic Cutting
Adopt our innovative cutting system, CZ integrated & adjustable cutting mold do not need to replace cutting mold when purlin sizes change
6.Product Support Frame —1set
7.PLC Control System
Control the quantity &punching length& cutting length automatically
The Machine will be stopped while it is punching and cutting
Automatic Length measures and quantity counting (precision +- 3mm)
