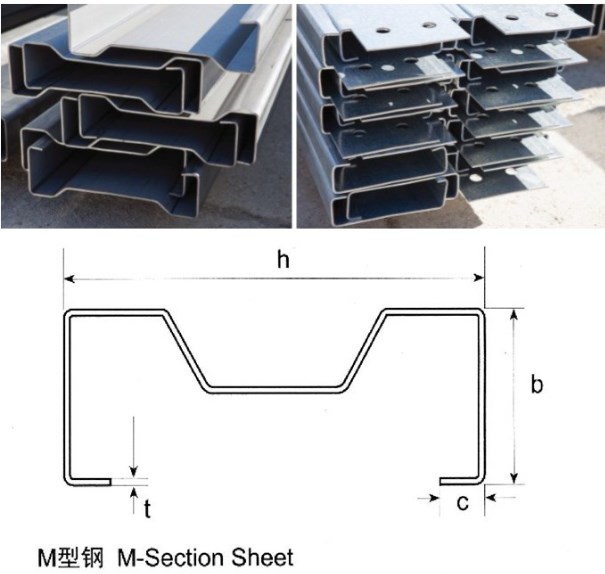

Purlin roll forming machine is the most popular and has an extensive use in the construction work. Sigma Purlins M purlin profile, we can design according to the size range, thickness range and give the different solutions of purlin roll forming machine to manufacturer a complete range of structual purlins(height and width change using automatic system by motors): In the market, the most popular is C/U/Z/M section-manual change 4 stations from C to Z, change time: 2 minutes
C/U/Z/M section-automatically change from C to Z, change time: few seconds. But this design, the cost will be a little higher.
Here I will share a more economic design which only can produce M purlin, by this way we can save the cost:
Here is just one size for your reference, by manual adjustment, the production line can produce more sizes meanwhile the cutting blades also needed to be changed also.

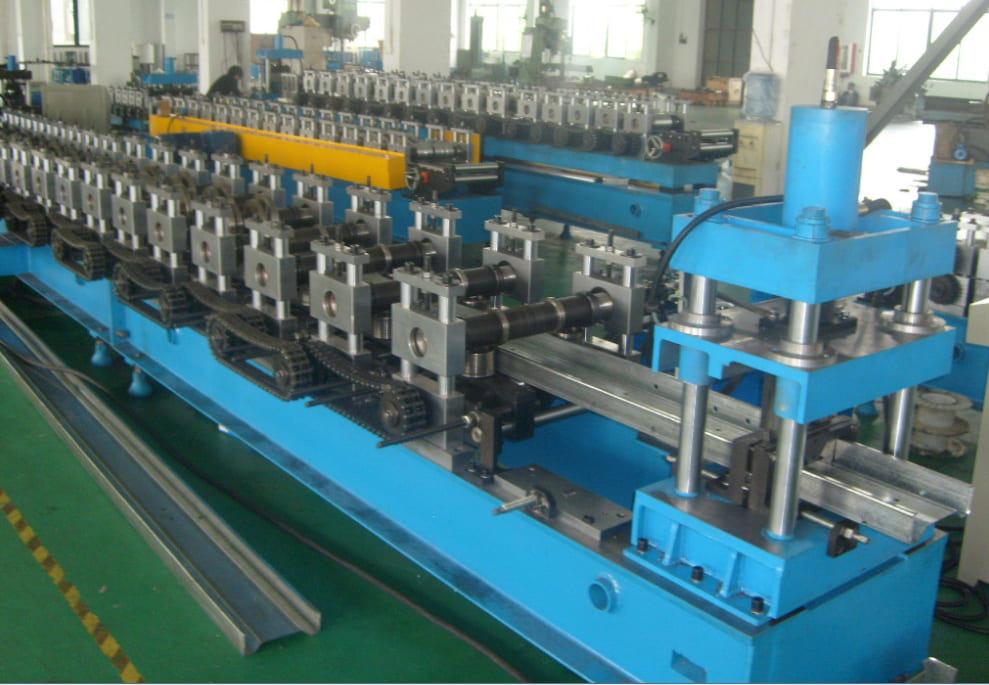

Sigma Purlins M purlin roll forming machine manual adjustment type for your reference:
Sigma Purlins M purlin roll forming machine working flow:

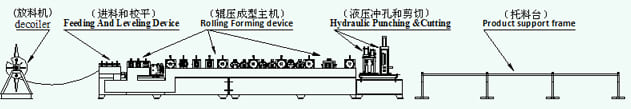

Uncoiling—guiding—feeding&flatting—forming—punching&cutting—product receiving
| M purlin roll forming system | ||
| Roll forming system | Guiding rollerTwo pcs Diameter of 40mm Tempering treatmentUsage: to let the sheet feeding into next device in the right positionFeeding&fl atting device 5 pcs Diameter of 70mm Tempering treatmentUsage: to feed the sheet into forming system positively and remove the sheet radian from coil, avoid the product curve and keep straight Rolling shaft Shaft material: 45# steel Shaft diameter: 80 mm Tempering treatmentRollerRol ler material: Cr15 Quenched treatment Rolling station number 15 stationsspeedWorki ng speed: 0-25 m/minute without punching and 0-12 m/minute with punching Machine frame Carbon steel welded structure Machine body steel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains | Two pcsDiameter of 40mmTempering treatmentUsage: to let the sheet feeding into next device in the right position Feeding&flatting device 5 pcs Diameter of 70mmTempering treatmentUsage: to feed the sheet into forming system positively and remove the sheet radian from coil, avoid the product curve and keep straightRolling shaft Shaft material: 45# steelShaft diameter: 80 mmTempering treatmentRollerRoller material: Cr15 Quenched treatment Rolling station number15 stationsspeedWorking speed: 0-25 m/minute without punching and 0-12 m/minute with punchingMachine frameCarbon steel welded structureMachine bodysteel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains |
