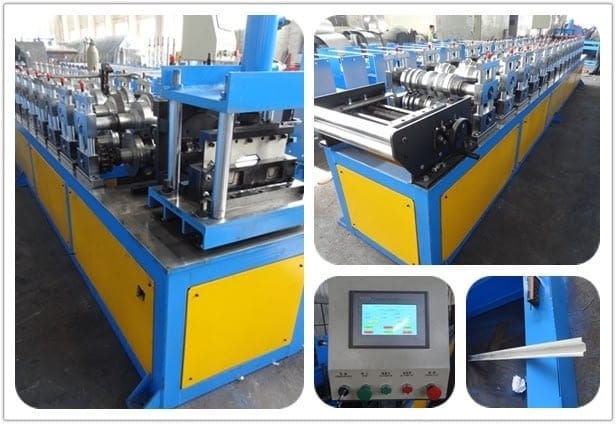

Steel Stud Roll Forming Machine

ZHongtuo machinery is engaged in design and manufacture a full range of roll forming machines for steel studs and tracks. We have different design of roll formers for the machine for different requirements.

What’s Steel Studs and Manufacturing equipment?

A steel stud is a vertical frame member in building’s wall of small cross section than a post. They are a fundamental element in frame building.

In the past, studs are made of wood. But the wood need dry when used or problems may occur as the studs shrink and twist as they dry out. So steel studs are gaining popularity, especially for firewalls.

Now the factories purchase Steel Stud Roll Forming Machine for producing the steel studs, for the different production capacity, Believe Industry have below design of the steel studs roll former:

1. Single Profile Roll Forming Machine

2. Muti-Profile Roll Forming Machine

3. Duplex Roll Forming Machine

4. Manual adjust roll forming machine for muti-profile

Main Machine Components and Technical Specifications

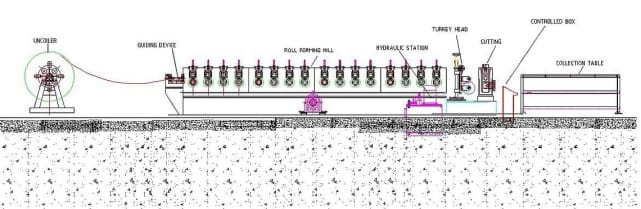

The Layout of Steel Stud Roll Forming Machine

Item :  Description

Function :  Roll forming the steel  strips into profile with the desired length

Structure : Adopt Box Beam as the main base, guide pole type as the stands

Roll Station :  16 steps

Shaft Material :  ASTM 1045, 80mm diameter

Spacer Material :  ASTM, surface chromed, wall thickness is 8mm

Roller Material :  GCR15, fine machining, surface chromed 0.05mm thickness

Driven Motor Power :  7.5KW

Roll Forming Speed : 15m/min

Driven Method : chain and gears
