Stainless steel water ripples metal embossing machine

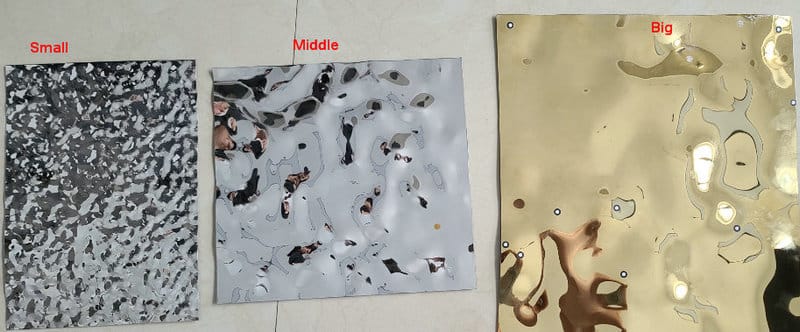

Stainless steel water ripples metal embossing machine is designed to make the metal embossing in batch fully automatically. For the water ripples metal embossing, we mainly use the stainless steel and as to the water ripples we have three types like big waves, middle waves and small waves. Here are some pictures for your reference:

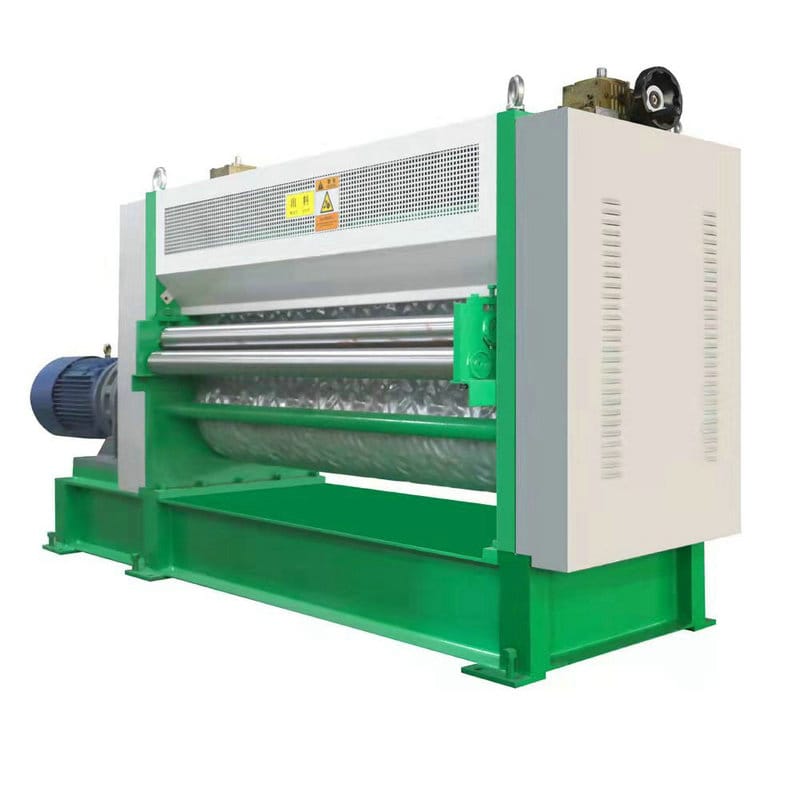

Stainless steel water ripples metal embossing machine:
Stainless steel water ripples metal embossing machine parameters for your reference:
Machine parameters for your reference |
Embossing machine: 1. Embossing roller material: 42crmo solid forged alloy steel 3. The thickness of the pressed material: 2mm 4. Width of pressed material: within 1500mm 5. Speed: 0-8m/min 6. Pattern: water ripple 7. Material to be pressed: 304 stainless steel. 8. Pattern depth: 0.5-2cm, pattern depth is adjustable 9. Embossing roll specifications: ø410*1600mm. The width of the pressed material finished product is less than or equal to 1500mm; 10. Roll structure: integral forging; 11. Roll heat treatment: medium frequency quenching of the roll body; 12. Roll hardness: ≦HRC55; 13. Roll pattern: According to drawing requirements: CNC engraving; 14. Flower roller surface: anti-rust treatment (self-spraying chrome paint) 15. Rolling mill stand; steel plate combined structure 16. Rolling mill drive; adopts frequency conversion speed regulation 17. Embossing method; two rolls of concave and convex opposing pressure 18. Pressure adjustment method: reducer pressure adjustment (upper embossing roller and lower embossing roller matching gear adjustment function) 19. Center height (between the ground and the two rollers): 750mm 20. Electric control part; independent control cabinet 21. The gap between the rolls can be adjusted 22. Flower roller: detachable to change the roller. 23. Cycloidal pinwheel reducer: XWD8-15 24. Frequency conversion motor power: 15KW/380V(50Hz) 3 phases, (voltage optional) 25. Inverter brand: Delta 26. Three-phase asynchronous motor: Nanjing Shunbai Motor Co., Ltd. |
Leveling Machine: (1) Material of leveling roll: forged steel (2) Specification of leveling roller: 150*1350 (3) Number of rollers: 11 rollers (4) Surface of leveling roller: chrome plated (5) Cycloidal pinwheel reducer: XWD7-87-5.5 (6) Frequency conversion motor power: 5.5KW/380V (7) Leveling machine frame: steel plate structure (8) Quantity: 1 set |
Color: regular blue or customized Overall dimensions of a single unit: 6000mm*6800mm*1700mm (take the actual product as the standard) Single embossing machine: 12000Kg (based on the actual weight) Single leveling machine: 2500Kg (based on the actual weight) Single receiving rack: 500kg (based on the actual weight) |

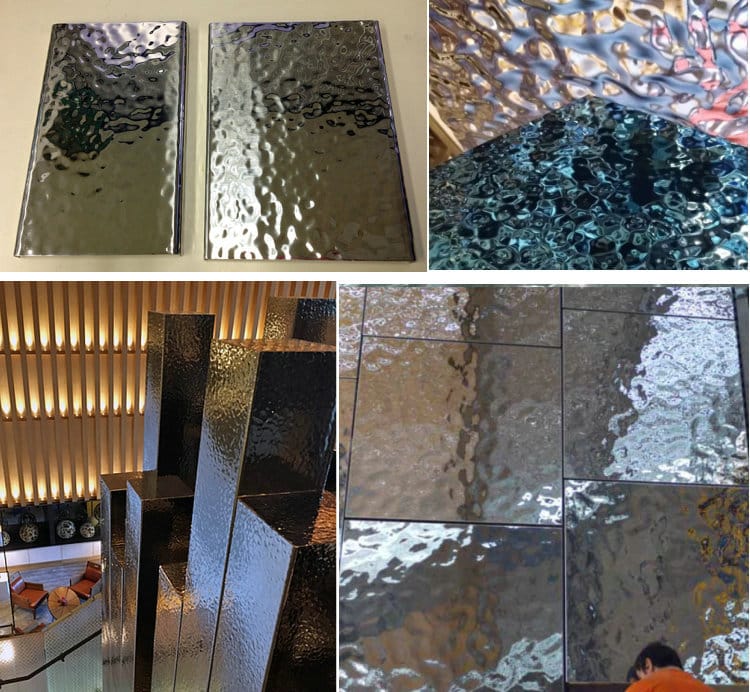

Where to use:
In recent years, we have observed the rise in the usage of water ripple (embossed) mirror-polished stainless steel. In response to this, we has devised a methodology that would allow us to emboss the high-quality mirror polished stainless steel in selected areas at selected depths by rolling machine without any damages or scratches.
Stainless steel water ripples metal embossing machine working videos for your reference:
