U Ceiling Keel Machine
NO.4 ROAD, ECONOMIC DEVELOP ZONE, BOTOU CONUTY, CANGZHOU CITY, CHINA

U Ceiling Keel Machine

U ceiling keel is often used in the building ceilings and easy to installation and durable. Our machine producing U ceiling keel can keep perfact forming shape and protect production surface.

Our machine is full-automatic, conventional speed of can reach 70m/min, the machine can through the PLC control system adjust the finished product length,molding speed, shearing speed.

U Ceiling Keel Machine

Working flow Chat:

 U Ceiling Keel Machine

Decoiler --- Feeding System --- Main Roll Forming System --- Electric Control System --- Punching System(Optional) --- Cutting System --- Receiving Table


Machine Advantages:

1.Automatic changing size type which is control by PLC

2.Flying shear with servo motor drived, speed can reach at 45m/min or faster as request

3.Equipped with automatic bundle machine

U Ceiling Keel Machine

Manual Decoiler

Type: passive

Coil width: max 400 mm

Loading capacity: 3 tons

Inner diameter: 450-550 mm

U Ceiling Keel Machine

Feed Guide Device

A left and right guiding device at the main entrance of the machine. During work,Raw materials on both sides of the plate the enter into the machine by the left and right guiding device,make the raw materials and roll forming system to maintain the correct position. The guiding position can be adjusted by the manual screw mechanism,and the left and right can be adjusted independently.

U Ceiling Keel Machine

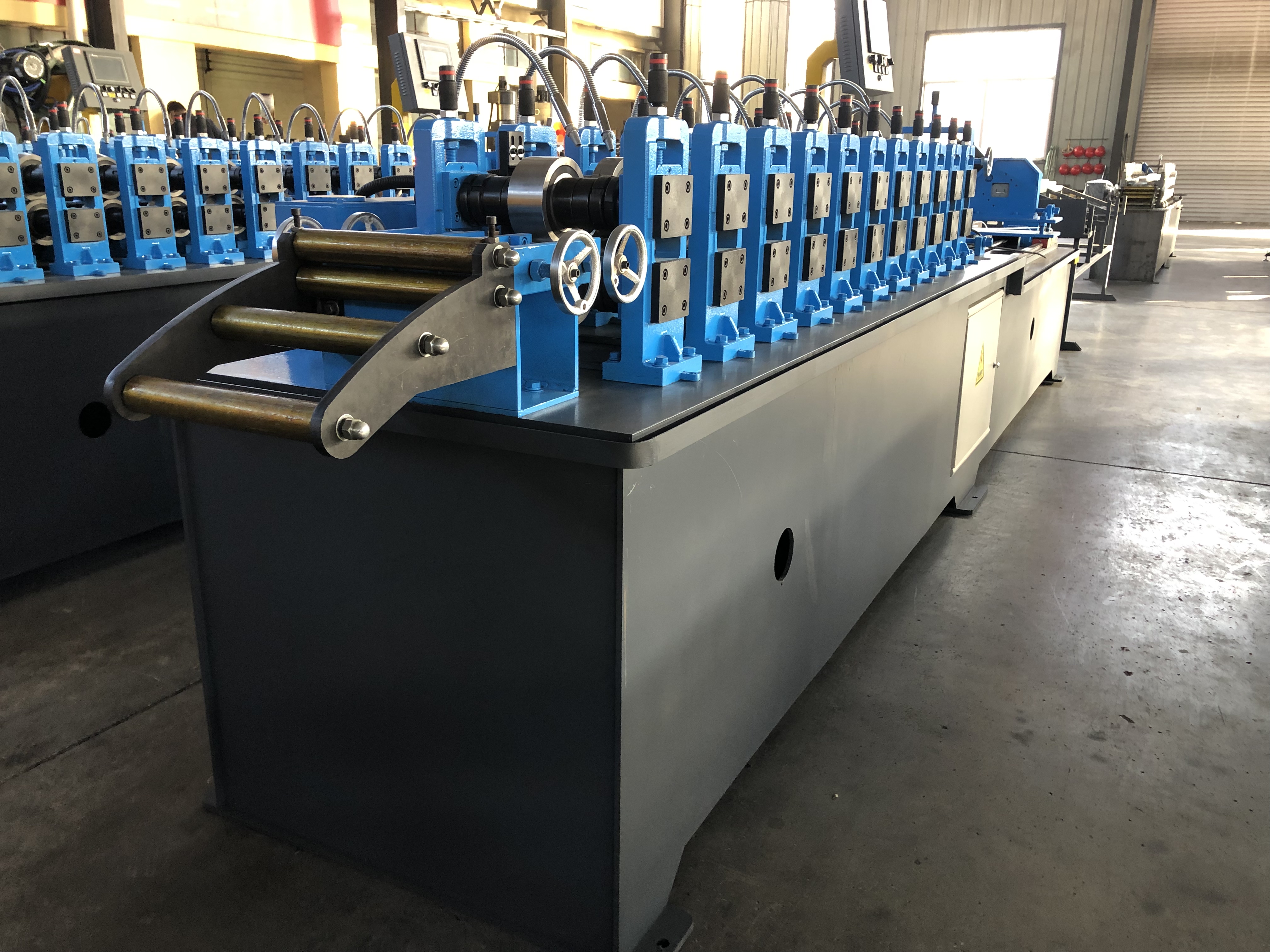

Main Machine

Machine body frame: it adopts steel plate welding and CNC machining center processing
Rollers manufactured from Cr12MoV steel,vacuum quenching heat treatment after grinding the inner hole and end face, CNC lathe finishing roller face.
Shafts manufactured from 40Cr Steel,quenching and tempering heat treatment, hard chrome plating, and external grinding.Shafts
Diameter=ф55mm,precision machined
Gear/Sprocket driving,about 14-step to forming

Main Motor(Polaroid brand)=15KW , Frequency speed control

U Ceiling Keel Machine

Punching &Post Hydraulic Servo Cutting Device

No-stopping punching and cutting
Hydraulic servo motor:3 KW ;Cutting pressure: 0-14Mpa
Cutting tool material: Cr12MoV,(= SKD11 with at least one million times of cutting life),Heat treatment to HRC58-62 degree
The cutting power is provided by the main engine indepedent hydraulic station

U Ceiling Keel Machine

Hydraulic Station

Hydraulic motor power: 5.5kw*2

Hydraulic oil:46#

Components:The system includes a set of hydraulic tank, a set of hydraulic oil pump, and two hydraulic pipes.

Valves:They are all large valves, and the meters are also high-quality meters, which are more durable.

Cooling system: Dual fan cooling system inside the machine box

U Ceiling Keel Machine

PLC control system

PLC brand : Delta

Frequency brand : Delta

Screen type: Delta

Encoder: Omron

Low Voltage electrical part:Schneider

Screen language : English and Chinese(add other language as client request)

Function : Control the cutting length and quantity, speed adjustment

U Ceiling Keel Machine

Table length: 3000 mm

Table total width: 500 mm

Table material: square pipe welded

Our receive production table using
