Stone-coated Metal Roof Tile Making Machine
Stone-coated Metal Roof Tile Making Machine : coated metal roof tile is a modern environment friendly roofing material with the basic of 0.4mm Al-zine coated steel. With colored vermiculite surface it is carried under high temperature technology. It is high-performance, stable, energy efficient and easy operation.

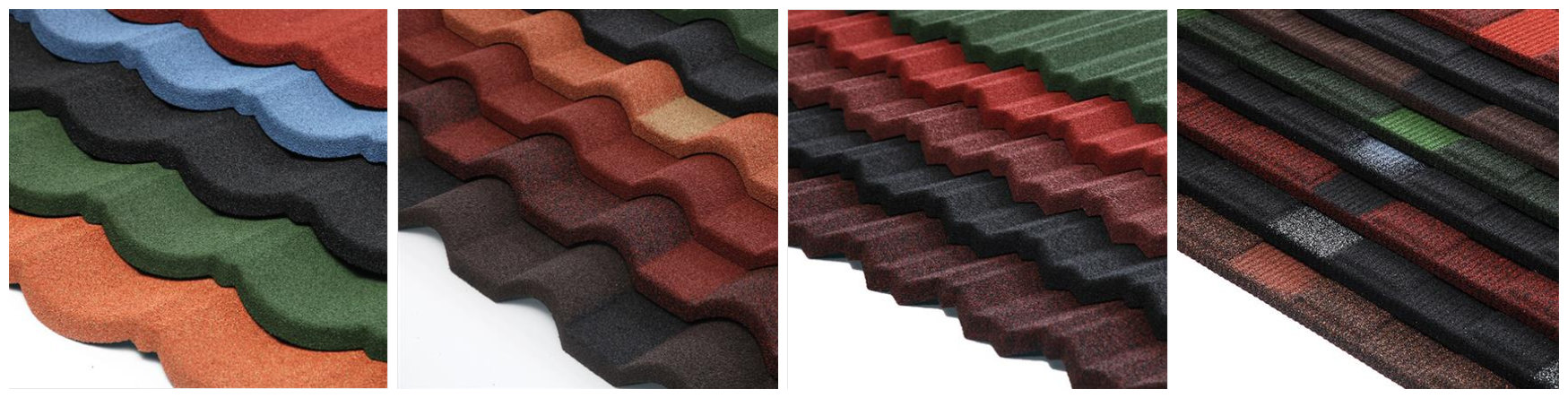

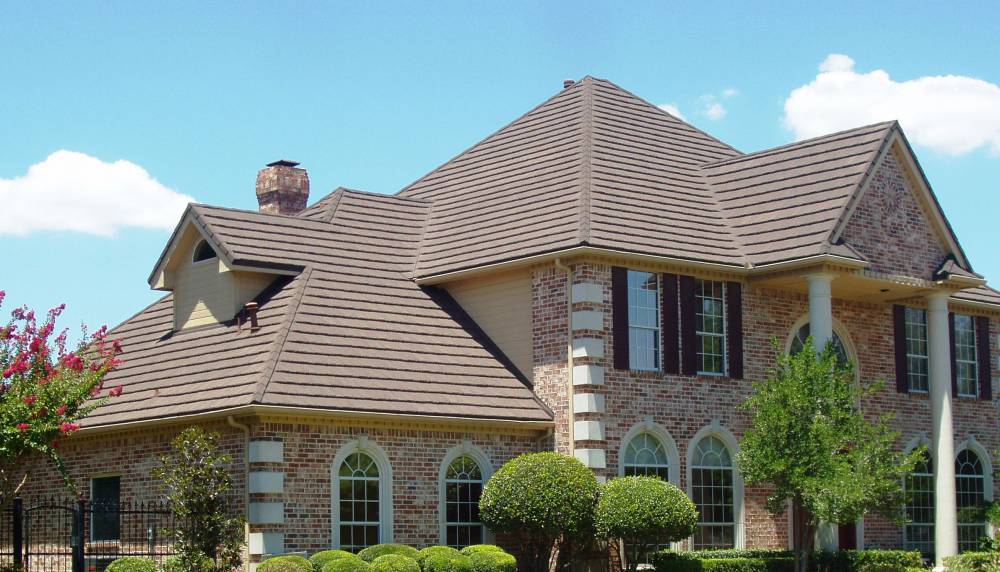

Sample roof panel:

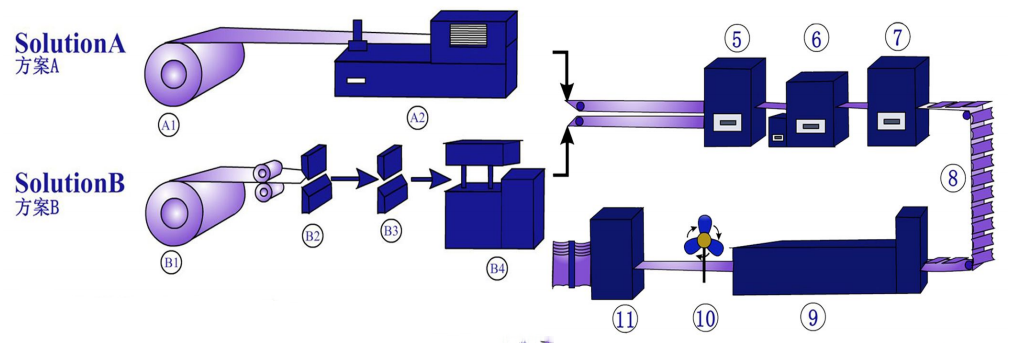

A1. Hydraulic decoiler 5. Automatic spray bottom dispensing machine
A2.Automatic roll forming machine 6. Automatic sand blasting machine
B1. Hydraulic decoiler 7. Automatic spray surface glue
B2.Cutter machine 8. Automatic roll frame
B3.Trimmer 9. Automatic curing tunnel drying oven

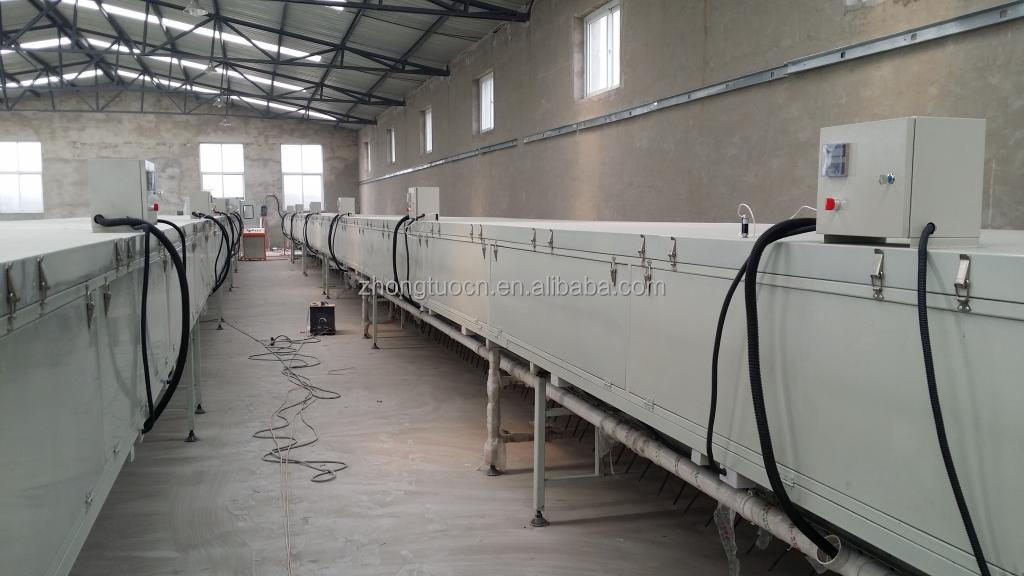

B4. Stamping forming machine 10. cooling machine
11. Finished product packaging equipment
Components of the whole production line:
| Item | Name | Quantity |
| 1 | Slitting and cutting machine | 1 set |
| 2 | Lace machine | 1 set |
| 3 | Punching machine | 1 set |
| 4 | Punching mold | 1 set |

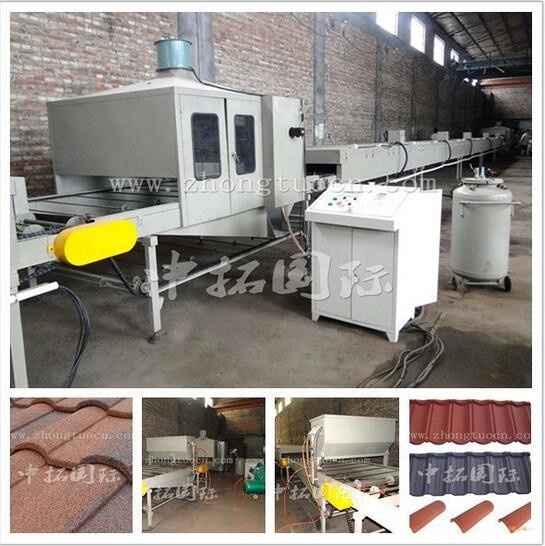

| 5 | Stone-coated production line | 1 set |
Main specifications of the production line:
| Item | Name | Specification |
| 1 | Production speed | 4000-7000pcs/day |
| 2 | Machine weight | 20MT(SolutionA), 35MT(SolutionB) |
| 3 | Total installed capacity | 200 kw |
| 4 | Steel plate thickness | 0.2-0.6mm |
| 5 | Steel plate width | 1000mm-1450mm |
| 6 | Product condition | Plant area 2000 square mcters(25meters*80mcters) |
| 7 | Production line characteristics | Horizontal, continuous product, stepless frequency conversion variable speeds,PLC control, having reliable performances, easy operation. |
Products pattern can produce:
