Popular Trapezoidal Roofing Roll Forming Machine Roof Tile Making Machinery
NO.4 ROAD, ECONOMIC DEVELOP ZONE, BOTOU CONUTY, CANGZHOU CITY, CHINA

Popular Trapezoidal Roofing Roll Forming Machine Roof Tile Making Machinery

Our trapezoidal roof sheeting  Roll Forming Machine for different models based on different designs or customer's samples . It is a machine produce building material of metal roof, the products are widely used as the roof and wall of factory,warehouse, garage, gymnasium, exhibition center.It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

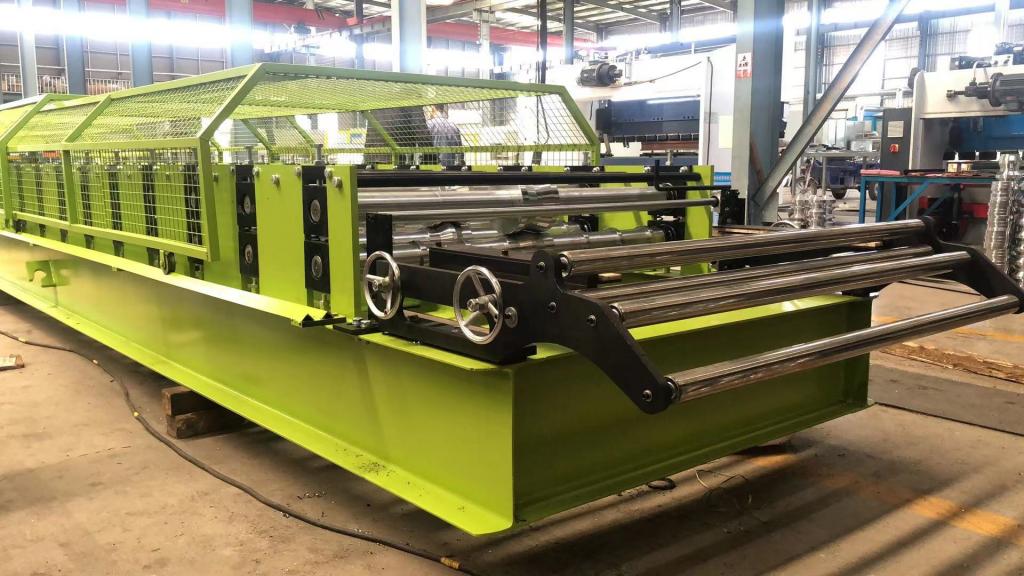

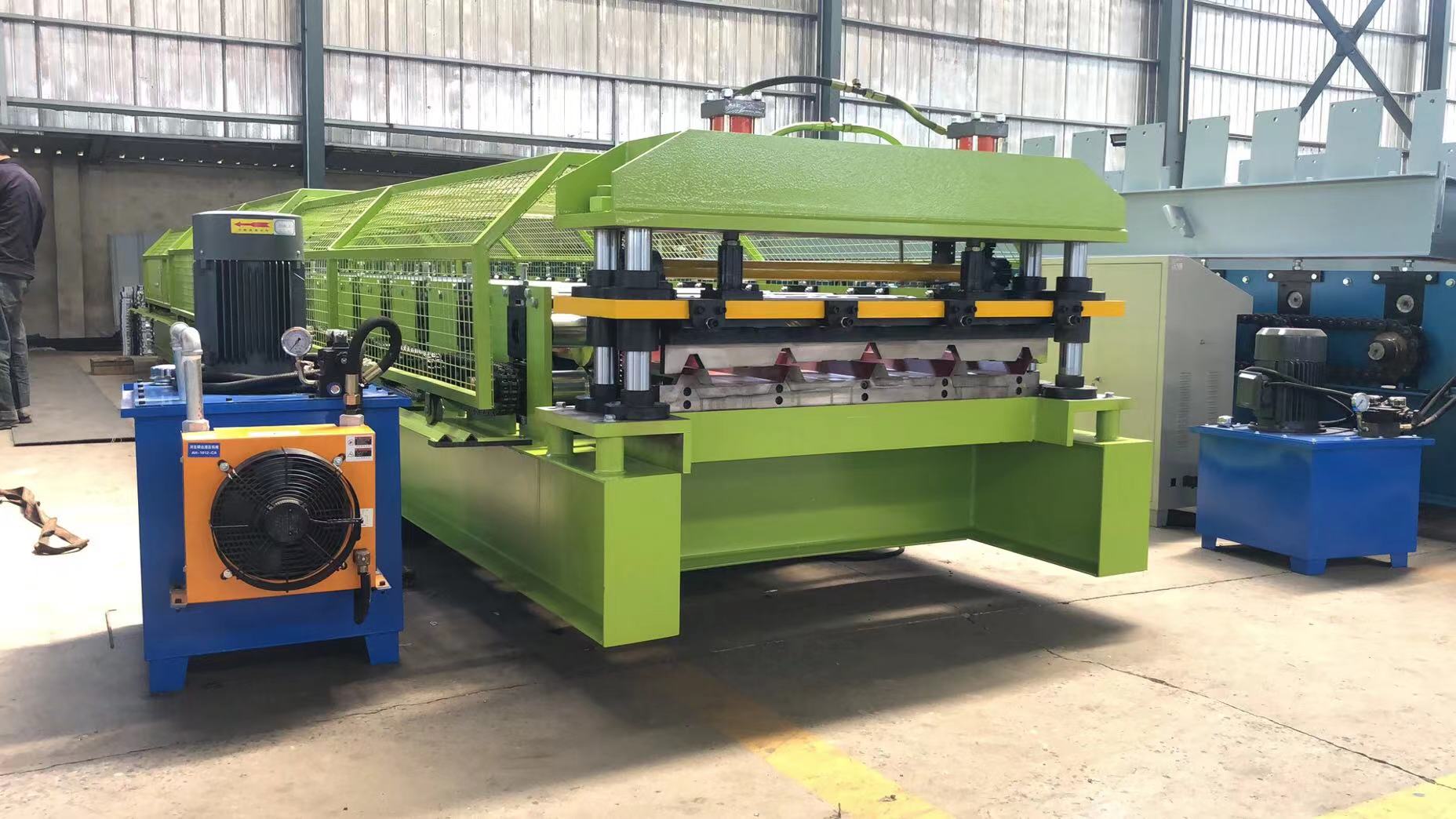

Trapezoid IBR roof sheeting roll forming machine
1.Formed Material
PPGI,GI,AI
Thickness(0.14-0.8mm) Width(customized)
2.Decoiler
Hydraulic automatic decoiler
Ordinary decoiler(will give you as free)
3.Main body
Roller station
10-20 rows(As your requirement)
 Diameter of shaft
70mm solid shaft
Material of rollers
45# steel, hard chrome plated on the surface
Machine body frame
350 H steel
Drive chain
1.2inch(As your requirement)
Dimension(L*W*H)
8500*1400*1300(customize)
Weight
4-6T
4.Cutter
Automatic
cr12mov material, no scratches, no deformation
5.Power
Motor Power
5.5KW
Hydraulic system power
7.5KW
6.Voltage
380V 50Hz 3Phase
As your requirement
7.Control system
Electric Box
Customized(famous brand)
Language
English(Support multiple languages)
PLC
Automatic production of the whole machine. Can set batch, length, quantity, etc.
8.Forming Speed
12-35m/min
The speed depends on the shape of the tile and the thickness of the material.
Products Display

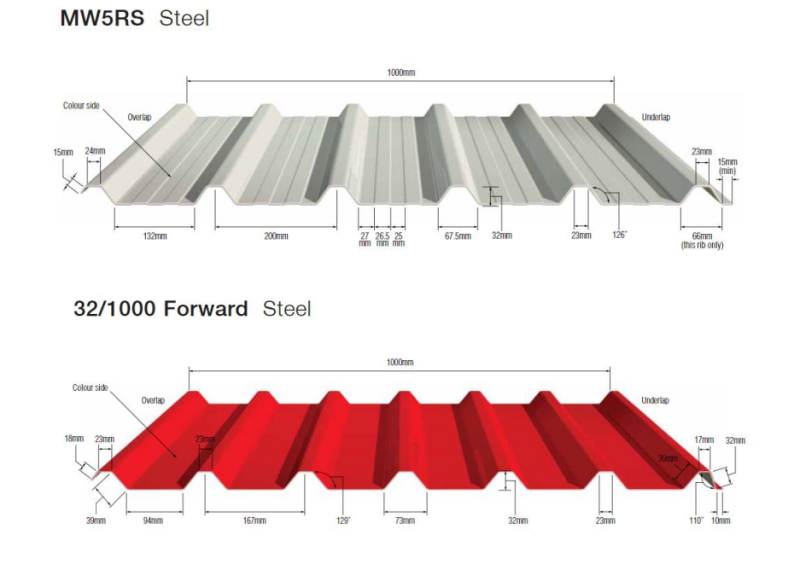

Machines are customized as your drawing,here hot sale drawing profiles for your reference.
