Corrugated Iron Sheet Roll Forming Metal Roofing Roller forming Machine
What Is Corrugated Metal Roofing?
Corrugated metal roofing is a metal sheet that is roll formed into a metal panels. These panels are than attached to the roof with screws. Corrugated metal is an exposed fastener panel, meaning that each fastener is visible on the panel's surface.
The traditional shape of corrugated sheet metal is round and wavy. It is low cost, light weight, durable, energy efficient, long lasting, and easy to install. Corrugated metal roofing is an excellent alternative to asphalt shingles or clay tile roofs. The durability of corrugated panels makes them a fit for both commercial and residential applications when used for metal roofing and metal siding projects. They are even used in other areas of the home including the ceiling, wainscoting and as fencing.
Zhongtuo corrugated roofing sheet roll forming machine is designed to produced corruagred profile roofing in batch automatically.
No . | Item | parameter |
1 | Machine size | 8000*1300*1200mm |
2 | Machine weight | 8000kg |
3 | Machine power | 5 kw |
4 | Hydraulic engine | 4.5KW |
5 | Roll speed | 25M/Min |
6 | Roll stations | 18 |
7 | Roller material | GCr15 |

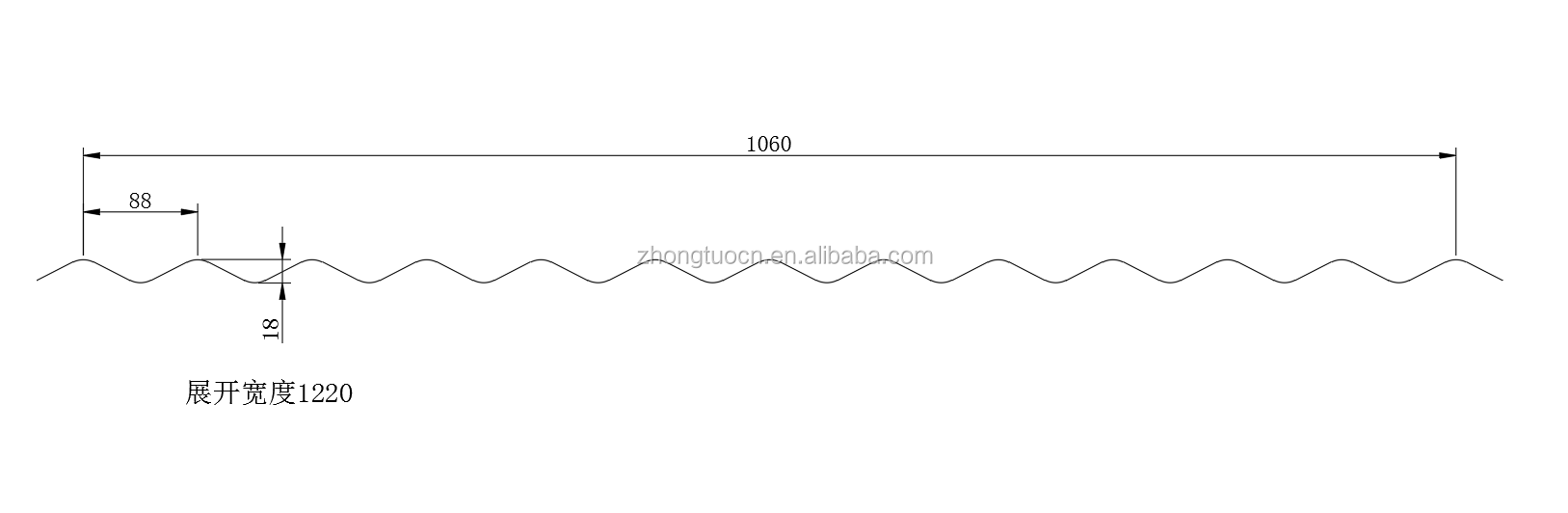

8 | Effective width | 1060mm |
9 | Feeding width | 1220mm |
10 | Voltage | 380V 60Hz 3PH/Customized |
11 | Material thickness | 0.3-0.8/Customized |
12 | Control System | Schneider/Delta/Customized |

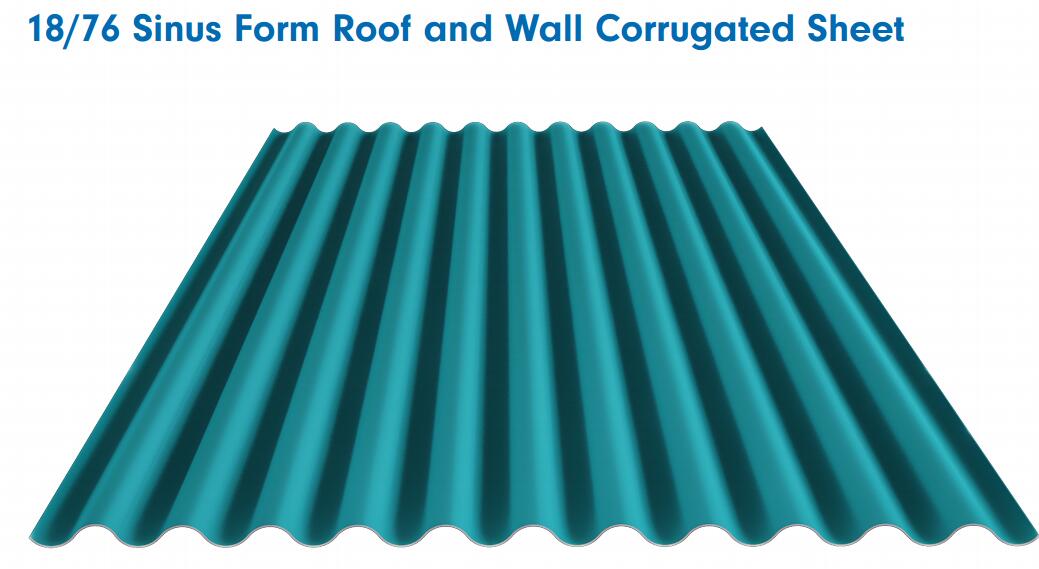

Finished product:

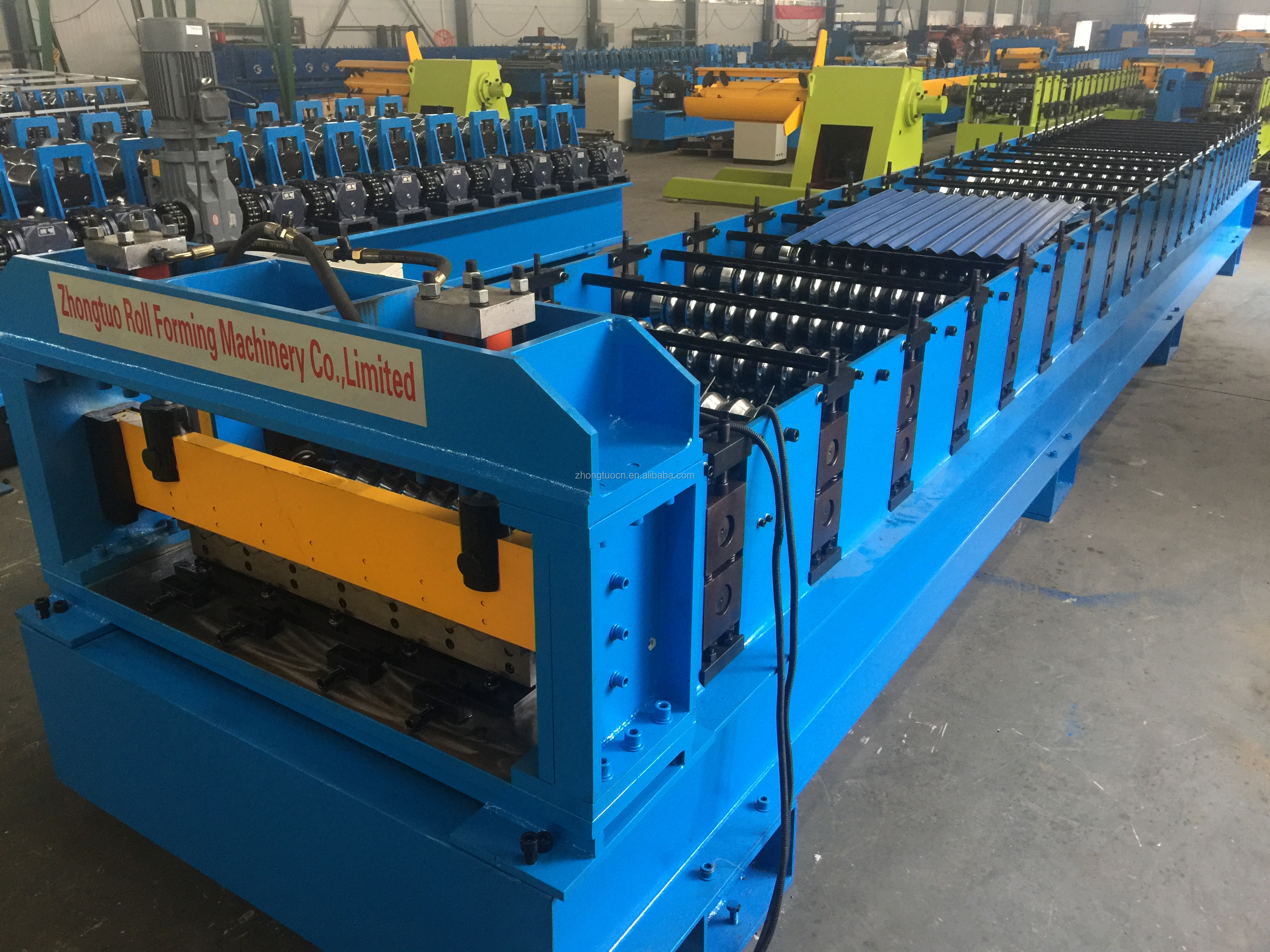

Main machine
The function of the main machine is roll forming the steel sheet to the profile,customer the steel sheet to the profile customer want and then cut the steel sheet into piece. The material of our roller is GCR15/CR12/CR12MOV, and our shaft and roller all be electroplate to keep from rust.

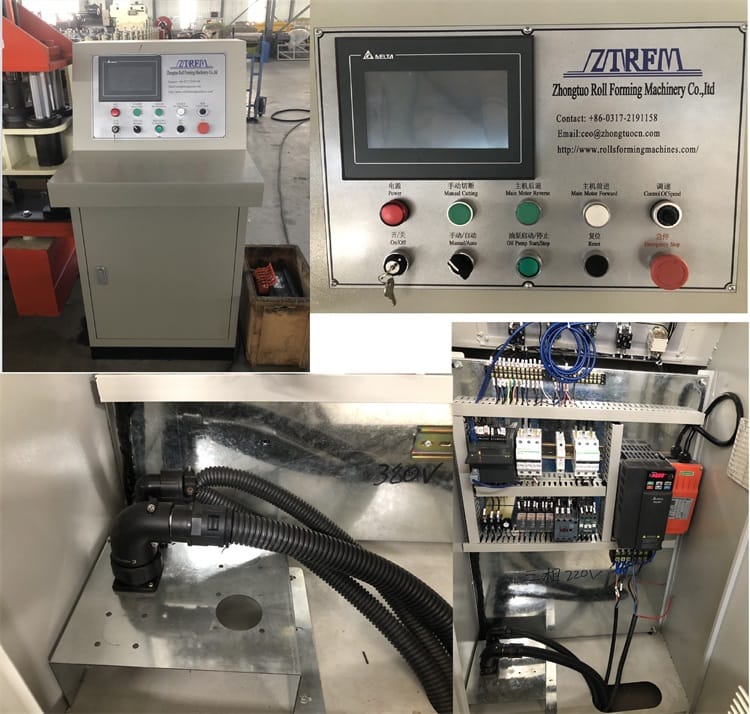

PLC computer controlling system
You can set the running speed/length/batch/pieces of the steel sheet on the PLC computer touch screen,Then the machine can running auto or you can choose the manual mode.The whole operation process are easy to understand.
Hydraulic system
Using for punching holes/punching logo/cutting steel sheet need put hydraulic oil into the oil tank.

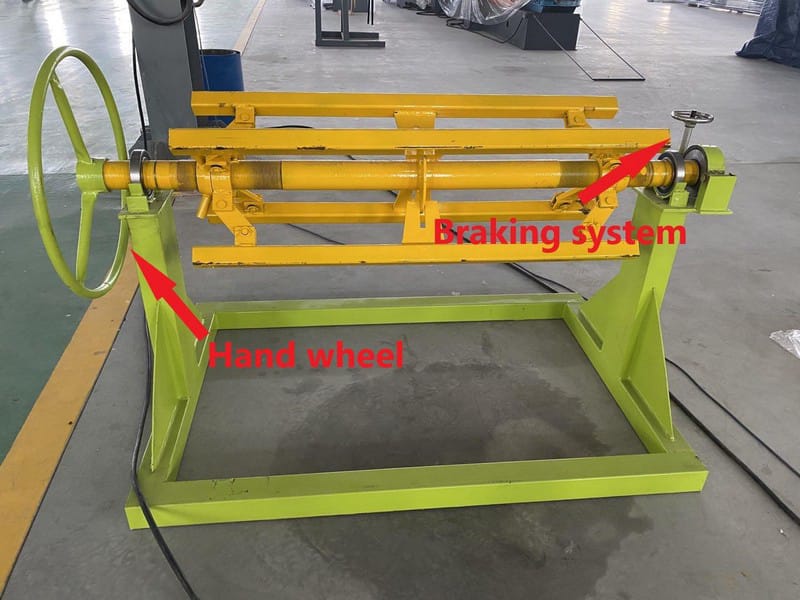

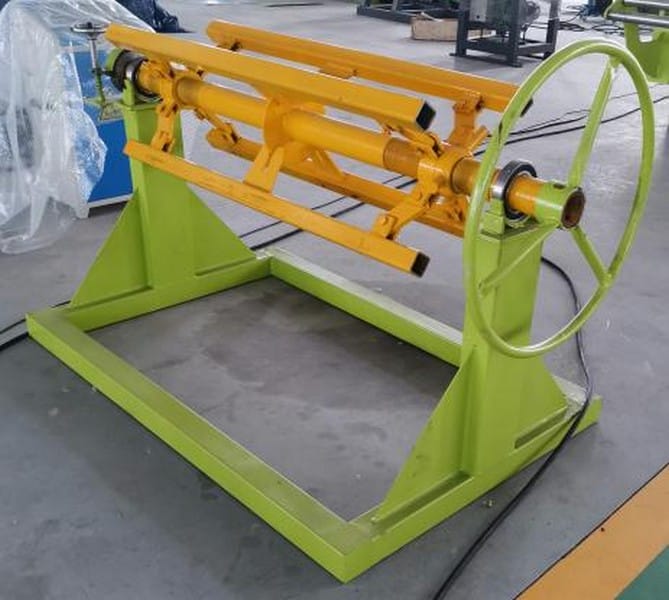

Decoiler
This one is 5 ton manual decoiler. There are still hydraulic decoiler.you can choose
what you need hydraulic decoiler can improve the production efficiency by feeding the material automatic.
