Stud and Track C and U Channel Roll Forming Machine
Galvanized Steel Wall Framing Stud and track rolling forming machine is designed to make the metal stud and track for the drywall system by the galvanized steel.

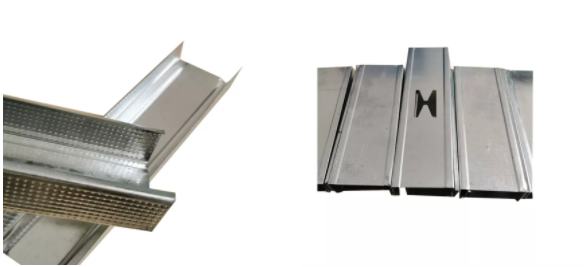

This type Drywall System is the innovative steel drywall stud that sets a new industry benchmark for high performance. So it is quite popular in the market. What's more, Drywall Framing is backed by comprehensive laboratory testing for strength, fire and sound. No other drywall framing system has been as thoroughly tested by lots of customers. Here I show the drawing profile of this type for your reference:

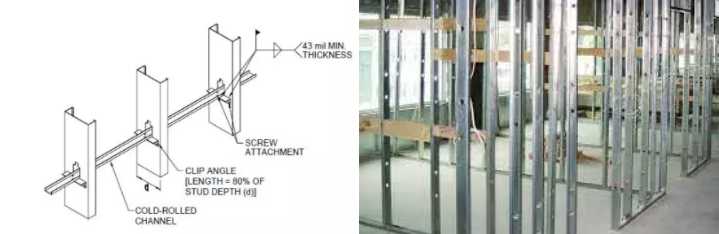

Application of Steel Wall Framing Stud and track Usage:
Steel Wall Framing Stud and track rolling forming machine Design:
Specifications | Production U | |
Forming steps | 12 rollers | |
Memorial arch Frame Thickness | 30 mm | |
Bearings | Double bearings | |
Shaft diameter | 40mm | |
roller material | Cr12Mov | |
shaft material | # 45 steel | |
Hardened reducer | ZLY-140 | |
Work speed | 0-80 meters/min | |
Transport | Gear transmission and chain transmission | |
Type of cutting | Servo tracking high speed cutting | |
Cutting tolerance | ±1mm | |
Main Power | 5.5 kw | |
Cutter | Cr12Mov | |
Voltage | 380 V(As customer's requirements) |
Steel Wall Framing Stud and track rolling forming machine Features
· The stud and track machine can support thickness 25-Gauge 16 Gauge galvanized steel by rolling forming machine
· 3-5/8 in. stud size is typical but it also could be used to make other sizes either in automatic method or manual way.
· Deep knurling dimple embossing allows for rapid screw connection could be made or other types.
· Embossed chevrons add strength and provide proper orientation during installation, the machine can make it in a perfect ways.
· It can produce the stud and track for anti pest and fire proof in an accurate ways.

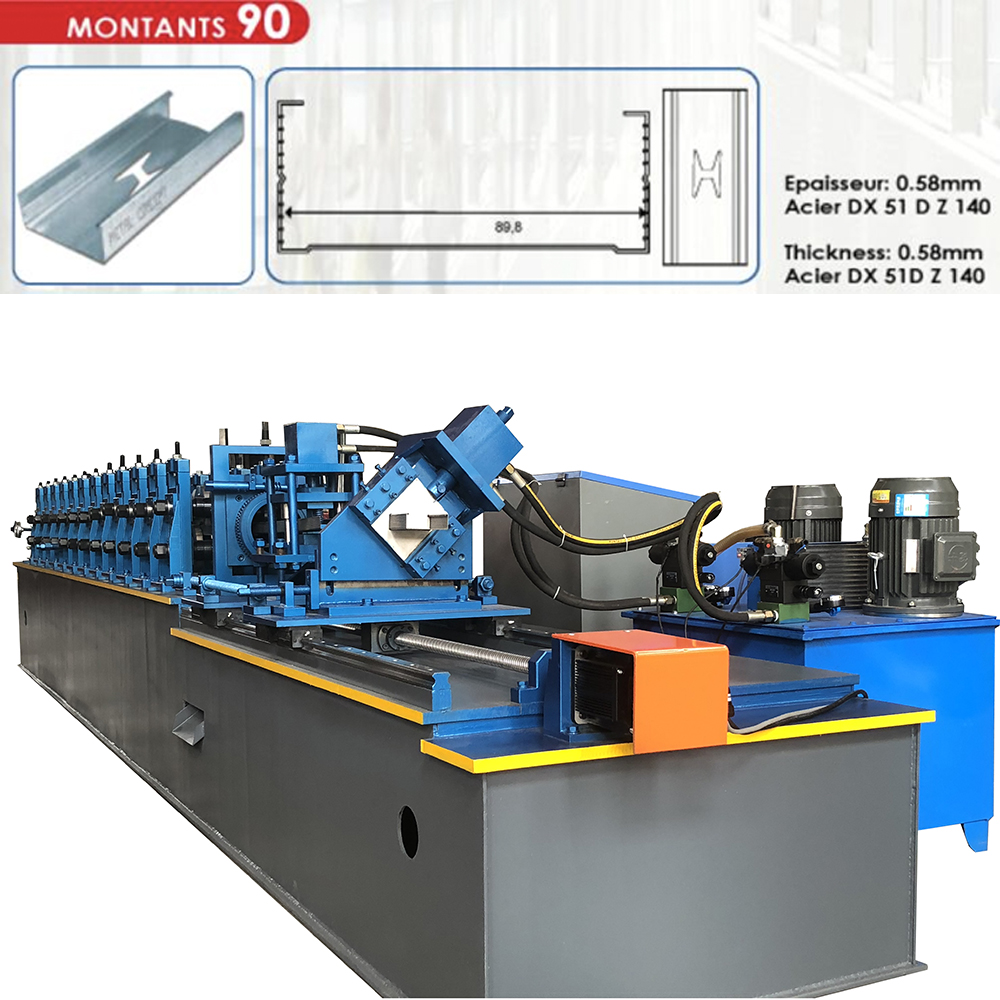

More details of the Steel Wall Framing Stud and track rolling forming machine for your reference:
