Trapezoidal Roofing Sheet Roll Forming Machine For Middle East Region

Trapezoidal sheets are economic, light, durable, resistant to mechanical failiure and non-corrosive. They are a very popular solution in the case of detached houses, production halls, warehouses and business venues. Trapezoidal sheets are best suited to cover large, flat roofs.

Trapezoidal sheets are exceptionally light and as such can be used on roofs which aren’t able to withstand the burden of ceramic tiles. In spite of their low weight, trapezoidal sheets are very durable. The degradative effect of wind and atmospheric effects prove unable to damage them. Trapezoidal sheets are also resistant to water and moisture due to which they never rust. Proper installation of trapezoidal sheets ensures their functioning for many years.

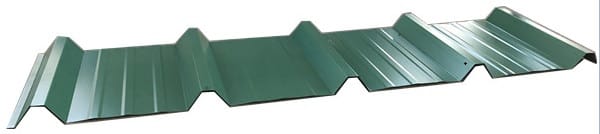

The following design is a popular profile roof sheeting in middle east countries. Zhongtuo roll forming machine is designed to produce trapezoidal metal roof sheeting with different specification in batch automatically.

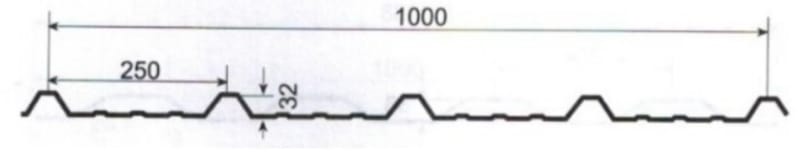

1.Profile drawing as below,and we also can design as customer's request

2.Raw material:0.3-0.8mm,GI,GL,PPGI,PPGL

The specifications of the whole line:

3.Components:

4.Process flow

5.Manual decoiler(also can use hydraulic decoiler as customers' request)

   Capacity:5T

   Coil diameter:450-550mm

   Coil outer diameter:1500mm

   Coil width:1220mm(as customers' request)

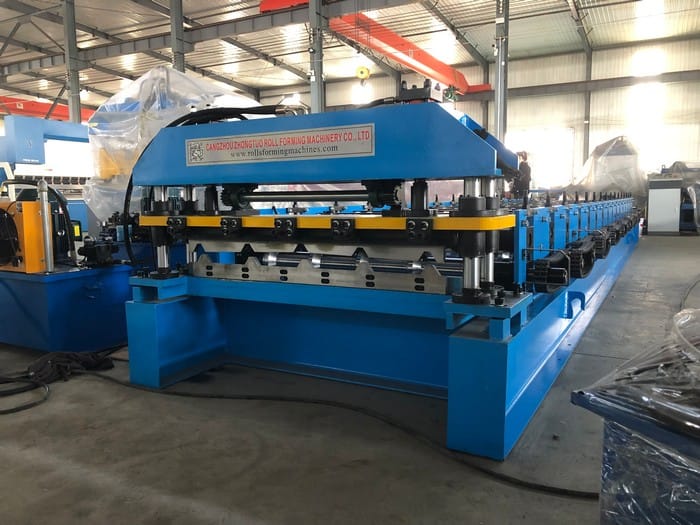

6.Main roll forming machine

  Feeding device:with two hand wheels to adjust the feeding of the material,with bearing inside of the feeding rollers.

  Frame:350H steel,with 18mm middle plate support

  Roller stations:16 stations

  Roller materila:45# steel with quenched treatment and hard chroming

  Shaft diameter:80mm,solid

  Shaft material:45# steel with tempering treatment

  Motor power:5.5kw

  Speed:0-20m/min

  Transmission:By double chains

  Voltage:380V,50HZ,3P

  7.Hydraulic cutting system

  Blade material:Cr12,with quenched treatment

  Hydraulic power:5.5kw

  Cutting tolerance:±1mm

  With fan cooling on the oil pump

8.Control system

  Control system:PLC

  PLC brand:Delta from Taiwan

  Frequency converter brand:Delta from Taiwan

  Encoder:Omron

  Function:Automatic control the length and quantity

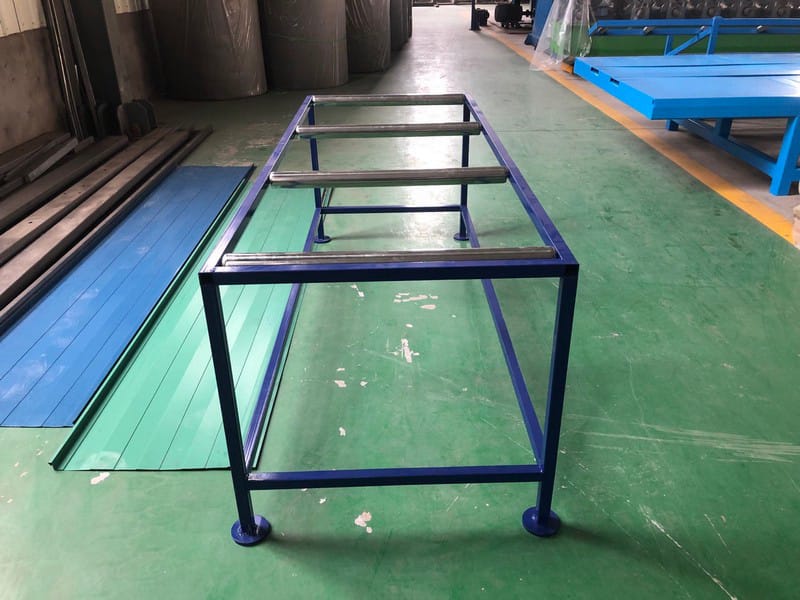

9.Product receive table

Type:manual(also can use the auto stacker as customers' request)

Length:3m

 FAQ

Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available. Our technicians will go to your factory to help you on time.

Q: How do your machines compare with other big companies in this market?

A: We are up to date with the latest technology and rich experience about machines and global market. We boast of professional engineer team and  after-sale service team.

Q: Once we've bought a machine from you, are you able to supply us with material?

A: We can assist you in finding the appropriate materials to suit your machine

Q: Which is your main market?

A: We supply machine to UK,USA, Austrila and South Korea. Besides, India is our main market, we have Indian sales manager and branch company in India.

Q: Do you sell only standard machines?

A: No, most of our machines are built according to customers specifications, using top brand name .
