Adjustable Width U Panel Roofing Sheet Machine for Mexico
Adjustable width U panel roofing sheet machine for Mexico is design to make the U panel in width of 1220mm and 914mm in batch fully automatically. Metal Center's U-Panel is designed for industrial, agricultural, commercial, residential and steel-frame building applications.

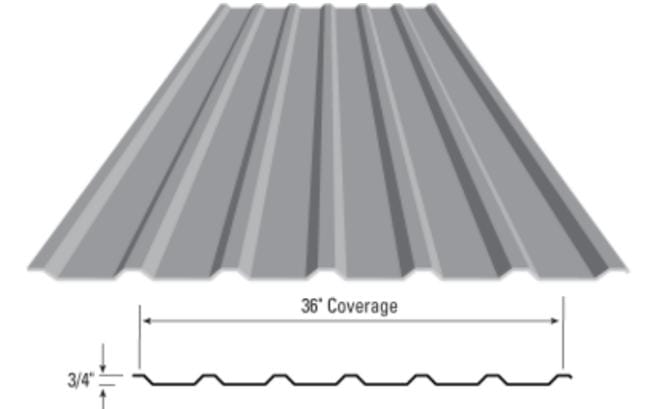

This type of metal roofing panel is typically used as siding or for soffit with some roofing use as well. Here is the drawing profile for your reference:

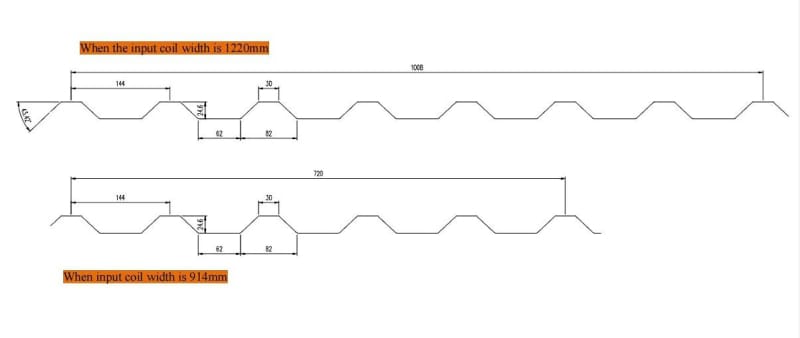

And if you want to fully use the input coil width of 1220 and 914. we have one type new design for your reference. By this type adjustment, it can support two type coils and more easy to adjust.
When using the 1220mm input coil width, it has 1008 valid width. When using 914mm coil it has 720mm valid width.

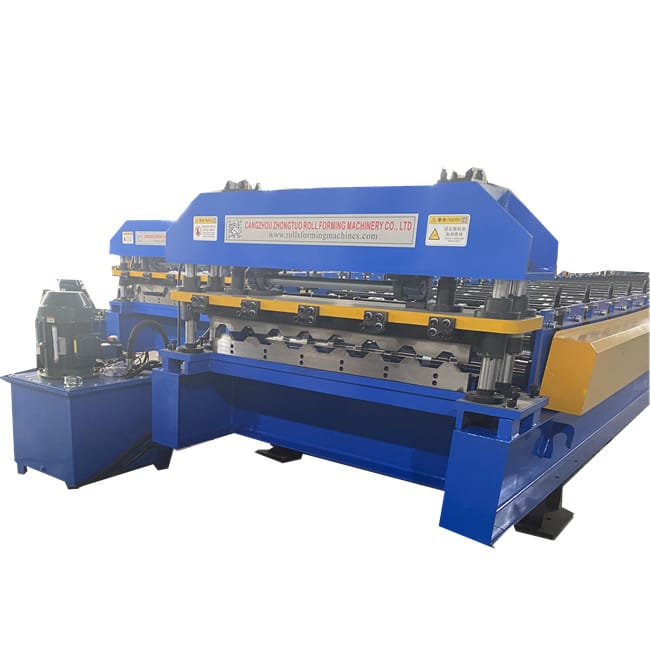

Adjustable width U panel roofing sheet machine for Mexico pictures:
Packing list-roof profile machine | ||||
No. | Name | Unit | Qty | Remark |
Part 1 | 7 T hydraulic decoiler | set | 1 | loading car Optional |
Part 2 | Guide feeding device | set | 1 | With hand cutter for roofing |
Part 3 | Main roll former | set | 1 | Chains drive |
Part 4 | PLC control station | set | 1 | Delta brand |
Part 5 | Cutting system | set | 1 | Hydraulic |
Part 6 | Hydraulic oil pump station | set | 1 | With cooling fan |
Part 7 | Simple collect table | set | 1 | Automatic stacker optional |
Part 8 | Spare parts | set | 1 | |
Optional Elements:
1. For the decoiler, if you do not the hydraulic one, we can give you the manual one free.
2. For the machine working speed, this one is 2m/min, we can design 45m/min.
3. For the stacker, you can choose the fully automatic type or the manual one.
How to adjust the input coil width from 1220 to 914mm?
In the leveling part, take right part as center, simple feed the coil to right part and then okay.
As the shearing part, we will design to the Max, so no matter wider or narrow, they both could be used. Meanwhile different with other suppliers, for the cutting blade holes, we also make some special design using thick plate and then it can fix the blade more well and make the blade more durable.
And there are more popular design in Mexico for your reference:
When application in house U panel roofing sheet:
Here is the machine working video for your reference:
