High Speed Lace Shearing Step Tile Roll Forming Machine Azerbaijan Market
High speed lace shearing step tile metal roofing sheet forming machine can make the roofing tile with stepping at the speed of 7 to 12 meter per minute as the design of whole molding shearing and stepping. As to lace shearing, it is designed with beautiful shearing design not straight cutting. Take the following drawing profile for your reference:
Finish product of step tile:
FEATURES of this metal roofing sheet forming machine :
1. Hydraulic Decoiler with Break is equipped for roll forming production, not manual one.
2. Manual Shearer before Roll Forming is the essential for roll forming production, and length control is set on touchable screen, so that material is calculated by PLC for each material thickness and color production.
4. 24 Nos of Rollers is used for step tile forming, ensuring profile strength.
5. Mitsubishi (Japan) PLC and 5.7' Touchable Screen are used for for data processing and setting.
6. Servo Motor is adopted for length controlling, little tolerance only and most advanced scheme.
For the lace shearing mold:
It includes a cutter holder, the upper part of the cutter holder with an oil cylinder,
With an upper knife beam, upper cutting knife is fixedly installed on the upper knife beam through the
connecting plate, and the lower cutting knife is arranged corresponding to upper cutting knife.
The lower cutting knife is fixedly installed on the lower knife beam, and the lower knife beam is arranged on the cutting knife frame.
How we test and promise the machine quality:
To make sure the machine work smoothly, we will test the machines by tons of the coils.
1. Make sure there is no scratch on the surface of the coil.
2. Make sure the stepping part no error.
3. Machine sure the edge is nice.
You can check more details from the following details.

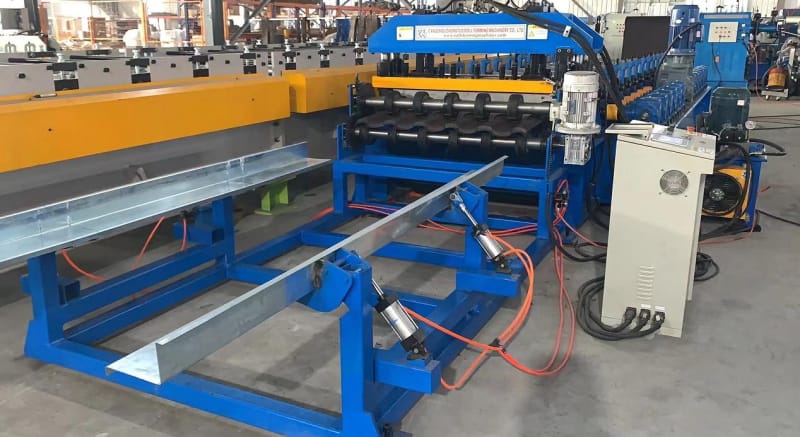

High speed lace shearing step tile metal roofing sheet forming machine details for your reference:
High speed lace shearing step tile metal roofing sheet forming machine working video for your reference:
For more information, please contact with us.
