The popular fixed version recommendation in Vietnam

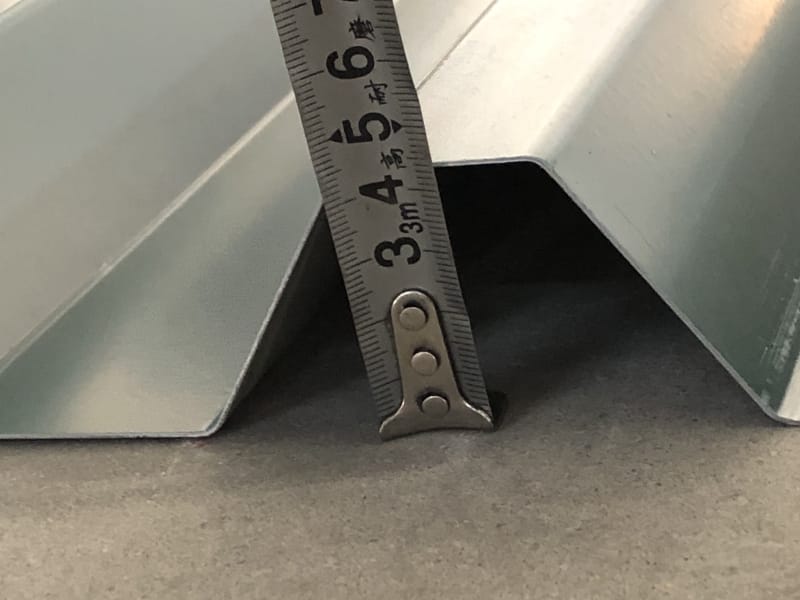

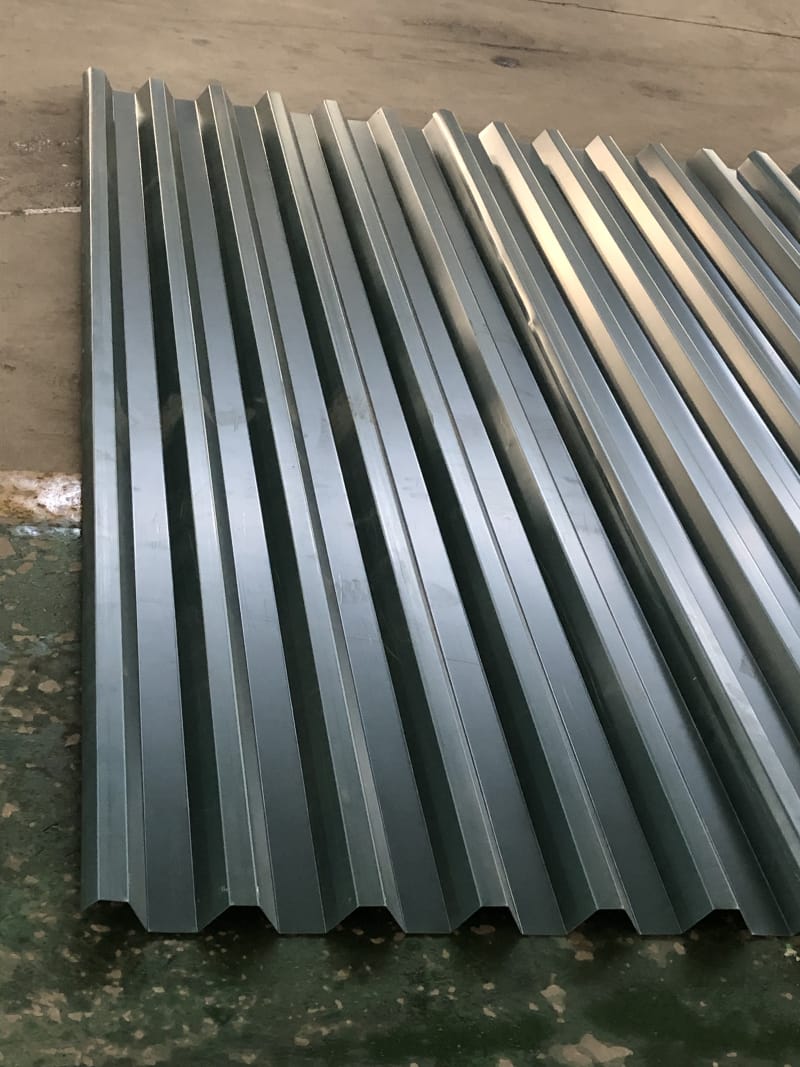

1) Type MZ Profile drawing：

Material details

Ø Pre Painted AZ coated coils having Yield strength ranges from 340 MPa to 700 MPa

Ø Thickness ranging from 0.5 to 1.0MM

2) . Processing flow diagram of machine

3) . Production process

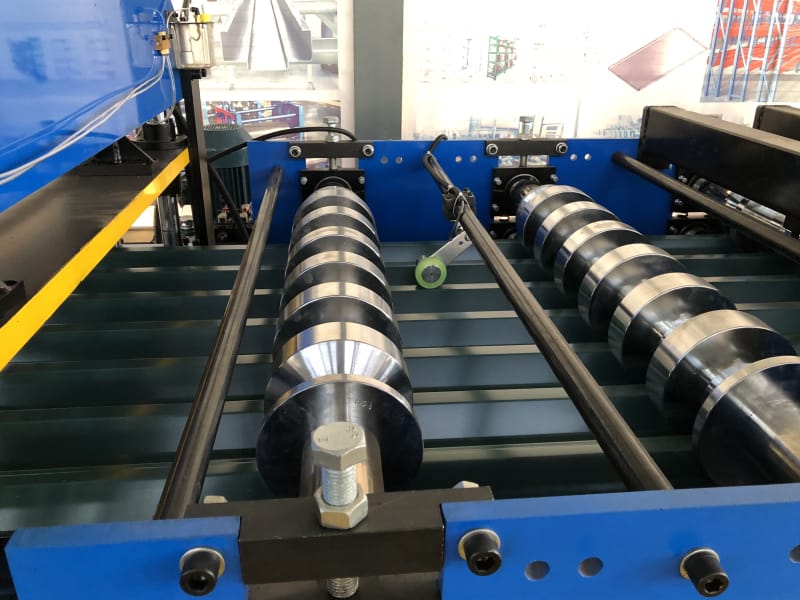

Uncoiling→ Feeding→hydraulic pre-cutter →Roll forming → Auto shearing  → receiving table

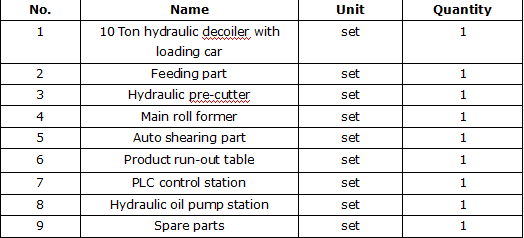

4).Main components( packing list)

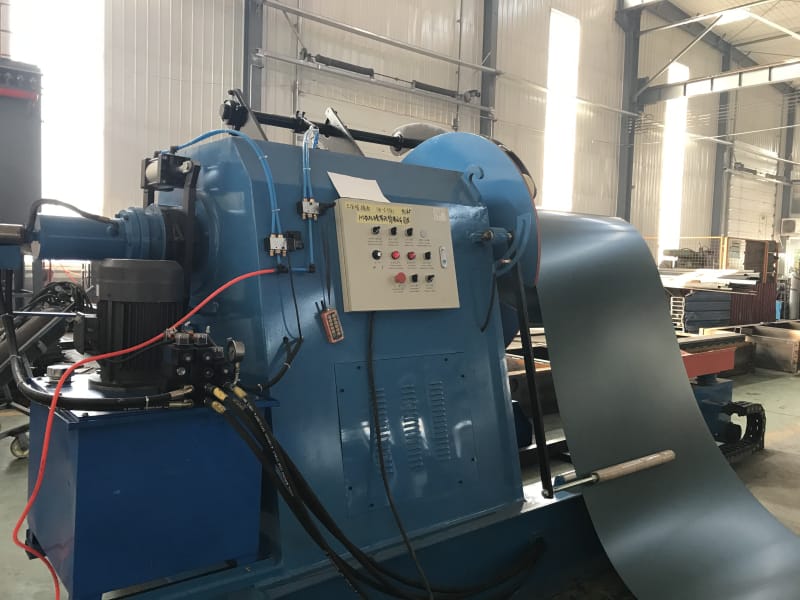

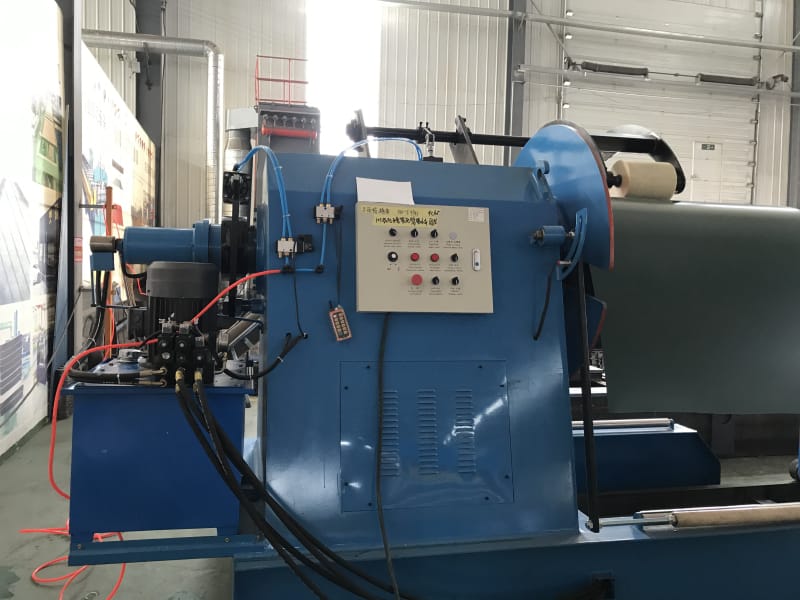

10 Ton hydraulic decoiler with loading car

A. Supporting the coils and doing uncoiling. The capacity is 10Tons(max).

B. It adopts the hydraulic oil cylinder to make the decoiler expandable and fit to the inner diameter of coils. It is equipped with the cantilever.

C. Motor drive the coils running and can do forward and reverse running as well as do the decoiling with tension.

D. The core can ensure the expand range φ450 of the coils inner diameter. It will provide the rubber band to ensure the 550 mm diameter.

Carrying capacity: 10 tons

Max coil width: 1250 mm

Feeding speed: 0-20 m/min (adjustable)

Hydraulic motor power: 5.5 kw

Frequency speed control motor: 7.5KW

E. Structure: welding by the steel plates and profiled bar.

If you are interested in this profile , can send inquiry we will share more details!
