We have one new design machine, which can be used either for making sandwich panel bottom sheet and also could be used to make width Adjustable Clean-room Wall Panels in batch fully automatically. Sandwich panel sheet forming machine make up and bottom sheets for insulated Sandwich Panel.

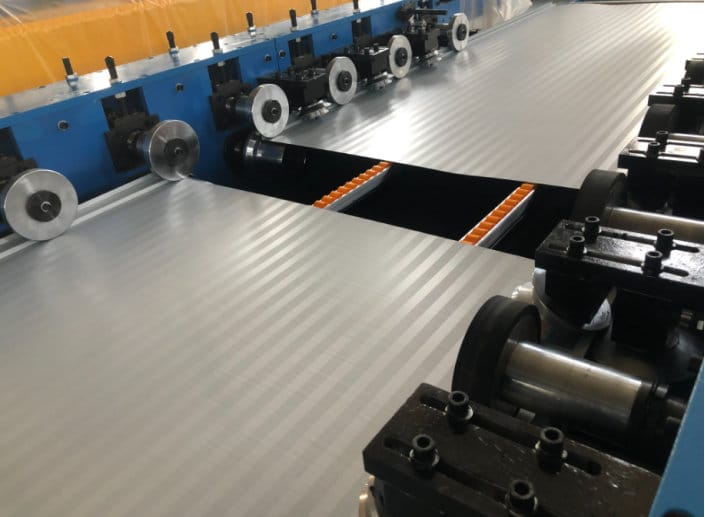

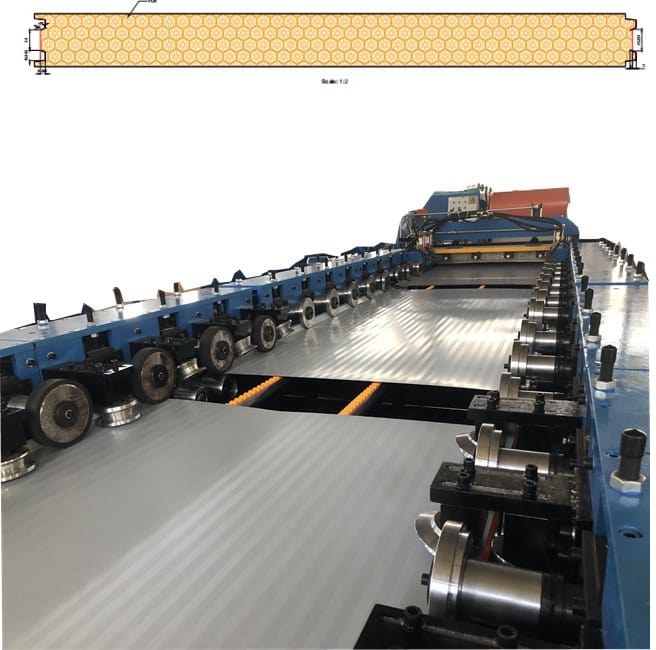

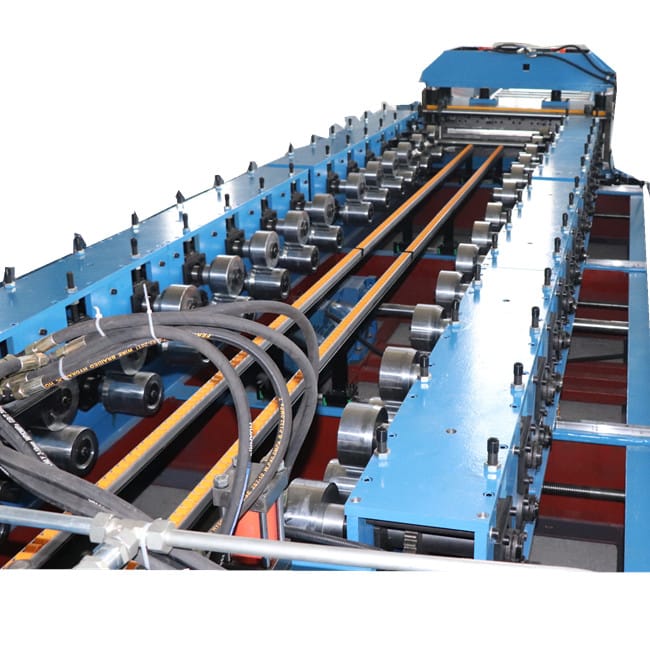

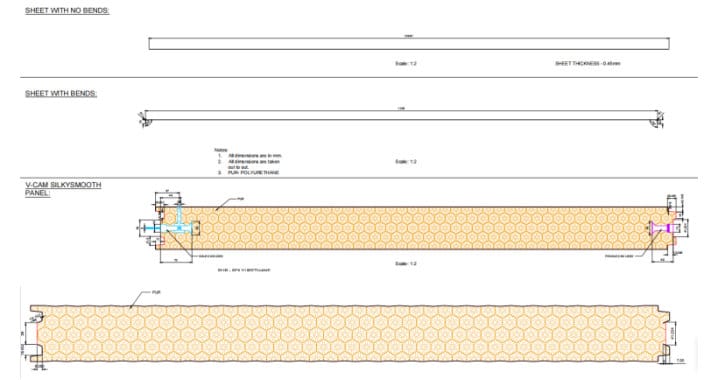

Discontinuous panel filled polyurethane used for insulated wall and roof building panels, garage doors, entry doors, and refrigeration coolers. That means first make up and bottom sheet, then take sheets to discontinuous Insulated Sandwich Panel Lines to fill in polyurethane for sandwich panel. Here are some popular drawing profiles for your reference:
As to the profile with metal embossing or without, that depends on you. The embossing rollers are adjustable.

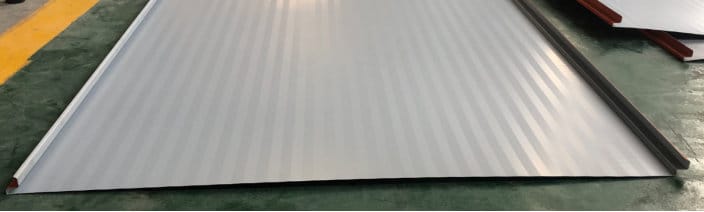

Finished product pictures:
For those two profiles both could be made by one machine, you can choose to with bending or without.

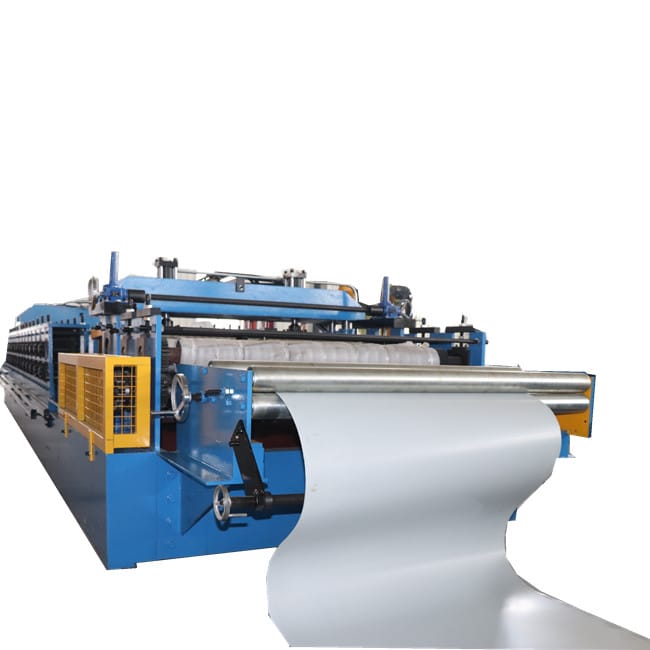

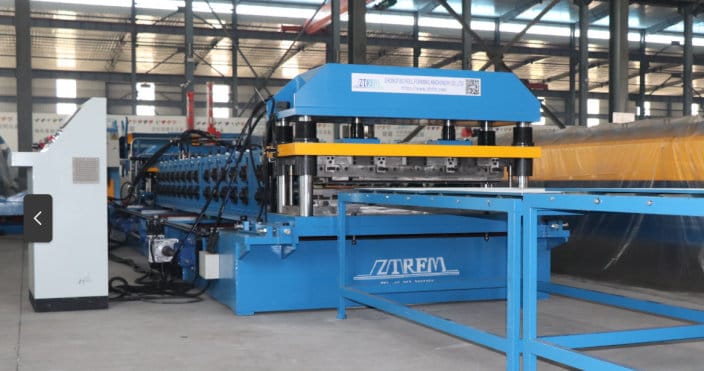

Sandwich Panel Sheet Forming Machine
Equipment composition of Sandwich Panel Sheet Forming Machine:
The equipment consists of the following parts: a 6-ton hydraulic automatic feeding rack with a trolley, a film covering device, a guide device, a punching device, a punching device, a cutting device, a forming system (horizontal movement), a cutting and folding device (U-shaped), a material supporting device, a hydraulic system, and an electric control system
Technical parameters
Plate specification and material: ordinary colored steel coil, strength: 235-345Mpa;
Thickness: Color coated board 0.4-0.8mm, unfolded (see board shape diagram for details)
Forming speed around 20m/min (adjustable)
Power requirements: Main motor power: 7.5kw motor, hydraulic motor power: 5.5KW with air cooling
Forming system: The reinforcement can be pressed or not (0.4-0.8mm), with three types of two sets of rollers
Hydraulic loading rack can load up to 8 tons
Maximum loading capacity of mechanical loading rack: 6 tons
Host structure H350x175 type steel chassis with 200mm leg height and 20mm single side double wall panel overall structure (see machine similar diagram)
Control system: Mitsubishi PLC and touch screen, or Yaskawa frequency converter,
Siemens PLC and touch screen

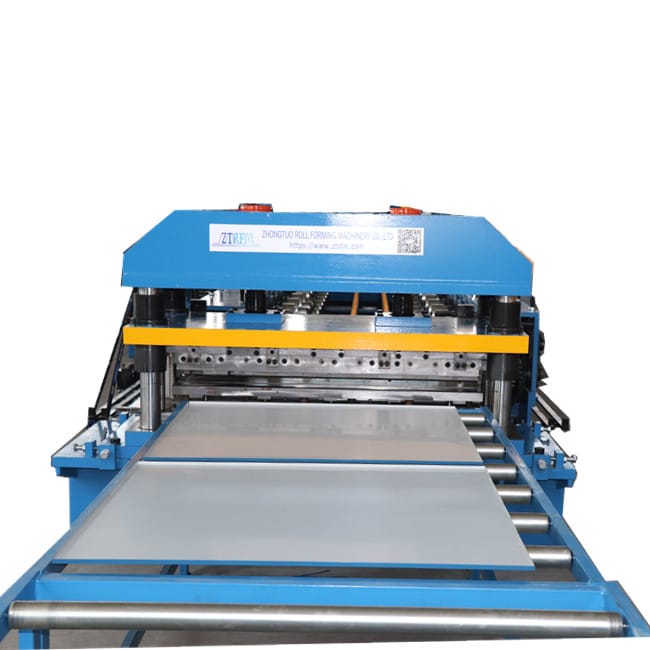

Cutting method: fixed length cutting after forming
Power supply requirement: 380V/50HZ/3Phase
Overall longitudinal sliding mesh protective cover for safety protection
Machine color blue+yellow
Sandwich Panel Sheet Forming Machine advantages:
1. Width adjustable PLC control.
2. After adjusting some rollers, two profiles could be made.
3. With embossing and without adjustable.
4. With filming device.
5. With automatic decoiler, easy to work.

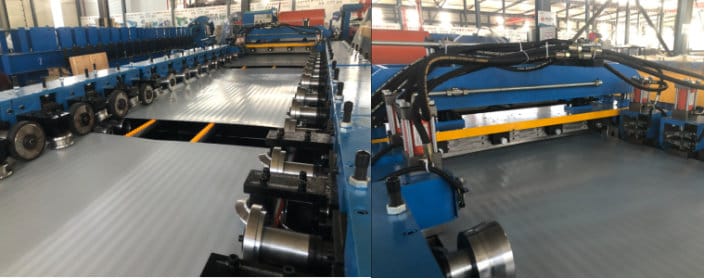

6. Cut the corner and make the box shape rolling forming.
7. Lots of side rollers to shape the corner also with the rubber cover and then it will not damage the surface of the coil.
