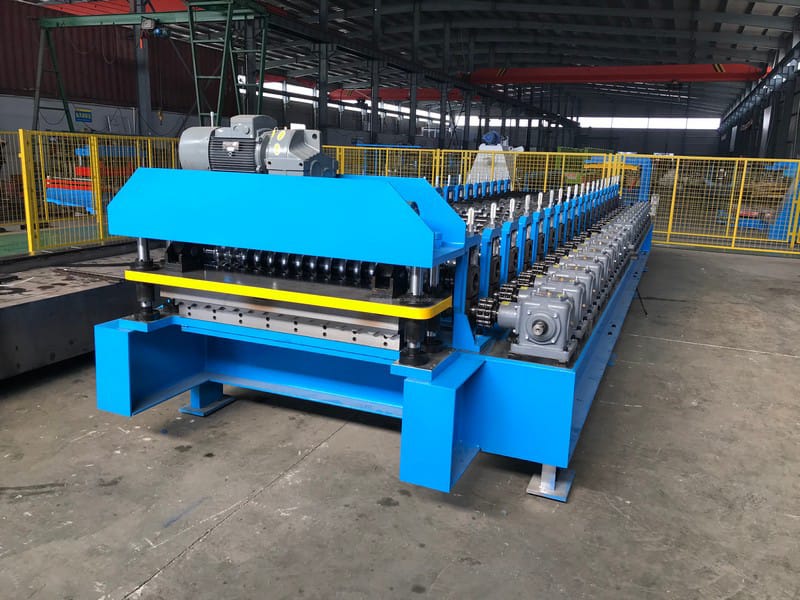

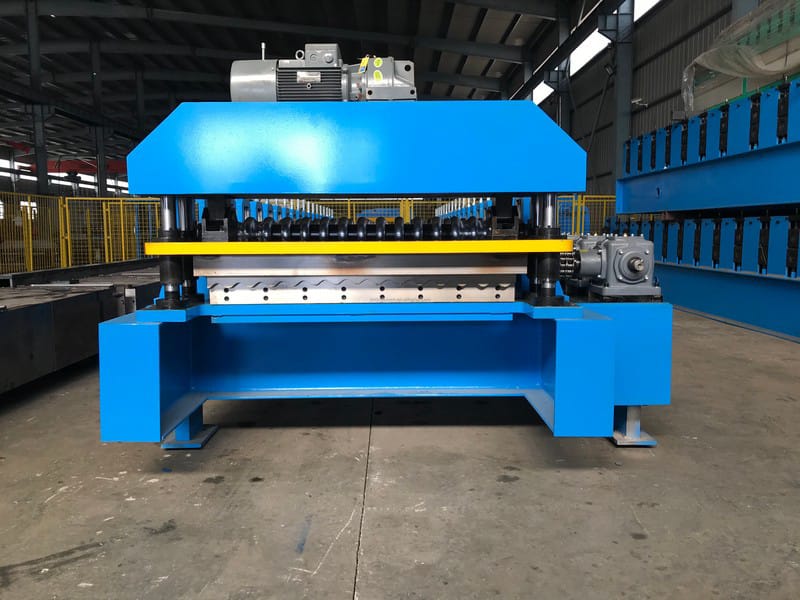

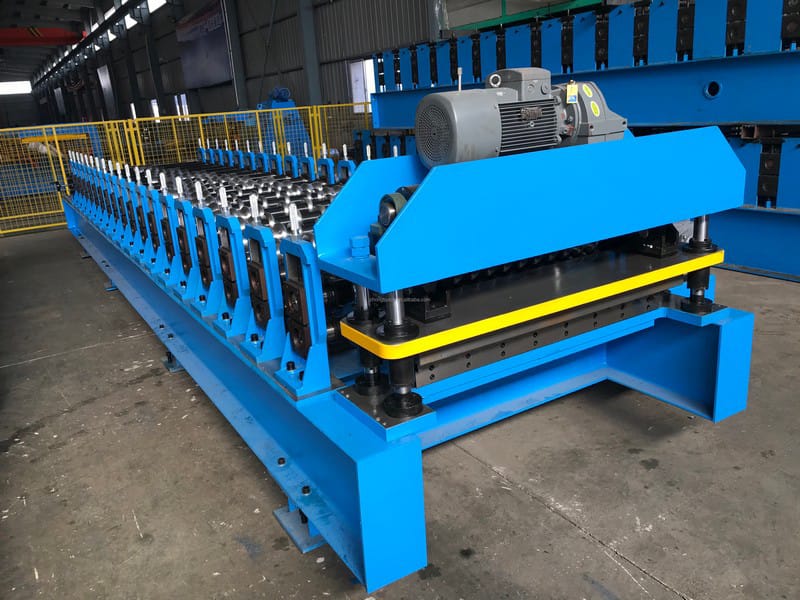

Good quality Corrugated Iron Sheet Roll Forming Metal Roofing Corrugated Iron Sheet Roller forming Machine

Good quality Corrugated Iron Sheet Roll Forming Metal Roofing Corrugated Iron Sheet Roller forming Machine based on different designs or customer's samples . It is a machine produce building material of metal roof, the products are widely used as the roof and wall of factory,warehouse, garage, gymnasium, exhibition center.It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.






Good quality Corrugated Iron Sheet Roll Forming Metal Roofing Corrugated Iron Sheet Roller forming Machine

1.Formed Material

PPGI,GI,AI

Thickness:0.3-0.8mm  Width:1000mm/1250mm(customized)

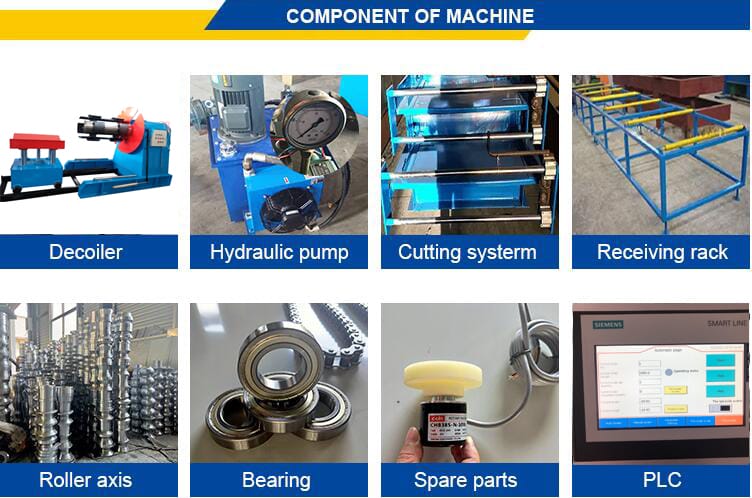

2.Decoiler

Hydraulic automatic decoiler

Manual decoiler(will give you as free)

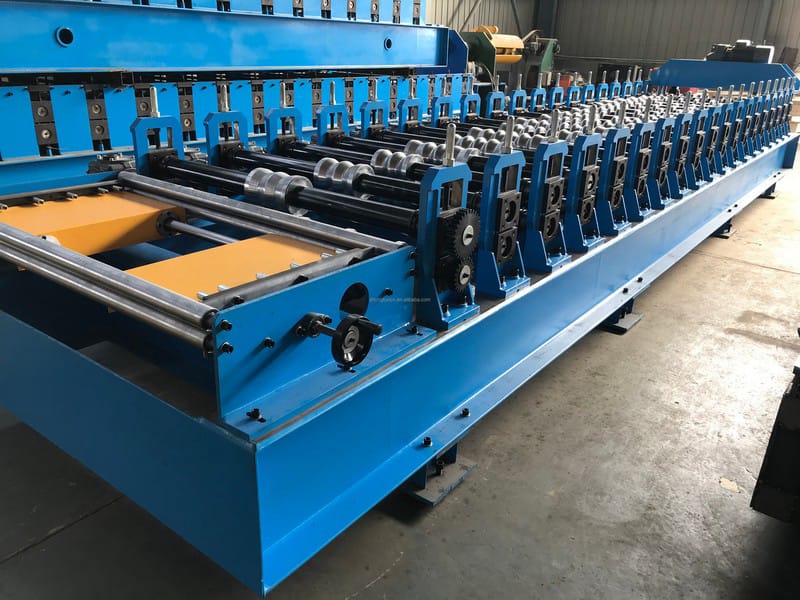

3.Main body

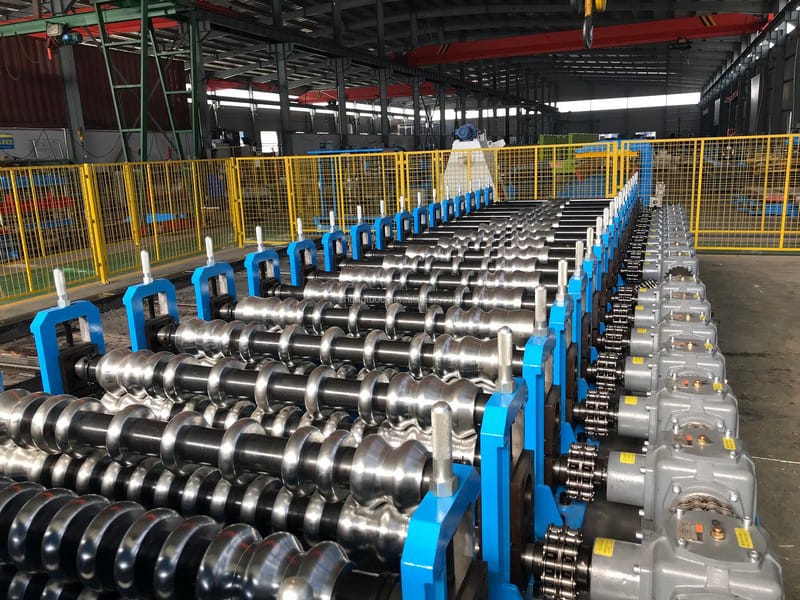

Roller station

16 rows(As your requirement)

 Diameter of shaft

80mm solid shaft

Material of rollers

45# steel, hard chrome plated on the surface

Machine body frame

350 H steel

Drive

Gearbox transmission

Dimension(L*W*H)

8500*1600*1600(customize)

Weight

7.5T

4.Cutter

Automatic

cr12mov material, no scratches, no deformation

5.Power

Motor Power

11KW

Hydraulic system power

5.5KW

6.Voltage

380V 50Hz 3Phase

As your requirement

7.Control system

Electric Box

Customized(famous brand)

Language

English(Support multiple languages)

PLC

Automatic production of the whole machine. Can set batch, length, quantity, etc.

18.Forming Speed

30-35m/min

The speed depends on the shape of the tile and the thickness of the material.

Cooperated brand


Products Display














Machines are customized as your drawing,here hot sale drawing profiles for your reference.
