U Rib Panel Trapezoidal Roofing Metal Roofing Sheet Roll Forming Machine

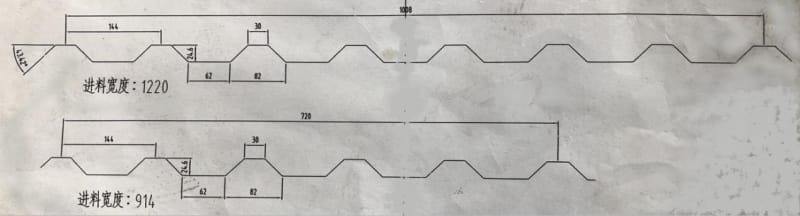

U Rib Panel roofing roll forming machine is designed to produce u rib roofing in batch fully automactic. The profile drawing as follow.
Main parameters:
Material thickness: 0.3-0.6 mm
Effective width: 720mm, 1008mm
Coil with: 914mm, 1220mm
The width can be adjusted by hand wheel on the both side of feeding inlet.
Working speed: 0-15meter per minute
Processing material: color coated steel plate, galvanized steel plate, film coating metal plate
Characteristics of the machine: base is made of high tensile strength H beam with precision welded and good rigidity; shaft, rollers and all components are manufactured precisely to have long lifetime; efficient design and easy maintenance.

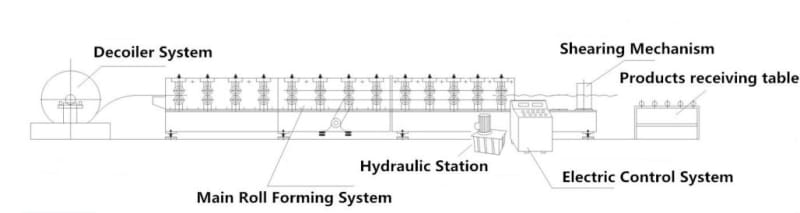

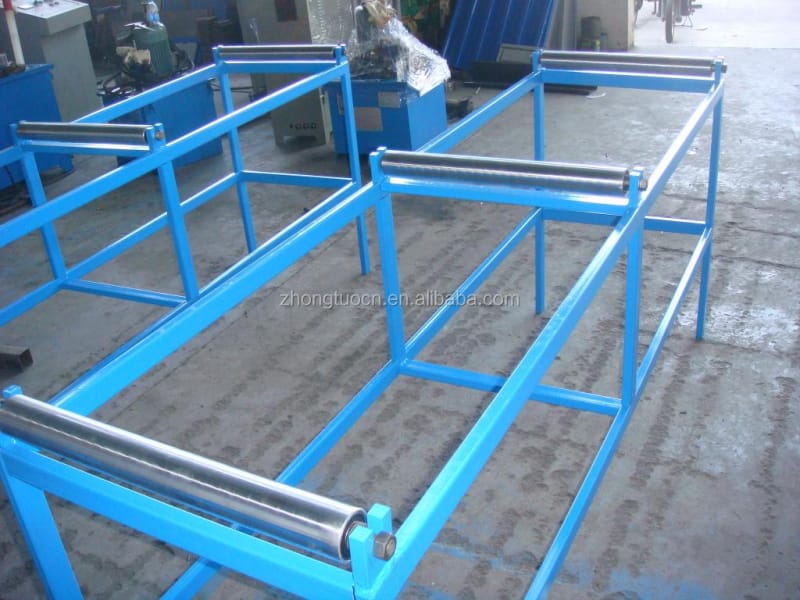

The work flow of roll forming production line.

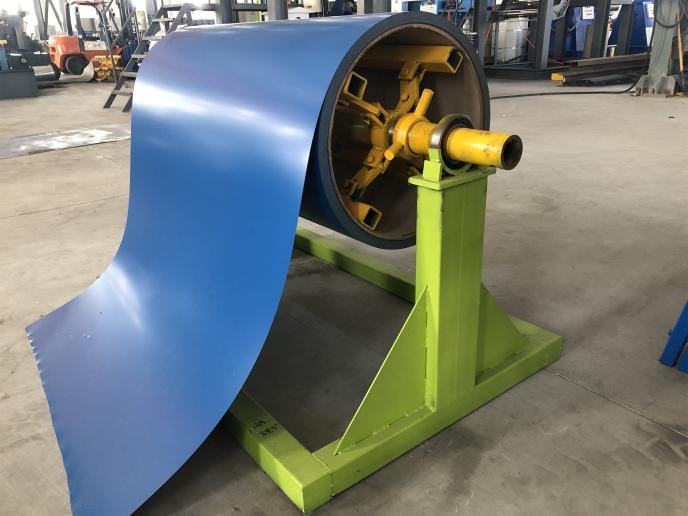

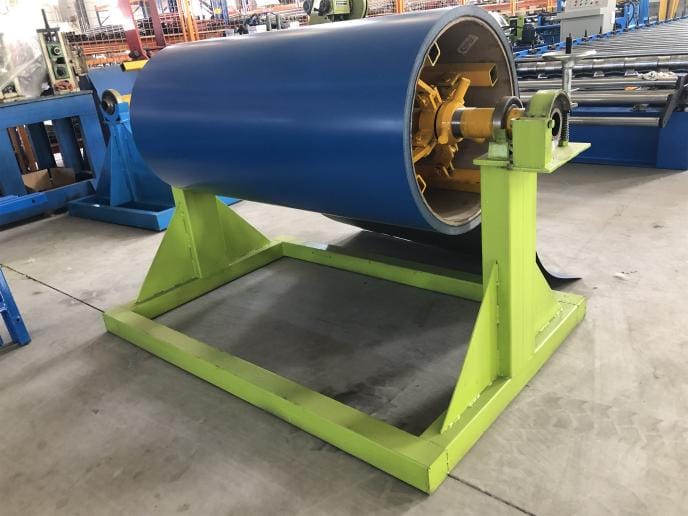

5T Manual Decoiler
Decoiler | Work type: passive type |
Structure: Steel channel welded for the basic frame | |
usage:To support the coil and make the uncoiling | |
Loading capacity: 5 tons | |
Inner diameter: 450-550mm (manual adjustment) | |
Coil width: 1200mm | |
Brake system: manual brake |

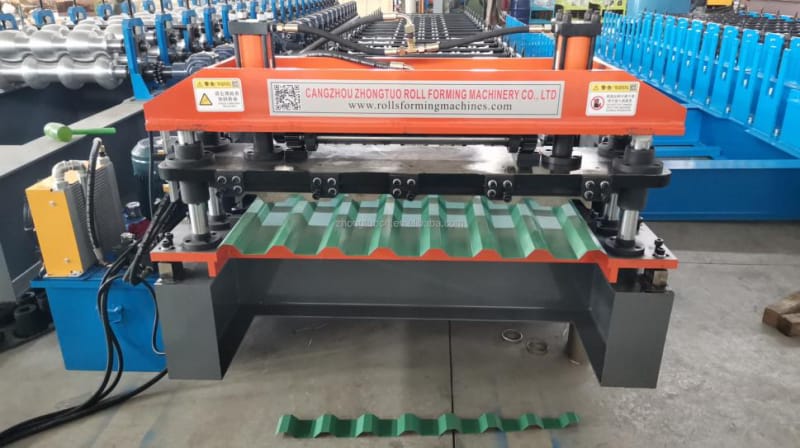

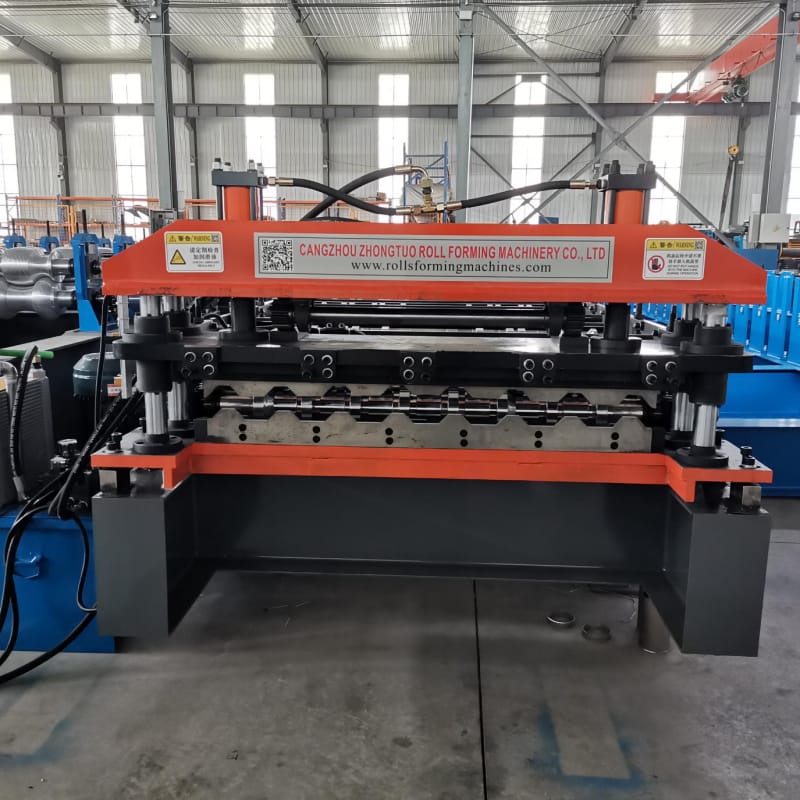

The Main Forming Machine
PLC Control System
Control system | Frequency brand | Delta (original) |
PLC brand | Delta (original) | |
Frequency brand | Delta (original) | |
Screen type | Touch screen, also have buttons on the panel | |
Screen language | English/Chinese | |
Cut command | Yes | |
Profile length set-up | Yes | |
Batch quantity program | Yes | |
Low pressure electric part | Schneider brand | |
Encode | Omron brand | |
Tip | please do the waterproof and damp proof work well if the machine is not used for a long time | |
Please restart the machine and try all the functions each two weeks, to prevent the electrical parts getting aging | ||
Remark | Support multi orders input,ensure the machine can work continuously according to different request without stop | |
All the electrical parts are branded with a high quality, it can be fixed easily if damaged. Because you can find these again in any area of the country and it’s a standard parts. |
