Description:PBD offers a versatile, high-performance solution perfect for roofing, siding, and decking applications. The squared ribs of the PBD panel provide a clean and uniform appearance, making it an ideal choice for roof liners. With PBD metal panels, you get a durable, energy-efficient structural component that ensures lasting quality and reliability.

Metal PBD Panel Forming Machine

PBD offers a versatile, high-performance solution perfect for roofing, siding, and decking applications. The squared ribs of the PBD panel provide a clean and uniform appearance, making it an ideal choice for roof liners. With PBD metal panels, you get a durable, energy-efficient structural component that ensures lasting quality and reliability.

The PBD panel is an exposed fastener panel system that can be used for roof and wall applications. The ribs in the PBD panel are symmetrical from top to bottom, which makes this panel ideal for accent walls and architectural details.

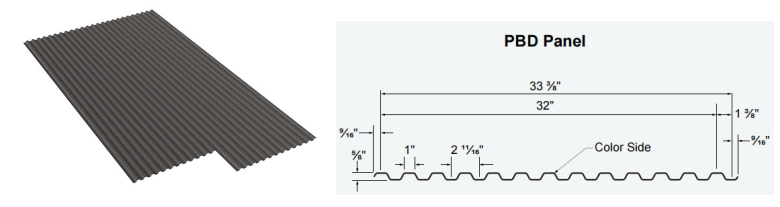

Here is one drawing profile and finished product:

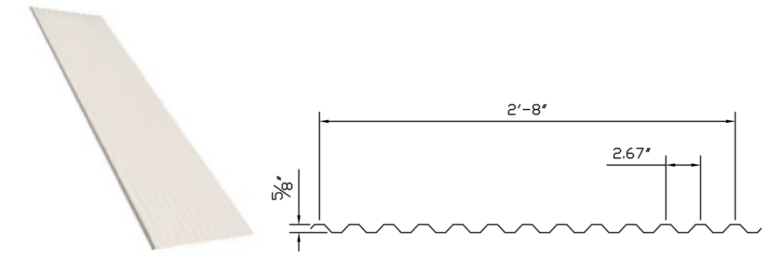

Give an example：

Features：

Coverage Width: 32″

Minimum Sope: 3:12

Panel Attachment: Exposed Fastening System

Gauge: 26 (standard); 29, 24, 22 (optional)

Finishes: Smooth (standard); Embossed (optional)

Rib Height: 5/8″

Rib Spacing: 2.67″ on center

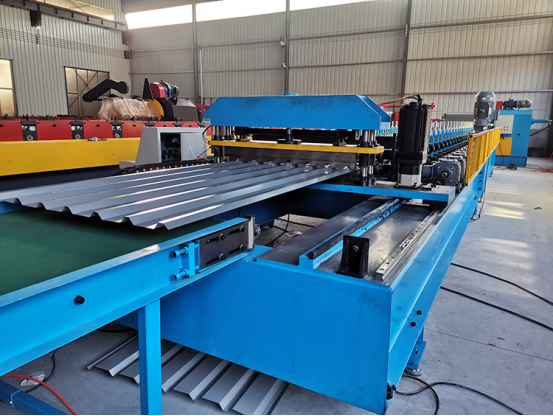

Metal PBD Panel Forming Machine

Metal PBD Panel Forming Machine technical parameters:
Formed Material: PPGI,GI,AI
Thickness: 0.3-1.0mm
Width: 1000mm/1250mm(customized)
Roller station: 26 rows(As your requirement)
Diameter of shaft: 80mm solid shaft
Material of rollers: 45# steel, hard chrome plated on the surface
Machine body frame: 350 H steel
Motor Power: 5.5KW
Voltage: 380V 50Hz 3Phase(As your requirement)
Control system: PLC
Forming Speed: 0 – 60m/min
Cutting type: Hydraulic cutting
Hydraulic power: 7.5kw
Cutting blade material: cr12mov material, no scratches, no deformation
Cutting tolerance: +/-1mm

The advantage of Metal PBD Panel Forming Machine:
We have the capability to manufacture different types of roof sheet machines based on client specifications. This particular machine excels in high-speed operation, offers enhanced stability due to gearbox transmission, and boasts a robust cast iron structure.

Product display:

1.Hydraulic decoiler
Empowered with automated functionality, enabling autonomous operation.
Automatically adapts the decoiler to accommodate coils based on their diameter.
Equipped with a pneumatic braking system for enhanced control and safety.
Includes a press arm mechanism to secure coils and prevent loosening.

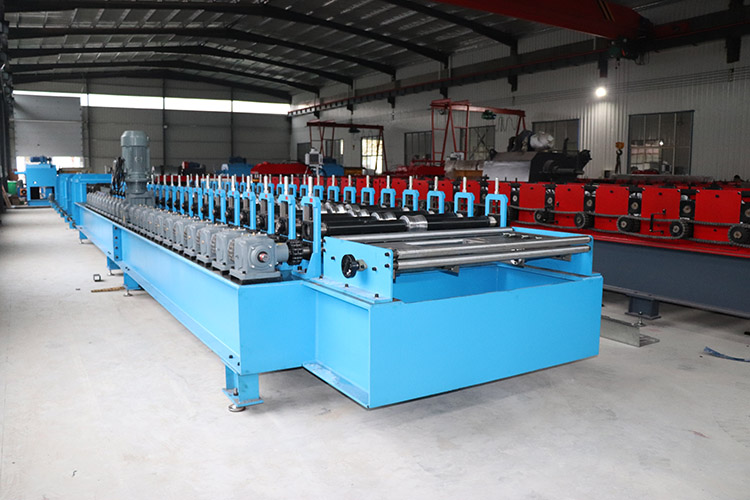

2.Roll forming device
Roller station: 26 rows(As your requirement)
Diameter of shaft: 80mm solid shaft
Material of rollers: 45# steel, hard chrome plated on the surface
Machine body frame: 400H steel
Drive chain: 1.2inch(As your requirement)

3.Hydraulic cutting device
We utilize a pillar cutting system structure, ensuring stable cutting operations. The hydraulic oil pump station supplies power to the cutting system, facilitating efficient and reliable cutting processes.

4.PLC control System
PLC brand: Delta(Taiwan)
Frequency converter brand: Delta(Taiwan)
Encoder: Omron
Function: Automatic control the length,quantity and batch
