Description:R panel roll former forming machine produce 36″ ag panels is R-Panel is a multi-use wall and roof panel used primarily in preengineered metal building applications.
R-Panel metal roofing panels offer outstanding durability and high wind resistance compared to traditional roofing material. Not only are these metal roofing panels long lasting, they are very low maintenance.

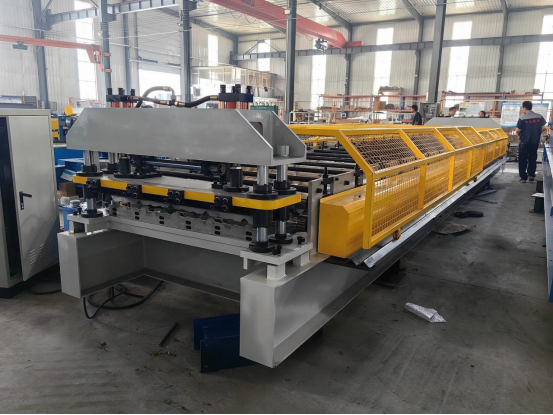

R Panel Profile Rolling Machine
As its names suggests,the series of R panel roll former is mainly used to make R panels,which is one of the most commonly used metal siding and roofing panels on commercial steel frame buildings.Conducting strict quality control over the whole manufacturing process,Changzhou ZTRFM International Co.,Ltd.offers high-quality R panel roll forming machines with different specification choices at great prices.Feel free to contact us at any time for more information about the siding panel machine.

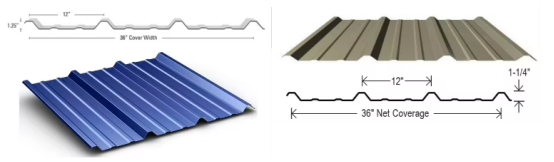

Here is one drawing profile and finished product:
Processing Flow
Uncoiling → Feeding material into machine →Roll forming → Auto cutting →Products receiving table

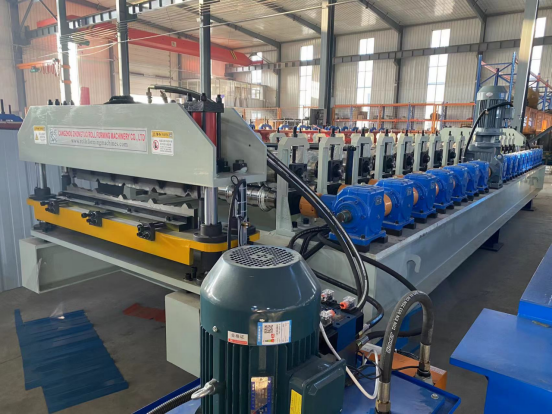

R Panel Profile Rolling Machine

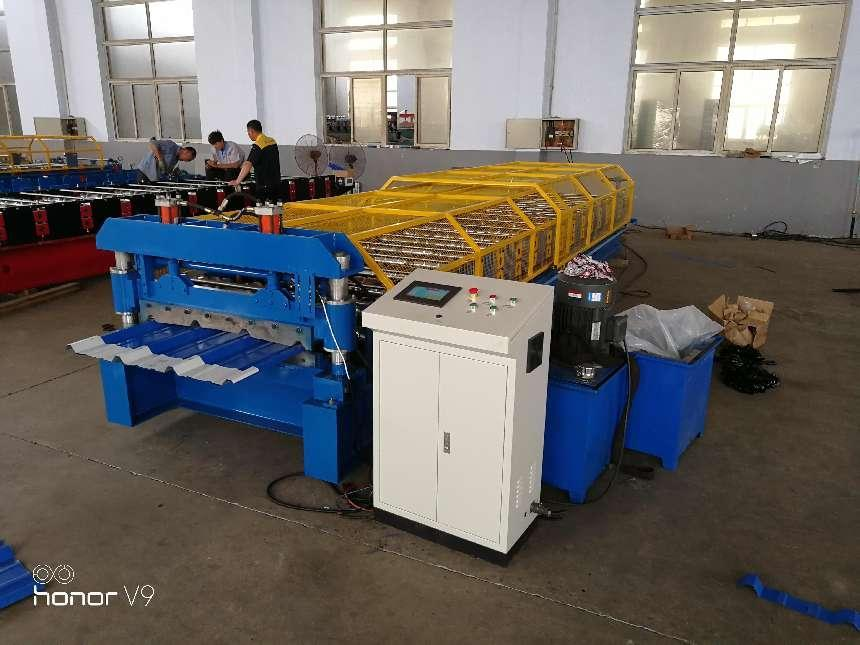

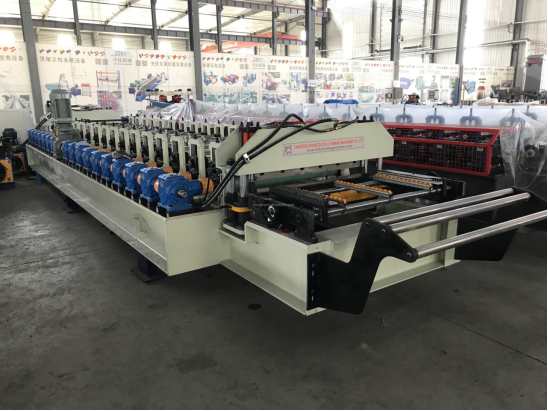

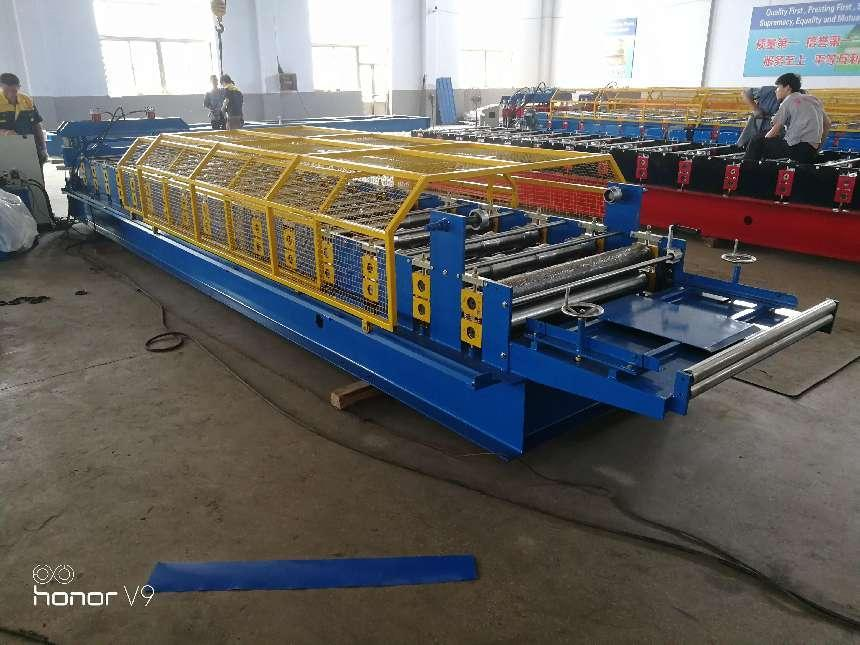

Products Display

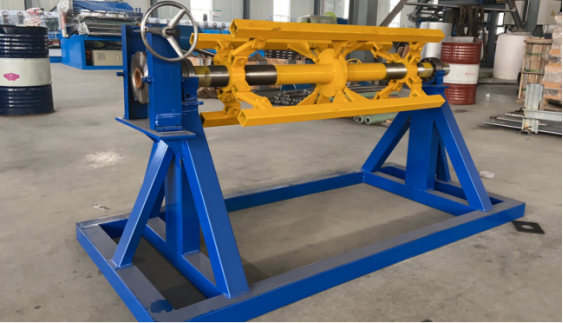

5T Manual Decolier For Free
Capacity:5 tons
Coil inner diameter:450-550mm Feeding width: max 1220mm Structure: welded by the steel plates and profiled bar.
The shrink and expand of core is manually, with manual brake,The coil moving forward or reverse is pulled by roll forming machine

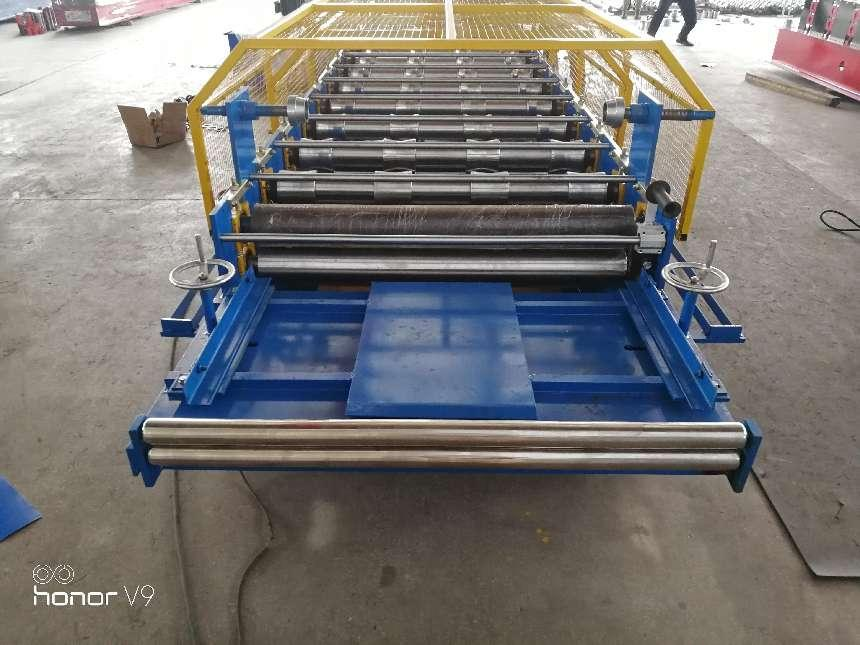

Feeding Device
1.Hand wheels on both sides can be used to adjust the feeding width.
2.Four stainless rollers can make the material go into the machine smoothly and prevent the scratch on the material surface.
3.There are three rows of orange plastic rollers can make the steel coil go into the machine smoothly.

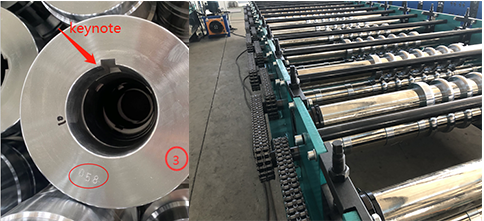

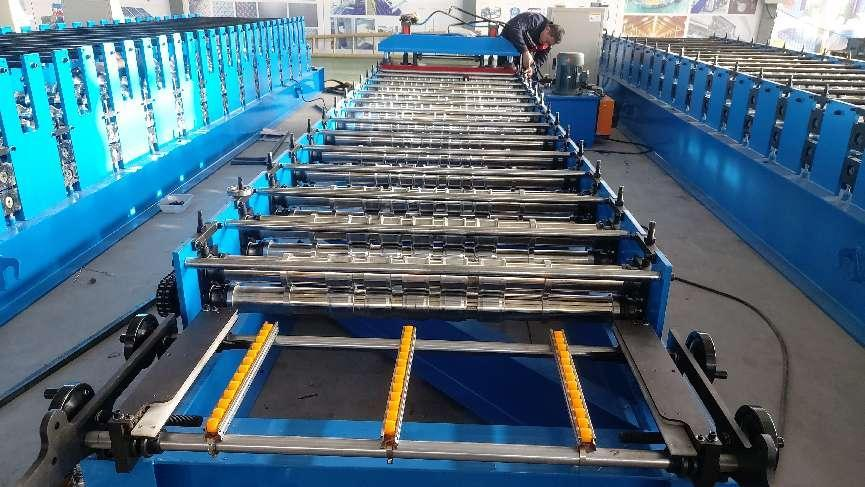

Roll Forming And Transmission Device
1.rollers thick chromed good hardness for long service time.
2. Each roller has number and with keynotes, it can fix on the shaft stablely
3.gear and double chain,stable
Hydraulic Cutting Device
We use four pillars cutting system structure, it can make sure the cutting stable
PLC control system
PLC brand:Delta(Taiwan) PLC, and transducer and touched screen
● Encoder brand:Omron
● Electrical components:Schneider
●Operating language:English and Chinese(or as requested) You can set the orders on this part,changing product length and quantity,it is
really easy to operate,and there are aviation plugs to make it much easier to install the machine while it arrived.
Hydraulic station
● Hydraulic station motor: 5.5 KW
● Hydraulic oil:46# hydraulic oil
● Main components:Include a set of hydraulic tank, a set of
hydraulic oil pump, two hydraulic pipes. And one of electromagnetism valve
