Description:Double Layer Roofing Sheet Machine For The Republic Of Slovenia is a cold forming equipment that can produce two different types of tiles, suitable for customers with limited space, but can only produce one shape of tile at a time. The type of tile can be customized according to the customer’s needs.

Double Layer Roofing Sheet Machine For The Republic Of Slovenia

Double Layer Roofing Sheet Machine For The Republic Of Slovenia is a good forming equipment that can produce two different types of tiles,suitable for customers with limited space,but can only produce one shape of tile at a time.The type of tile can be customized according to the customer’s need.

Double layer tile pressing equipment is equipped with a clutch device,with this device,the upper and lower layers of the machine will not work at the same time,which can reduce the wear of the drum,and the life of the machine will be longer.

Below is a version of the Slovenian customers：

Thickness:0.4-0.7 mm

Feed width:1250 mm

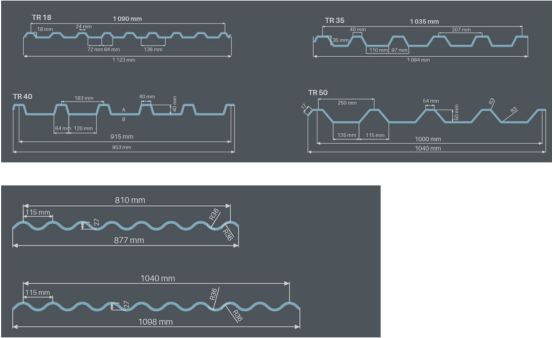

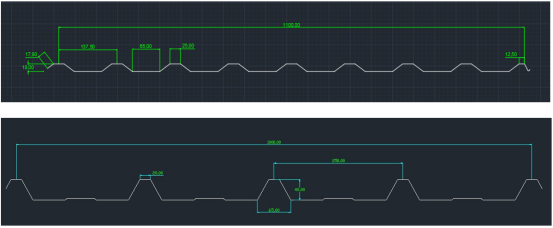

Below is the local popular version diagram：

Double Layer Roofing Sheet Machine For The Republic Of Slovenia

Main parameters of Double Layer Roofing Sheet Machine For The Republic Of Slovenia

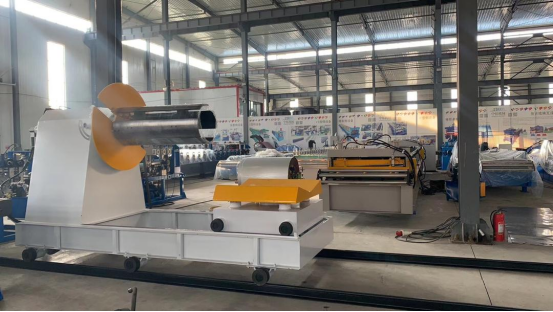

6T Hydraulic Decoiler with a track

Four circular arc arms are very steady and will keep the coil in shape compared to the square tube arm.
There is a groove in the battle, so that when the steel coil is hoisted by a sling, it can be conveniently accessed.
Dovetail groove type diameter adjustment mode of the decoiler is more stable and has better bearing capacity.

The significance of the track is that multiple machines can share a hydraulic rolling machine.

Problems to pay attention to: due to the track, the car and the coder share the same frame, which means that the car is closer to the shaft of the coil in the height, so we must verify the specifications of the customer's steel coil.

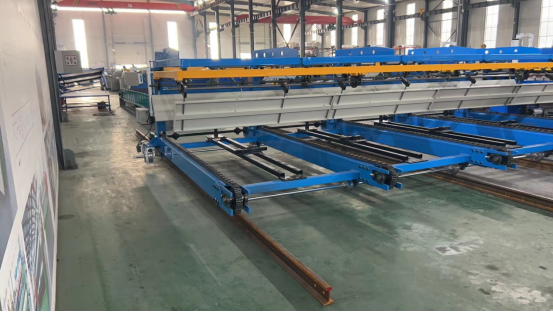

9M Automatic stacker with a track

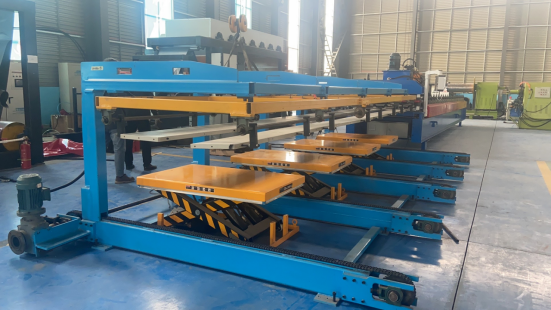

This is a liftable automatic stacker with double layer roofing sheet machine. It is convenient to adapt to two discharge outlets with different heights, so as to receive two roofing sheet with different heights.

The meaning of a track is that multiple machines can share a palletizing.

Need to pay attention to: the height of the ground to the machine exit, the minimum height. The height of the double-layer palletizing stack is adjustable.

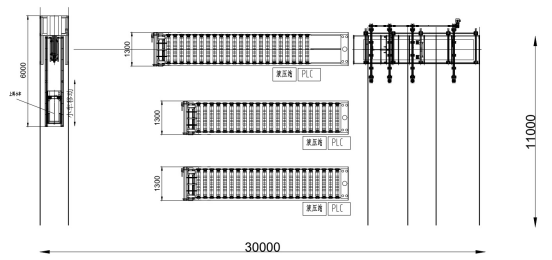

Schematic of hydraulic decoiler with a track and automatic stacker with a track

Lift the car

Too high falling airflow, the code is not uniform, can be used lifting car

Guide Feeding Device

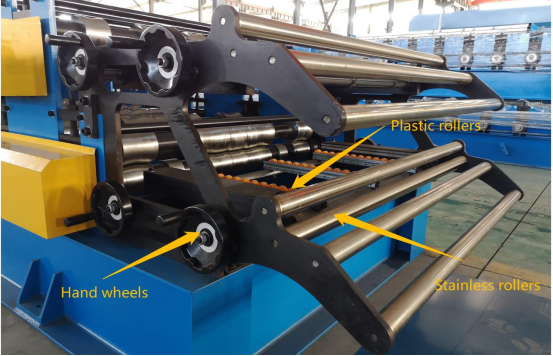

We design three supports and one pressure, and the rollers can be rotated, which can reduce the friction between the steel and the rollers. The top roller also prevents the steel from sticking up.
Each layer has two rows of rubber rollers, which also avoid material scratches.

The side has chain links and nylon brackets, which protect the steel from scratches. The upper nylon plate has a partial missing to observe the position of the steel when feeding.
Insert screws also prevent scratches to the steel. The hand wheel on the side can be used to adjust the feed width for precise feeding.

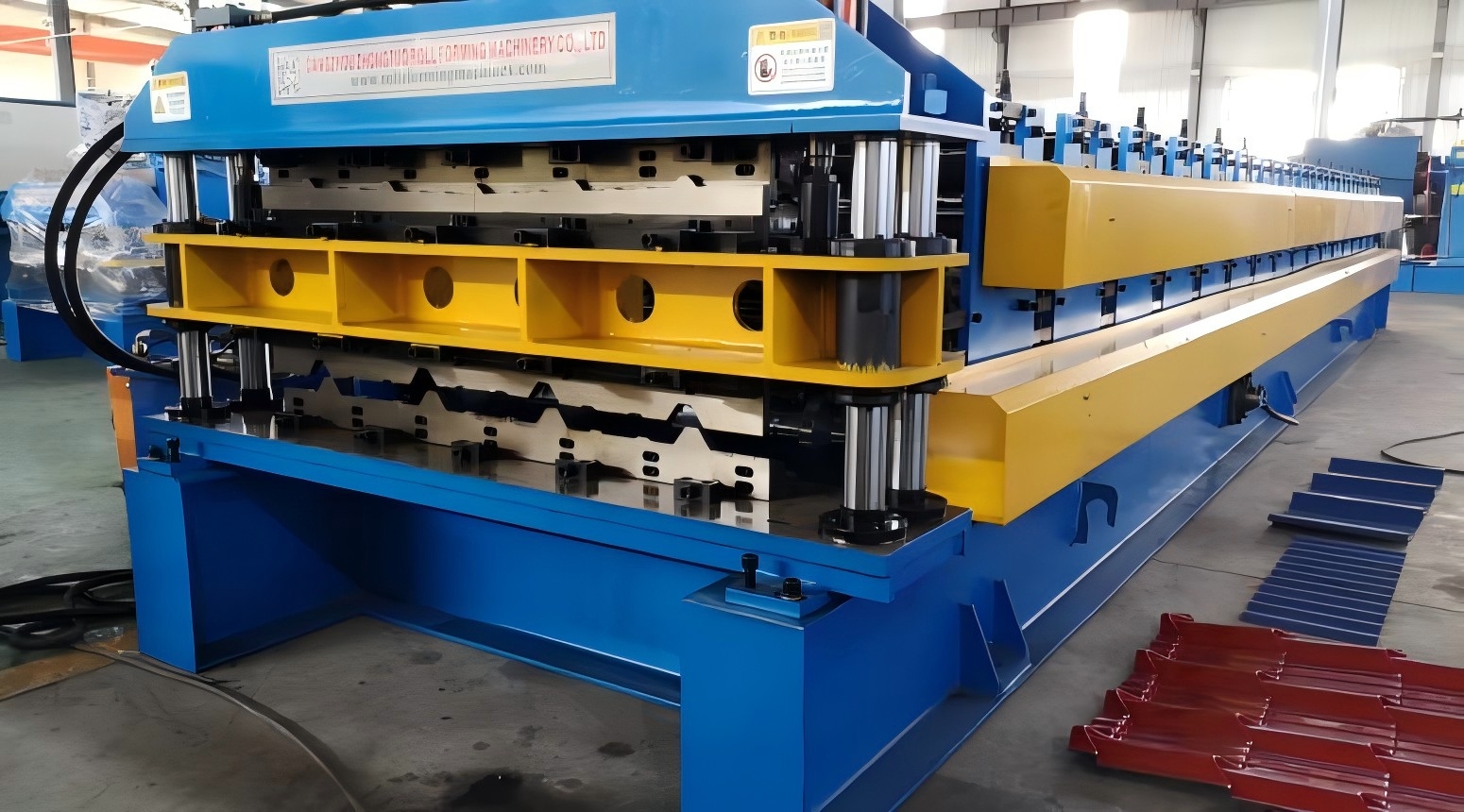

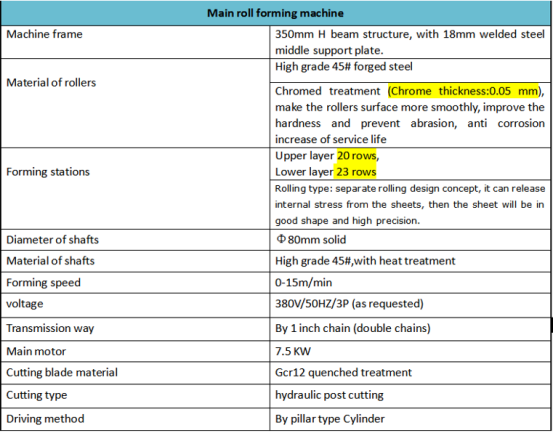

Main roll forming system of double machine producing two types of ibr roof sheet
1.Frame is welded by 500# H-shaped steel. The H-shaped frame and the design of the inclined strut and bolster increase the strength of the frame. The lifting ear, lifting hole and lifting hole are convenient for loading and unloading.

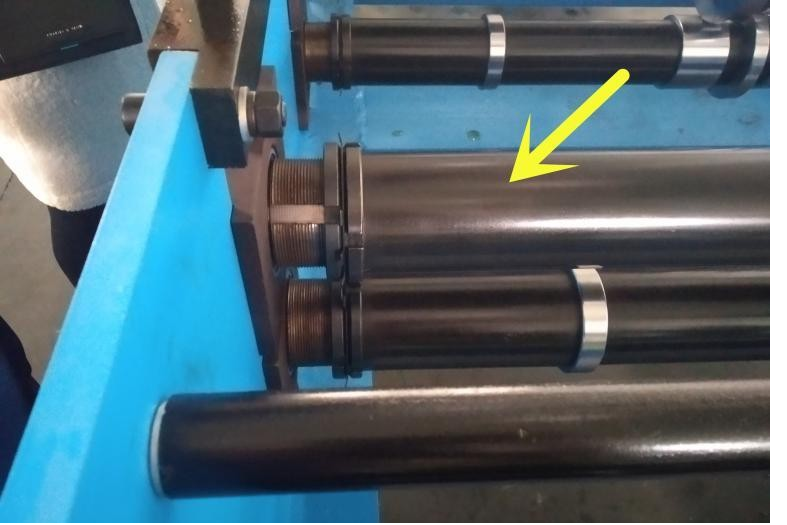

2.Our rollers are generally made of 45# steel processed by electroplating hard chromium. The roller has high hardness, long service life. It also can prevent rust , and keep the product clean.

3.The size of the shaft are 80mm according to your requirements. The material is 45# steel. Our shafts are solid and not easily damaged.

4.The shaft and roller are arranged by the key grooves to prevent the linear speed of the shaft from being inconsistent with the roller, which will cause displacement.

5.The design of positive and negative turnbuckles, double lock nuts, and check mat can prevent the shaft from loosening during machine operation.

6. Spacer is made of 45# seamless steel pipe, which is strong enough to ensure the normal operation. After boiling black processing, not easy to rust.

7.The bearing can avoid paint scratches caused by inconsistent line speeds.

8.The machine adopts double chain drive, which is more stable and durable than single chain.

Hydraulic Shearing

The blade material is Cr12.The upper blade is inserted into the frame. And we adopt two lines of bolts and nuts to fix each blade, which has high stability.

Hydraulic Station

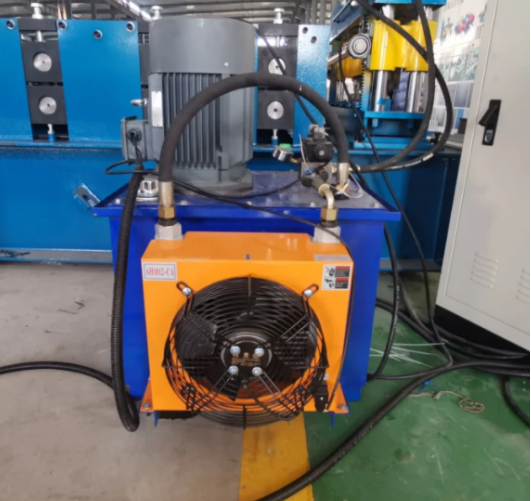

Hydraulic Station provides the power for the shearing mechanism. We adopt the oil of 46# and large valve which is not easy to block. And the power is 5.5kw. The capacity of the fuel tank is 110 liters. Equipped with air cooling devices to prevent the hydraulic oil from overheating and affecting the operation of the machine. The motor of hydraulic station is a Chinese famous brand with good quality and long service life.
