Factory supplier metal aluminum PPGI GI corrugated roofing sheet machinery

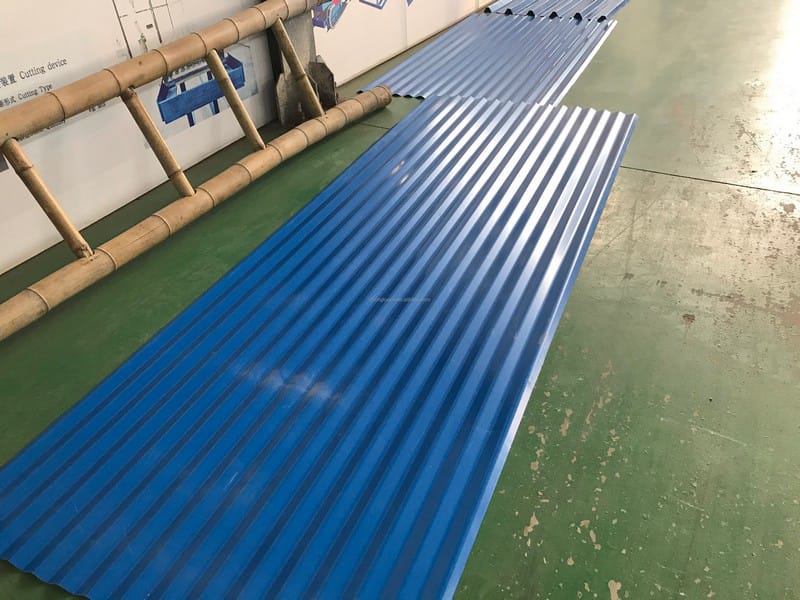

The factory supplier corrguated roofing sheet machinery is used for produce metal steel corrugated roof sheet.
This kind of roof sheet is widly used in many countries. Usually the corrugated roof sheet profile drawing is standard.
If you have your own special design, we also can customized the machine according to your request.
For the speed, usually about 15-20 m/min with hydraulic cutting, we also have more higher speed configuration machine solution.
About the machine stucture, can provide severial kinds for you to choose according to your condition and budget.

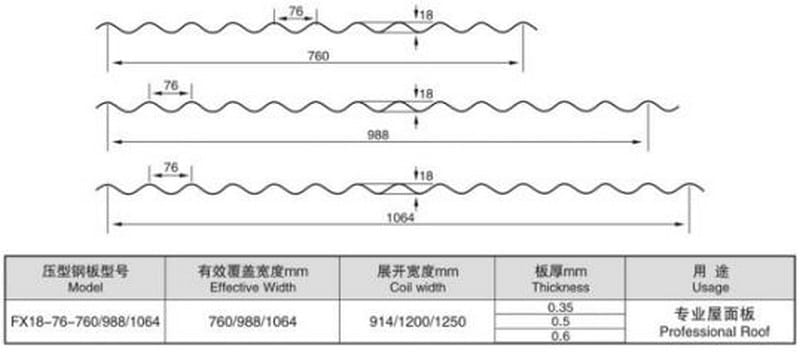

Here is the standard corrugated roof sheet profile drawing for your reference:
One machine can produce three kinds of sizes, the effective is 760/ 988/ 1064 mm.
Coil width 914/ 1200/ 1250 mm.
Our feeding device is easy to adjust to change the coil width.
Suitable material | PPGI/PPGL/GI/GL/Aluminum |
Material thickness | 0.2-0.8 mm |
Main components | 5 Tons decoiler, Roll forming machine, PLC control system, hydraulic oil pump station, Product collect table |
Production speed | 15-20 m/min |
Cutting type | Hydraulic cutting |
Cutter material | Cr 12 |
Roiller material | 45# steel |
Roller shaft material | 45# steel |
Machine structure | Middle plate frame structure |
Drive methord | By double chains |
Roller station | 15 roller stations |
Roller diameter | Φ 80 mm |
PLC brand | DELTA brand |
Frequency brand | DELTA brand |
Counter brand | Omron brand |
PLC screen type | Touch screen |
Main motor power | 5.5 KW |
Hydraulic motor power | 4 KW |
Voltage | 415-3p-50hz or customized by your request |

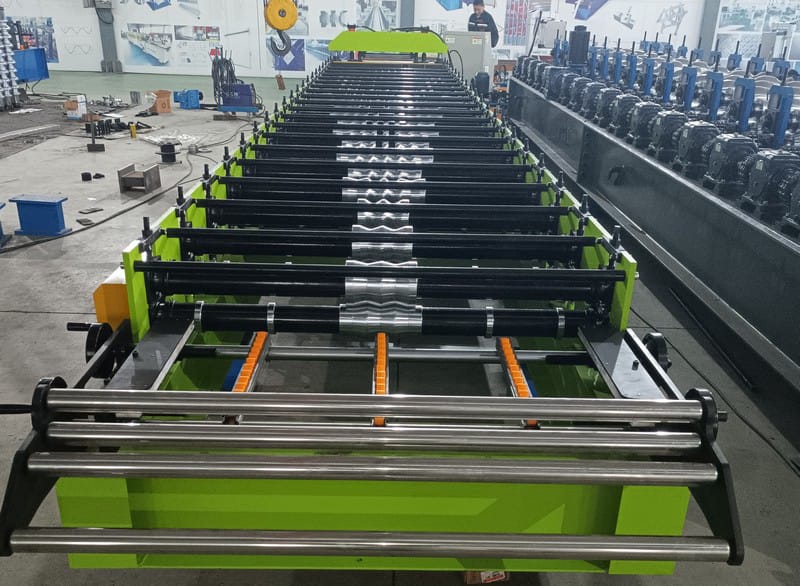

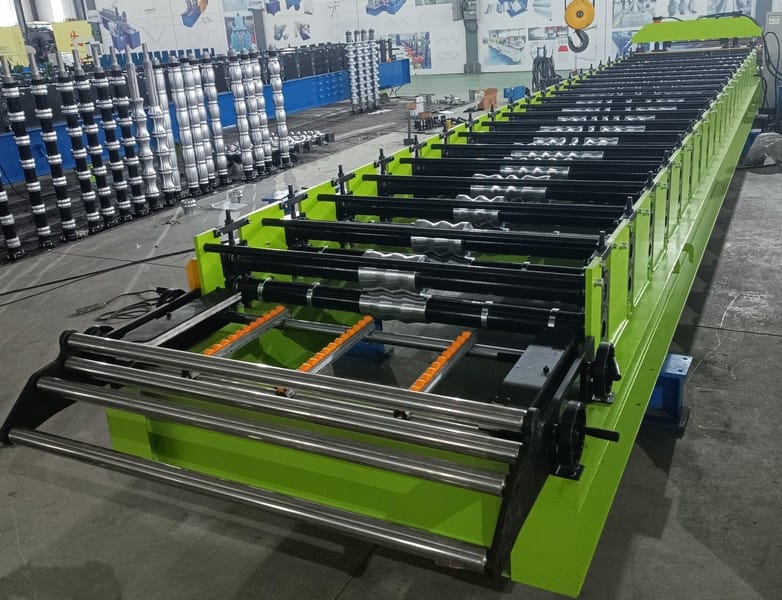

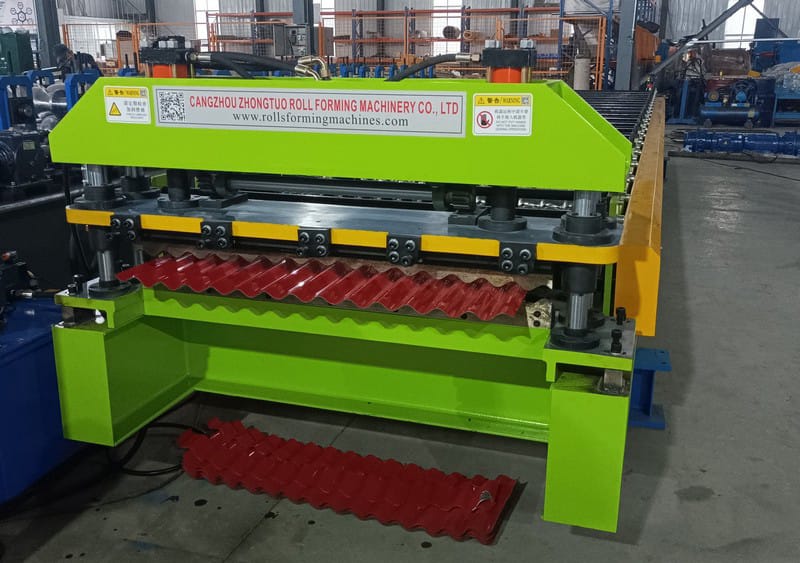

More photos about corrugated roofing sheet machinery to check the details:
