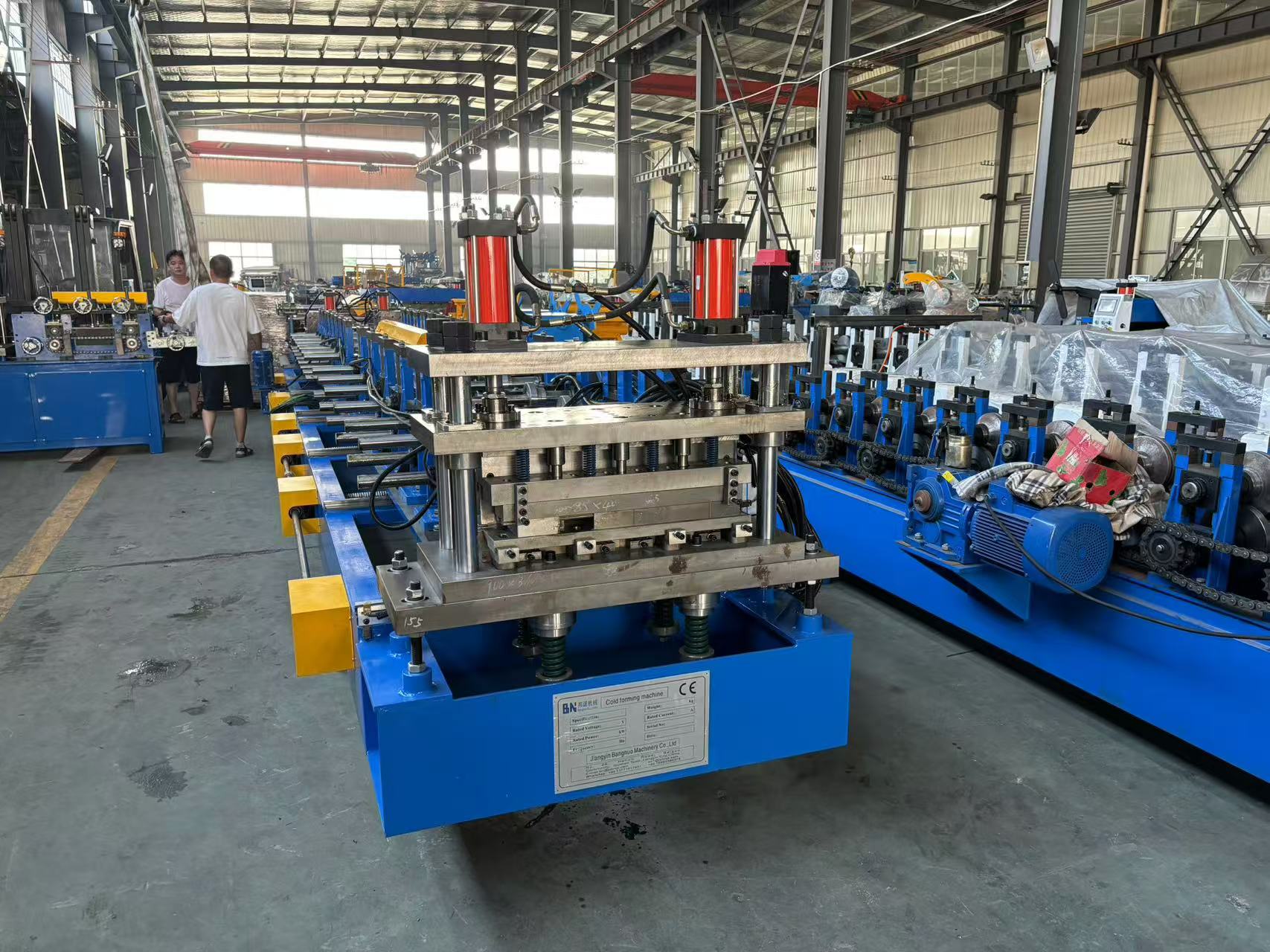

Soffit Panel Roll Forming Machine

Soffit machine creates fascia and soffit. With or without ventilation strip for solid soffit. Formed in seamless lengths. Adjustable perforation stage with 6 rows of venting. Gives a unique look not like the typical look of V-groove panels.

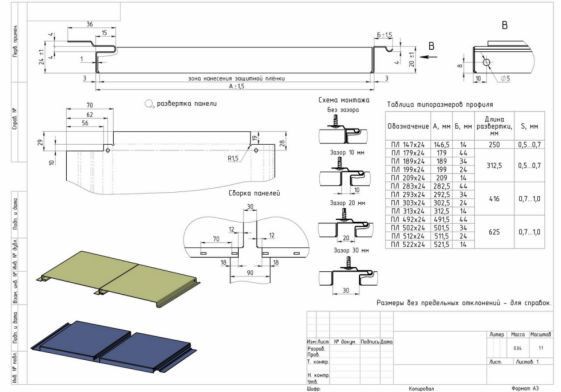

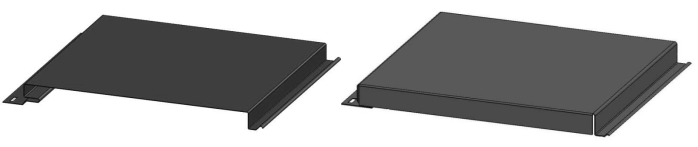

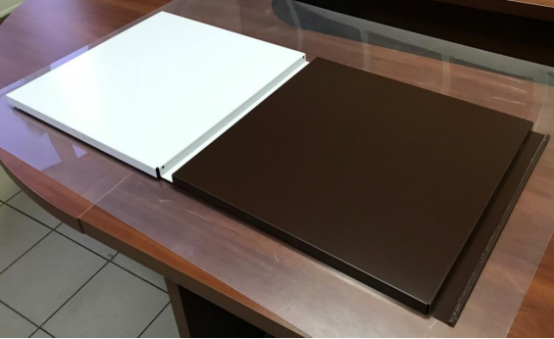

Here is one drawing profile and finished product:

Profile for reference:

Soffit Panel Roll Forming Machine

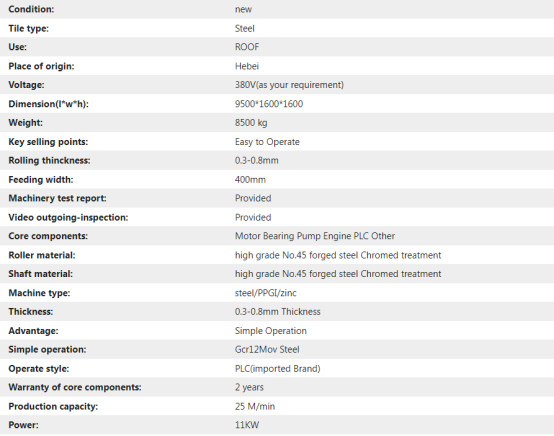

Specifications

ZTRFM Aluminum Roof Sheet Soffit Making With Rotary Punching Soffit Panel Roll Forming Machine
Design Idea：
Stable Transmission: arch way structure, process ventilation holes through embossing rollersFull Automatic
Easy Operation:Whole producing line just need one person for operation.

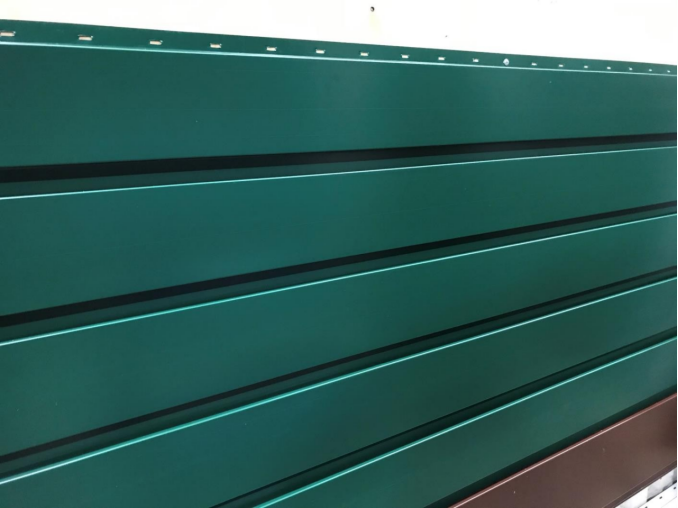

Application of the finished product:Usually used in the roof or wall
Product Paramenters
The price we supply you full producing line
decoiler device
Loading capacity :3 Tons
Type:Manual with handwheel
(buy machine give you manual type as free)
Feeding device
With handwheels for easy adjustable
Roll Forming Device PLC control system
Shaft material: 45# steel with quenched treatment
Transmission :By chains
Roller material: Cr15 Mov with quenched treatment
Machine Frame:steel plate welded with grinding
1.Touch screen
2.Famous brand:Siemens,Schneider
3.Speed and order control automatically

Hydraulic cutting device
Drive method:
By pillar type Cylinder
