Automatic chicken feeder with upcycled gutter rolling forming machine

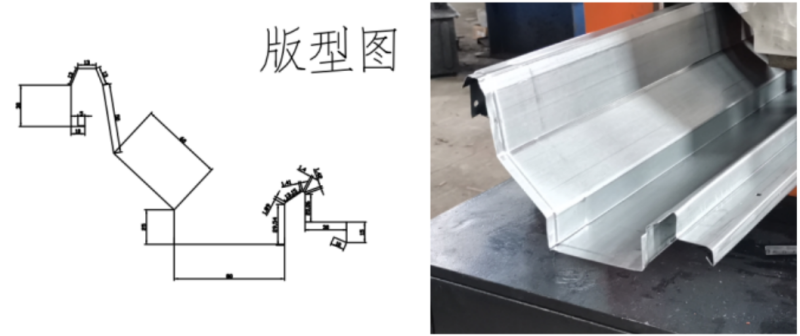

Automatic chicken feeder with upcycled gutter rolling forming machine is designed to make the chicken feeder with upcycled gutter in batch fully automatically. In the market there are the PVC feeders look nice and all, but it seems to me that it's too much time, money, and effort to make these when you have a larger flock. So we design the feeder in metal shape instead of PVC. Here is the drawing profile for your reference:
Automatic chicken feeder with upcycled gutter rolling forming machine
Automatic chicken feeder with upcycled gutter rolling forming machine Parameters for your reference:
Element List | ||||
No. | Name | Unit | Qty | Remark |
Part 1 | 3T manual decoiler | set | 1 | Regular |
Part 2 | Main roll former | set | 1 | |
Part 3 | PLC control station | set | 1 | Chain drive |
Part 4 | Cutting system | set | 1 | Delta brand |
Part 5 | Overlapping stepping part | set | 1 | Hydraulic |
Part 6 | Product collect table | set | 1 | Regular type/3m length |
Part 2: Main roll former | ||
Roll forming machine | Feeding device | Feeding width is adjustable with hand wheel |
One set roller to carry and feed the sheet at the beginning | ||
Rolling shaft | Shaft material:45# STEEL | |
Shaft diameter: 60 mm | ||
Tempering treatment to prevent deformed and improve hardness | ||
Rollers | Cr12 chromed and quenched treatment Heat quenching and chrome plating treatment have greatly extended service life.The service time is 3 times longer than the normal 45#steel material. | |
Rolling station | 28 rolling stations enough rollers | |
Work speed | 0-15 m/min | |
Machine structure | Carbon steel welded structure | |
Machine basic frame | Independent cast iron arch.For the more stronger frame. | |
Work power | 15 kw | |
Rolling spacer | Anti-rust treatment | |
Steel bar | Anti-rust treatment | |
Transmission | By gear with cover | |

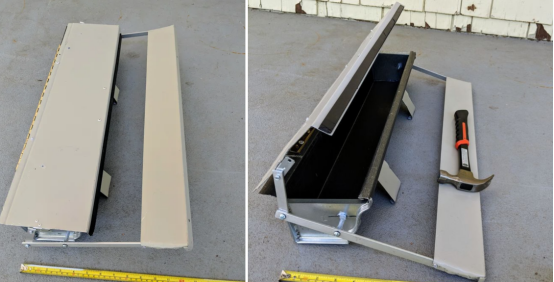

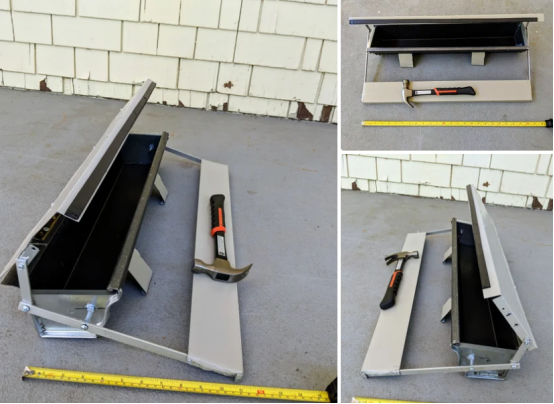

In the following part, I will show you how to install it and how to use this new design

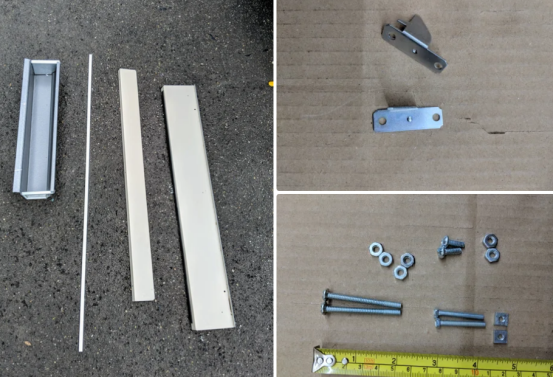

Step 1: Gather Materials & Tools

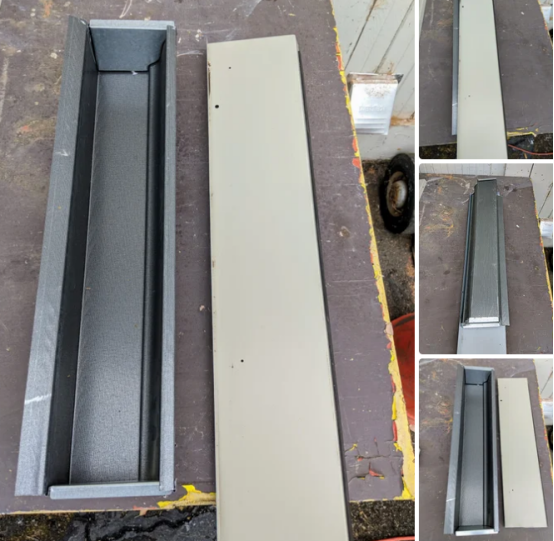

Step 2: Make the Cover Lid:

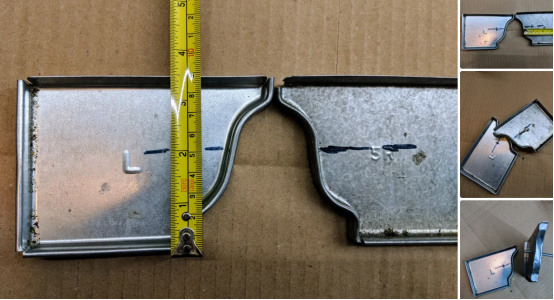

Step 3: Attach the Hinge and Drill Holes on the Side Caps
For this Automatic chicken feeder with upcycled gutter rolling forming machine, if you want to know more information, please contact us at any time.

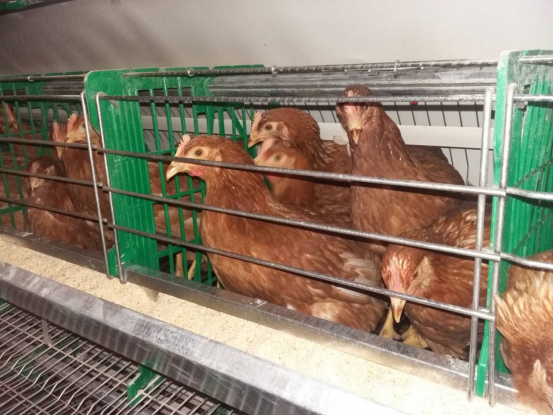

Usage of this chicken feeder:

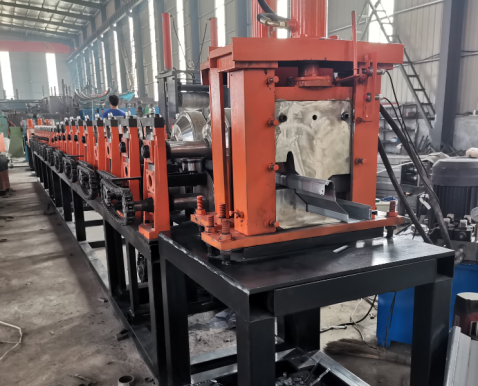

Here is the machine working video for your reference:
