Snap Lock Standing Seam roofing sheet rolling forming machine
Snap lock standing seam is created by “snapping” on side of a metal roofing panel onto another so that they hook together and are fastened to the roof by a nailing flange then hidden by the next sheet, no special tools needed for installation. As the demand of the market, we have developed the Snap-Lock Standing Seam roofing sheet rolling forming machine.
Take the following Snap-Lock Standing Seam roofing sheet drawing profile for examples:

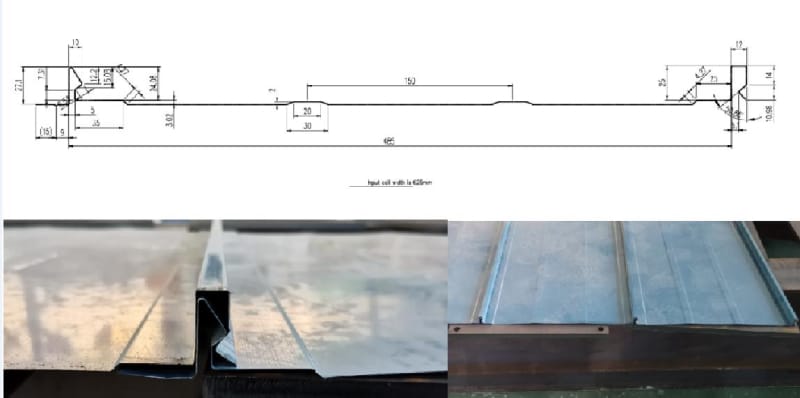

Popular design 1:

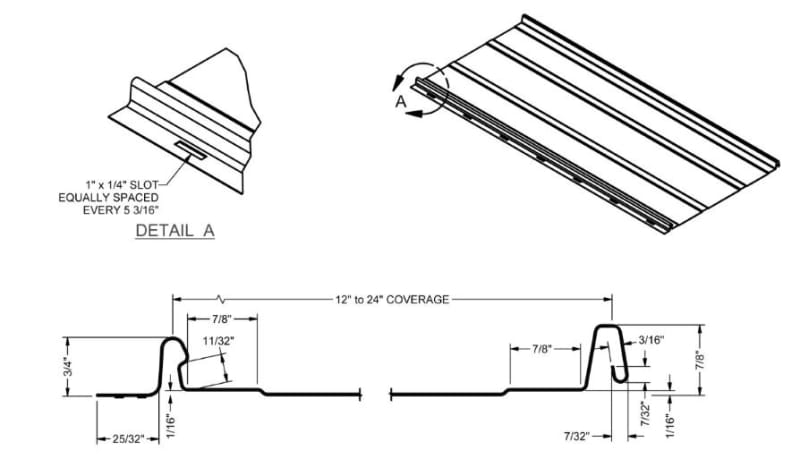

Popular design 2:

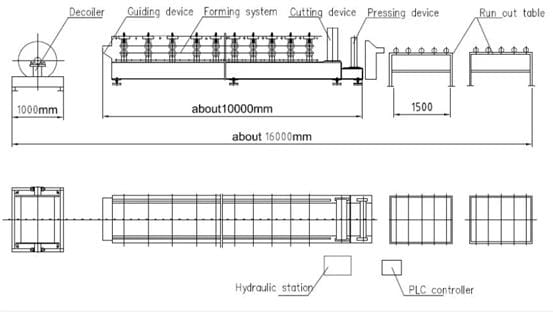

Snap-Lock Standing Seam roofing sheet rolling forming machine design:
Working Process of Roofing glazing roll forming machine :
Uncoiling→ Feeding material into machine→ Roll forming→ Measuring length→ Step formed→ Auto cutting→ Products receiving
Product sheet | Raw material | GI&PPGI&G550 | ||
Material thickness | 0.3-0.8 mm | |||
Feeding width | 1220mm | |||
Effective width | 930 mm | |||
Sheet cutting length | Adjustable | |||
Main roll former | ||||
Roll forming machine |
Feeding device | One set guiding roller | ||
Steel plate welded platform to carry the sheet and feed into roll forming system | ||||
Feeding width is adjustable with the handle wheels. | ||||
Rolling shaft Roller | Shaft material:45# STEEL | |||
Shaft diameter: 75 mm | ||||
Tempering treatment to prevent deformed and improve hardness. | ||||
45# steel | ||||
Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase of service life | ||||
Rolling station | 20 rolling stations | |||
Work speed | 20 m/min | |||
Machine structure | Steel plate welded structure | |||
Machine basic frame | 350# H steel welded | |||
Work power | 7.5 kw | |||
Rolling spacer | Anti rusty treatment | |||
Pull rod | Anti rusty treatment | |||
Transmission | By Chains with cover | |||
Noted: please fill the lube in case the chains getting dry. | ||||
More details of the Snap-Lock Standing Seam roofing sheet rolling forming machine:

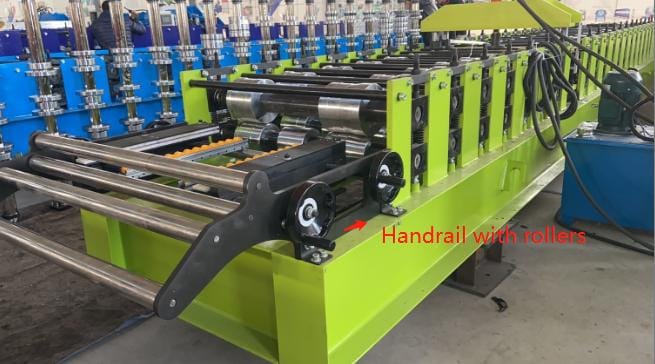

High quality leveling beach with rollers for protecting the surface of the coil.

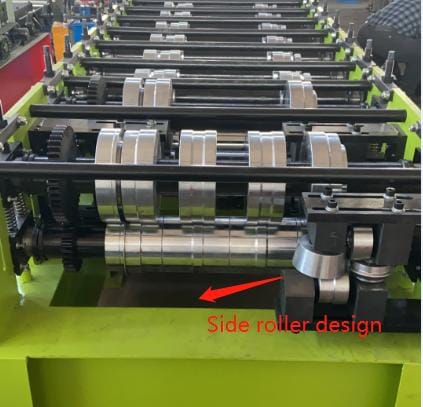

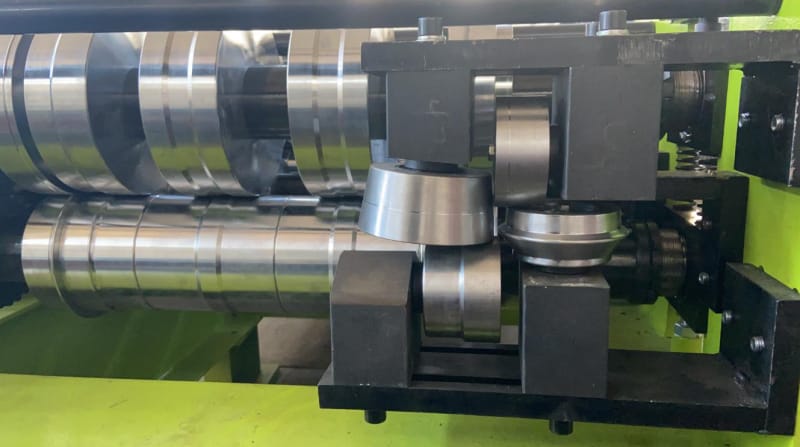

1. The side roller design:

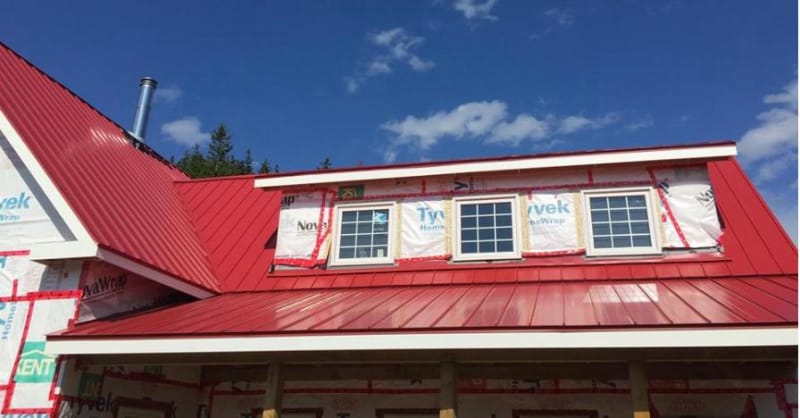

Snap-Lock Standing Seam roofing sheet Usage in daily life:
