Double trapezoidal layer roof tile building material roll forming machine

Product Description

 Double layer roofing tile machine: can produce two type sheets, one corrugated sheet and one IBR sheet. The input material are both 1000 mm width with thickness 0.3-0.8mm. Machine speed 8-12 m per minute. With pre-cutting device and double inches chain. This machine cheaper and stable. Widely used in South America zone. Especially Bolivia. We can also supply you the PPGI and GI coils. We know some good supplier. We can put the coils with the machine in the same container.

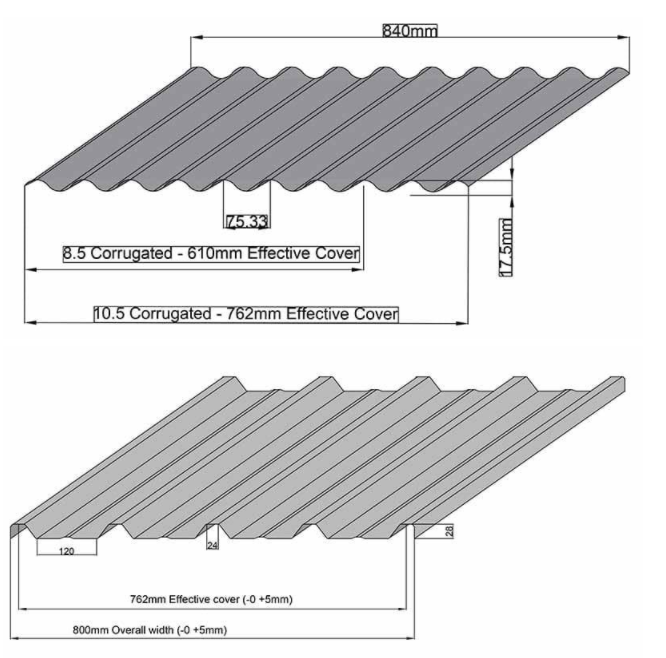

 Double layer roofing tile machine profile drawings:

Our machine is customized, we will design and produce the machine as your personal requirements. Here below the profile drawings just for your reference only. This profile is the profile for our south africa customer. Different country have different profiles, if you want this machine please just give me your profile.

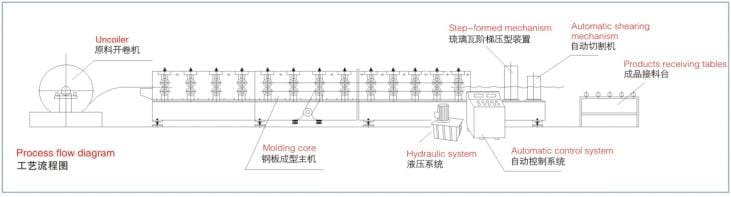

Double layer roll forming machine Work Flow:

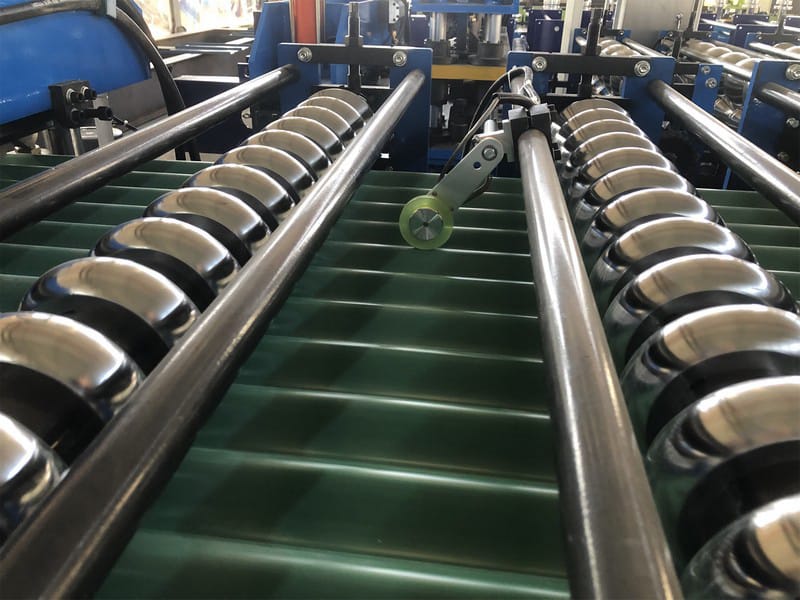

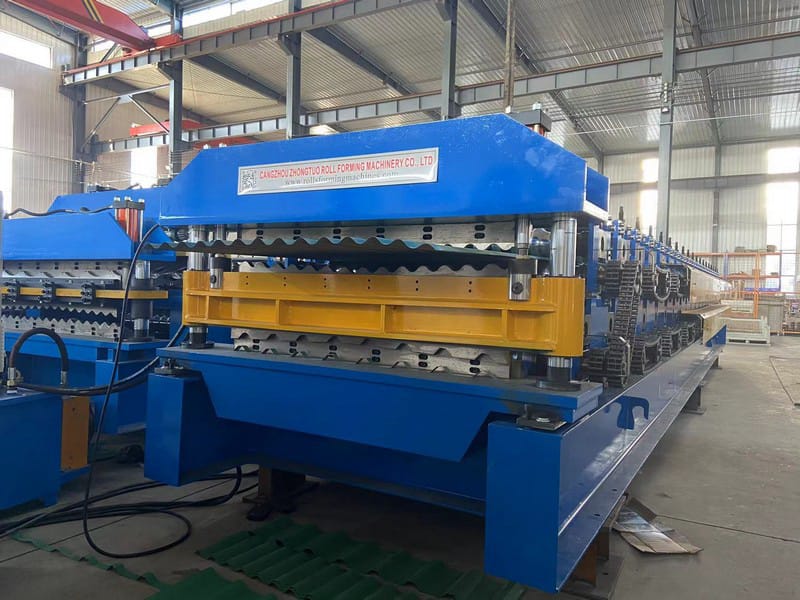

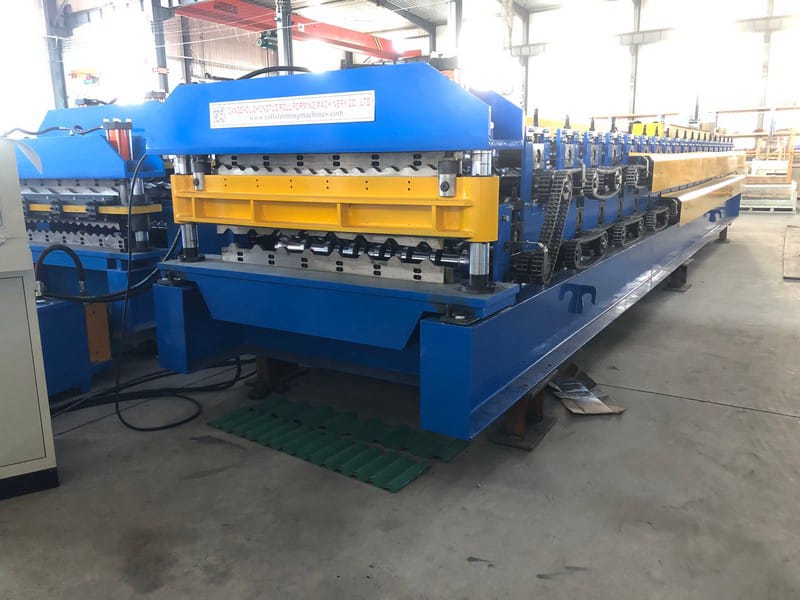

Double layer roll forming machine Roll Forming Machine
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Length of the main part: About 8500 1650 1500 mm (L*W*H)
Weight of main part: 6.5 tons
Voltage : 380 V 50 HZ 3 PHASE(As customer’s need)
Roller fixer : Middle plate
Frame : 350 H steel welded
Drive mode: Chain
Material of rollers: 45# steel, surface hard chromium plating.
Material of shafts: 45# steel
Diameter of shafts: φ 80 mm
Number of rollers : 13 rollers(Up layer)15 rollers(Down layer)
Main power: 5.5 kw

Double layer roll forming machine Shearing Mechanism
Feature : Ensure stability, precision and cutting speed
It is used to make the step , the glazed tile's final formed.
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Function : Automatic cutting controlled by PLC
Material of blades : Cr 12 quenched
Power supply : Hydraulic power
Components: It contains one set of blade, one hydraulic tank and one cutter machine.

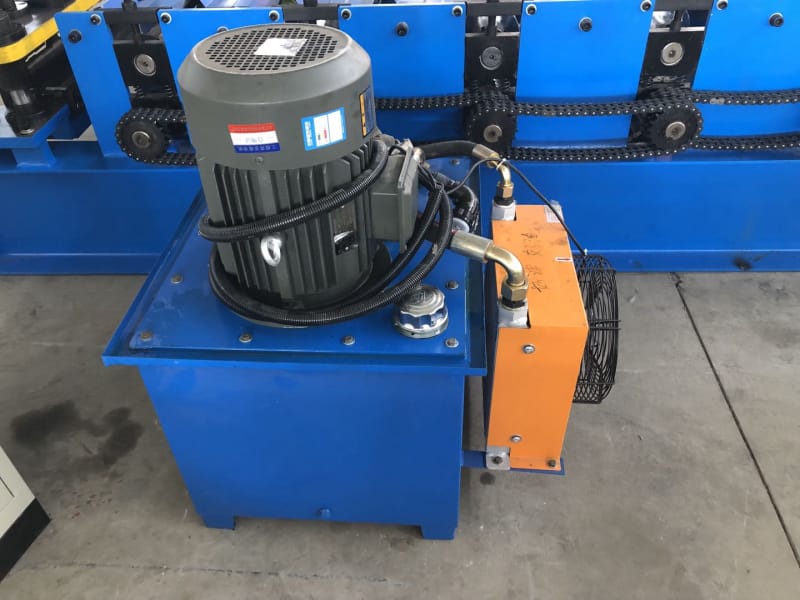

Double layer roll forming machine Hydraulic Station
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
Hydraulic motor Power: 4 kw
Hydraulic oil: 46# hydraulic oil
Volume: 30 L
Components: The system includes a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes. and two sets of electromagnetism valves.

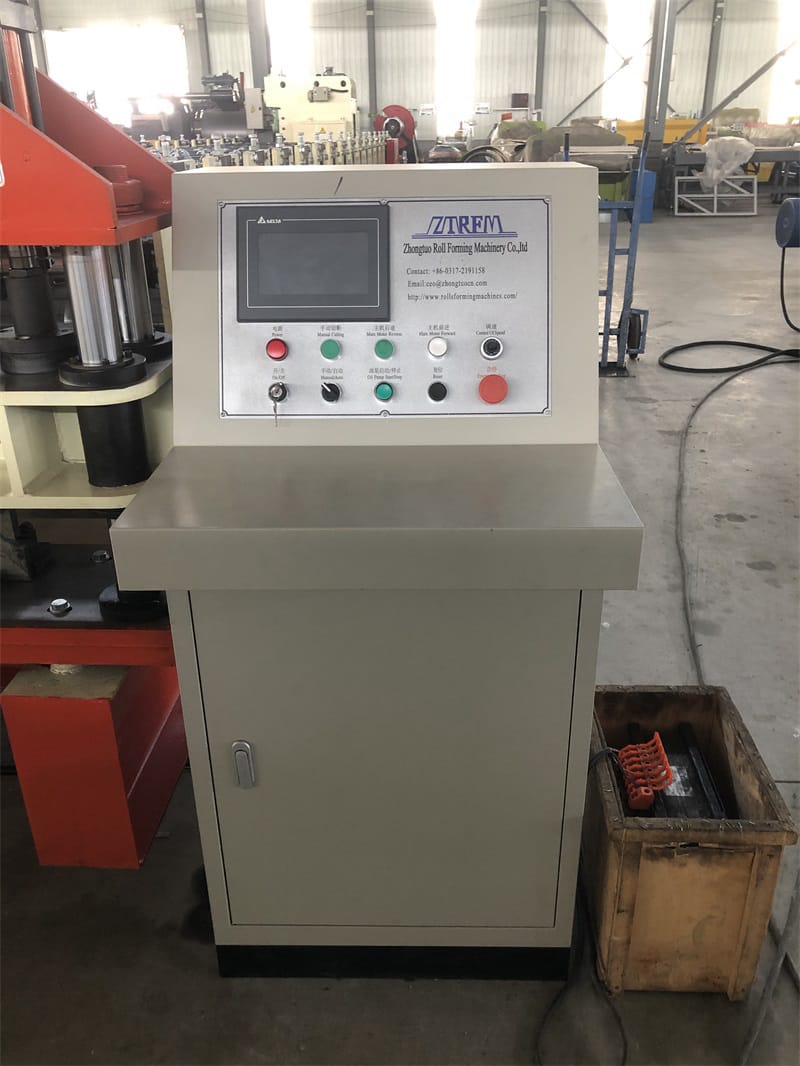

Double layer roll forming machine Electric Control System
1. Adopted PLC , transducer, touch panel to ensure high speed with stability, precision and lifetime.
2. Voltage: 380V 50 HZ 3 PHASE (As customer’s need)
3. Language: English and Chinese
4. Automatic length measurement
5. Automatic quantity measurement
6. Length Tolerance: 3 m±1.5 mm
7. Length inaccuracy can be amended easily.
8. Unit of length: millimeter (switched on the control panel)
9. Computer operating panel: touching screen and button together.

Double layer roll forming machine Warranty

1. One year warranty, whole life technical support.
2. Installation & adjustment : We can take a video for the customer and the customer can also come to our factory, we can train customer how to install and adjust the machine.
3. Oversea service: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day salary.
