Automatic glazed roofing tile roll forming machine

Automatic glazed roofing tile roll forming machine is used to make glazed roof tile which is really beautiful material,it is much better than other ordinary metal tiles in building villas and attractions.but it is slower than other tile making machines,usually produce as a speed of 5m/min.But its product is much better.

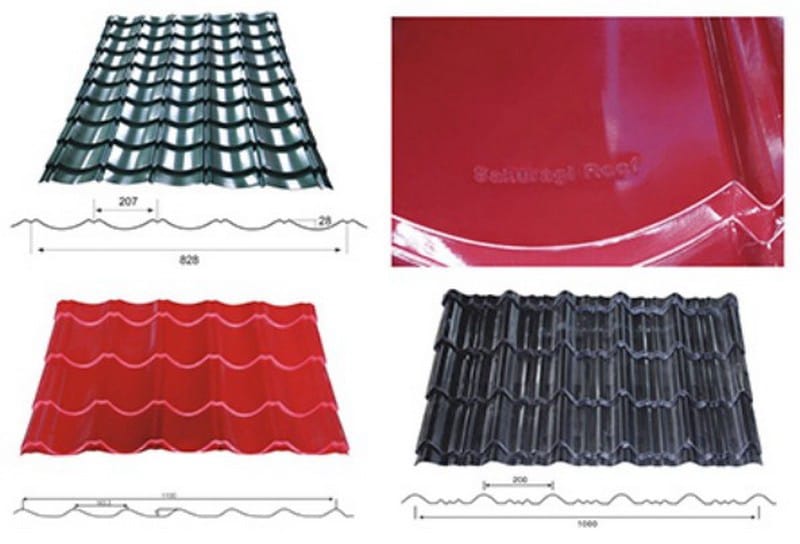

 Here are some profile drawings OF  glazed roofing tile roll forming machine for your reference:

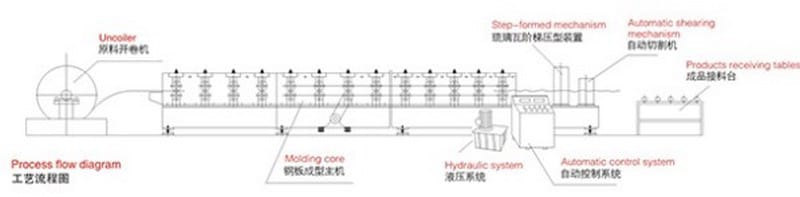

 Work flow:Uncoiling→ Feeding material into machine →Roll forming → Auto shearing →Products receiving table

 Hydraulic Decoiler with loading car or you can choose the manual decoiler:

Loading capacity: 5 T , 10Ton or more bigger
Uncoiling width: 1250 mm
Inner diameter: 450-550 mm

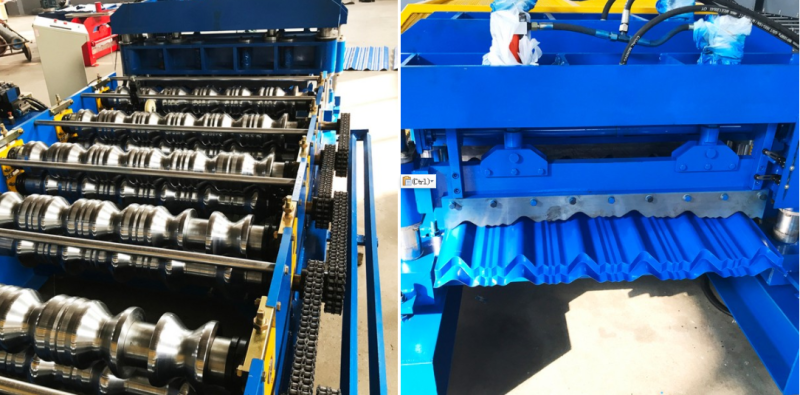

Roll forming system of Automatic glazed roofing tile roll forming machine:

power:5.5KW,speed:5m/min

Auto shearing system of  Automatic glazed roofing tile roll forming machine:

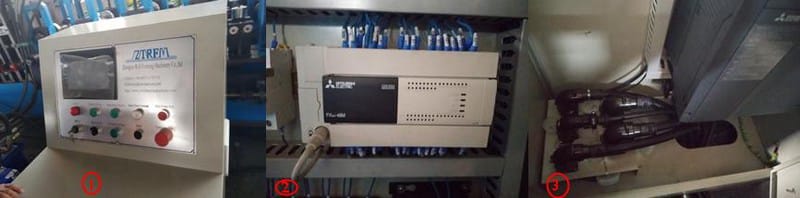

 PLC system of  Automatic glazed roofing tile roll forming machine:

Hydraulic station  of  Automatic glazed roofing tile roll forming machine:

It designs with the big motor. With the hydraulic cooling fan system.

 Glazed tile can be used in many scenes, here are some buildings that built with it ,which is really beautiful
