DIAMOND RIB 36 PANEL ROLL FORMING MACHINE
Diamond Rib Panel Roofing Panel Roll Forming Machine manufacture Diamond Rib Panel profile drawing panel roofings. This is one of the popular trapezoidal/ibr profile drawing in North American market. The specification for the machine can be customized such as production speed, logo stamping, and more. Our machine equip with removable switch, air break, radiator, transformer and electric leakage protector for operation convenience and safety. This machine is control by PLC system with world famous brand such as Mitsubishi Electric, Siemens, Delta to ensure flawless production wiht precision for a lifetime. It is ideal for manufacturing Diamond Rib Panels on demand with precision and efficiency.

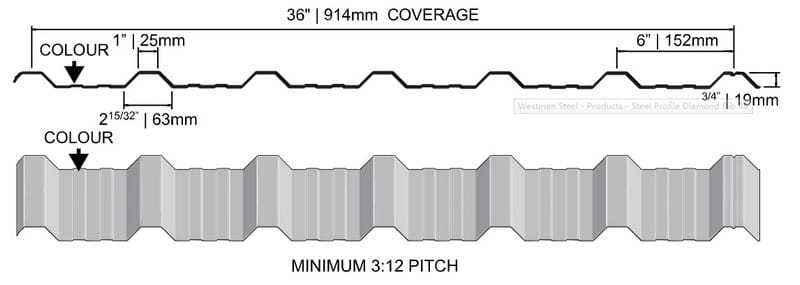

Here is profile drawing for your reference.

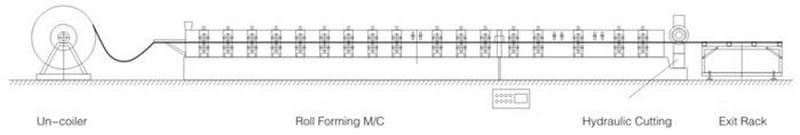

Work flow of diamond rib 36 roll forming machine
Main parameter
Roller stations | 23 stations |
Roller material | Gcr 15 steel quenching processing HRC 58-60℃ chrome plated |
Shaft material | 45# soild steel |
Shaft diameter | 70mm |
Working speed | 0-15m/min |
Hydraulic cutting blade | Gcr 12 Mov chromed and quenched HRC 58-60℃ |
Hydraulic cutting power | 4.5kw |
Hydraulic oil | 46# |
Transmission | Chain |
Voltage | 380v 50hz 3 phrase |
Forming motor power | 5.5kw |
Machine structure | H-beam |
Color | Blue & yellow (customizable) |

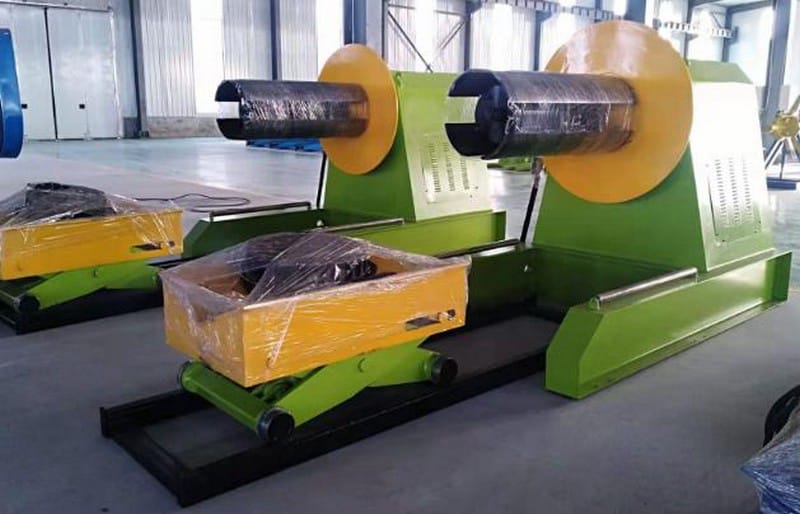

5t hydraulic decoiler specification:
Item | Specification |
Decoiling Type | Actively Uncoiling Type |
Loading Capacity | 5 Tons |
Loading Width | Max. 1250mm |
Coil Inner Diameter | 450-550mm |
Coil Outer Diameter | Max. 1500mm |
Motor | 4kw |

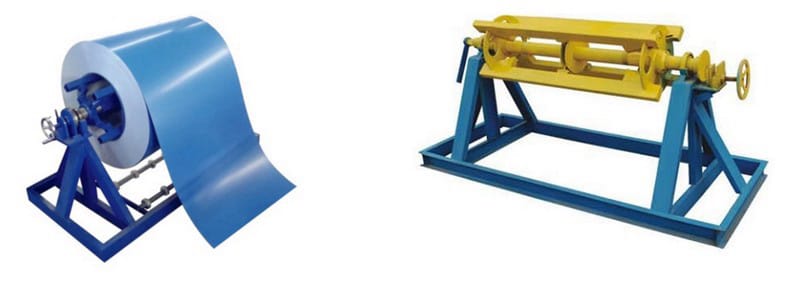

Manual De-coiler Sample Pictures

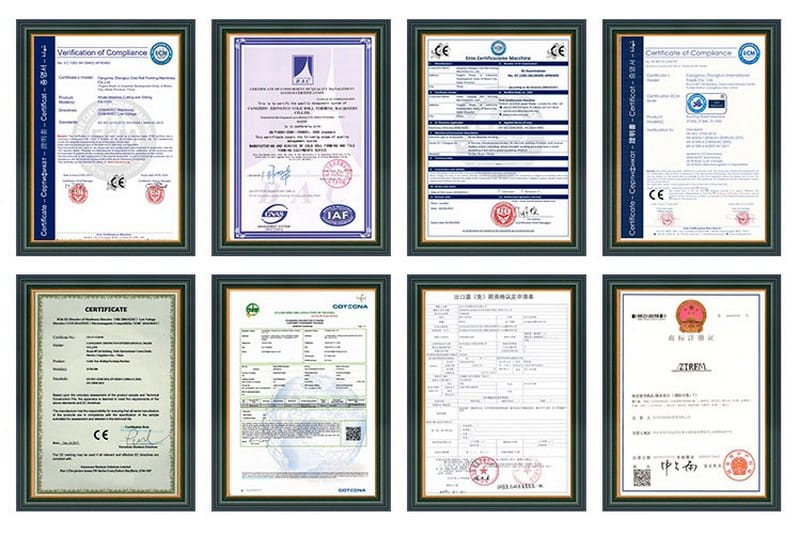

Certification
Package and Delivery
About us
FAQ
Q: Can you customize the machine to your company's specifications?
A: Yes, we can manufacture the machine according to your specifications.
Q: How is the quality?
A: All raw materials are quality controlled. Staffs take care of every detail when handling and packaging. Our quality control department is resonsible for the quality of each product.
Q: Do we have after sales service?
A: Yes, we have after sale service via email, whatsapp, wechat skype and other communication tools.
Q: Does our machine comes with warrenty?
A: Yes, it comes with 1 year warranty.
