IBR metal roof sheeting roll forming machine factory in China

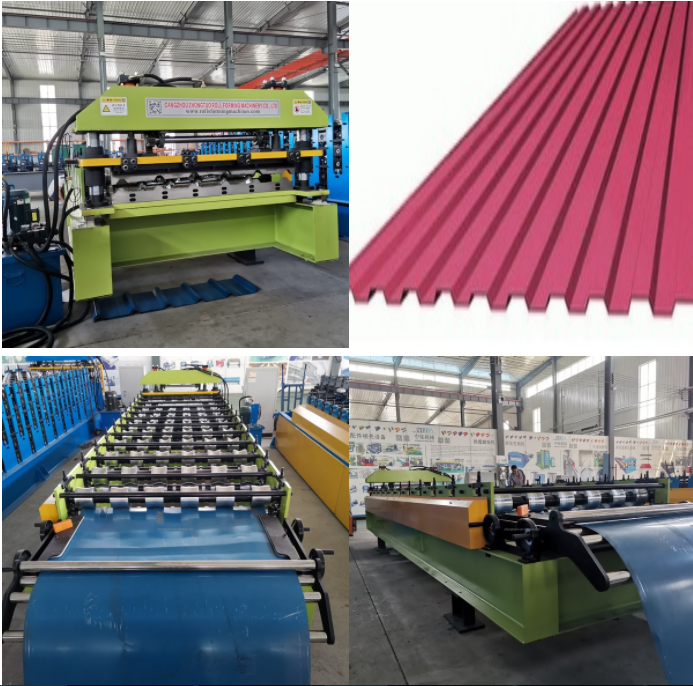

IBR roof sheeting is a square fluted profile with an effective covering width of 686mm, designed for use as side cladding or roofing material in commercial, industrial and residential buildings. The name IBR is abbreviated from “Inverted Box Rib” and has become a household name in the African building industry. The deep, broad flute design offers excellent drainage characteristics combined with optimum weight versus load/span capabilities. Zhongtuo IBR roof sheeting roll forming machine is designed to produce IBR roof sheeting with different specification in batch automatically. 2.Raw material:0.3-0.8mm,GI,GL,PPGI,PPGL

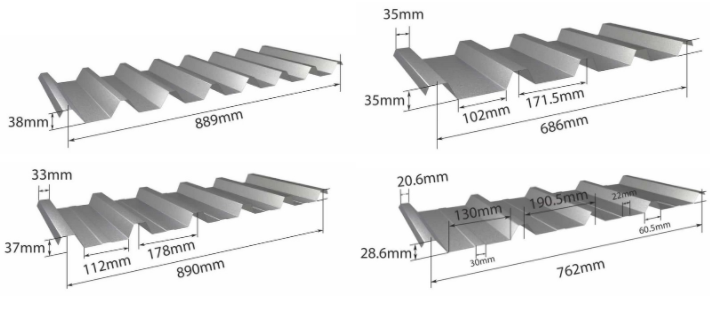

1.Profile drawing as below,and we also can design as customer's request
The specifications of the whole line:
Item | Name | Quantity |
1 | Manual uncoiler | 1 set |
2 | Main roll former | 1 set |
3 | Control cabinet | 1 set |
4 | Hydraulic station | 1 set |
5 | Product table | 2 sets |
4.Process flow of IBR metal roof sheeting roll forming machine factory in China
6.Main roll forming machine of IBR metal roof sheeting roll forming machine factory in China
Feeding device:with two hand wheels to adjust the feeding of the material,with bearing inside of the feeding rollers.
Frame:400H steel,with 20mm middle plate support
7.Hydraulic cutting system
Blade material:Cr12,with quenched treatment
Hydraulic power:5.5kw
Cutting tolerance:±1mm
With fan cooling on the oil pump

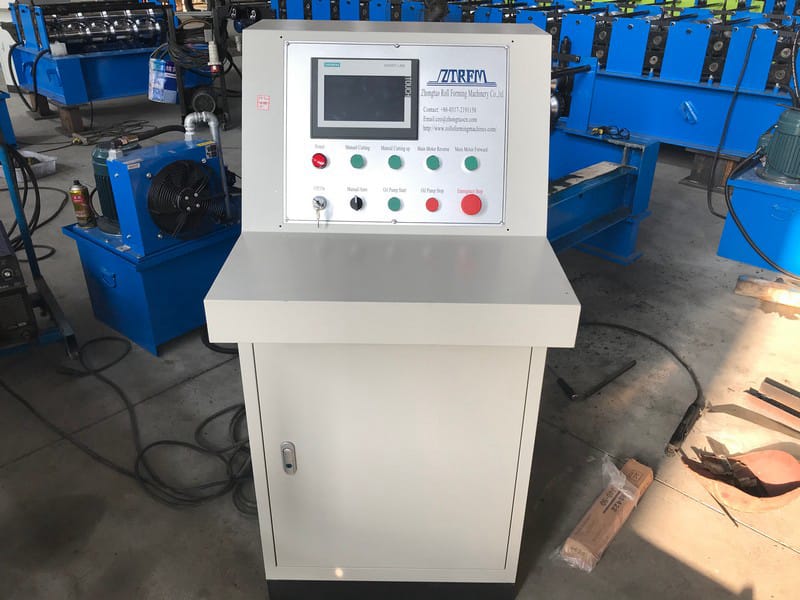

8.Control system

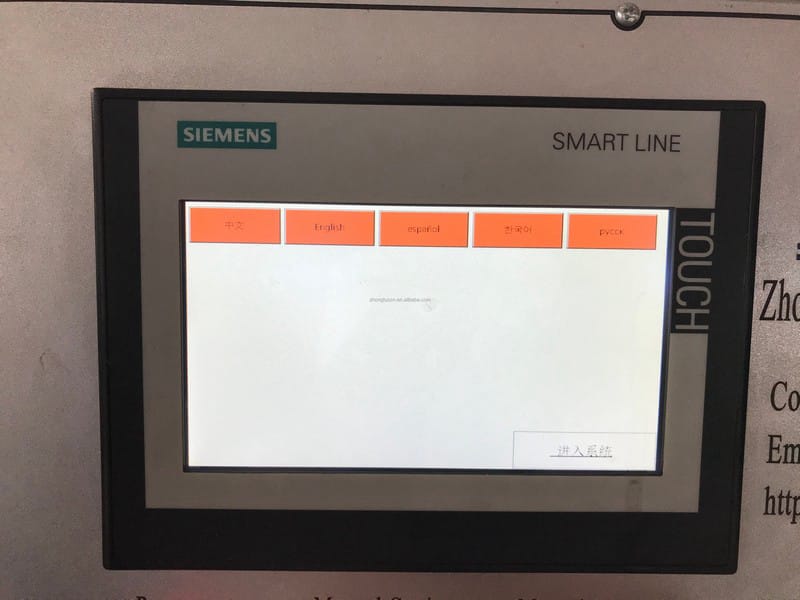

Control system:PLC
PLC brand:Delta from Taiwan
Frequency converter brand:Delta from Taiwan
Encoder:Omron
Function:Automatic control the length and quantity

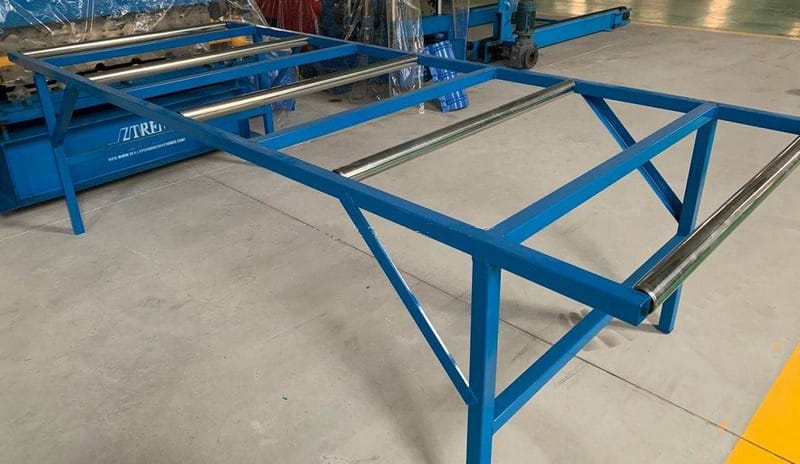

9.Product receive table
Type:manual(also can use the auto stacker as customers' request)
Length:3m
